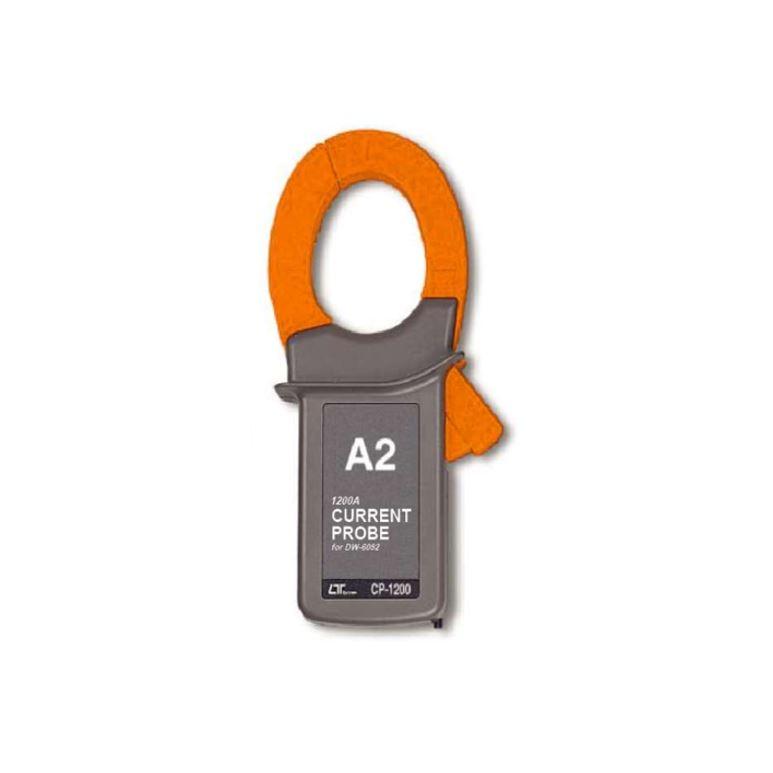

Lutron CP-1200-A2 Standard probe A2 for DW-6092SD

Autorange

20 A/200 A/1200 A

Accuracy

±0.5% F.S.

*F.S. : Full scale of range.

*50/60 Hz..

*23 ±5 °C

Frequency range

45 to 400 Hz.

*Accuracy tested under 50/60 Hz.

Phase error

< ±1°

*50/60 Hz..

Minimum load

100 K ohm for specified accuracy.

Enclosure material

UL 94-V0 rated.

Safety

IEC 1010, Categories III 600V.

Power Supply

Power supply is from the meter

(DW-6092 ), battery is not necessary.

* Power supply voltage from DW-6092, is DC 8V+ 1V..

Max. Jaw Open Size

50 mm ( 1.9 inch ) Dia.

Operation frequency

50 Hz/60 Hz.

Operation Temperature

0℃ to 50℃ ( 32℉ to 122℉ )

การใช้งาน

A2 ต้องหนีบสายเดียวกับแรงดัน V2 (Line 2 (L2 / S))
