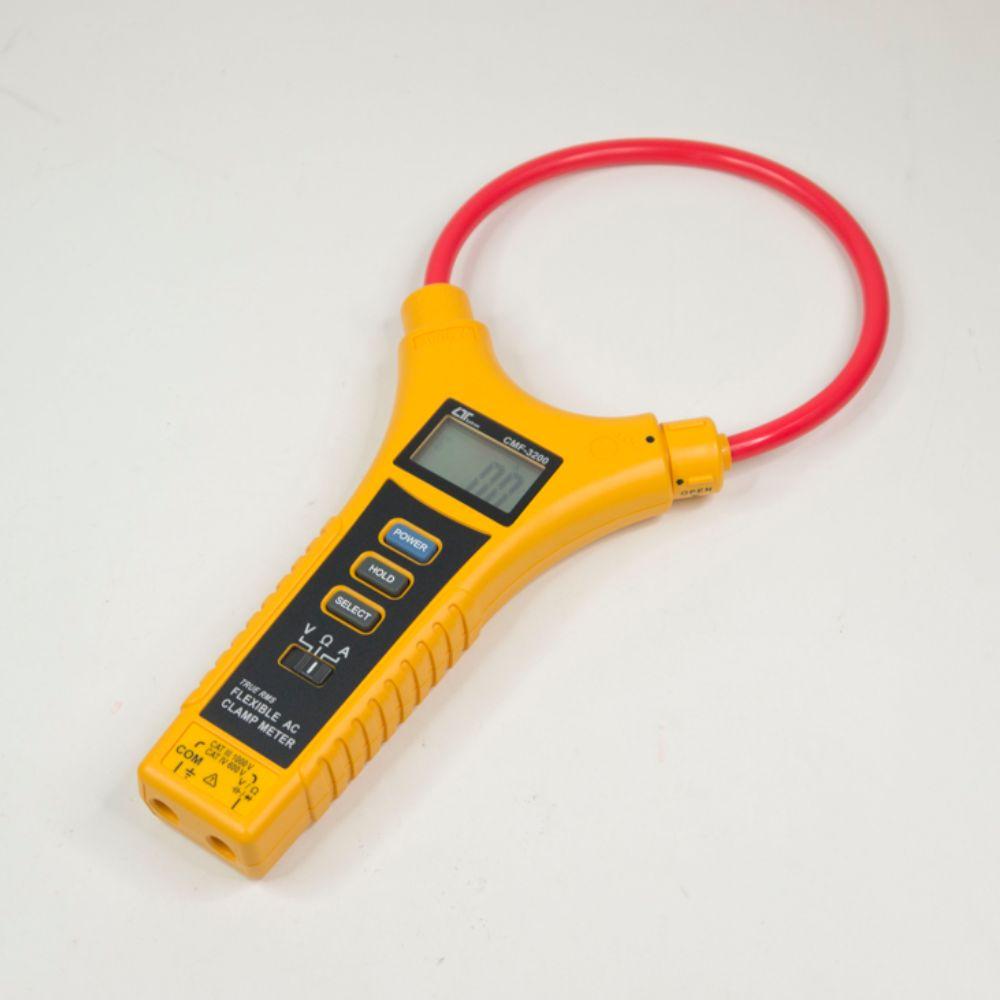

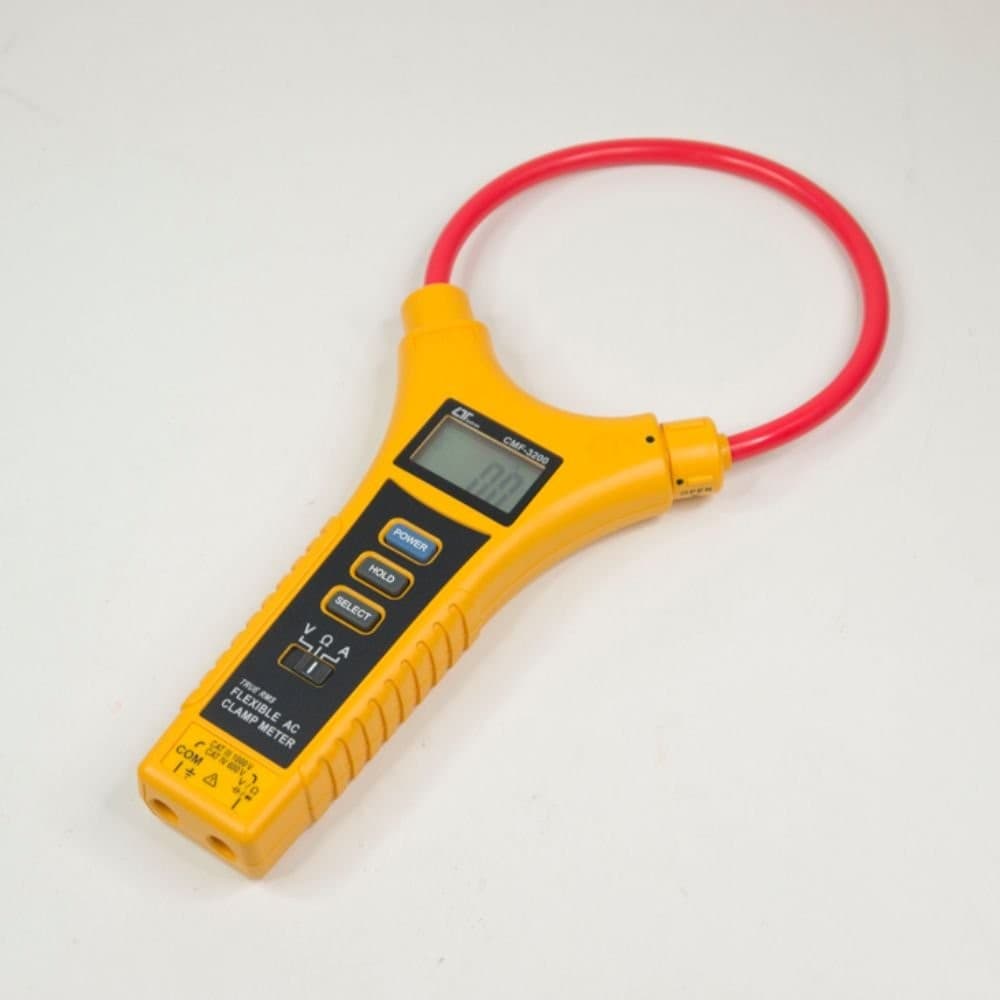

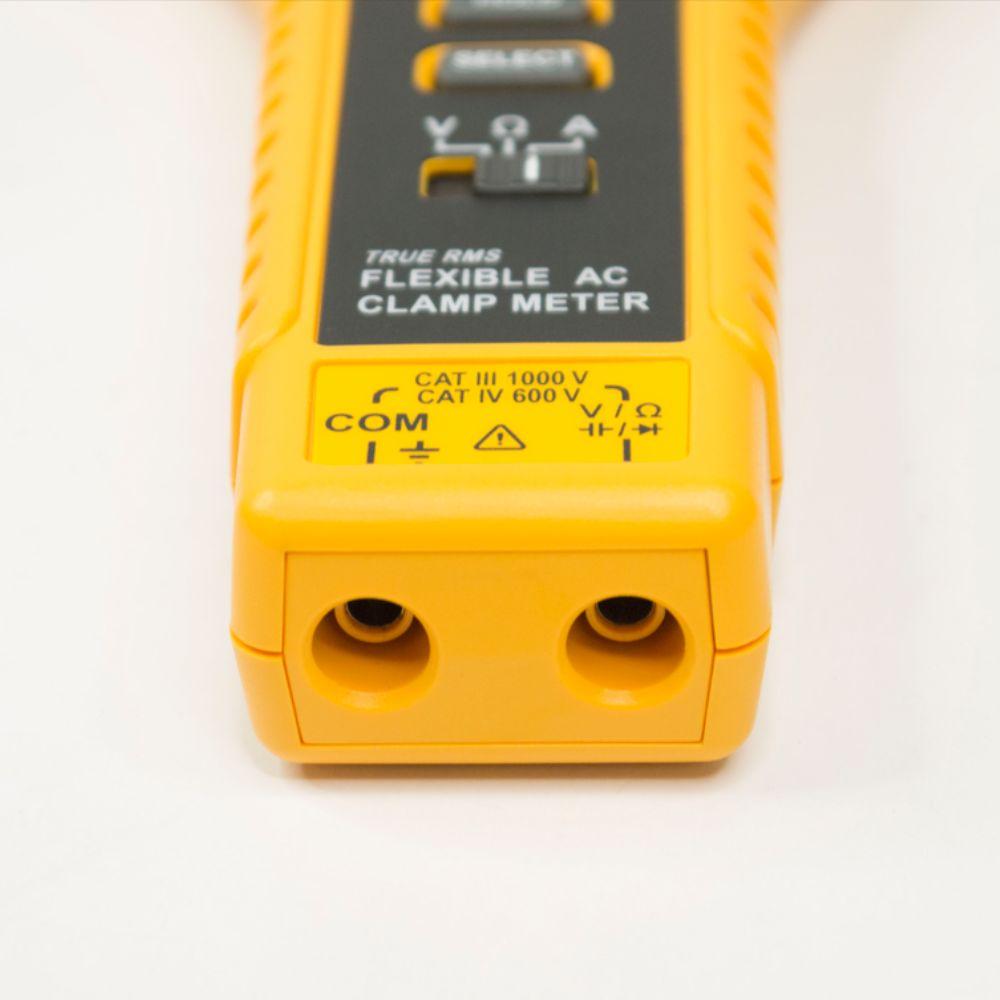

Lutron CMF-3200 แคลมป์มิเตอร์ Flexible Clamp Meter

Range

600 A/3000 A

Resolution

0.1A /1 A

Accuracy

600 A Range

± ( 1% +8d )

3000 A Range

± ( 1% +10d )

Linearity

± 0.2% of reading value from 10% to 100% of range value

Conductor position sensitivity

± 2% of reading value

* The measured conductor distance from center＞25 mm

External field influence

Increase ± 1.5% of range value max

* Recommend the distance between different " Flexibel current probe " should ＞ 200 mm

Remark

* Accuracy is specified that the measured conductor's position is on the center of "Flexible current probe"

* ACA specification be tested on sine wave 50/60 Hz.

* Measurement range︰0.1 A to 3000 A

Range

6 V/60 V/600 V /1000 V

Resolution

0.001V /0.01V /0.1V/1 V

Accuracy

± ( 0.8% + 5d )

Input impedance

10 M ohm.

Over load protection

± 1000 DCV, 1000 ACV

Range

6 V/60 V/600 V/1000 V

Resolution

0.001 V /0.01 V /0.1 V/1 V

Accuracy

± ( 1% + 8d )

* Spec. are tested under 50/60 Hz.

Input impedance

10 M ohm.

Over load protection

± 1000 DCV, 1000 ACV

Smart function test

It must be > 300 mV AC

Short/non conductance, good/defect test

Range

6 nF/60 nF/600 nF/6 uF/60 uF/600 uF

Resolution

0.001nF/0.01nF/0.1 nF/0.001uF/0.01uF/0.1uF

Accuracy

± ( 3 % + 10d )

Over load protection

± 30 DCV, 30 ACV.

Remark

* Discharge capacitor before testing. length

* Smart function must be > 0.4 nF.

Range

600 Ω /6 KΩ /60 KΩ /600 KΩ /6 MΩ /60 MΩ

Resolution

0.1 Ω /0.001 KΩ /0.01 KΩ /0.1 KΩ /0.001 MΩ/0.01 MΩ

Accuracy

600 ohm : ± ( 1 % + 5d )

6K/60K/600K/6M/60M : ± ( 1.5 % + 5d )

Over load protection

± 350 DCV, 350 ACV

Remark

60MΩ measurements must be operated in the automatic shift mode

Beeper will sound if measured resistance less than 20 ohm

Circuit

LSI circuit provides high reliability and durability.

Display

33.5 x18.7 mm, LCD display.

Measurements

DCV, ACV, ACA, Resistance,Capacitance, Diode, Continuity beeper.

A/D counts no.

6000 counts.

Voltage ranges

DCV / ACV: 6V, 60V, 600V

Current ranges

ACA: 60 A, 600 A

Safety standard

IEC 1010 CATIII 600V safety requirment.

ACV input impedance

input impedance is 10 M ega ohm.

Clamp frequency response

ACA specification be tested on sine wave 50/60 Hz.

Over-load protection

Built-in overload protection for most ranges.

Over-range

Indication of " oL " or " -oL "

Data Hold

To freeze the display reading on the LCD display.

Display sampling time

Approx. 0.5 to 1 second.

Operating Temperature

0 to 50°C

Operating Humidity

Max. 80% RH.

Power Supply

DC 1.5 V battery ( UM-4, AAA ) x 2

Power Consumption

Approx. DC 16.1 mA.

Dimensions

290 x138.3 x 26.5 mm

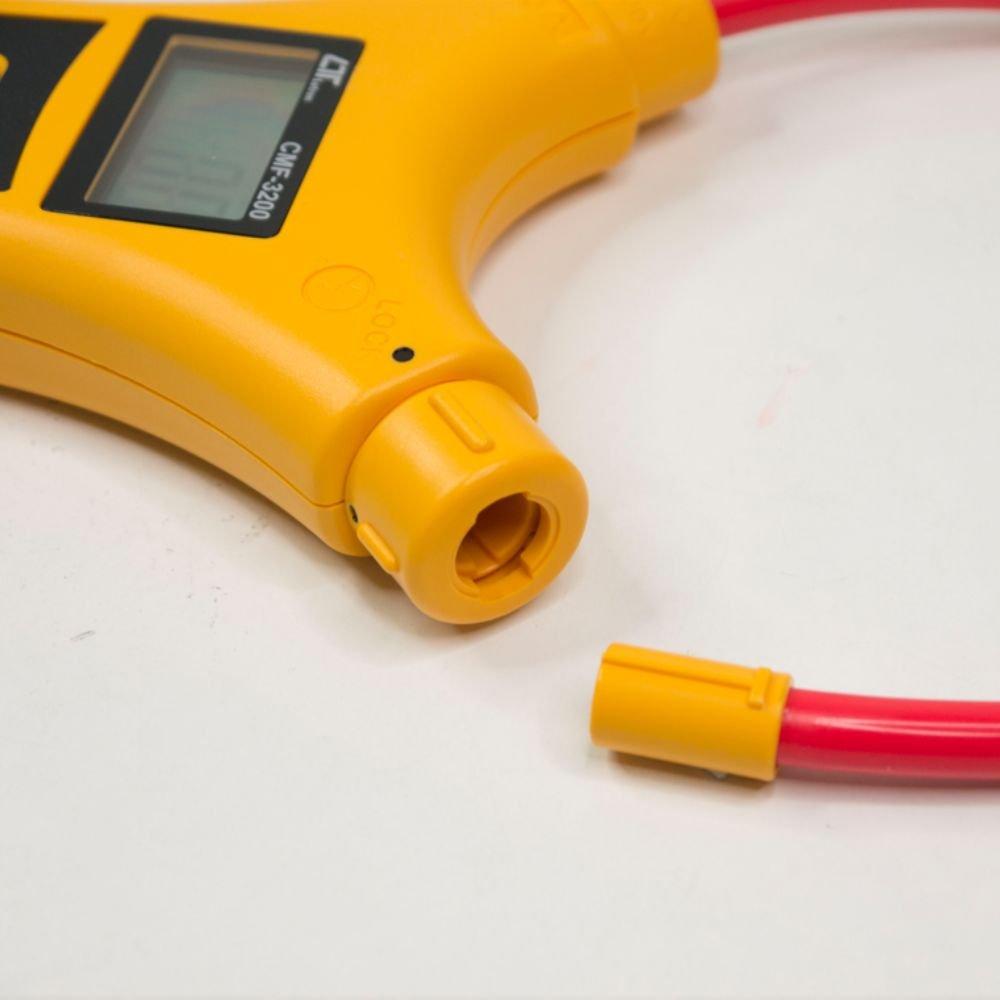

Current Sensor

Flexible Cable (Rogowski Coil)

Sampling Time

Approx. 0.5 to 1 second.

Battery

DC 1.5 V battery ( UM-4, AAA ) x 2

Weight

197 g (w.o battery)

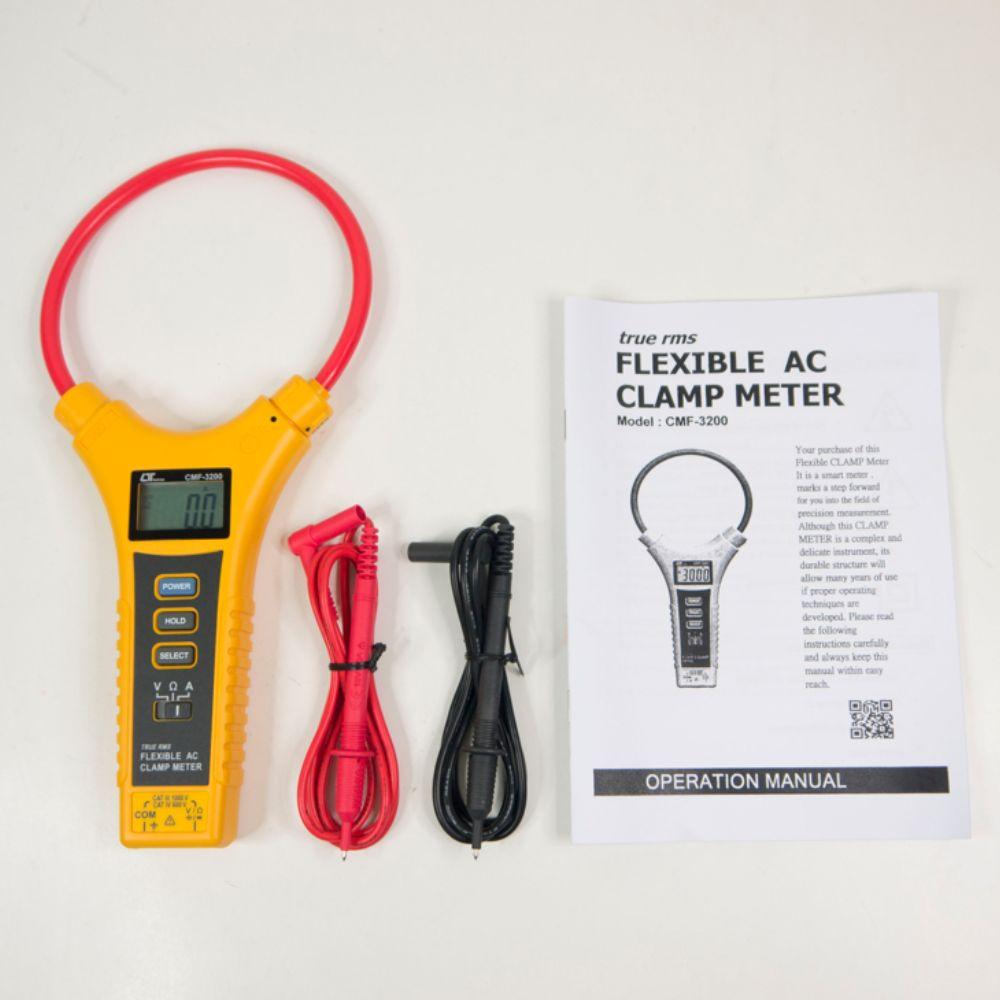

Accessories Included

Operation manual x 1
Test leads ( CATIII 1000 V ) x 1 pair

Optional Accessories

Soft carrying case
