Hioki-LR8520 เครื่องบันทึกและเก็บข้อมูลเพื่อป้องกันการเกิดเชื้อรา WIRELESS FUNGAL LOGGER
LR8520
เครื่องบันทึกอุณหภูมิความชื้น ช่วงการวัดอุณหภูมิ -40 to 80°C, ความชื้น 0 to 100%RH บันทึกข้อมูล 500,000 ค่า / 1 chanel Bluetooth® wireless technology ยี่ห้อ Hioki, Japan **สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย**
LR8520 ฟังก์ชั่นการวัด
เครื่องบันทึกและเก็บข้อมูลเพื่อป้องกันการเกิดเชื้อรา | WIRELESS FUNGAL LOGGER
LR8520 จุดเด่น
High-precision ±3% RH humidity sensors
Calculate and display fungal index*1 and growth prediction
Measure temperature and humidity other than fungal index and growth prediction
Compact 1ch logger (Temperature/Humidity each 1 ch input)
Download measurement data to a tablet or computer with Bluetooth® wireless technology
Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
Store 500,000 data points per channel
LR8520 ช่วงการวัด
Measurable range
[Temperature] -40˚C to 80˚C, Range 100˚C f.s., Max. resolution 0.1˚C
[Humidity] 0% to 100% RH, Range 100% RH f.s., Max. resolution 0.1% RH
Measurement accuracy (using Z2010/Z2011)
[Temperature] ±0.5 ˚C (10˚C to 60˚C), If outside above temperature range: Add 0.015 ˚C/ ˚C (-40 ˚C to 10 ˚C) or 0.02˚ C/ ˚C (60 ˚C to 80 ˚C)
[Humidity] ±3% RH (20˚C to 30 ˚C, 20% to 90% RH), Hysteresis: ±1% RH (Added to the humidity measurement accuracy)
Environmental effects and ageing changes: add the below to the accuracy of the humidity measurement
±12% RH (10% RH ≤ humidity <30% RH)
±6% RH (30% RH ≤ humidity <40% RH)
±3% RH (40% RH ≤ humidity <90% RH)
LR8520 Power Supply
ACAdapter Z2003 (100 to 240 V AC, 50 /60 Hz), AA alkaline batteries (LR6) × 2, External power 5 to 13.5 V DC (can also be supplied from USB bus power via a conversion cable)
LR8520 ขนาดสินค้า
85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D (Excluding protrusions), 95 g (3.3 oz) (Not including the battery)

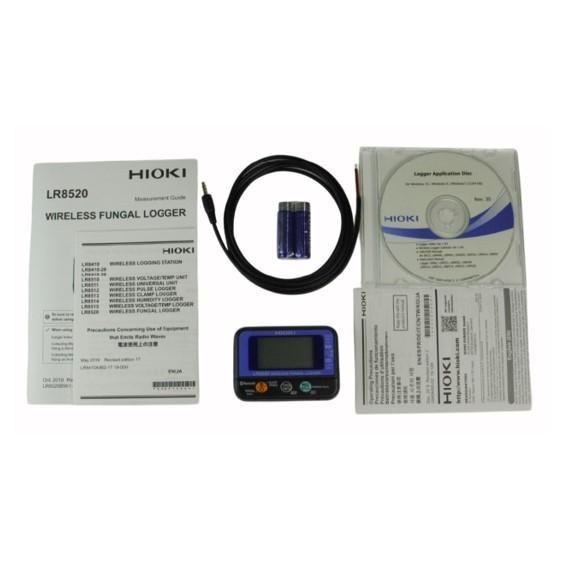

LR8520 อุปกรณ์ที่มาในชุด
CD-R (Instruction Manual, Logger Utility, Wireless Logger Collector) ×1, Measurement Guide ×1,
Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2 , Connection cable L1010 ×1
LR8520 อุปกรณ์เสริม

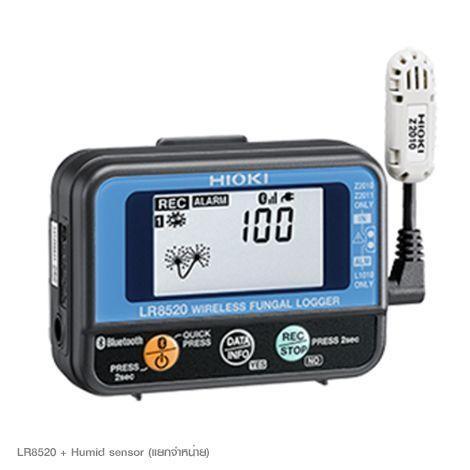

Z2010 เซนเซอร์วัดอุณหภูมิความชื้น
Z2011 เซนเซอร์วัดอุณหภูมิความชื้น สายยาว 1.5 เมตร
Z2003 อแดปเตอร์
Z5004 สายคล้องแม่เหล็ก
LR8520 ข้อมูลจำเพาะ
Functionality
[Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included)
Android smartphone or Android tablet terminal
(Download app from Google Play)
*Communication range varies with the performance of the computer or tablet
(up to a line-of-sight distance of roughly 30 m)
[Used as an input module (Real-time measurement) ]
Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m
Number of channels
1 temperature channel + 1 humidity channel (Humidity sensor Z2010 or Z2011 is required (sold separately))
Display items
Temperature, humidity, fungal index (0 to 200), growth prediction (5 levels)
Other functions
Measurement value, Date, Time, Number of recorded data, Maximum value, Minimum value, Average value, Alarm, Scaling, Recording operation hold function,
Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run
Recording
[Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.5 sec to 30 sec, 1 min to 60 min, 14 selections
Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C)
3.5 months (Recording interval of 1 min, Bluetooth® OFF), 20 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.5 sec, during real-time measurement with the LR8410)
