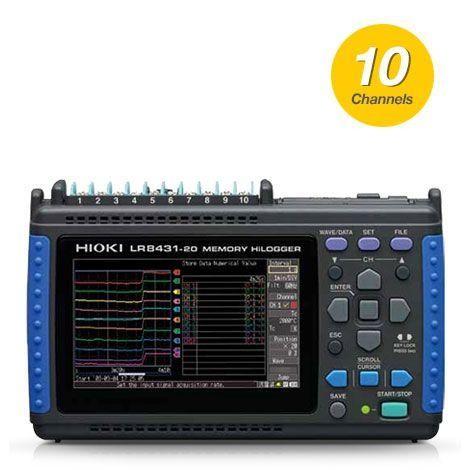

Hioki-LR8431-20 เครื่องบันทึกข้อมูลอเนกประสงค์ | 10 Channels

รหัสสินค้า

LR8431-20

ภาพรวม

เครื่องบันทึกข้อมูลอเนกประสงค์ 10 Channels + Pulse 4 channels ฟังก์ชั่นการบันทึก Temperature (thermocouples), Voltage, Pulse ฟังก์ชั่น Data memory 3.5 ล้านค่า, CF card และ USB Flashdrive เชื่อมต่อคอมพิวเตอร์ด้วย USB 2.0 mini-B Interface ยี่ห้อ Hioki, Japan สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

เพิ่มคำถาม

ผู้ใช้งาน

7 มีนาคม 2568 13:33 น.

( 0 คำตอบ)

สามารถต่อ Sensor อะไรได้บ้าง

LR8431-20 | ฟังก์ชั่นการวัด

oltage, Temperature, Pulse or rotation signals

LR8431-20 | จุดเด่น

เครื่องบันทึกข้อมูลความเร็วสูงสำหรับการบันทึก Voltage, Temperature, Pulse or rotation signals ซึ่งบันทึกข้อมูลด้วยความเร็ว 10ms ผ่านช่องสัญญาณ 10 ช่องพร้อมกัน หน้าจอ LCD ขนาด 4.3 inch WQVGA-TFT color LCD (480 × 272 dots) สีสดใสการแสดงผลรูปแบบคลื่นคมชัด ขนาดตัวเครื่อง 176 × 101 × 41mm (550g)
ยี่ห้อ Hioki, Japan

Features

  • บันทึกข้อมูลข้อมูลลงบน USB สะดวกในการถ่ายโอนข้อมูลไปยังเครื่องคอมพิวเตอร์
  • บันทึกลงในการ์ด Compact Flash ใช้งานการวัดระยะยาว
  • สามารถตั้ง Sampling interval ความถี่ในการบันทึกข้อมูล 10ms ถึง 1 hour (19 selections)
  • ความความแม่นยำของการวัด Thermocouples (Type K, J, E, T, N, R, S, B) ที่เพิ่มขึ้น
  • ช่องใส่ข้อมูลอนาล็อกแยก 10 ช่อง
  • Noise-resistant measurement circuitry เพื่อการอ่านค่าที่ดียิ่งขึ้น
  • กะทัดรัดเพื่อพกพาได้สะดวก
  • จอกว้างจอ LCD สว่าง อ่านค่าง่าย ชัดเจน



Hioki-LR8431-20 เครื่องบันทึกข้อมูลอเนกประสงค์ | 10 Channels

This compact logger excels in a broad range of settings, from production lines to research and development

  • LR8431-20 ใช้ในการประเมินมอเตอร์และอินเวอร์เตอร์ที่ใช้ในรถยนต์ไฟฟ้าไฮบริด LR8431-20 ช่วยให้สามารถวัดได้อย่างรวดเร็ว
  • LR8431-20 รองรับการวัดหลายจุดพร้อมกันเช่นอินพุตและเอาต์พุต Air conditioning หลายเครื่องหรืออุณหภูมิของชิ้นส่วนภายใน
  • การวัดสมรรถนะและการประเมินสมรรถนะของส่วนประกอบภายในของอุปกรณ์อิเล็กทรอนิกส์ LR8431-20 สามารถวัดประสิทธิภาพการระบายความร้อนภายในตู้ได้



Hioki-LR8431-20 เครื่องบันทึกข้อมูลอเนกประสงค์ | 10 Channels

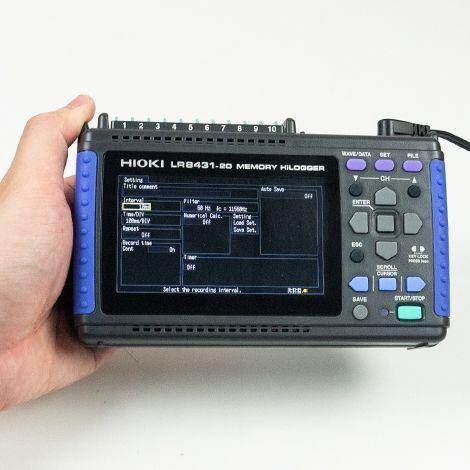

10-channel logger still fits in the palm of your hand

  • มีขนาดกะทัดรัดเพื่อพกพาได้สะดวก
  • ไม่ต้องกังวลเกี่ยวกับศักยภาพ ของการวัดอุณหภูมิและแรงดันไฟฟ้า เพราะช่องสัญญาณอนาล็อกทั้งสิบช่องถูกแยกออก แม้ในขณะที่วัดอุณหภูมิและแรงดันไฟฟ้าในเวลาเดียวกันFour pulse channels เหมาะสำหรับการนับรอบการหมุนเพื่อวัดความเร็วในการหมุน (Pulse inputs share common ground.)
  • การแยกช่องสัญญาณเป็นไปได้โดยการใช้ Semi-conductor relays แรงดันไฟฟ้าเกินข้อกำหนดของตัวเครื่อง เช่นที่เกิดจากการกระชากฟ้าผ่าหรือจากแหล่งอื่นๆ ไม่ควรใช้ระหว่างแต่ละช่อง ถ้าไม่รีเลย์จะสั้นลงและเครื่องจะเสียหาย


Hioki-LR8431-20 เครื่องบันทึกข้อมูลอเนกประสงค์ | 10 Channels

A data logger with a 10 ms sampling and recording across all channels

  • เปลี่ยนการเปลี่ยนแปลงในขณะโหลด ต้องวัดระหว่าง EV • HV • PHV ซึ่งต้องใช้การสุ่มตัวอย่างแบบหลายช่องสัญญาณและการสุ่มตัวอย่าง 10 มิลลิวินาที HiLOGGER นี้สามารถติดตามรูปคลื่นที่ไม่สามารถปฏิบัติตามได้โดยใช้ช่วงสุ่มตัวอย่าง 100 มิลลิวินาทีที่มีอยู่ก่อนหน้านี้



Hioki-LR8431-20 เครื่องบันทึกข้อมูลอเนกประสงค์ | 10 Channels


Featuring USB flash drive and CF card support

  • LR8431-20 สามารถบันทึกข้อมูลข้อมูลลงใน USB แฟลชไดรฟ์เพื่อสะดวกในการถ่ายโอนข้อมูลไปยังเครื่องคอมพิวเตอร์ นอกจากนี้ยังสามารถบันทึกแผ่น Compact Flash ได้เพื่อเพิ่มความอุ่นใจ
  • แทนที่ไฟล์สำรองข้อมูลในขณะการบันทึกเรียลไทม์ โดยไม่ต้องหยุดการวัดเพื่อให้คุณสามารถวิเคราะห์ข้อมูลที่บันทึกไว้ได้
  • * During high-speed recording, be sure to insert the new storage media within 2 minutes of removing the former. *Use only HIOKI CF cards, which are manufactured to strict industrial standards, for long-term storage of important data. Operation of non-HIOKI CF cards is not guaranteed.



Hioki-LR8431-20 เครื่องบันทึกข้อมูลอเนกประสงค์ | 10 Channels


Included PC application with measurement and analysis functionality

  • Software Logger Utility ช่วยในการประมวลผลข้อมูลการวัดบนเครื่องพีซีใช้ซอฟต์แวร์ Logger Utility เพื่อบันทึกข้อมูลบนเครื่องพีซีแบบเรียลไทม์ ดูจำนวนข้อมูลที่ในการเขียนบันทึกเชื่อมต่อเครื่องคอมพิวเตอร์เข้ากับ HiLOGGER โดยใช้ USB หรือผ่าน LAN


LR8431-20 | ช่วงการวัด

Number of channels

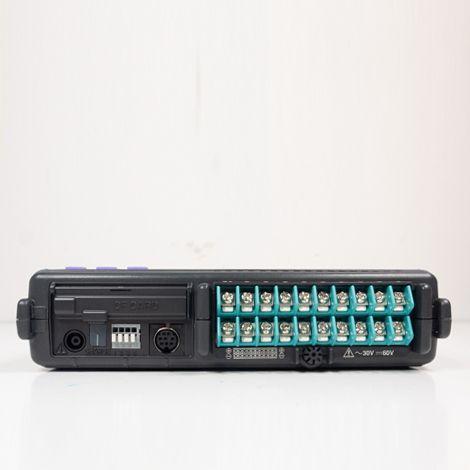

  • Analog: 10 isolated channels using scanning input method (M3 mm dia. screw terminal block)
  • Pulse: 4 channels (All pulse inputs share common ground with the main unit)

Measurement parameters

  • Voltage: ±100 mV to ±60 V, 1-5V f.s. 6 ranges, Max. resolution 5µV
  • Temperature (thermocouples): -200 ˚C to 1800 ˚C (depend on the sensor), 1 range (K, J, E, T, N, R, S, B), Max. resolution 0.1 ˚C
  • Temperature (Pt 100 sensor) : not available
  • Humidity: not available
  • Totalized pulses: 0 to 1000M pulse, 1 range (No-voltage ‘a’ contact, open collector or voltage input), Max. resolution 1 pulse
  • Rotation count: 0 to 5000/n (r/s) f.s. 1 range (No-voltage ‘a’ contact, open collector or voltage input), Resolution 1/n (r/s) Note: n = pulses per rotation (1 to 1,000)

Max. allowable input  DC 60 V (Analog input), DC -5 V to 10 V (Pulse input)

Max. rated voltage to earth  AC 30 Vrms, DC 60 V
(Upper limit voltage that does not cause damage when applied between input channel and chassis, and between each input channels)

LR8431-20 | Power Supply

AC adapter Z1005: 100 to 240 VAC (50/60 Hz)
Battery pack 9780: Continuous use 2.5 hours
12 V DC supply: 10 to 16 V (please contact HIOKI distributor for cable; less than 3 m/9.84 ft cable length)

LR8431-20 | ขนาดสินค้า

176 mm (6.93 in) W × 101 mm (3.98 in) H × 41 mm (1.61 in) D, 550 g (19.4 oz) (Battery pack 9780 not installed)

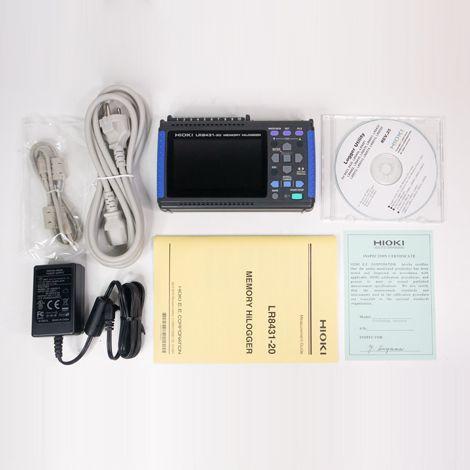

LR8431-20 | อุปกรณ์ที่มาในชุด

  • Measurement Guide ×1
  • CD-R (Instruction manual PDF
  • Logger Utility Instruction Manual PDF
  • Data acquisition application program Logger Utility) ×1
  • USB cable ×1
  • AC adapter Z1005 ×1

LR8431-20 | อุปกรณ์เสริม

9780 Battery Pack

LR8431-20 | ข้อมูลจำเพาะ

Recording intervals

10 ms to 1 hour, 19 selections
(All input channels are scanned within each recording interval.)

Selectable filters

50 Hz, 60 Hz, or OFF
(digital filtering of high frequencies on analog channels)

Memory capacity

Internal storage: 3.5 M-words, External storage: CF card or USB memory stick
(only the HIOKI CF card is guaranteed for correct operation)

External interface

USB 2.0 mini-B receptacle ×1; Functions: Control from a PC, Transfers files from the installed CF card to a PC
(cannot transfer files from the connected USB memory stick to a PC via USB communication), Data copy between CF card and USB memory stick

Display

4.3-inch WQVGA-TFT color LCD (480 × 272 dots)

Functions

Save data to the CF card or USB memory stick in real time, Numerical Calculations, etc.
