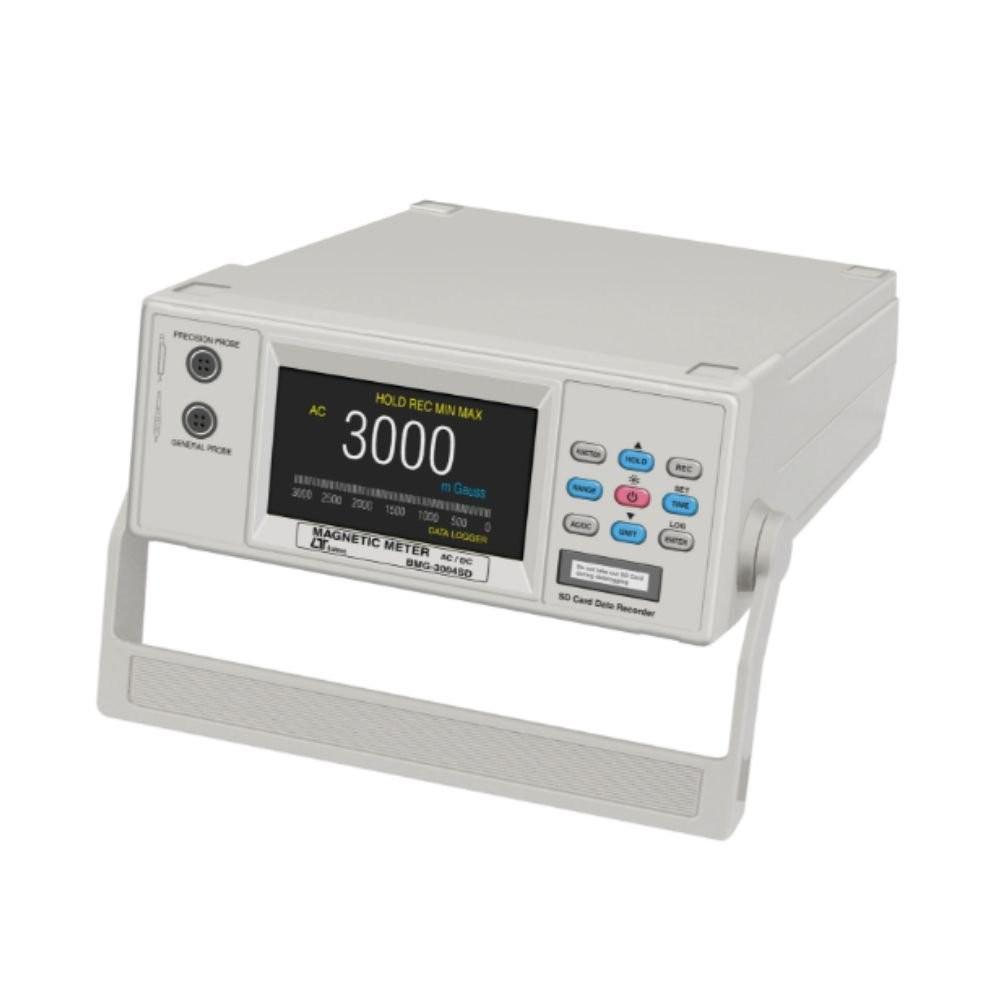

Lutron BMG-3004SD เครื่องวัดแบบแม่เหล็กไฟฟ้า Magnetic Meter

Measurement Unit

Range

Resolution

Accuracy at 23 ± 5℃

mG

-3000 mG to 3000 mG

• 0.1 mG for -199.9 to 199.9 mG

• 1 mG for values ≥ 200 mG and ≤ -200 mG

±(2% + 2 mG) from -1,000 mG to 1,000 mG

µT

-300 µT to 300 µT

• 0.01 µT for -19.99 µT to 19.99 µT

• 0.1 µT for values ≥ 20.0 µT

±(2% + 2 µT) from -100.0 µT to 100.0 µT

Measurement

Range

Resolution

Accuracy at 23 ± 5℃

DC

mT

Range 1: 300.00 mT

0.01 mT

± (5% + 10 digits)

reading

Range 2: 3,000.0 mT

0.1 mT

G

Range 1: 3,000.0 G

0.1 G

Range 2: 30,000 G

1 G

AC (50/60 Hz)

mT

Range 1: 150.00 mT

0.01 mT

± (5% + 10 digits)

reading

Range 2: 1,500.0 mT

0.1 mT

G

Range 1: 1,500.0 G

0.1 G

Range 2: 15,000 G

1 G

Sensor Type

Hall sensor

Circuit

Custom one-chip microprocessor LSI circuit.

Display

TFT LCD size : mm x mm

Datalogger Sampling Time

Auto

1 sec to 3600 sec. *Setting sampling time to 1 second may result in data loss.

Manual

Push the data logger button once will save data one time

* Set the sampling time toSet sampling time between 1 to 3600 seconds.

* Manual mode, can also select the 1 to 99 position ( Location ) no.

Data Error No.

≤ 0.1% of total saved data typically.

Temperature Compensation for hall sensor

Probe head build the Temp. sensor for using the ATC ( automatic Temp. compensation )

Field Direction

Uniaxial.

Data Hold

Freeze the display reading

Memory Recall

Maximum & Minimum value.

Display Sampling Time

Approx. 1 second.

Power Off

Manual off by push button or Auto shut off to save battery life.

Operating Temperature

0 to 50 °C.

Operating Humidity

Less than 85% relative humidity.

Data Output

RS232/USB PC serial interface.
Use UPC8-02 cable (RS232) or USB-01 (USB).

Power Supply

• Alkaline or heavy-duty type DC 1.5V battery (UM3, AA) x 6 pcs or equivalent.

• DC 9V adapter input, AC/DC power adapter optional.

Power Current

• Normal operation (without SD card and LCD backlight off): Approx. DC 13 mA.

• With SD card and backlight off: Approx. DC 35 mA.

• With backlight on: Increase by approximately 3 mA.

Weight

Approx. 303 g (including meter and probe)
