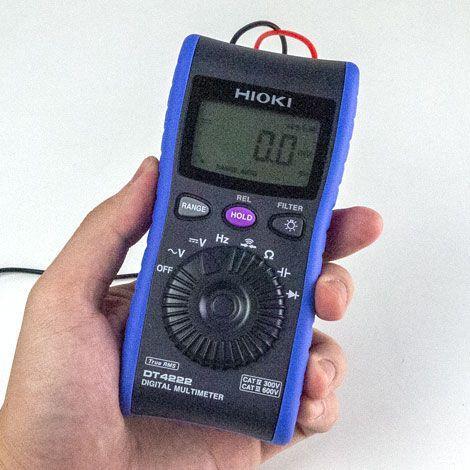

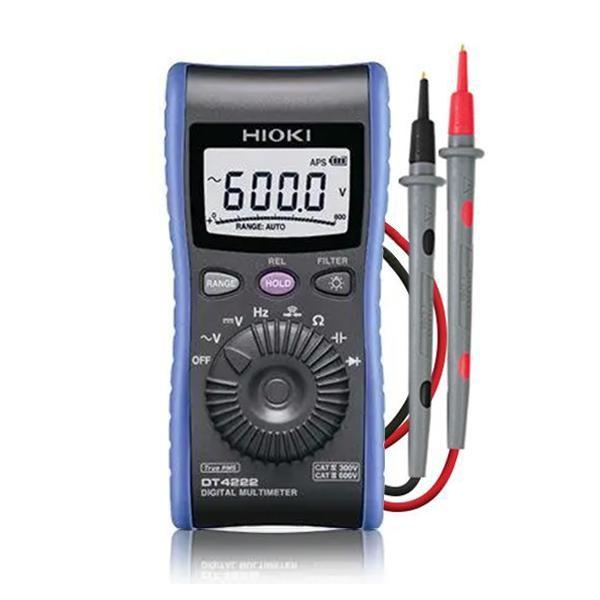

Hioki-DT4222 ดิจิตอลมัลติมิเตอร์ (True RMS) | With C/R Measurement, For General Use

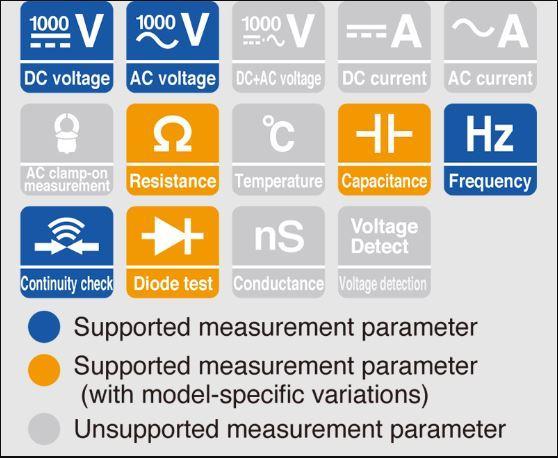

DT4222 | ฟังก์ชั่นการวัด

AC/DC voltage
Resistance
Capacitance
Frequency

Continuity check

Diode test

DT4222 | ช่วงการวัด

AC voltage Range: 600.0 mV to 600.0 V, 4 ranges
DC voltage Range: 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Resistance Range: 600.0 Ω to 60.00 MΩ, 6 ranges
Capacitance Range: 1.000 μF to 10.00 mF, 5 ranges
Frequency Range: ACV measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges

Continuity Check : Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more

Diode test: Open terminal voltage: 2.5 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V

DT4222 | Power Supply

LR03 alkaline batteries ×1, Continuous use: 40 hours (back light OFF)

DT4222 | ขนาดสินค้า

72 x 149 x 38mm (190g)

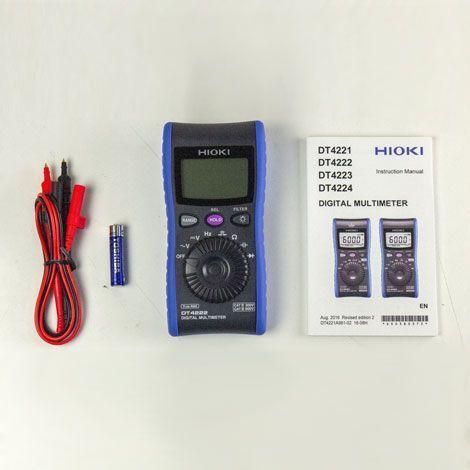

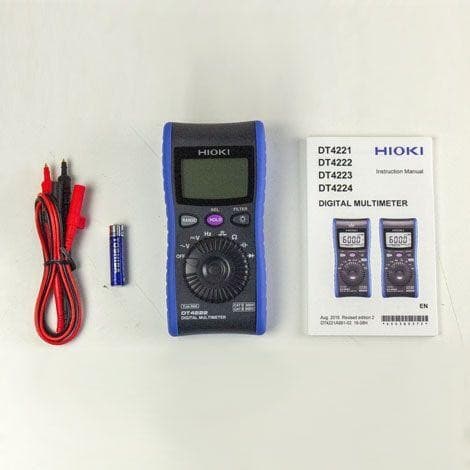

DT4222 | อุปกรณ์ที่มาในชุด

Test Lead DT4911 ×1

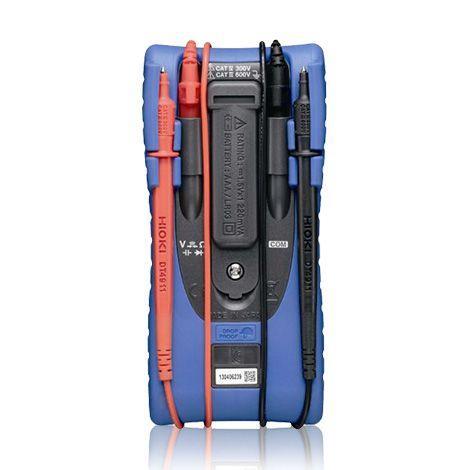

Holster ×1

Instruction manual ×1

LR03 alkaline battery ×1

DT4222 | อุปกรณ์เสริม

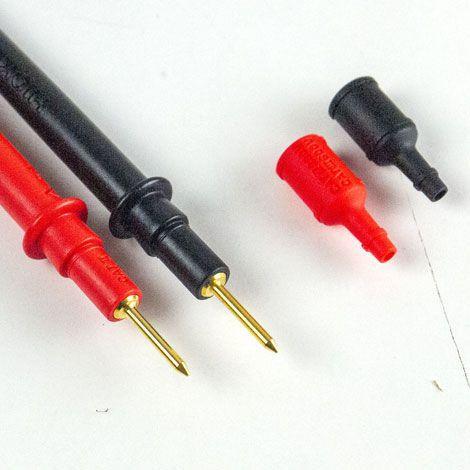

Test Lead  : L9207-10/ DT4911, L9206, 70V DC/ 33V AC

Attaches to the tip of the : L4932, L9207-10/DT4911, L9206, CAT III 300V, CAT II 600V

CARRYING CASE C0200

MAGNETIC STRAP Z5004

DT4222 | ข้อมูลจำเพาะ

Operating temperature and humidity : -10°C to 50°C

Storage temperature and humidity : -30°C to 60°C

Applicable standards : IP40 (When operating), IP42 (While in storage)

Maximum rated voltage between input terminals and ground : CAT III 600 V, CAT IV 300 V

Maximum rated voltage between terminals : Between the V and COM terminals: 600 V DC/AC
