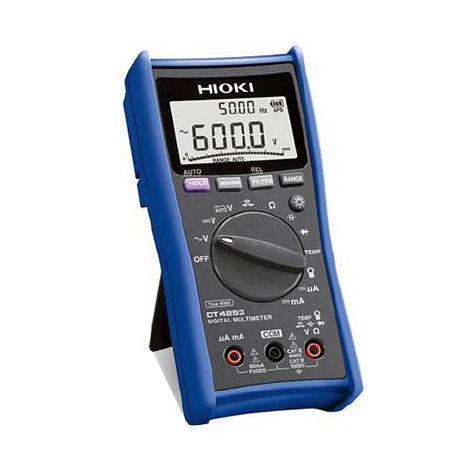

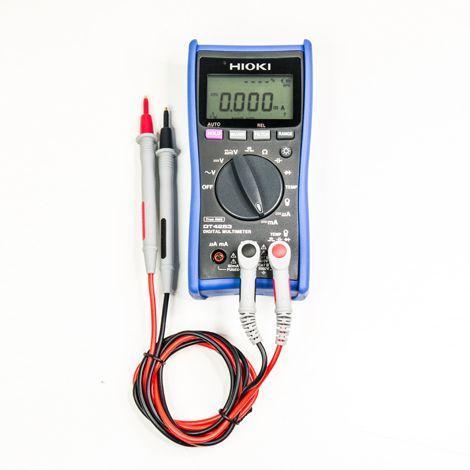

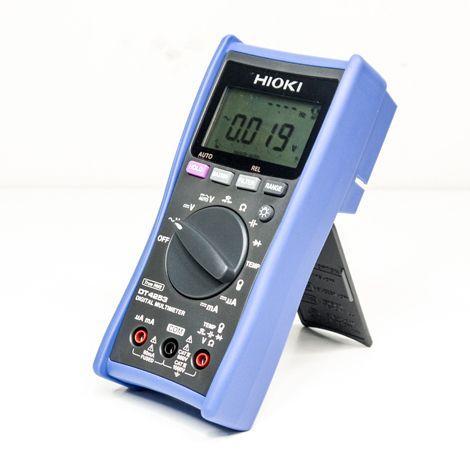

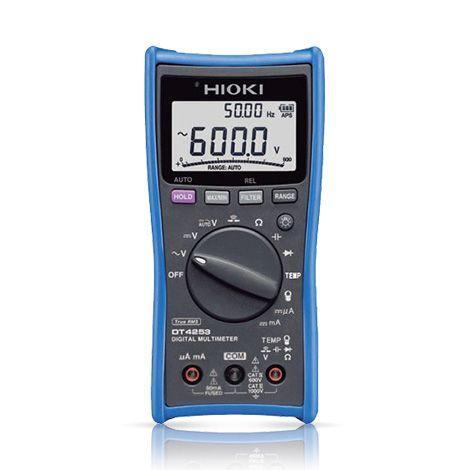

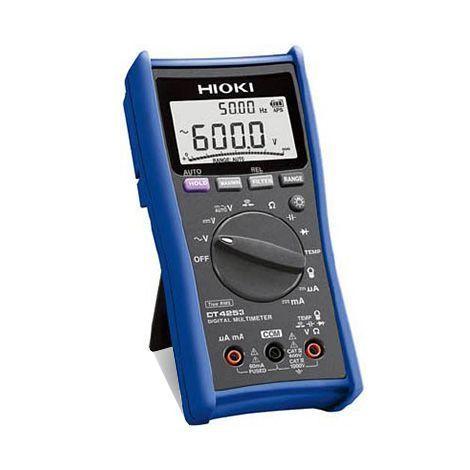

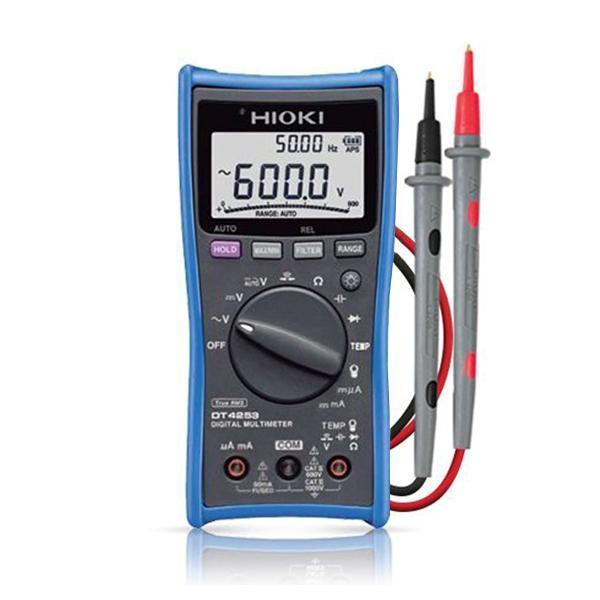

Hioki-DT4253 ดิจิตอลมัลติมิเตอร์ True RMS (MA DC | Temperature)
DT4253
฿8,150.00(ไม่รวมภาษี)
จำนวน
สินค้าในคลัง7
ดิจิตอลมัลติมิเตอร์ (True RMS) ที่ออกแบบมาสำหรับงาน HVAC. ช่วงการวัด DC 60μA to 60mA รวดเร็วและแม่นยำในการวัดค่า ใช้งานง่ายด้วยปุ่มแบบหมุน ฟังก์ชั่น Resistance, Capacitance, Frequency, Continuity, Diode, Temperature USB Interface, หน้าจอ LCD Back light พร้อม Bar graph display มาตรฐาน CAT III 1000V และ CAT IV 600V แข็งแรงทนทานพร้อม Drop-Proof สูงสุด 1 เมตร ยี่ห้อ Hioki, Japan

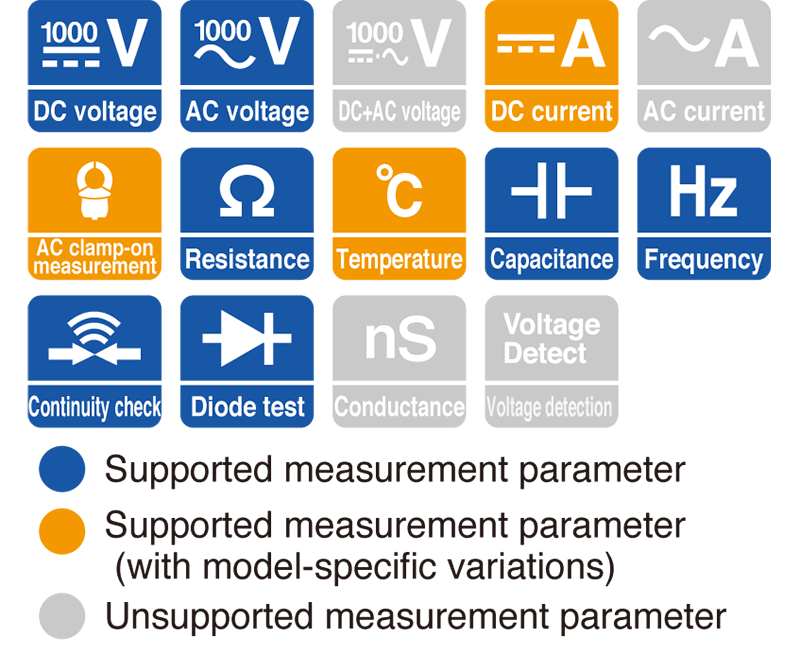

DT4253 | ฟังก์ชั่นการวัด
ดิจิตอลมัลติมิเตอร์ True RMS (mA DC | Temperature)
DT4253 | จุดเด่น
Digital multimeter ideal for instrumentation, airconditioning equipment, and gas-burning devices
600.00 μA range for measuring very low currents used by gas-burning devices

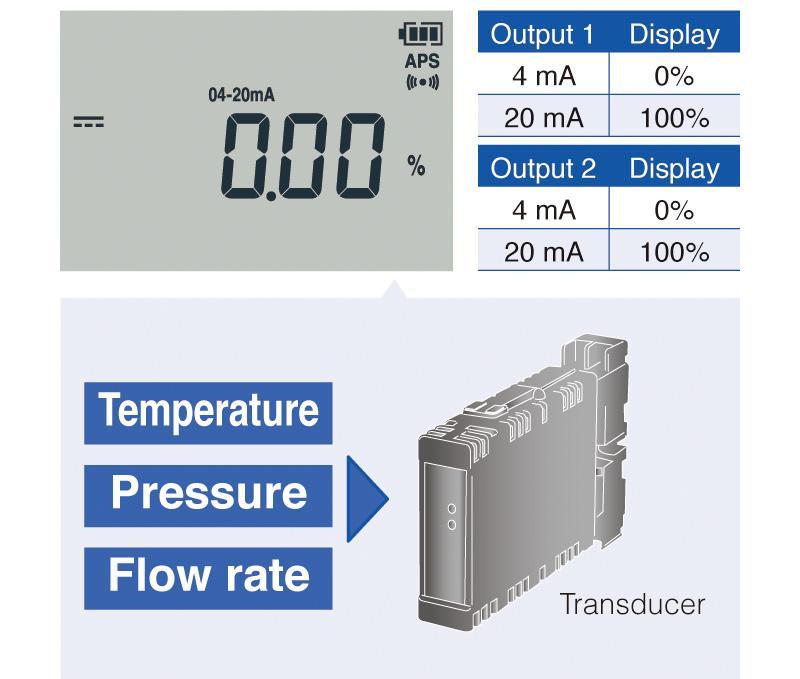

Percentage display for instrumentation signal 4 to 20 mA measurements
Clamp-on sensor based current measurement eliminates the cause of accidents

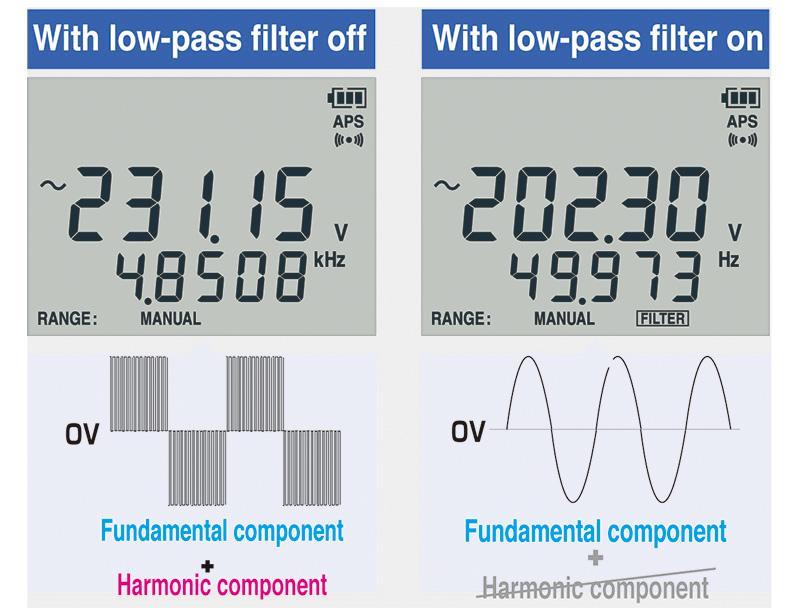

Measure output voltage on the secondary sides of inverters by eliminating harmonic components
Measurement data can be downloaded to, reviewed on, and saved to a computer.
True RMS measurement for accurate measurement of even distorted current waveforms
Designed and manufactured in Japan to ensure high quality and guaranteed with a 3-year warranty for peace of mind
Safe measurement requires use of an instrument that suits the measurement location.
DT4253 | ช่วงการวัด
DC voltage
600.0 mV to 1000 V
5 ranges, Basic accuracy: ±0.3 % rdg. ±5 dgt.
AC voltage
6.000 V to 1000 V, 4 ranges
Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance
600.0 Ω to 60.00 MΩ, 6 ranges
Basic accuracy: ±0.7 % rdg. ±5 dgt.
DC current
60.00 μA to 60.00 mA, 4 ranges,
Basic accuracy: ±0.8 % rdg. ±5 dgt.
AC Current (use with Clamp on probes)
10.00 A to 1000 A, 7 ranges,
Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
Temperature (thermocouples)
Type-K: -40.0 to 400.0°C
Add the Temperature probe accuracy to basic accuracy: ±0.5 % rdg. ±2 °C
Voltage detection-C (capacitance)
1.000 μF to 10.00 mF, 5 ranges
Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency
99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage)
Basic accuracy: ±0.1 % rdg. ±1 dgt.
Continuity check
Continuity threshold [ON]: 25 Ω or less
[OFF]: 245 Ω or more
Response time: 0.5 ms or more
Diode test
Open terminal voltage: 5.0 V or less
Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15V to 1.5V
DT4253 | Power Supply
LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)
DT4253 | ขนาดสินค้า
84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (with batteries and holster)

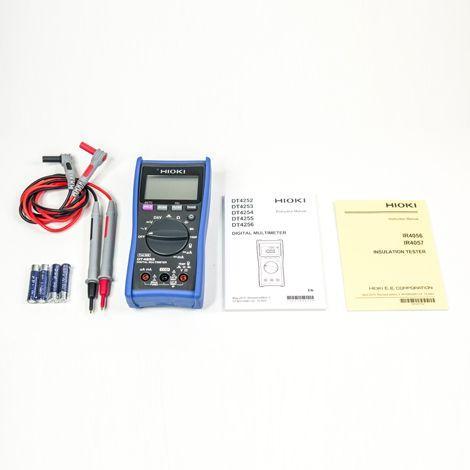

DT4253 | อุปกรณ์ที่มาในชุด
ตัวเครื่อง
Test lead
Holster
แบตเตอรี่ Alkaline AAA (LR03) x 4
คู่มือ
DT4253 | อุปกรณ์เสริม
TEST LEAD L9207-10
TEST LEAD L9300
DC HIGH VOLTAGE PROBE P2000
SMALL ALLIGATOR CLIP SET L4934
CONTACT PIN SET L4933
EXTENSION CABLE SET L4931
BREAKER PIN SET L4939
TEST PIN SET L4938
BUS BAR CLIP SET L4936
MAGNETIC ADAPTER SET L4937
TEST PIN SET L4932
CONNECTION CABLE SET L4930
ALLIGATOR CLIP SET L4935
GRABBER CLIP L9243
CLAMP ON PROBE 9010-50
CLAMP ON PROBE 9018-50
CLAMP ON PROBE 9132-50
CONVERSION ADAPTER 9704
THERMOCOUPLES(K) DT4910
CARRYING CASE C0202
COMMUNICATION PACKAGE (USB) DT4900-01
CARRYING CASE C0201
MAGNETIC STRAP Z5020
CARRYING CASE C0207
DT4253 | ข้อมูลจำเพาะ
AUTO AC/DCV Yes
From 4 to 20mA Percentage conversion display Yes
Voltage detection N/A
Other functions
Filter function
Display value hold
Auto hold
Max/Min/Average value display
Relative display
Auto-power save
USB communication (option)
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s)
