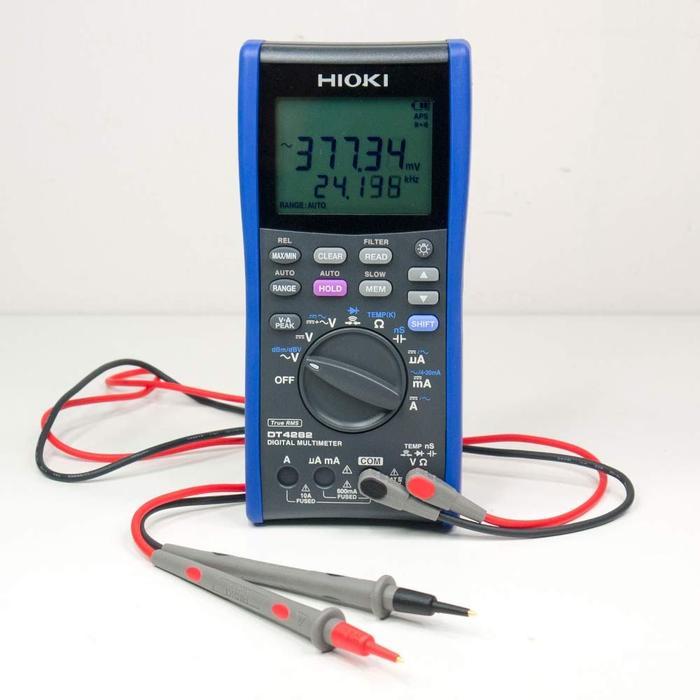

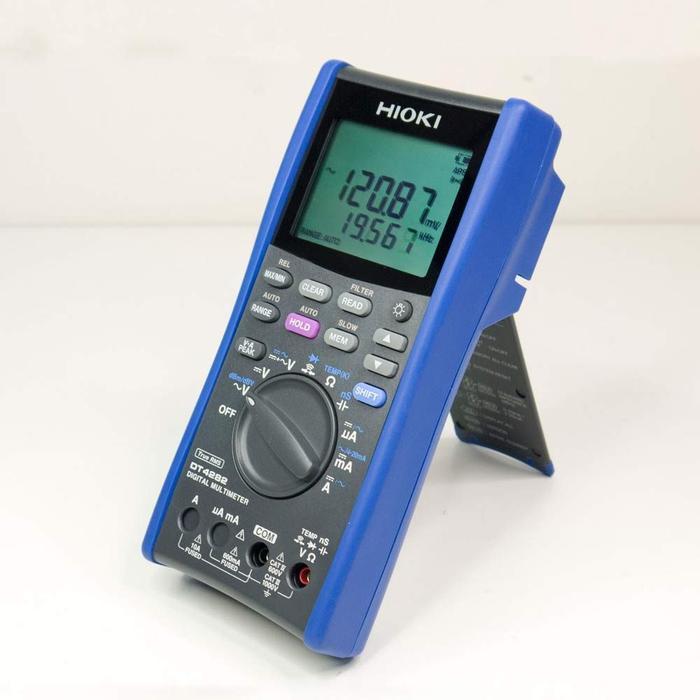

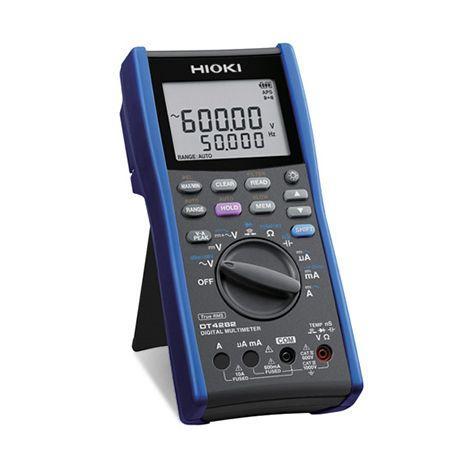

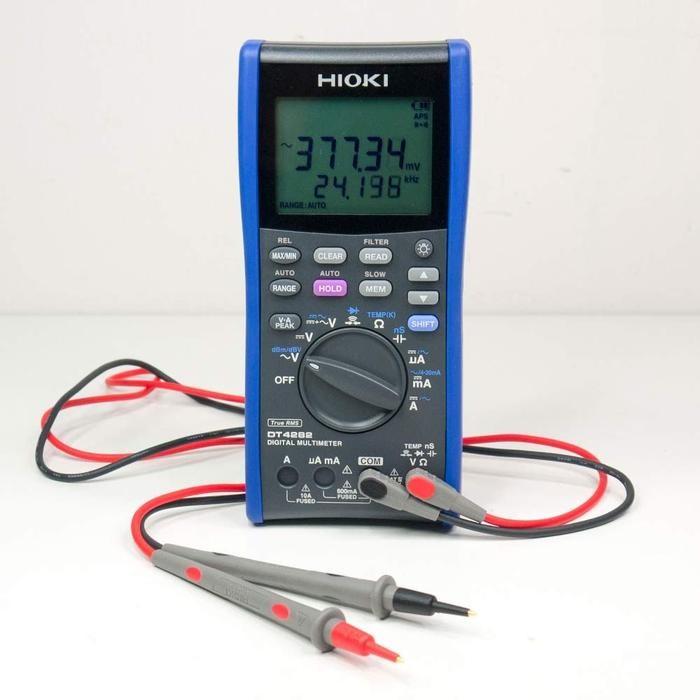

Hioki-DT4282 ดิจิตอลมัลติมิเตอร์ High-End Type (10 A Direct Input)

ดิจิตอลมัลติมิเตอร์ High-End Type (10 A Direct Input)

• DC + AC voltage

• Resistance

• AC/DC current

• Capacitance

• Continuity

• Diode

• Frequency

• dB conversion

• Temperature

จุดเด่น

DT4200 Digital Multimeter Series ระดับมืออาชีพในงานอุตสาหกรรม มีอัตราการตอบสนองที่รวดเร็ว และมีความปลอดภัยทางไฟฟ้าในระดับที่สูงขึ้น

DT4200 High-end Series มัลติมิเตอร์แบบดิจิตอล High-end ที่มีความแม่นยำสูงที่สุด มาพร้อมฟังก์ชั่นและคุณสมบัติทั้งหมดที่จำเป็นสำหรับการทดสอบขั้นสูงในการใช้งานที่ซับซ้อน เกี่ยวกับการวัดและการใช้งานทางด้านไฟฟ้า

Measurement categories

• CAT IV 600 V

• CAT III 1000 V

ช่วงการวัด

DC Voltage range

60.000 mV to 1000.0 V, 6 ranges, Basic accuracy: ±0.025 % rdg. ±2 dgt.

AC Voltage* range

60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics: 20 Hz - 100 kHz
Basic accuracy 45 - 65 Hz : ±0.2 % rdg. ±25 dgt. (True RMS, crest factor 3)

DC + AC Voltage* range

6.0000 V to 1000.0 V, 4 ranges, Frequency characteristics: 20 Hz - 100 kHz
Basic accuracy 45 - 65 Hz : ±0.3 % rdg. ±30 dgt. (True RMS, crest factor 3)

Resistance range

60.000 Ω to 600.0 MΩ, 8 ranges, (Conductance: 600.00 nS, DT4282 only)
Basic accuracy: ±0.03 % rdg. ±2 dgt.

DC Current range

600.00 μA to 10.000 A, 6 ranges, Basic accuracy: ±0.05 % rdg. ±5 dgt.

AC Current* range

600.00 μA to 10.000 A, 6 ranges,
Basic accuracy 45 - 65 Hz : ±0.6 % rdg. ±5 dgt. (True RMS, crest factor 3)
Frequency characteristics: 20 Hz - 20 kHz (at 600 μA to 600 mA range)

AC Current* range (use with Clamp on probes)

N/A

Peak

DC V measurement: Signal width 4 msec or more (single), 1 msec or more (repeated)
AC V, DC/AC A measurement:
Signal width 1 msec or more (single), 250 μsec or more (repeated)

Capacitance range

1.000 nF to 100.0 mF, 9 ranges, Basic accuracy: ±1.0 % rdg. ±5 dgt.

Continuity Check

Continuity threshold: 20/50/100/500 Ω, Response time: 10 ms or more

Diode test

Open terminal voltage: 4.5 V or less, Testing current 1.2 mA or less, Threshold of forward voltage: 0.15 V to 3 V, seven stages

Frequency range

AC V, DC+AC V, AC A measurement, at pulse width 1 μs or more (50 % duty ratio)
99.999 Hz (0.5 Hz or more) to 500.00 kHz, 5 ranges, ±0.005 % rdg. ±3 dgt.

dB conversion

Standard impedance setting (dBm), 4 Ω to 1200 Ω, 20 stages
Display dB conversion value of AC voltage (dBV)

Temperature(thermocouples)

K: -40.0 °C to 800.0 °C (-40.0 °F to 1472.0 °F)
Add accuracy of the Thermocouple probe to main unit accuracy: ±0.5 % rdg. ±3 °C

Power Supply

LR6 (AA) alkaline batteries ×4, Continuous use: 100 hours

ขนาดสินค้า

93 mm (3.66 in) W × 197 mm (7.76 in) H× 53 mm (2.09 in) D, 650 g (22.9 oz) (with test leads holder and batteries)

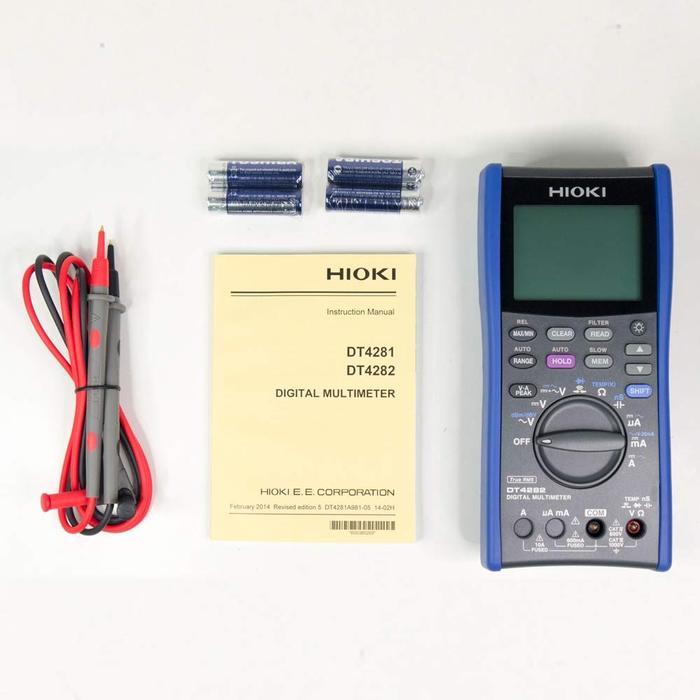

อุปกรณ์ที่มาในชุด

• ตัวเครื่อง

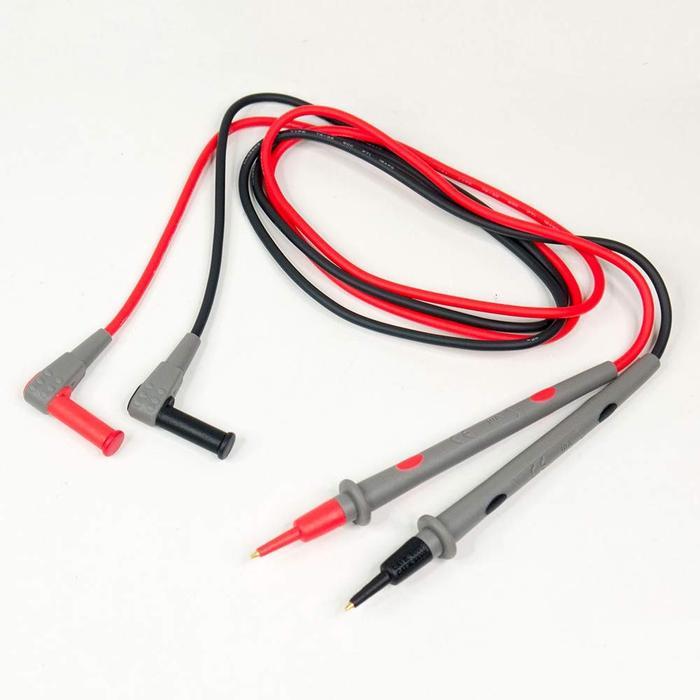

• Test Lead

• แบตเตอรี่ Alkaline AA × 4

• คู่มือ

อุปกรณ์เสริม

• TEST LEAD L9207-10

• TEST LEAD L9300

• SMALL ALLIGATOR CLIP SET L4934

• CONTACT PIN SET L4933

• EXTENSION CABLE SET L4931

• BREAKER PIN SET L4939

• TEST PIN SET L4938

• BUS BAR CLIP SET L4936

• MAGNETIC ADAPTER SET L4937

• TEST PIN SET L4932

• CONNECTION CABLE SET L4930

• ALLIGATOR CLIP SET L4935

• GRABBER CLIP L9243

• THERMOCOUPLES(K) DT4910

• CARRYING CASE C0202

• COMMUNICATION PACKAGE (USB) DT4900-01

• MAGNETIC STRAP Z5020

• CARRYING CASE C0207

ข้อมูลจำเพาะ

DC Voltage range

60.000 mV to 1000.0 V, 6 ranges, Basic accuracy: ±0.025 % rdg. ±2 dgt.

AC Voltage* range

60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics: 20 Hz - 100 kHz
Basic accuracy 45 - 65 Hz : ±0.2 % rdg. ±25 dgt. (True RMS, crest factor 3)

DC + AC Voltage* range

6.0000 V to 1000.0 V, 4 ranges, Frequency characteristics: 20 Hz - 100 kHz
Basic accuracy 45 - 65 Hz : ±0.3 % rdg. ±30 dgt. (True RMS, crest factor 3)

Resistance range

60.000 Ω to 600.0 MΩ, 8 ranges, (Conductance: 600.00 nS, DT4282 only)
Basic accuracy: ±0.03 % rdg. ±2 dgt.

DC Current range

600.00 μA to 10.000 A, 6 ranges, Basic accuracy: ±0.05 % rdg. ±5 dgt.

AC Current* range

600.00 μA to 10.000 A, 6 ranges,
Basic accuracy 45 - 65 Hz : ±0.6 % rdg. ±5 dgt. (True RMS, crest factor 3)
Frequency characteristics: 20 Hz - 20 kHz (at 600 μA to 600 mA range)

AC Current* range (use with Clamp on probes)

N/A

Peak

DC V measurement: Signal width 4 msec or more (single), 1 msec or more (repeated)
AC V, DC/AC A measurement:
Signal width 1 msec or more (single), 250 μsec or more (repeated)

Capacitance range

1.000 nF to 100.0 mF, 9 ranges, Basic accuracy: ±1.0 % rdg. ±5 dgt.

Continuity Check

Continuity threshold: 20/50/100/500 Ω, Response time: 10 ms or more

Diode test

Open terminal voltage: 4.5 V or less, Testing current 1.2 mA or less, Threshold of forward voltage: 0.15 V to 3 V, seven stages

Frequency range

AC V, DC+AC V, AC A measurement, at pulse width 1 μs or more (50 % duty ratio)
99.999 Hz (0.5 Hz or more) to 500.00 kHz, 5 ranges, ±0.005 % rdg. ±3 dgt.

dB conversion

Standard impedance setting (dBm), 4 Ω to 1200 Ω, 20 stages
Display dB conversion value of AC voltage (dBV)

Temperature(thermocouples)

K: -40.0 °C to 800.0 °C (-40.0 °F to 1472.0 °F)
Add accuracy of the Thermocouple probe to main unit accuracy: ±0.5 % rdg. ±3 °C

Other functions

Filter function (remove harmonic noise, use only at 600 V AC, 1000 V AC ranges), display value hold, auto hold, MAX/MIN value display, PEAK value display, relative value display, sampling setting, internal memory (400 data), auto-power save, USB communication (option), mis-insertion prevention shutters, decibel conversion, 4-20 mA percentage conversion

Display

Main and Sub displays: 5-digits LCD, max. 60000 digits

Display refresh rates

5 times/s (Capacitance measurement: 0.05 to 2 times/s, depending on measured value, Temperature: 1 time/s )

Power supply

LR6 (AA) alkaline batteries ×4, Continuous use: 100 hours

Dimensions and mass

93 mm (3.66 in) W × 197 mm (7.76 in) H× 53 mm (2.09 in) D, 650 g (22.9 oz) (with test leads holder and batteries)

Included accessories

Test Lead L9207-10 ×1, Instruction Manual ×1, LR6 Alkaline Battery ×4
