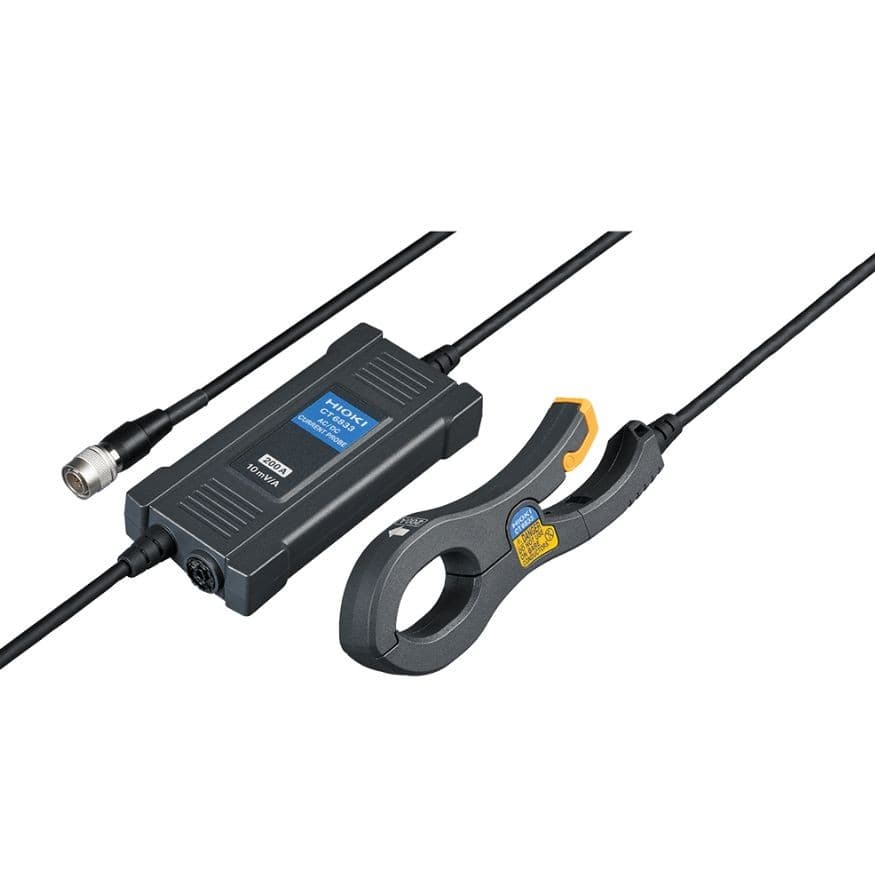

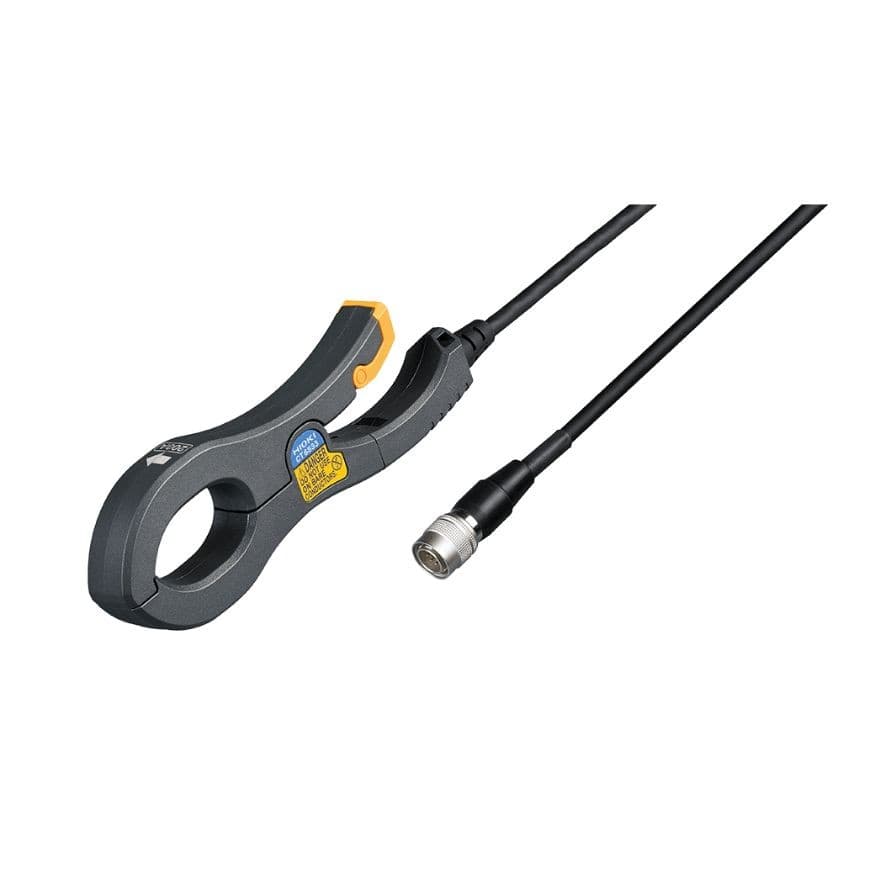

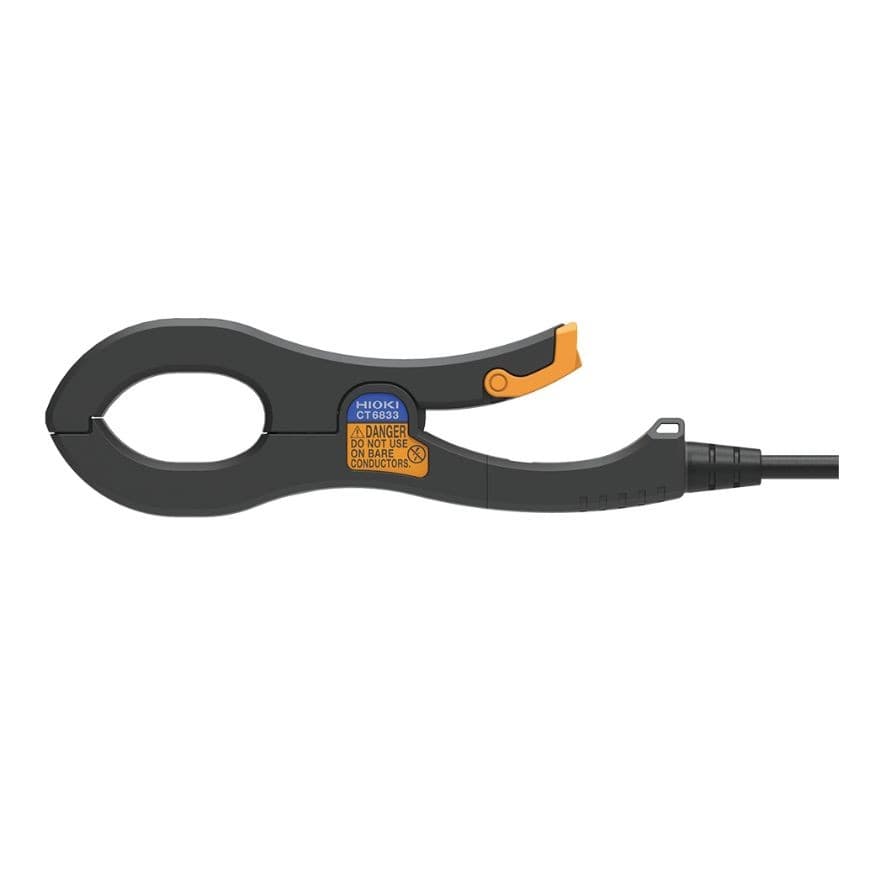

HIOKI CT6833 Current Probe

200 A AC/DC

DC to 50 kHz

Up to ±600 A peak are permitted at a temperature of 40°C (104°F) or less and within 1 period of a periodic waveform of 10 ms or more (design value, out of guaranteed accuracy range)

10 mV/A

DC : ±0.07% rdg. ±0.01% f.s.
16 Hz ≤ f ≤ 66 Hz : ±0.07% rdg. ±0.007% f.s.
Up to 20 kHz specified

Sensor, cable: −40°C to 85°C, 80% RH or less (non-condensing)
Relay box: −25°C to 50°C, 80% RH or less (non-condensing)

200 A AC/DC

DC to 50 kHz

Max. φ20 mm (0.79 in.)

Up to ±600 A peak are permitted at a temperature of 40°C (104°F) or less and within 1 period of a periodic waveform of 10 ms or more (design value, out of guaranteed accuracy range)

10 mV/A

DC : ±0.07% rdg. ±0.01% f.s.
16 Hz ≤ f ≤ 66 Hz : ±0.07% rdg. ±0.007% f.s.
Up to 20 kHz specified

Sensor, cable: −40°C to 85°C (−40°F to 185°F), 80% RH or less (non-condensing)
Relay box: −25°C to 50°C (−13°F to 122°F), 80% RH or less (non-condensing)

The following numerical values are added to the measurement accuracy according to the temperature difference with the upper and lower limits of the guaranteed accuracy temperature range (18°C or 28°C [64°F or 82°F]) if operating temperatures are outside the guaranteed accuracy temperature range (23°C±5°C [73°F±9°F]).

- Sensor
Amplitude accuracy: ±4 ppm of reading/°C (±0.8 ppm of reading/°C Typical)
Offset voltage: ±3 ppm of full scale/°C (±0.5 ppm of full scale/°C Typical)

- Relay box
Amplitude accuracy: ±15 ppm of reading/°C (±5 ppm of reading/°C Typical)
Offset voltage: ±1 ppm of full scale/°C (±0.3 ppm of full scale/°C Typical)

(For a conductor with an outer diameter of 10 mm)
DC: ±0.03% of reading or less (±0.01% of reading Typical)
50 Hz/60 Hz: ±0.04% of reading or less (±0.015% of reading Typical)
1 kHz: ±0.1% of reading or less (±0.04% of reading Typical)
10 kHz: ±1% of reading or less (±0.3% of reading Typical)

Use Hioki instruments with an ME15W connector

Sensor: approx. 149W × 46H × 16.5D mm (5.9W × 1.8H × 0.6D in.)
Relay box: approx. 126W × 57H × 20.5D mm (5.0W × 2.2H × 0.8D in.)
(excluding protrusions and cable)

CT6833: approx. 500 g (17.6 oz.)
CT6833-01: approx. 710 g (25.0 oz.)

CT6833: approx. 5 m [16.4 ft.] (including relay box)
CT6833-01: approx. 10 m [32.8 ft.] (including relay box)

Color labels (for channel identification) ×1, Carrying Case ×1, Instruction Manual ×1, Current Sensor Operating Precautions ×1
