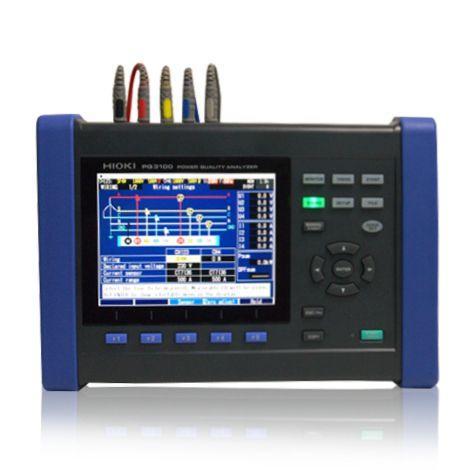

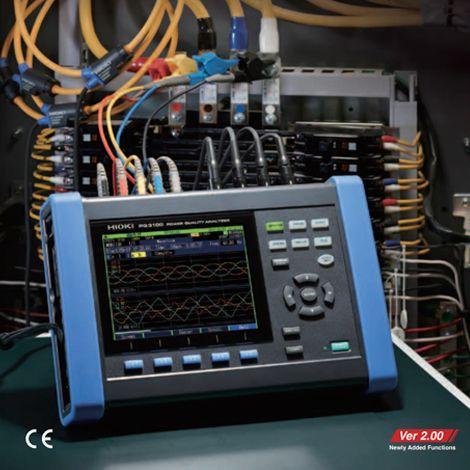

HIOKI PQ3100 Power Quality Analyzer เครื่องวิเคราะห์ไฟฟ้า

เครื่องวิเคราะห์ไฟฟ้า

• Voltage
• Current
• DC
• Power
• Flicker
• Harmonics

จุดเด่น

• Simultaneously measure all parameters at once
• Easy wiring and configuration. Reliable measurement
• High basic performance level
• Convenient functions
• Clamp sensors that are easy to use anywhere
• Rich lineup of interfaces
• PQ One: Analyze data and create reports on a PC with a dedicated application

ช่วงการวัด

AC/DC : Yes

Fundamental frequency : DC/ 50 Hz/ 60 Hz

Measurement lines

• Single-phase 2-wire
• single-phase 3-wire
• three-phase 3-wire
• three-phase 4-wire + Ch. 4

Voltage ranges : 1000.0 V rms or DC, Transient measurement 2.200 kV peak

Current ranges

• 50.000 mA AC to 5.0000 kA AC
• 10.000 A DC to 2.0000 kA DC

(depends on current sensor in use)

Power ranges

50.000 W to 6.0000 MW
(determined automatically based on current range in use)

Basic accuracy

Voltage: ±0.2% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy
AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy

Voltage input

Number of channels

4 (U4: Not isolated)

Maximum terminal-toground rated voltage

1000 V (measurement category III)
600 V (measurement category IV)

Voltage

• 1/2 RMS value (half-wave offset wave calculation)
• RMS value
• waveform peak
• Voltage DC
• Unbalance factor (negative-phase, zero-phase)
• frequency (1 wave/ 200 ms/ 10 sec.)

Crest factor

Current

• Inrush current (half-wave)
• RMS value
• waveform peak
• Current DC
• Unbalance factor (negative-phase, zero-phase)
• K factor

1/2 RMS value (half-wave offset wave calculation), crest factor

Power

• Active power
• Reactive power
• Apparent power
• Power factor,
• Displacement power factor
• Active energy
• Reactive energy

Apparent energy, Electrical charges

Flicker

Pst, Plt, ΔV10 (3 channels simultaneously)

Harmonics

• 0th order (DC) to 50th order
• Voltage/ Current/ Power
• Phase angle (voltage/ current)
• Voltage/Current phase difference
• Total harmonic distortion ratio (voltage/ current)

Inter-harmonics0.5 th order to 49.5 th order, voltage/ curren

Power Supply

AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A)
Battery pack Z1003 (Continuous use: 8 hr Charging time: Max. 5 hr 30 m with AC adapter)

ขนาดสินค้า

• Dimensions : 300 x 211 x 68 mm
• Weight : 2500 g

อุปกรณ์ที่มาในชุด

• Instruction manual ×1
• Measurement guide ×1
• Voltage cord L1000-05 ×1 set
  (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5)
• Color clip (for identifying clamp sensor color) ×1 set
• Spiral tube ×5
• AC adapter Z1002 ×1
• Strap ×1
• USB cable (1 m 3.28 ft length) ×1
• Battery pack Z1003 ×1
• PQ ONE (software, CD)

อุปกรณ์เสริม

1. AC FLEXIBLE CURRENT SENSOR CT7040 series
2. AC CURRENT SENSOR CT7126
3. AC CURRENT SENSOR CT7131
4. AC CURRENT SENSOR CT7136
5. AC LEAKAGE CURRENT SENSOR CT7116
6. EXTENSION CABLE L0220-01
7. EXTENSION CABLE L0220-02
8. EXTENSION CABLE L0220-03
9. AC/DC AUTO-ZERO CURRENT SENSOR CT7742
10. AC/DC AUTO-ZERO CURRENT SENSOR CT7736
11. AC/DC AUTO-ZERO CURRENT SENSOR CT7731
12. SD MEMORY CARD 2GB Z4001
13. SD MEMORY CARD Z4003
14. VOLTAGE CORD L1000-05
15. MAGNETIC ADAPTER 9804-01
16. MAGNETIC ADAPTER 9804-02
17. PATCH CORD L1021-01
18. PATCH CORD L1021-02
19. GRABBER CLIP L9243
20. AC ADAPTER Z1002
21. BATTERY PACK Z1003
22. RS-232C CABLE 9637
23. LAN CABLE 9642
24. CONVERSION CABLE L9910
25. MAGNETIC STRAP Z5004
26. MAGNETIC STRAP Z5020
27. CARRYING CASE C1002
28. CARRYING CASE C1009

ข้อมูลจำเพาะ

1. ime-series
2. measuremenRecording period
3. Max. 1 year
4. Recording interval time
5. 200 ms/600 ms/150 cycles (with 50 Hz input)/1/2/5/10/15/30 sec. to 2 h
6. Event statistical processing
7. Displays the number of occurrences by event per day
8. Waveform acquisition:
9. Before event
10. Max. 1 sec
11. .At event
12. 200 ms
13. After event
14. Max. 10 sec.
15. Measurable event parameters
16. Voltage Swell/ Dip/ Interruption/ Frequency fluctuations/ Inrush current/ THD
17. Transient voltage
18. 200 kS/s, 2.2 kV

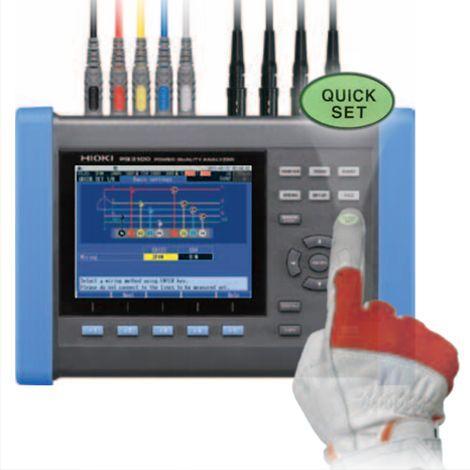

19. Setting aid
20. Quick Set
21. Operating temperature and humidity
22. -20 to 50°C / 80%RH
23. IEC 61000-4-30 standard compliance
24. Class S
25. Protection Class
26. IP54 (EN60529) with connection cable connected, but not including cable tip
27. Power supply
28. AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A),
    Battery pack Z1003 (Continuous use: 8 hr Charging time: Max. 5 hr 30 m with AC adapter)
29. Interfaces
30. SD/SDHC memory card
31. RS-232C (for communication/ LR8410 link (Ver. up)
32. LAN (HTTP server/ FTP (Ver. up)/ Send e-mail (Ver. up)
33. USB 2.0 (for communication)
