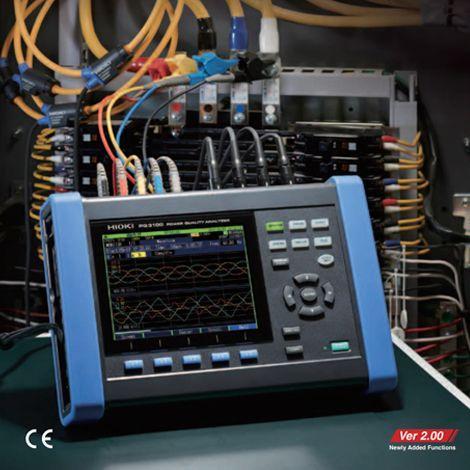

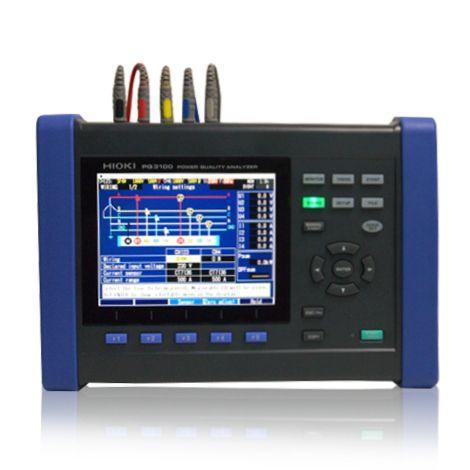

HIOKI PQ3100-92 POWER QUALITY ANALYZER KIT เครื่องวิเคราะห์ไฟฟ้า

เครื่องวิเคราะห์ไฟฟ้า

วิเคราะห์ไฟฟ้า

จุดเด่น

• Simultaneously measure all parameters at once
• Easy wiring and configuration. Reliable measurement
• High basic performance level
• Convenient functions
• Clamp sensors that are easy to use anywhere
• Rich lineup of interfaces
• PQ One: Analyze data and create reports on a PC with a dedicated application

ช่วงการวัด

AC/DC : Yes

Fundamental frequency : DC/ 50 Hz/ 60 Hz

Measurement lines

• Single-phase 2-wire
• single-phase 3-wire
• three-phase 3-wire
• three-phase 4-wire + Ch. 4

Voltage ranges : 1000.0 V rms or DC, Transient measurement 2.200 kV peak

Current ranges

• 50.000 mA AC to 5.0000 kA AC
• 10.000 A DC to 2.0000 kA DC

(depends on current sensor in use)

Power ranges

50.000 W to 6.0000 MW
(determined automatically based on current range in use)

Basic accuracy

• Voltage: ±0.2% of nominal voltage
• Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
• Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy
• AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy

Voltage input Number of channels

4 (U4: Not isolated)

Voltage input Maximum terminal-toground rated voltage

• 1000 V (measurement category III)
• 600 V (measurement category IV)

Current input Number of channels : 4

Current input Power supply for sensors : Yes

Measurement parameters

 Voltage

• 1/2 RMS value (half-wave offset wave calculation)
• RMS value
• waveform peak
• Voltage DC
• Unbalance factor (negative-phase, zero-phase)
• frequency (1 wave/ 200 ms/ 10 sec.)

Crest factor

Current

• Inrush current (half-wave)
• RMS value
• waveform peak
• Current DC
• Unbalance factor (negative-phase, zero-phase)
• K facto

1/2 RMS value (half-wave offset wave calculation), crest factor

Power

• Active power
• Reactive power
• Apparent power
• Power factor,
• Displacement power factor
• Active energy
• Reactive energy

Apparent energy, Electrical charges

Flicker

Pst, Plt, ΔV10 (3 channels simultaneously)

Harmonics

• 0th order (DC) to 50th order
• Voltage/ Current/ Power
• Phase angle (voltage/ current)
• Voltage/Current phase difference
• Total harmonic distortion ratio (voltage/ current)

Inter-harmonics

0.5 th order to 49.5 th order, voltage/ current

Power Supply

AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A)
Battery pack Z1003 (Continuous use: 8 hr Charging time: Max. 5 hr 30 m with AC adapter)

ขนาดสินค้า

• Dimensions : 300 x 211 x 68 mm
• Weight : 2500 g

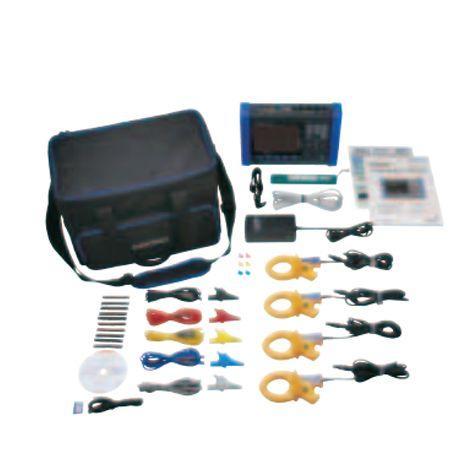

อุปกรณ์ที่มาในชุด

Standard

• Instruction manual ×1
• Measurement guide ×1
• Voltage cord L1000-05 ×1 set
  (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5)
• Color clip (for identifying clamp sensor color) ×1 set
• Spiral tube ×5
• AC adapter Z1002 ×1
• Strap ×1
• USB cable (1 m 3.28 ft length) ×1
• Battery pack Z1003 ×1
• PQ ONE (software, CD)

Kit includes PQ3100-92

• AC CURRENT SENSOR (CT7136) x 4
• CARRYING CASE (C1009) x 1
• SD MEMORY CARD 2GB (Z4001) x 1

ข้อมูลจำเพาะ

1. Time-series measuremen
2. Recording period
3. Max. 1 year
4. Recording interval time
5. 200 ms/600 ms/150 cycles (with 50 Hz input)/1/2/5/10/15/30 sec. to 2 h
6. Event statistical processing
7. Displays the number of occurrences by event per day
8.

9. Waveform acquisition:
10. Before event  Max. 1 sec.
11. At event  200 ms
12. After event  Max. 10 sec.
13. Measurable event parameters
14. Voltage Swell/ Dip/ Interruption/ Frequency fluctuations/ Inrush current/ THD
15. Transient voltage
16. 200 kS/s, 2.2 kV

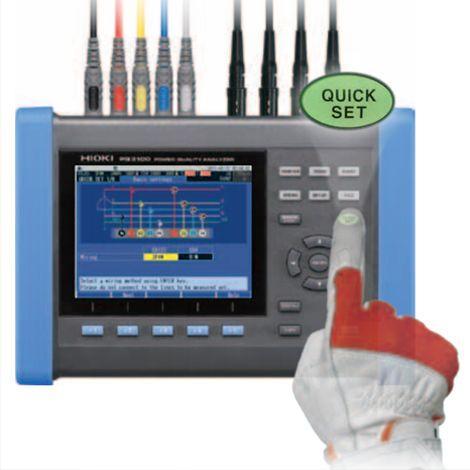

17. Setting aid Quick Set
18. Operating temperature and humidity -20 to 50°C / 80%RH
19. IEC 61000-4-30 standard compliance Class S
20. Protection Class  IP54 (EN60529) with connection cable connected, but not including cable tip
21. Power supply
22. AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A),
    Battery pack Z1003 (Continuous use: 8 hr Charging time: Max. 5 hr 30 m with AC adapter)
23. Interfaces
24. SD/SDHC memory card
25. RS-232C (for communication/ LR8410 link (Ver. up)
26. LAN (HTTP server/ FTP (Ver. up)/ Send e-mail (Ver. up)
27. USB 2.0 (for communication)
