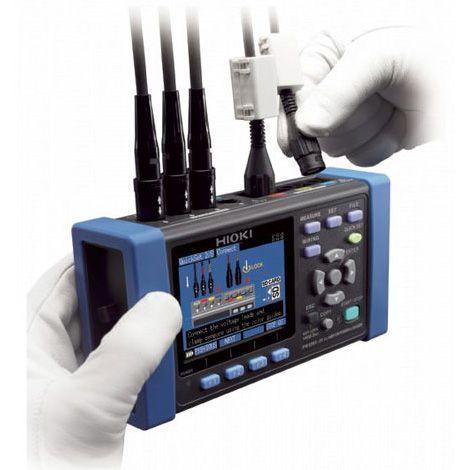

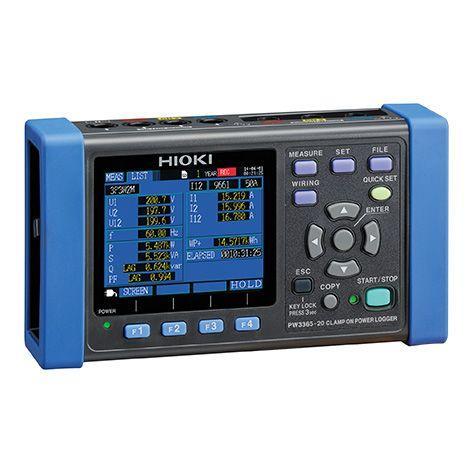

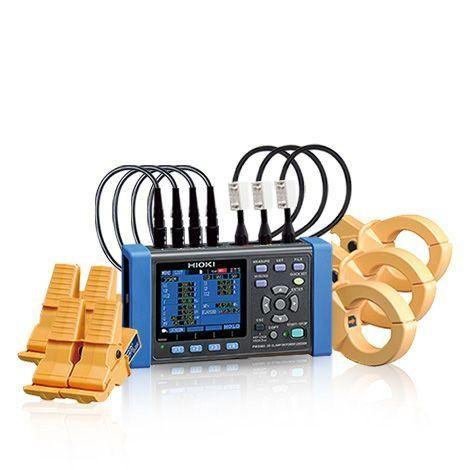

Hioki PW3365-20 เครื่องวิเคราะห์ไฟฟ้า Multi-Channel แบบแคลมป์

เครื่องวิเคราะห์ไฟฟ้า

• Voltage RMS
• current RMS
• voltage fundamental wave value
• current fundamental wave value
• voltage fundamental wave phase angle
• current fundamental wave phase angle
• frequency (U1), voltage waveform peak (absolute value)
• current waveform peak (absolute value)
• active power, reactive power (with lag/lead display)
• apparent power
• power factor (with lag/lead display) or displacement power factor (with lag/lead display)
• active energy (consumption, regeneration)
• reactive energy (lag, lead), energy cost display
• active power demand quantity (consumption, regeneration)
• reactive power demand quantity (lag, lead)
• active power demand value (consumption, regeneration)
• reactive power demand value (lag, lead)
• power factor demand

จุดเด่น

Display update rate: 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)

Save destination: SD memory card, or internal memory at real time

Data save interval: 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections

Save items: Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data

Interfaces: SD/SDHC memory card
LAN 100BASE-TX: HTTP server function
USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download
Pulse output: proportional to active power consumption when measuring integral power consumption, Isolated open-collector signal

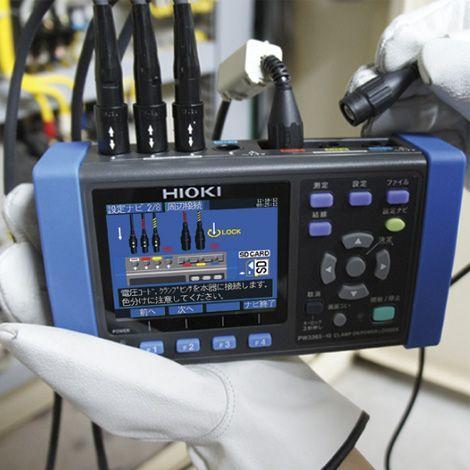

Functions: Connection check, Quick Set navigation guide, clock, pulse input

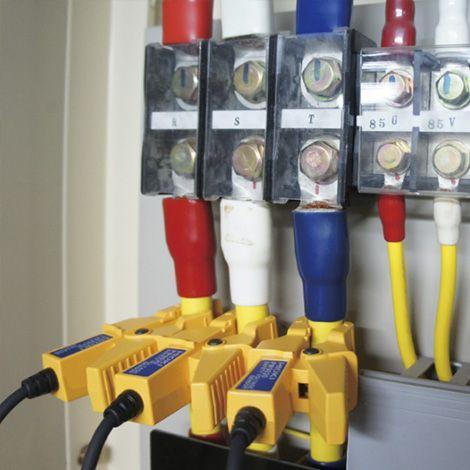

แคลมป์วัดแรงดันไฟฟ้าแบบไม่สัมผัสโลหะตัวนำไฟฟ้า

ช่วงการวัด

Voltage ranges: 400 V AC (Effective measurement range: 90.0 V to 520.0 V)

Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use),
50.000 mA to 5.0000 A AC (Leak clamp on sensor only)

Power ranges: 200.00 W to 6.0000 MW (depends on voltage/current combination and measured line type)

Basic accuracy: Voltage : ±1.5% rdg. ±0.2% f.s(combined accuracy with PW3365-20 + PW9020)
Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy
Active power : ±2.0% rdg. ±0.3% f.s. + clamp sensor accuracy (at power factor = 1)

Current ranges Load current

• CLAMP ON SENSOR 9694 : 500 m/1/5/10/50 A
• CLAMP ON SENSOR 9695-02 : 500 m/1/5/10/50 A
• CLAMP ON SENSOR 9660 : 5/10/50/100 A
• CLAMP ON SENSOR 9695-03 : 5/10/50/100 A
• CLAMP ON SENSOR 9661 : 5/10/50/100/500 A
• CLAMP ON SENSOR 9669 : 100/200/1 k A
• AC FLEXIBLE CURRENT SENSOR CT9667-01 : 50/100 /500/1 k/5 kA
• AC FLEXIBLE CURRENT SENSOR CT9667-02 : 50/100 /500/1 k/5 kA
• AC FLEXIBLE CURRENT SENSOR CT9667-03 : 50/100 /500/1 k/5 kA

Leakage current

• LEAK CLAMP ON SENSOR 9657-10 : 50 m/100 m/500 m/1/5 A
• LEAK CLAMP ON SENSOR 9675 : 50 m/100 m/500 m/1/5 A

Power Supply

AC adapter Z1008: (100 to 240 V AC, 50/60 Hz), 45 VA (including AC adapter)
Battery pack 9459: (DC 7.2 V, 3 VA, charging time 6 hr 10 m), 5 hours of continuous use (with back light off)

ขนาดสินค้า

• Dimensions : 180 × 100 × 48 mm
• Weight : 540 g

อุปกรณ์ที่มาในชุด

• SAFETY VOLTAGE SENSOR PW9020
• AC ADAPTER Z1008
• USB cable
• Instruction manual
• Measurement guide
• Color spiral tubes (1 set : red, yellow, blue/four each)
• Spiral tubes (10 pcs)

**Current Clamp Sensor สินค้าแยกจำหน่าย**

อุปกรณ์เสริม

Current measurement

• AC FLEXIBLE CURRENT SENSOR CT9667-01
• AC FLEXIBLE CURRENT SENSOR CT9667-02
• AC FLEXIBLE CURRENT SENSOR CT9667-03

• CLAMP ON SENSOR 9669
• CLAMP ON SENSOR 9695-03
• CLAMP ON SENSOR 9661
• CLAMP ON SENSOR 9694
• CLAMP ON SENSOR 9660
• CLAMP ON SENSOR 9695-02
• CONNECTION CABLE 9219

Leak current

• CLAMP ON LEAK SENSOR 9675
• CLAMP ON LEAK SENSOR 9657-10

CLAMP Adapter

• CLAMP ON ADAPTER 9290-10

Storage media

• SD MEMORY CARD 2GB Z4001
• SD MEMORY CARD 8GB Z4003

ข้อมูลจำเพาะ

1. Measurement line & number of circuits: 50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels
2. Measurement items: Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power, apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand
3. Voltage ranges: 400 V AC (Effective measurement range: 90.0 V to 520.0 V)
4. Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use),
   50.000 mA to 5.0000 A AC (Leak clamp on sensor only)
5. Power ranges: 200.00 W to 6.0000 MW (depends on voltage/current combination and measured line type)
6. Basic accuracy: Voltage : ±1.5% rdg. ±0.2% f.s(combined accuracy with PW3365-20 + PW9020)
   Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy
   Active power : ±2.0% rdg. ±0.3% f.s. + clamp sensor accuracy (at power factor = 1)
7. Display update rate: 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)
8. Save destination: SD memory card, or internal memory at real time
9. Data save interval: 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections
10. Save items: Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data
11. Interfaces: SD/SDHC memory card
    LAN 100BASE-TX: HTTP server function
    USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download
    Pulse output: proportional to active power consumption when measuring integral power consumption, Isolated open-collector signal
12. Functions: Connection check, Quick Set navigation guide, clock, pulse input
13. Power supply: AC adapter Z1008: (100 to 240 V AC, 50/60 Hz), 45 VA (including AC adapter)
    Battery pack 9459: (DC 7.2 V, 3 VA, charging time 6 hr 10 m), 5 hours of continuous use (with back light off)
14. Dimensions and mass: 180 mm (7.09 in)W × 100 mm (3.94 in)H × 48 mm (1.89 in)D, 540 g (19 oz) without PW9002
    180 mm (7.09 in)W × 100 mm (3.94 in)H × 68 mm (2.68 in)D, 820 g (28.9 oz) with PW9002
15. Included accessories: Safety Voltage Sensor PW9020 ×1 set, AC adapter Z1008 ×1, USB cable ×1, Instruction manual ×1, Measurement guide ×1, Color clip (red, yellow, blue and white each 4), Spiral tubes in black (cord bundling for current sensors and voltage sensors) ×10

Code Sets

• PW3365-20/100Pro KIT: 100A Power Logger Kit (PW3365-20 w/ 3 x 9660, SF1001, Z4001, PW9002, PW3360 H-Case)
• PW3365-20/1000Pro KIT: 1000A Power Logger Kit (PW3365-20 w/ 3 x 9669, SF1001, Z4001, PW9002, PW3360 H-Case)
• PW3365-20/500Pro KIT: 500A Power Logger Kit (PW3365-20 w/ 3 x 9661, SF1001, Z4001, PW9002, PW3360 H-Case)
• PW3365-20/5000Pro KIT: 5000A Power Logger Kit (PW3365-20 w/ 3 x CT9667-03, SF1001, Z4001, PW9002, PW3360 H-Case)
• PW3365-20/5000Pro-4in KIT: 5000A Power Logger Kit (PW3365-20 w/ 3 x CT9667-01, SF1001, Z4001, PW9002, PW3360 H-Case)
• PW3365-20/5000Pro-7in KIT: 5000A Power Logger Kit (PW3365-20 w/ 3 x CT9667-02, SF1001, Z4001, PW9002, PW3360 H-Case)
