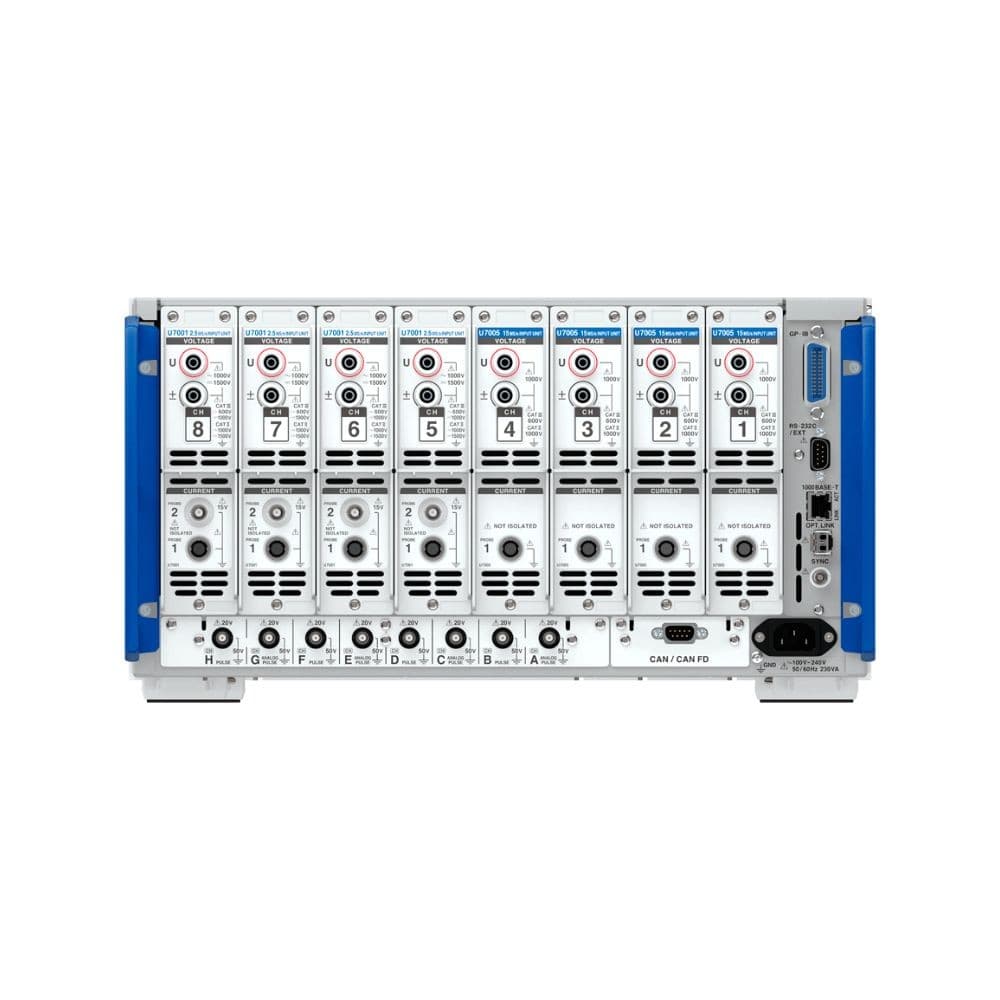

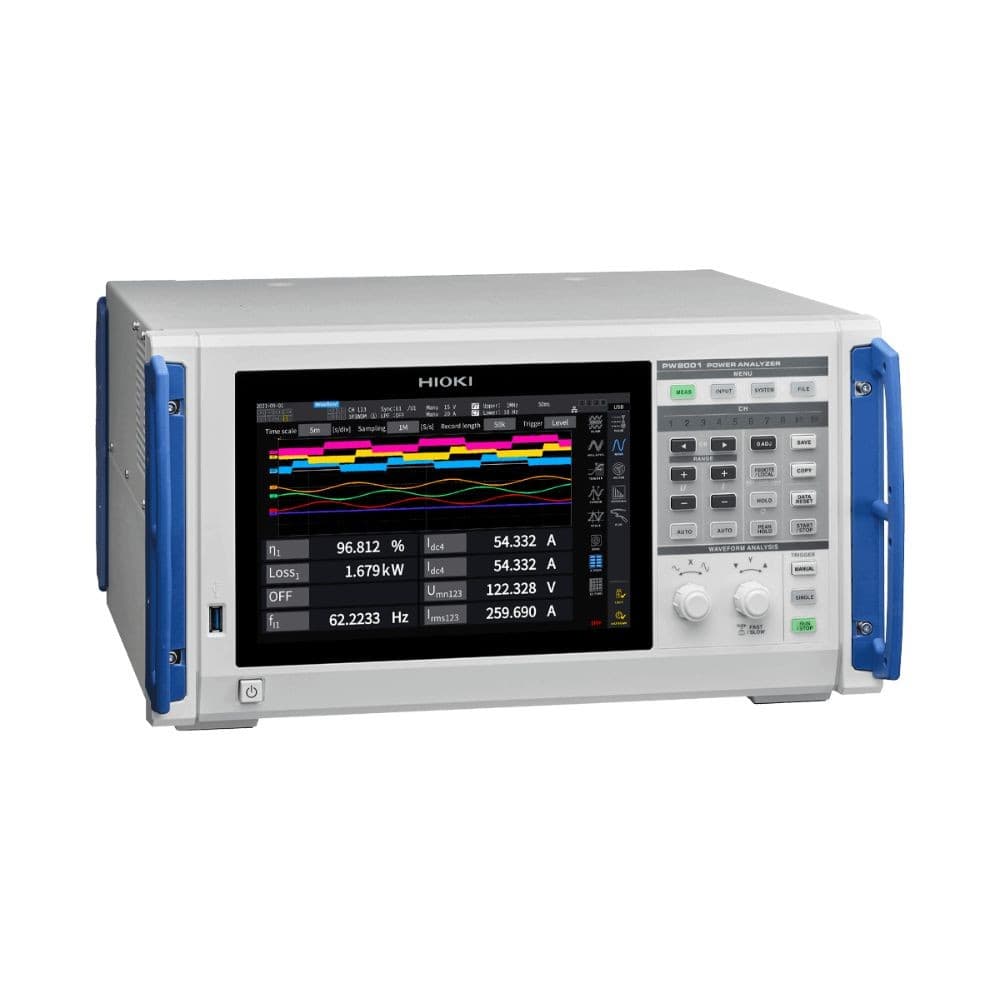

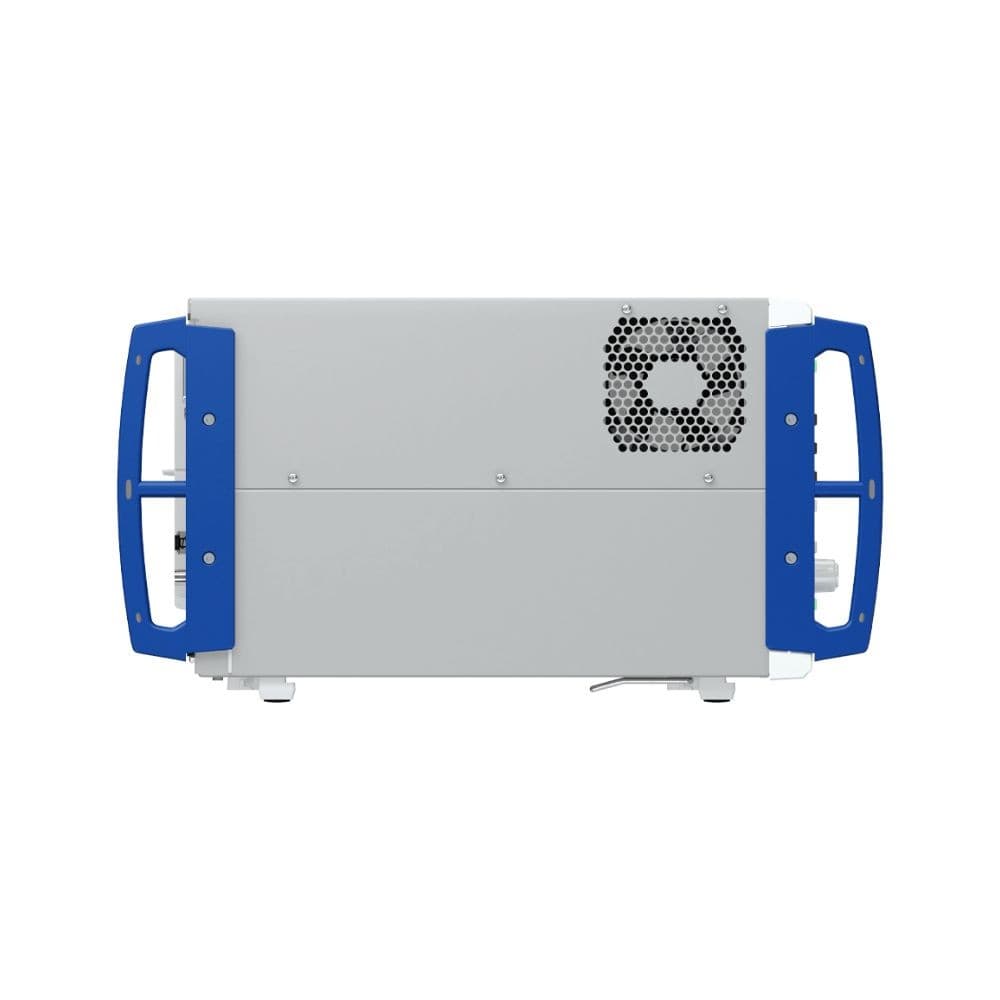

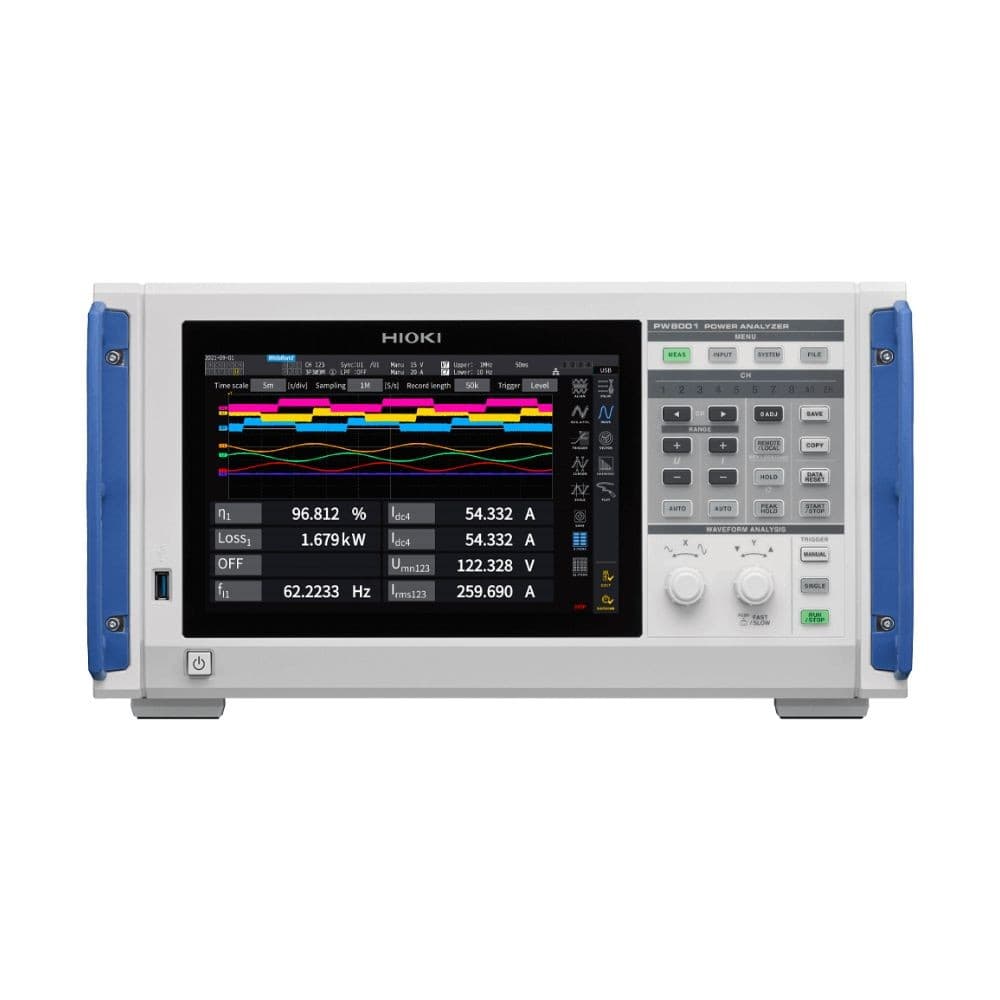

HIOKI PW8001-01 เครื่องวิเคราะห์กำลังไฟฟ้า (Power Analyzer)

1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire

Max. 8 units (mix and match)

U7001 2.5 MS/s INPUT UNIT
U7005 15 MS/s INPUT UNIT

U7001: DC, 0.1 Hz to 1 MHz
U7005: DC, 0.1 Hz to 5 MHz

U7001: 2.5 MHz, 16-bit
U7005: 15 MHz, 18-bit

1 ms, 10 ms, 50 ms, 200 ms

50/60 Hz: 0.02% of reading + 0.05% of range
DC: 0.02% of reading + 0.05% of range
50 kHz : 0.4% of reading + 0.1% of range

50/60 Hz : 0.01% of reading + 0.02% of range
DC : 0.02% + 0.03% of reading of range
50 kHz: 0.15% of reading + 0.05% of range

Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V
Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA
(Probe1 : Hioki's high-accuracy current sensor interface supports automatic identification and phase shift correction.
Probe 2: BNC I/F only for U7001)

voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)

- Harmonics measurement : (Wideband mode: Maximum analysis order 500th, IEC measurement mode)
- Waveform recording: recording capacity 5M words × ( [voltage/current] ) × - No. of channels + motor waveforms)
- Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power
- FFT analysis (Power spectrum analysis)
- Flicker measurement

When the measurement line has a frequency of 50 Hz or 60 Hz, the instrument can perform harmonic measurements according to IEC61000-4-7 and voltage fluctuation/flicker measurements according to IEC61000-4-15

Compliant with IEC 61000-4-7:2002

Analysis order: Harmonics: 0th to 200th orders, Inter-harmonic: 0.5th to 200.5th orders

Compliant with IEC 61000-4-15:2010 Ed 2.0 Flickermeter Class F2

Measurement items: Short-term flicker (Pst), Maximum short-term flicker value (PstMax), Long-term flicker value (Plt),
Maximum instantaneous flicker value (PinstMax), Minimum instantaneous flicker value (PinstMin), Relative steady-state voltage change (dc), Maximum relative voltage change (dmax), Period while the relative voltage change exceeds the threshold (Tmax)

Efficiency and loss calculations, User-defined calculations, Delta conversion, Current sensor automatic phase shift calculation

Optical link: Up to two units, 16 channels maximum
BNC Synchronization: Up to four units, 32 channels maximum

USB flash drive, LAN, GP-IB, RS-232C, external control, optical link, BNC sync., CAN or CAN FD

100 V to 240 V AC, 50/60 Hz, 230 VA

Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)

- Power cord ×1
- Instruction Manual ×1
