มาตรฐาน IEC6100-4-30 Class A ในการตรวจสอบปัญหาไฟฟ้า ความแม่นยำในการวัดค่า Voltage สูงสุดถึง ±0.1% วัดค่าได้สุงสุดถึง 600 A AC | 6000 V peak | voltage 700 kHz รองรับโพรบ, แคลมป์ ในการวัด High-voltage ได้หลากหลาย วัดค่ากำลังไฟฟ้าแบบสองระบบในการคำนวณ Ch1, Ch2, Ch3, Ch4 ในชุดมาพร้อมโพรบ CT7136 × 4 (รองรับ 600 A) HIOKI, ญี่ปุ่น
PQ3198-92 | ฟังก์ชั่นการวัด
Measurement line type: Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement)
1. Transient voltage : 2 MHz sampling
2. Frequency cycle : Calculated as one cycle, 40 to 70 Hz
3. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle
Current (1/2) RMS: half-cycle calculatio
4. Voltage swell, Voltage dips, Voltage interruption
5. Inrush current
6. Voltage waveform comparison
7. Instantaneous flicker value: As per IEC61000-4-15
8. 200 ms frequency: Calculated as 10 or 12 cycles,40 to 70 Hz
9. 10 sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz
10. Voltage waveform peak, Current waveform peak
11. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor, and efficiency
12. High-order harmonic* component (voltage/ current): 2 kHz to 80 kHz
13. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50 th orders
14. Harmonic voltage-current phase angle: 1th to 50 th orders
15. Total harmonic distortion factor (voltage/ current)
16. Inter harmonic (voltage/ current): 0.5 th to 49.5 th order
17. K Factor (multiplication factor)
18. IEC Flicker, Δ V10 Flicker
19. Mains signaling voltage
PQ3198-92 | จุดเด่น
Verify power problems in accordance with the IEC61000-4-30 Edition 3 Class A standard
High accuracy and continuous gapless recording
(V: ±0.1% of nominal voltage, A: ±0.1% rdg. ±0.1% f.s., W: ±0.2% rdg. ±0.1% f.s.)
Broadband voltage range lets you measure even high-order harmonic (supraharmonic) components of up to 80 kHz
Maximum 6000 V peak transient voltage up to 700 kHz
Measure up to 6000 A AC
Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency
Easily create reports with bundled PQ ONE application software
Optional GPS BOX for synchronizing multiple devices
PQ3198-92 | ช่วงการวัด
Voltage ranges: Voltage measurement: 600.00 V rms
Transient measurement 6.0000 kV peak
Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use)
Power ranges: 300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use)
Basic accuracy: Voltage: ±0.1% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
PQ3198-92 | Record
Repeated ON: 1 year, Maximum recording event: 9999 × 366 days (up to 9999 events per day)
Repeated off: 35 days, maximum recording event: 9999 events
PQ3198-92 | Interfaces
SD/SDHC memory card, LAN (HTTP server function / FTP function), USB2.0 (for communication)
PQ3198-92 | Power Supply
AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery Pack Z1003 (Continuous use: 180 minutes, Charging time: Max. 5 hr 30 m with AC adapter)
PQ3198-92 | ขนาดสินค้า
300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.6 kg (91.7 oz) (including Battery Pack Z1003)

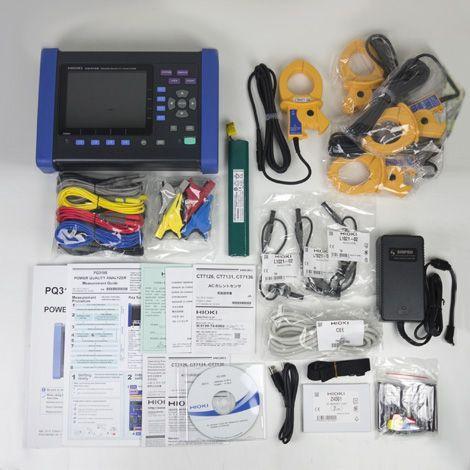

PQ3198-92 | อุปกรณ์ที่มาในชุด

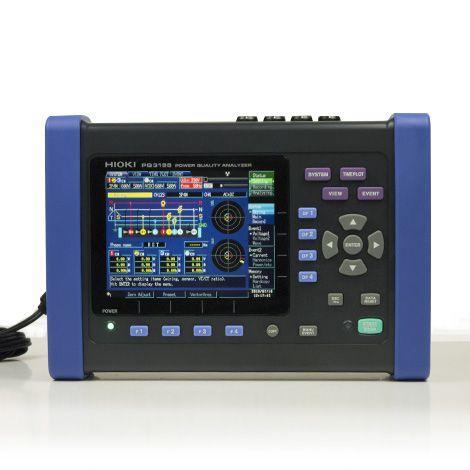

POWER QUALITY ANALYZER PQ3198

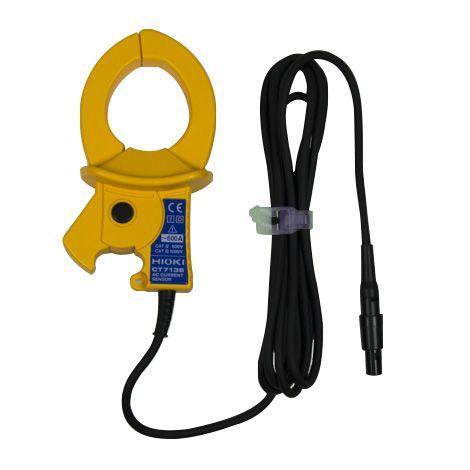

AC FLEXIBLE CURRENT SENSOR CT7136 × 4

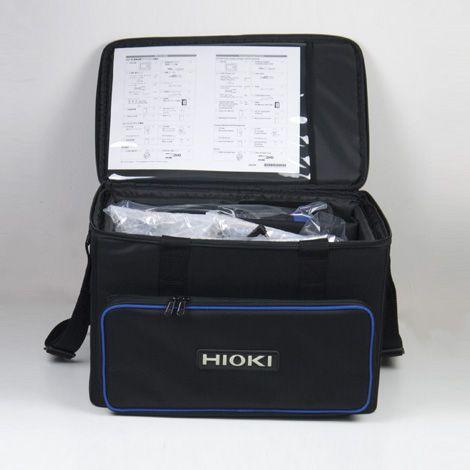

CARRYING CASE C1009
PATCH CORD L1021-02 (× 3)
VOLTAGE CORD 1000
AC ADAPTER Z1002
BATTERY PACK Z1003
PQ ONE (software CD)
SD MEMORY CARD Z4001
USB cable
Color clips
Spiral tubes
Strap
User manual
Measurement guide
PQ3198-92 | อุปกรณ์เสริม
Current input
AC FLEXIBLE CURRENT SENSOR CT7040 series
AC CURRENT SENSOR CT7126
AC CURRENT SENSOR CT7131
AC CURRENT SENSOR CT7136
Leak current input
AC LEAKAGE CURRENT SENSOR CT7116
AC/DC current input
EXTENSION CABLE L0220-01
EXTENSION CABLE L0220-02
EXTENSION CABLE L0220-03
AC/DC AUTO-ZERO CURRENT SENSOR CT7742
AC/DC AUTO-ZERO CURRENT SENSOR CT7736
AC/DC AUTO-ZERO CURRENT SENSOR CT7731
Voltage input
VOLTAGE CORD L1000
MAGNETIC ADAPTER 9804-01
MAGNETIC ADAPTER 9804-02
WIRING ADAPTER PW9000
WIRING ADAPTER PW9001
PATCH CORD L1021-01
PATCH CORD L1021-02
GRABBER CLIP L9243
Storage media
SD MEMORY CARD 2GB Z4001
SD MEMORY CARD 8 GB Z4003
Power supply
AC ADAPTER Z1002
BATTERY PACK Z1003
Time synchronization
GPS BOX PW9005
Other options
LAN CABLE 9642
CONVERSION CABLE L9910
Hands-free options
MAGNETIC STRAP Z5004
MAGNETIC STRAP Z5020
Cases
CARRYING CASE C1002
CARRYING CASE C1009
PQ3198-92 | ข้อมูลจำเพาะ
Measurement line type: Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement)
Voltage ranges: Voltage measurement: 600.00 V rms
Transient measurement 6.0000 kV peak
Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use)
Power ranges: 300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use)
Basic accuracy: Voltage: ±0.1% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Measurement items:
1. Transient voltage : 2 MHz sampling
2. Frequency cycle : Calculated as one cycle, 40 to 70 Hz
3. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle
Current (1/2) RMS: half-cycle calculation
4. Voltage swell, Voltage dips, Voltage interruption
5. Inrush current
6. Voltage waveform comparison
7. Instantaneous flicker value: As per IEC61000-4-15
8. 200 ms frequency: Calculated as 10 or 12 cycles,40 to 70 Hz
9. 10 sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz
10. Voltage waveform peak, Current waveform peak
11. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor, and efficiency
12. High-order harmonic* component (voltage/ current): 2 kHz to 80 kHz
*Supraharmonic
13. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50 th orders
14. Harmonic voltage-current phase angle: 1th to 50 th orders
15. Total harmonic distortion factor (voltage/ current)
16. Inter harmonic (voltage/ current): 0.5 th to 49.5 th order
17. K Factor (multiplication factor)
18. IEC Flicker, Δ V10 Flicker
19. Mains signaling voltage
Record: Repeated ON: 1 year, Maximum recording event: 9999 × 366 days (up to 9999 events per day)
Repeated off: 35 days, maximum recording event: 9999 events
Interfaces: SD/SDHC memory card, LAN (HTTP server function / FTP function), USB2.0 (for communication)
Display: 6.5-inch TFT color LCD (640 × 480 dots)
Power supply: AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery Pack Z1003 (Continuous use: 180 minutes, Charging time: Max. 5 hr 30 m with AC adapter)
Dimensions and mass: 300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.6 kg (91.7 oz) (including Battery Pack Z1003)
Included accessories: Instruction manual ×1, Measurement guide ×1, Voltage Cord L1000 ×1 set (Red/ Yellow/ Blue/ Gray each 1, Black 4, 3m (9.84ft) length, Alligator clip ×8), Spiral tube x20, Color clip, AC Adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1, SD Memory Card 2GB Z4001 ×1, Application software (PQ ONE) ×1
