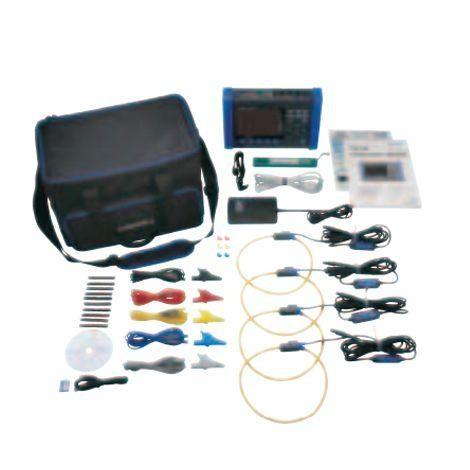

PQ3100-94 ชุด KIT เครื่องบันทึกและวิเคราะห์ Power Analyzer พร้อมกันในเครื่องเดียว ในชุดมาพร้อม AC Flexible Current sensor (CT7045) x 4, CARRYING CASE (C1009) x 1, SD MEMORY CARD 2GB (Z4001) x 1 3-Phase 4-Wire Power Quality Analyzer, IEC61000-4-30 Class S หน้าจอ 6.5-inch TFT color LCD (640 × 480 dots) มาตรฐาน 1000VAC (CATIII), 600VAC (CAT IV) บันทึกข้อมูลด้วย SD Card ยี่ห้อHIOKI, Japan
PQ3100-94 ฟังก์ชั่นการวัด
วิเคราะห์ไฟฟ้า
PQ3100-94 จุดเด่น
POWER QUALITY ANALYZER เครื่องวิเคราะห์และบันทึก Power Analyzer พร้อมกันในเครื่องเดียว
PQ3100-94 ช่วงการวัด
Measurement line type
Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel CH4 for voltage/current, (all channels AC/DC measurement)
Voltage ranges Voltage measurement: 1000.0 V rms or DC, Transient measurement 2.200 kV peak
Current ranges 50.000 mA AC to 5.0000 kA AC, 10.000 A DC to 2.0000 kA DC
(depends on current sensor in use)
Power ranges 50.000 W to 6.0000 MW (determined automatically based on current range in use)
Basic accuracy Voltage: ±0.2% of nominal voltage, Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy, Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy, AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
PQ3100-94 Power Supply
AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery pack Z1003 (Continuous use: 8 hr, Charging time: Max. 5 hr 30 m with AC adapter)
PQ3100-94 ขนาดสินค้า
300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.5 kg (88.2 oz) (including battery pack)
PQ3100-94 อุปกรณ์ที่มาในชุด
Instruction manual ×1,
Measurement guide ×1,
Voltage cord L1000-05 ×1 set (Red/Yellow/Blue/Gray/Black,
Alligator clip ×5, Spiral tube ×5),
Color clip (for identifying clamp sensor color) ×1 set,
Spiral tube ×5, AC adapter Z1002 ×1, Strap ×1,
USB cable (1 m 3.28 ft length) ×1,
Battery pack Z1003 ×1, PQ ONE (software, CD) ×1
PQ3100-94 อุปกรณ์เสริม
AC FLEXIBLE CURRENT SENSOR CT7040 series
AC CURRENT SENSOR CT7126
AC CURRENT SENSOR CT7131
AC CURRENT SENSOR CT7136
AC LEAKAGE CURRENT SENSOR CT7116
AC/DC AUTO-ZERO CURRENT SENSOR CT7731
AC/DC AUTO-ZERO CURRENT SENSOR CT7736
AC/DC AUTO-ZERO CURRENT SENSOR CT7742
EXTENSION CABLE L0220-01
EXTENSION CABLE L0220-02
EXTENSION CABLE L0220-03
SD MEMORY CARD 2GB Z4001
SD MEMORY CARD Z4003
VOLTAGE CORD L1000-05
PATCH CORD L1021-01
PATCH CORD L1021-02
GRABBER CLIP L9243
MAGNETIC ADAPTER 9804-01
MAGNETIC ADAPTER 9804-02
AC ADAPTER Z1002
BATTERY PACK Z1003
GENNECT ONE SF4000
CONVERSION CABLE L9910
RS-232C CABLE 9637
LAN CABLE 9642
MAGNETIC STRAP Z5004
MAGNETIC STRAP Z5020
CARRYING CASE C1002
CARRYING CASE C1009
PQ3100-94 ข้อมูลจำเพาะ
Record
Maximum recording interval: 1 year, Maximum number of recordable events: 9999 × 365 days
Interfaces
SD/SDHC memory card, RS-232C (for communication/ LR8410 link), LAN (HTTP server/ FTP/ Send e-mail), USB 2.0 (for communication)
Logger connectivity
Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 2.0 and later
Display
6.5-inch TFT color LCD (640 × 480 dots)
Power supply
AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery pack Z1003 (Continuous use: 8 hr, Charging time: Max. 5 hr 30 m with AC adapter)
Dimensions and mass
300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.5 kg (88.2 oz) (including battery pack)
