ช่วงการวัด 600A AC/ 6000A AC (Range is controlled by main device) Bandwidth 10 Hz to 50 kHz (±3dB) ยี่ห้อ HIOKI, Japan

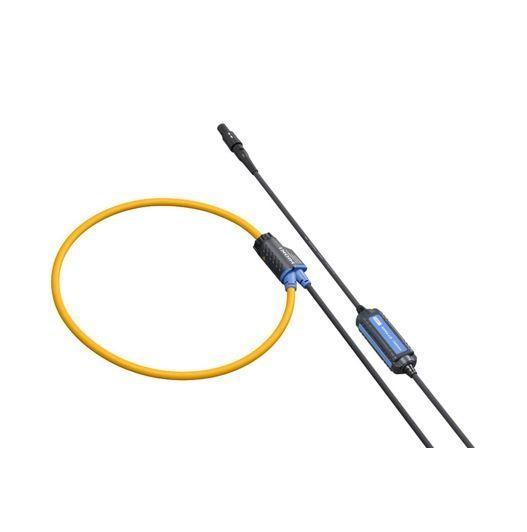

CT7045 ฟังก์ชั่นการวัด
วัดไฟฟ้า
CT7045 ช่วงการวัด
Rated measurement current 6000 A AC
Internal Measurement range 600A AC/ 6000A AC (Range is controlled by main device)
Max. allowable input 10000 A continuous (at 6000 A range, 45 to 66 Hz, requires derating )
Bandwidth 10 Hz to 50 kHz (±3dB)
(When used in combination with CM7290 or CM7291: 10 Hz to 1 kHz)
Amplitude and phase accuracy ±1.5 % rdg. ±0.25 % f.s. (f.s. is internal range, 45 to 66 Hz) ±1 deg
Output rate 1 mV/A (600 A*), 0.1 mV/A (6000 A)
*Selectable only when used with CM7290, CM7291, PQ3100
CT7045 ขนาดสินค้า
Loop diameter φ 180 mm (7.09 in) or less
Mass 174 g (6.1 oz)
Dimensions
Flexible loop cable diameter: φ7.4 mm (0.29 in), Cable length: Between flexible loop and battery box: 2.3 m (7.55 ft), Output cable: 20 cm (0.66 ft), Battery box25 mm (0.98 in)W × 72 mm (2.83 in)H × 20 mm (0.79 in)D
CT7045 อุปกรณ์ที่มาในชุด
Instruction manual ×1
CT7045 ข้อมูลจำเพาะ
Max. rated voltage to earth AC 600 V (CAT IV), AC 1000 V (CAT III)
Dust and water resistance * IP54 (when connected to a supported instrument, Do not make measurements when wet.)
