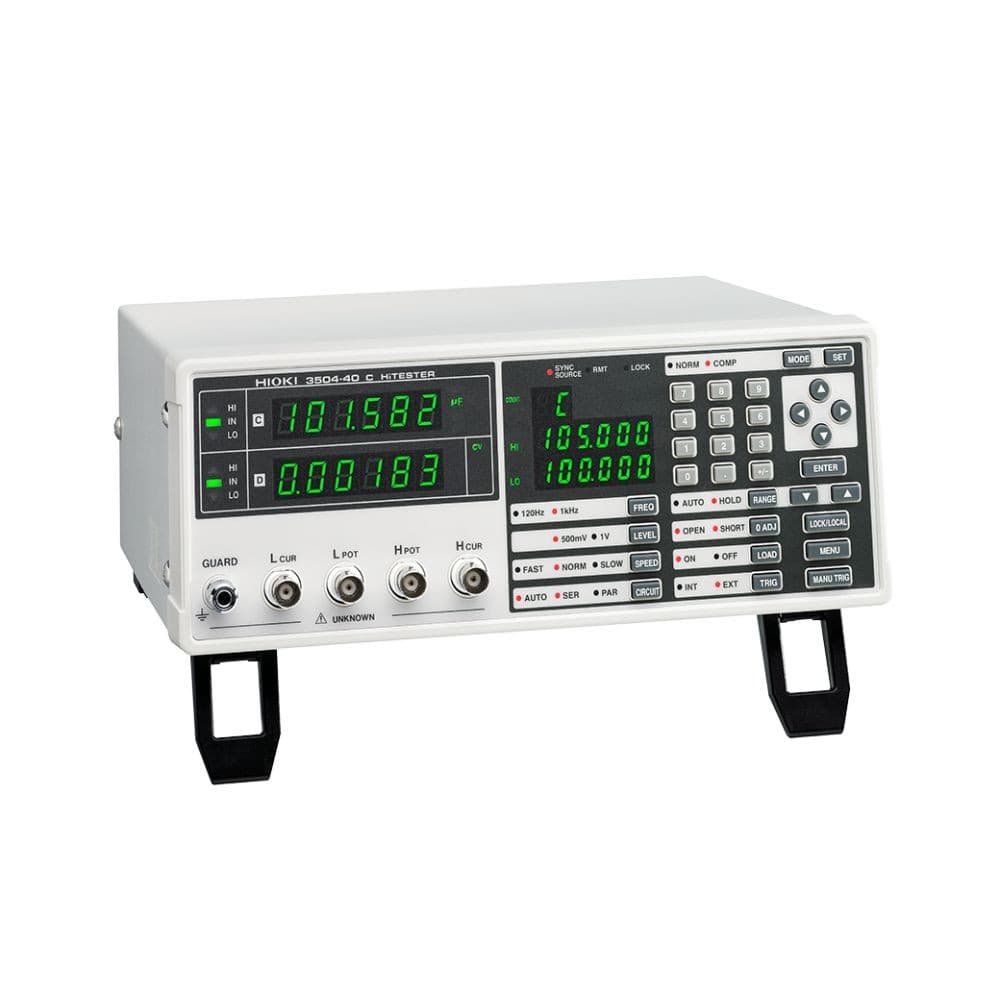

HIOKI 3504-40 เครื่องวัดค่าความจุไฟฟ้า (Capacitance Meter) Built-in RS-232C

C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99999

(Typ.) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016

120 Hz, 1 kHz

C (capacitance), D (loss coefficient tan δ)

C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99999

(Typ.) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016

120 Hz, 1 kHz

100 mV (3504-60 only), 500 mV, 1 V rms
CV 100 mV Measurement range: up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz)
CV 500 mV Measurement range : up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz)
CV 1V Measurement range : up to 70 μF range (Source frequency 1 kHz), up to 700 μF range (Source frequency 120 Hz)

5Ω (In open terminal voltage mode outside of the CV measurement range)

LED (six digits, full scale count depends on measurement range)

2 ms (Typ. value. Depends on measurement configuration settings)

4-terminal contact check function (3504-60 only)
BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C, GP-IB (3504-50, 3504-60)

Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz, 110 VA max.

260 mm (10.24 in) W × 100 mm (3.94 in) H × 220 mm (8.66 in) D, 3.8 kg(134.0 oz)

Power cord ×1, Instruction manual ×1, Spare fuse ×1
