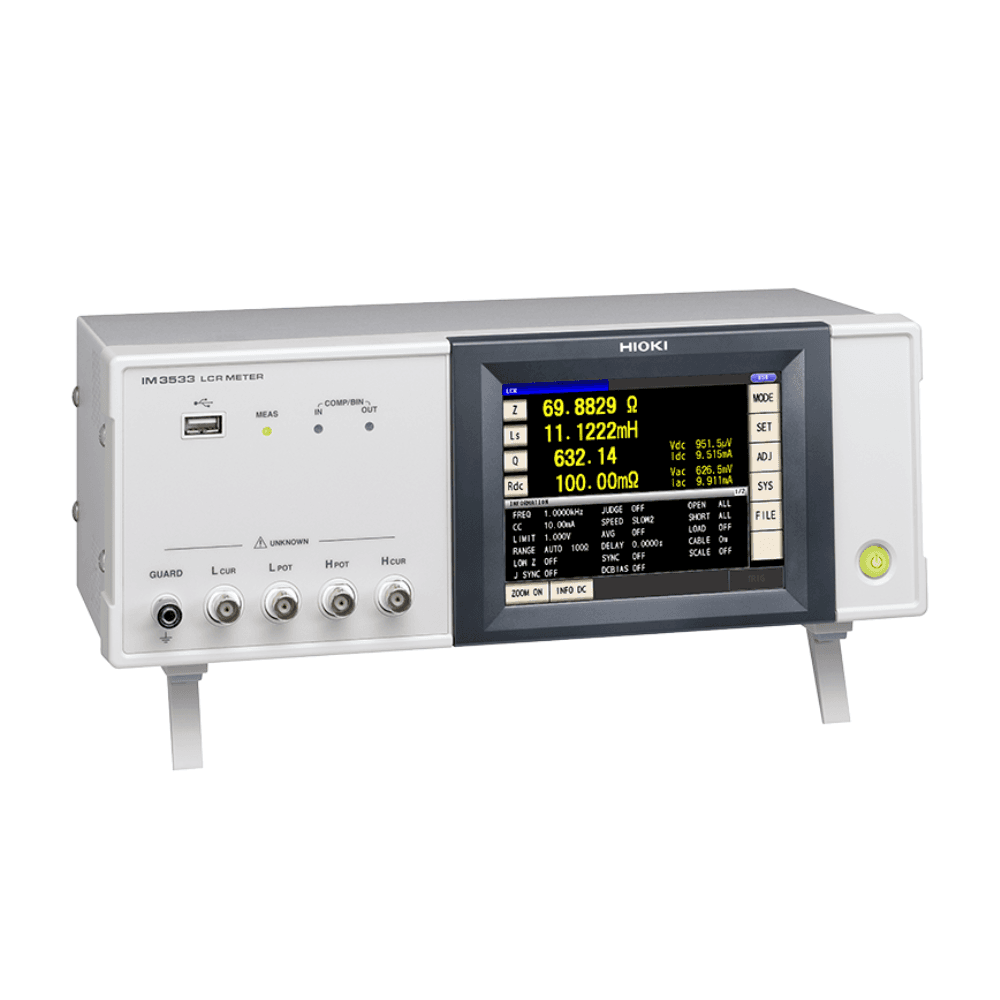

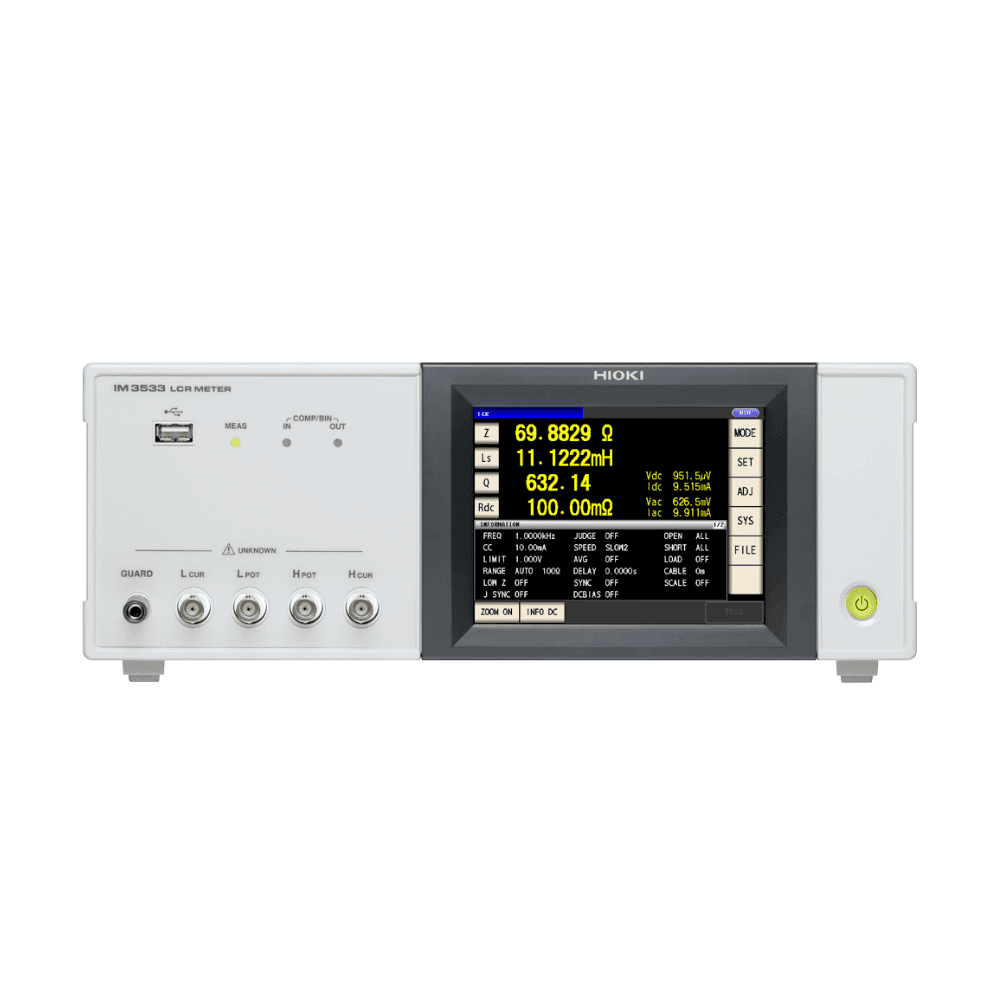

HIOKI IM3533 เครื่องวัดแอลซีอาร์ (LCR Meter)

LCR (Measurement with single condition), Transformer testing (N, M, ΔL), Continuous testing(Continuous measurement under saved conditions) (LCR mode)

Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), N, M, ΔL, T

100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)

Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only
θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)
Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%), T: -10.0°C to 99.9°C

Z : ±0.05% rdg. θ: ±0.03°

1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)

[Normal mode]
V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
[Low impedance high repeatability mode]
V mode, CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
CC mode: 10 μA to 100 mArms, 10 μArms steps

Normal mode: 100 Ω, Low impedance high repeatability mode: 25 Ω

5.7-inch touch-screen color TFT, display can be set to ON/OFF

2 ms (1 kHz, FAST, display OFF, representative value)

DC bias measurement, DC resistance temperature compensation (converted reference temperature display), Comparator, BIN measurement (classify function), Panel loading/saving, Memory function

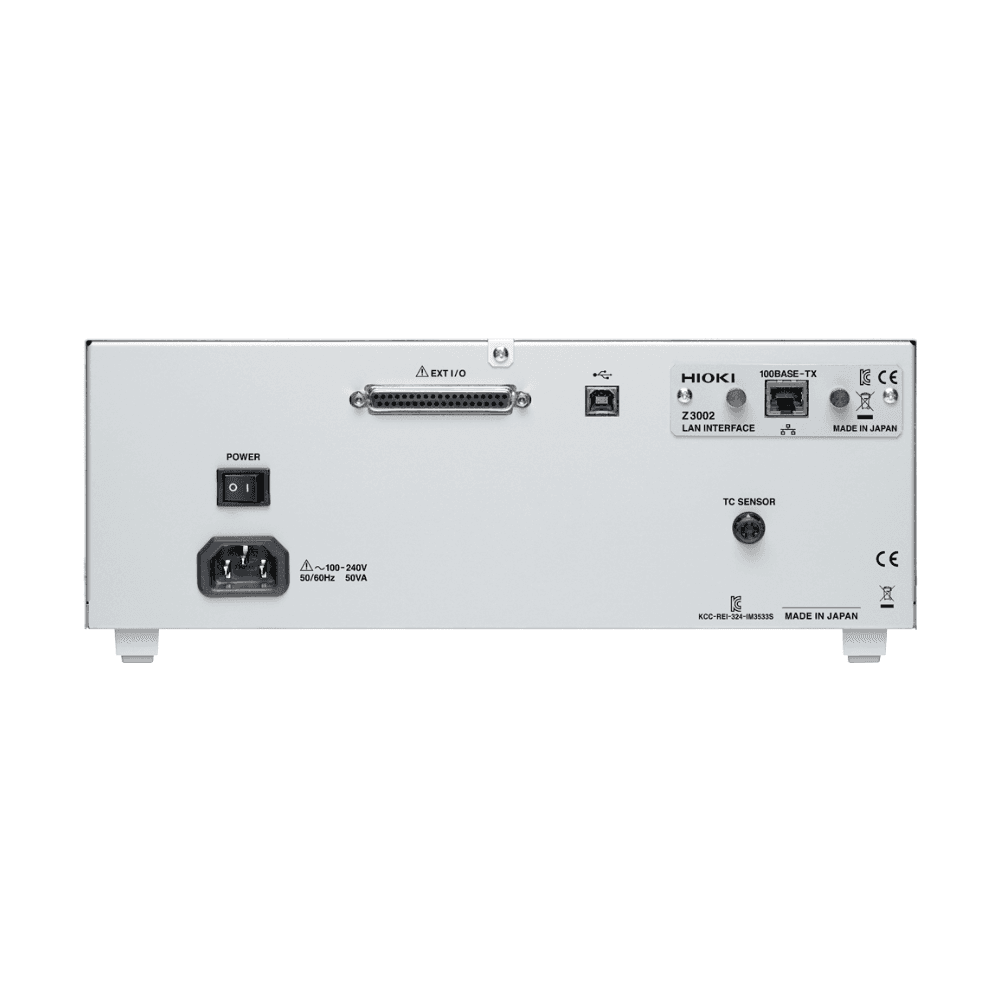

EXT I/O (Handler), USB communication (high-speed), USB memory
Optional: Choose 1 from RS-232C, GP-IB, or LAN

100 to 240 V AC, 50/60 Hz, 50 VA max

330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)

Power cord × 1, Instruction manual × 1
