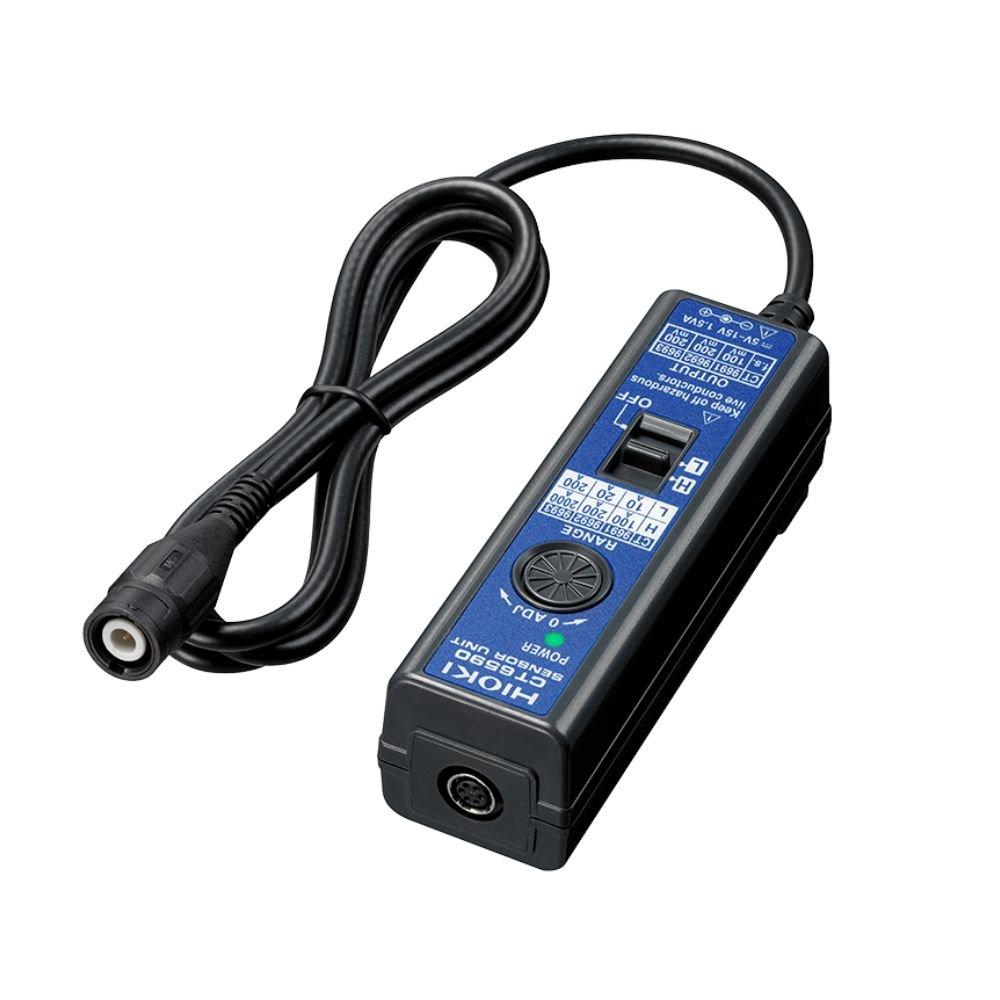

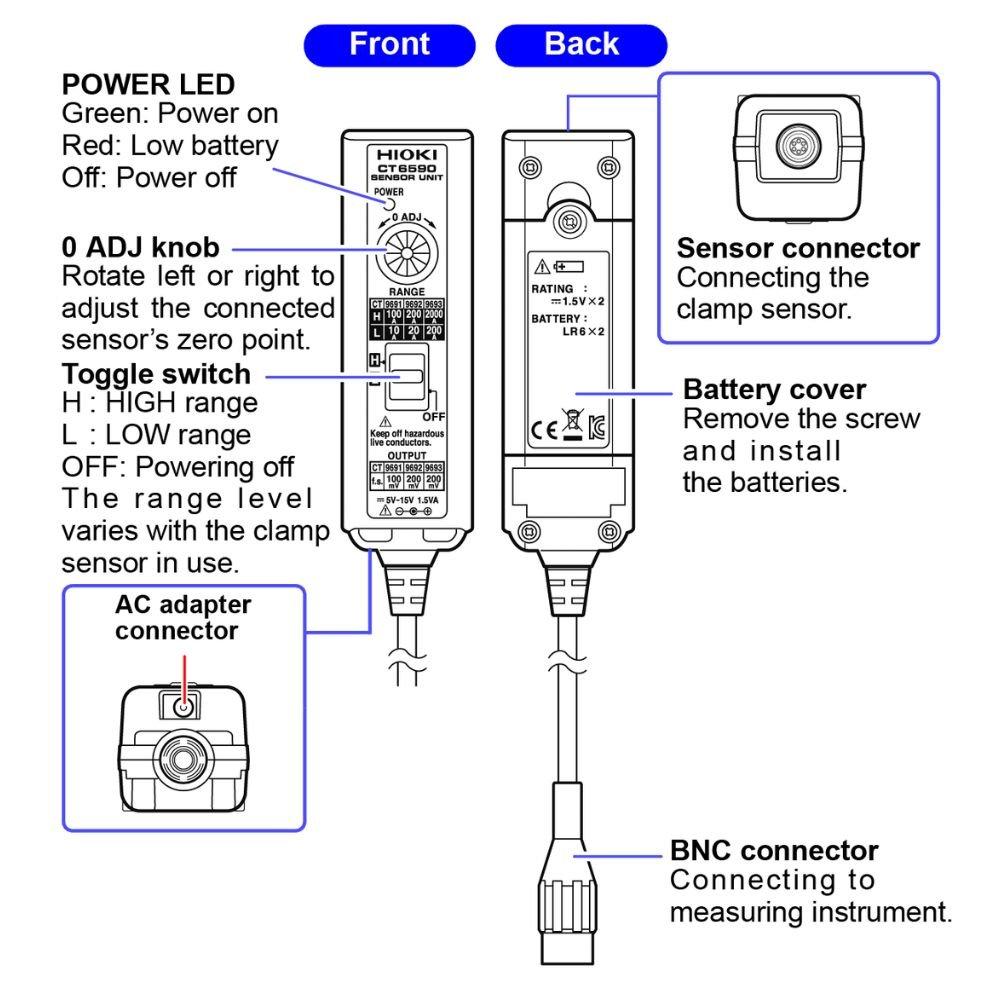

Hioki CT6590 เซนเซอร์จ่ายไฟ Sensor Unit

H

Range (f.s.)

100A

200A

2000A

Output rate

1mV/A

1mV/A

0.1mV/A

L

Range (f.s.)

10A

20A

200A

Output rate

10mV/A

10mV/A

1mV/A

Output (f.s.)

100 mV

200 mV

200 mV

CT9691 sensor

Frequency

DC

DC < f ≤ 66 (Hz)

66 < f ≤ 500 (Hz)

Continuous input

I ≤ 80 (A)

±1.5%rdg.

±1%f.s.

±1.5%rdg.

±1%f.s.

±2.5%rdg. / ±1%f.s.

80 < I ≤ 100 (A)

±3.0%rdg. / ±1%f.s.

Phase

-

±2deg.

Not defined.

CT9692 sensor

Frequency

DC

DC < f ≤ 66 (Hz)

66 < f ≤ 500 (Hz)

Continuous input

I ≤ 200 (A)

±1.5%rdg. / ±0.5%f.s.

±1.5%rdg. / ±0.5%f.s.

±2.5%rdg. / ±0.5%f.s.

Phase

-

±2deg.

Not defined.

CT9693 sensor

Frequency

DC

45 < f ≤ 66 (Hz)

DC < f ≤ 45, 66 < f ≤ 1k (Hz)

Continuous input

I ≤ 1800 (A)

±2.0%rdg.

±0.5%f.s.

±1.5%rdg. / ±0.5%f.s.

±2.5%rdg. / ±0.5%f.s.

1800 < I ≤ 2000 (A)

±2.5%rdg. / ±0.5%f.s.

Not defined.

Phase

-

±2deg.

DC < f < 45 Hz: ±2deg.

66 < f ≤ 1k (Hz): Not defined.
