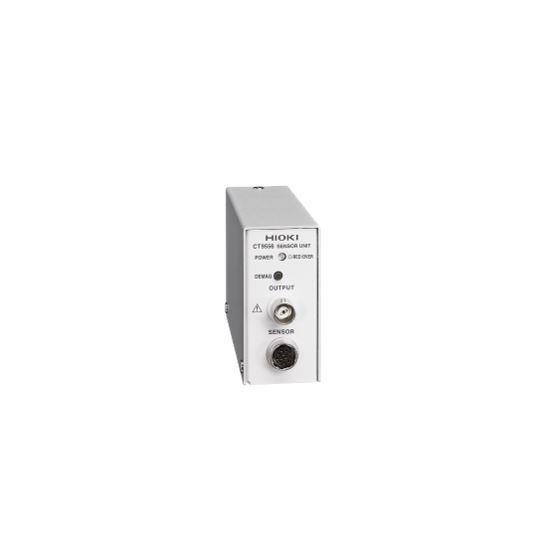

CT9556 SENSOR UNIT (Power supply)
CT9556
CT9556
Power supply for high-precision current sensors Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT9556 is 1-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform and RMS output.
คำถามที่พบบ่อย
มีข้อสงสัยเกี่ยวกับสินค้า/บทความ สอบถามชุมชนหรือผู้เชี่ยวชาญของเรา
CT9556 ฟังก์ชั่นการวัด
จ่ายกระแสไฟฟ้า
CT9556 จุดเด่น
Power supply for high-precision
current sensors with waveform
output / RMS output functionality
CT9556 ช่วงการวัด

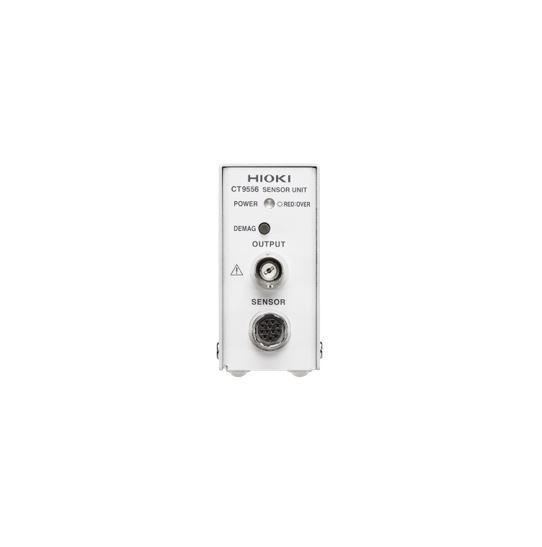

Output Terminal : BNC Terminal
Output voltage :
Waveform output: 2 V f.s.

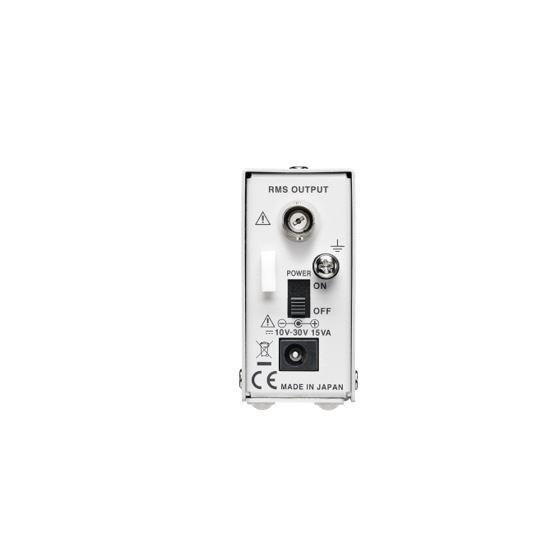

RMS output: 2 V DC f.s.
Output resistance : 50 Ω
CT9556 Power Supply
AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA)
External power supply (10 to 30 V DC; maximum rated power: 15 VA)
CT9556 ขนาดสินค้า
33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz)
CT9556 อุปกรณ์ที่มาในชุด
AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1
CT9556 ข้อมูลจำเพาะ
Connectable current sensors :
Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.)
*The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Operating temperature range : -10°C to 50°C (14°F to 122°F)
