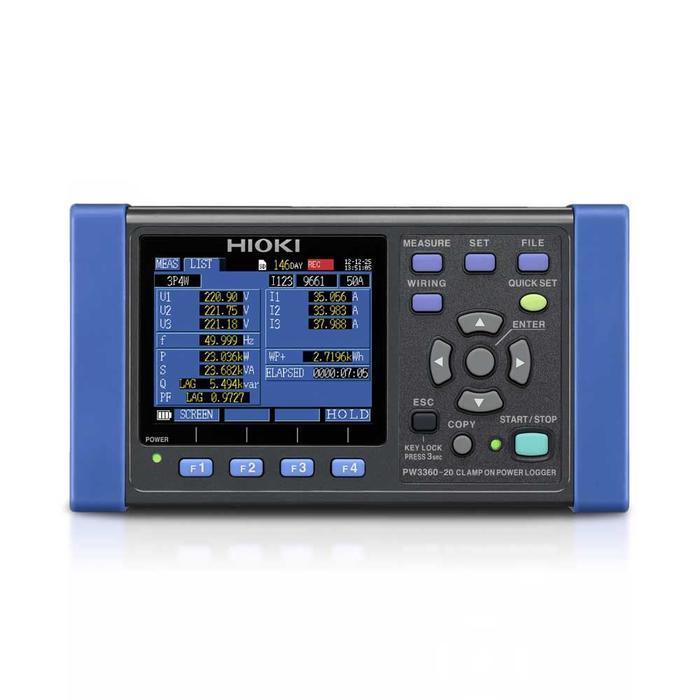

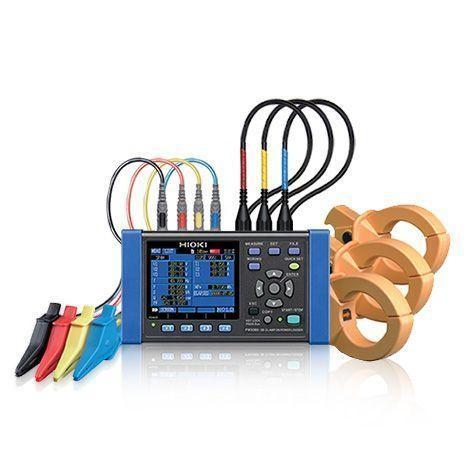

Hioki PW3360-21 เครื่องบันทึกพลังงานไฟฟ้า (With Harmonic Analysis Function)

เครื่องบันทึกพลังงานไฟฟ้า (With Harmonic Analysis Function)

• Voltage RMS
• current RMS
• voltage fundamental wave value
• current fundamental wave value
• voltage fundamental wave phase angle
• current fundamental wave phase angle
• frequency (U1), voltage waveform peak (absolute value)
• current waveform peak (absolute value)
• active power, reactive power (with lag/lead display)
• apparent power
• power factor (with lag/lead display) or displacement power factor (with lag/lead display)
• active energy (consumption, regeneration)
• reactive energy (lag, lead), energy cost display
• active power demand quantity (consumption, regeneration)
• reactive power demand quantity (lag, lead)
• active power demand value (consumption, regeneration)
• reactive power demand value (lag, lead)
• power factor demand
• pulse input
• Harmonic voltage level
• harmonic current level
• harmonic power level
• content percentage
• phase angle
• total harmonic distortion (THD-F or THD-R)
• up to 40th order

จุดเด่น

Display update rate: 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)

Save destination: SD memory card, or internal memory at real time

Data save interval: 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections

Save items: Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data

Interfaces: SD/SDHC memory card LAN 100BASE-TX: HTTP server function USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download Pulse output: proportional to active power consumption when measuring integral power consumption, Isolated open-collector signal

Functions: Connection check, Quick Set navigation guide, clock, pulse input

ช่วงการวัด

• Voltage ranges: 600 V AC (Effective measurement range: 90.00 V to 780.00 V)
• Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only)
• Power ranges: 300.00 W to 9.0000 MW (depends on voltage/current combination and measured line type)
• Basic accuracy: Voltage : ±0.3% rdg. ±0.1% f.s Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy (at power factor = 1)

Current ranges Load current

• CLAMP ON SENSOR 9694 : 500 m/1/5/10/50 A
• CLAMP ON SENSOR 9695-02 : 500 m/1/5/10/50 A
• CLAMP ON SENSOR 9660 : 5/10/50/100 A
• CLAMP ON SENSOR 9695-03 : 5/10/50/100 A
• CLAMP ON SENSOR 9661 : 5/10/50/100/500 A
• CLAMP ON SENSOR 9669 : 100/200/1 k A
• AC FLEXIBLE CURRENT SENSOR CT9667-01 : 50/100 /500/1 k/5 kA
• AC FLEXIBLE CURRENT SENSOR CT9667-02 : 50/100 /500/1 k/5 kA
• AC FLEXIBLE CURRENT SENSOR CT9667-03 : 50/100 /500/1 k/5 kA

Leakage current

• LEAK CLAMP ON SENSOR 9657-10 : 50 m/100 m/500 m/1/5 A
• LEAK CLAMP ON SENSOR 9675 : 50 m/100 m/500 m/1/5 A

Power Supply

AC Adapter Z1006: (100 to 240 V AC, 50/60 Hz), 40 VA (including AC adapter)

Battery Pack 9459: (DC 7.2 V, 3 VA, charging time 6 hr 10 m), 8 hours of continuous use (with back light off)

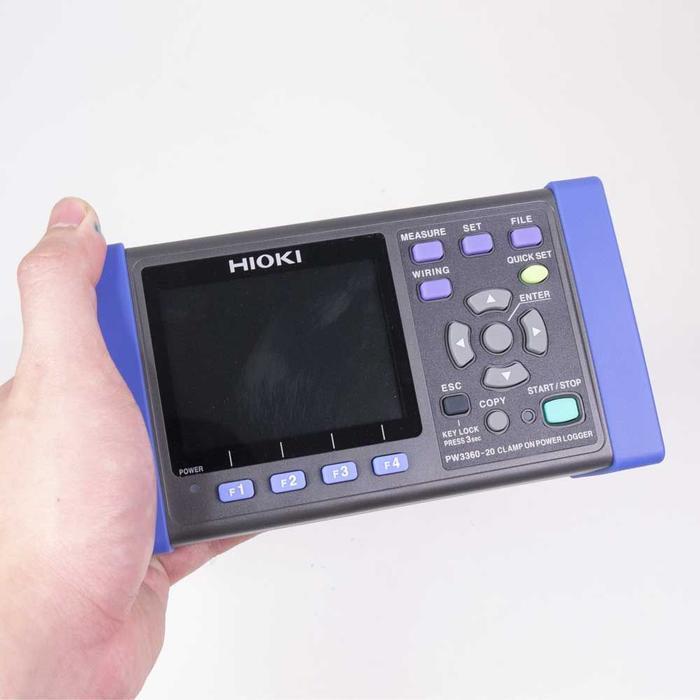

ขนาดสินค้า

• 180 × 100 × 48 mm, 550 g without PW9002
• 180 × 100 × 67.2 mm, 830 g with PW9002

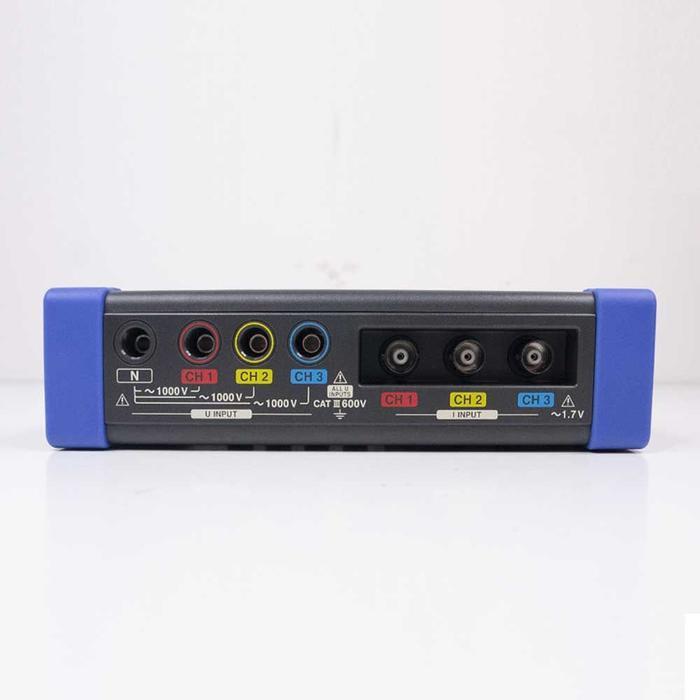

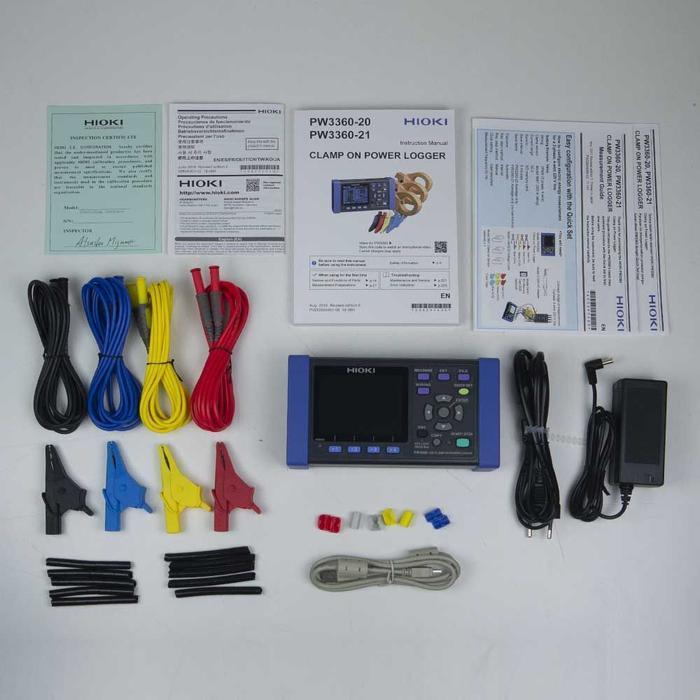

อุปกรณ์ที่มาในชุด

• Voltage cord L9438-53 ×1 set
• AC adapter Z1006 ×1
• USB cable ×1
• Instruction manual ×1
• Measurement guide ×1

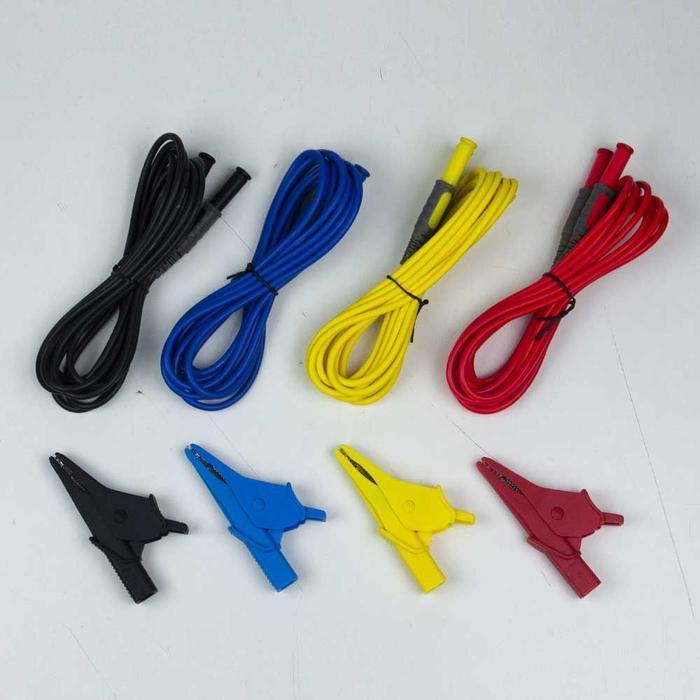

• Color clip ×1 set: red, yellow, blue, white/two each
• Spiral tubes for grouping clamp sensor cords ×5
• Application Software CD (SF4000 GENNECT One) ×1

**Current Clamp Sensor สินค้าแยกจำหน่าย**

อุปกรณ์เสริม

Current measurement

• AC FLEXIBLE CURRENT SENSOR CT9667-01
• AC FLEXIBLE CURRENT SENSOR CT9667-02
• AC FLEXIBLE CURRENT SENSOR CT9667-03

• CLAMP ON SENSOR 9669
• CLAMP ON SENSOR 9695-03
• CLAMP ON SENSOR 9661
• CLAMP ON SENSOR 9694
• CLAMP ON SENSOR 9660
• CLAMP ON SENSOR 9695-02
• CONNECTION CABLE 9219

Leak current

• CLAMP ON LEAK SENSOR 9675
• CLAMP ON LEAK SENSOR 9657-10

CLAMP Adapter

• CLAMP ON ADAPTER 9290-10

Voltage input

• VOLTAGE CORD L9438-53
• 9804-01 (Red) หัวต่อสายไฟวัดแรงดันแบบแม่เหล็กสีแดง
• 9804-02 (Black) หัวต่อสายไฟวัดแรงดันแบบแม่เหล็กสีดำ
• PATCH CORD L1021-01
• PATCH CORD L1021-02

Power supply

• BATTERY SET PW9002 ชุดเซ็ทแบตเตอร์รี่ สำหรับ PW3360
• AC ADAPTER Z1006
• VOLTAGE LINE POWER ADAPTER PW9003 อแดปเตอร์ชาร์จไฟ สำหรับ PW3360
• BATTERY PACK 9459

Storage media

• SD MEMORY CARD 2GB Z4001
• SD MEMORY CARD 8GB Z4003

Other options

• MAGNETIC STRAP Z5004
• CARRYING CASE C1005 กระเป๋าสำหรับเก็บอุปกรณ์

PC peripherals

• SF1001 โปรแกรม POWER LOGGER VIEWER
• 9642 สายแลนยาว 5 เมตร

ข้อมูลจำเพาะ

1. Measurement line & number of circuits: 50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels
2. Measurement items: Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power (with lag/lead display), apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand, pulse input
3. [PW3360-21 only]: Harmonic voltage level, harmonic current level, harmonic power level, content percentage, phase angle, total harmonic distortion (THD-F or THD-R), up to 40th order
4. Voltage ranges: 600 V AC (Effective measurement range: 90.00 V to 780.00 V)
5. Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only)
6. Power ranges: 300.00 W to 9.0000 MW (depends on voltage/current combination and measured line type)
7. Basic accuracy: Voltage : ±0.3% rdg. ±0.1% f.s Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy (at power factor = 1)
8. Display update rate: 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)
9. Save destination: SD memory card, or internal memory at real time
10. Data save interval: 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections
11. Save items: Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data
12. Interfaces: SD/SDHC memory card LAN 100BASE-TX: HTTP server function USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download Pulse output: proportional to active power consumption when measuring integral power consumption, Isolated open-collector signal
13. Functions: Connection check, Quick Set navigation guide, clock, pulse input
14. Power supply: AC Adapter Z1006: (100 to 240 V AC, 50/60 Hz), 40 VA (including AC adapter) Battery Pack 9459: (DC 7.2 V, 3 VA, charging time 6 hr 10 m), 8 hours of continuous use (with back light off)
15. Dimensions and mass: 180 mm (7.09 in) W × 100 mm (3.94 in) H × 48 mm (1.89 in) D, 550 g (19.4 oz) without PW9002 180 mm (7.09 in) W × 100 mm (3.94 in) H × 67.2 mm (2.65 in) D, 830 g (29.3 oz) with PW9002
16. Included accessories: Voltage cord L9438-53 ×1 set, AC adapter Z1006 ×1, USB cable ×1, Instruction manual ×1, Measurement guide ×1, Color clip ×1 set: red, yellow, blue, white/two each, for color-coding clamp sensors, Spiral tubes for grouping clamp sensor cords ×5, Application Software CD (SF4000 GENNECT One) ×1
