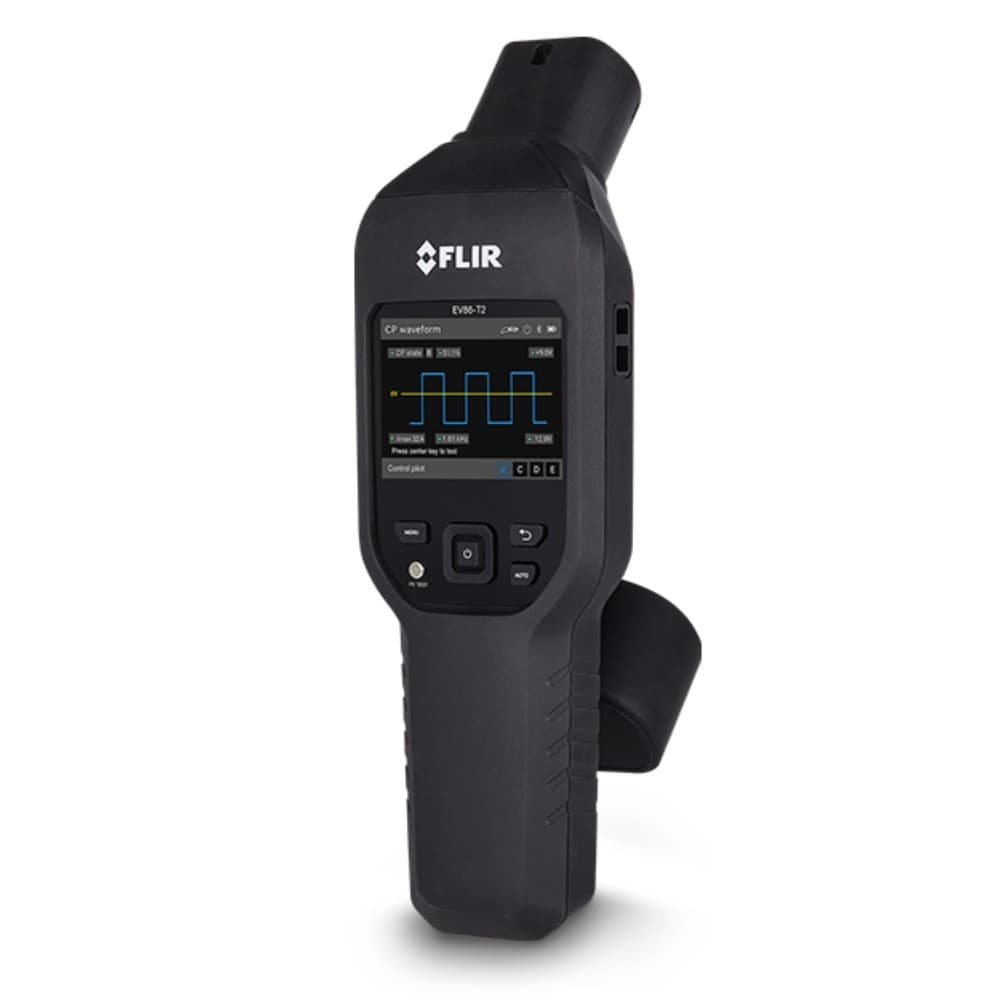

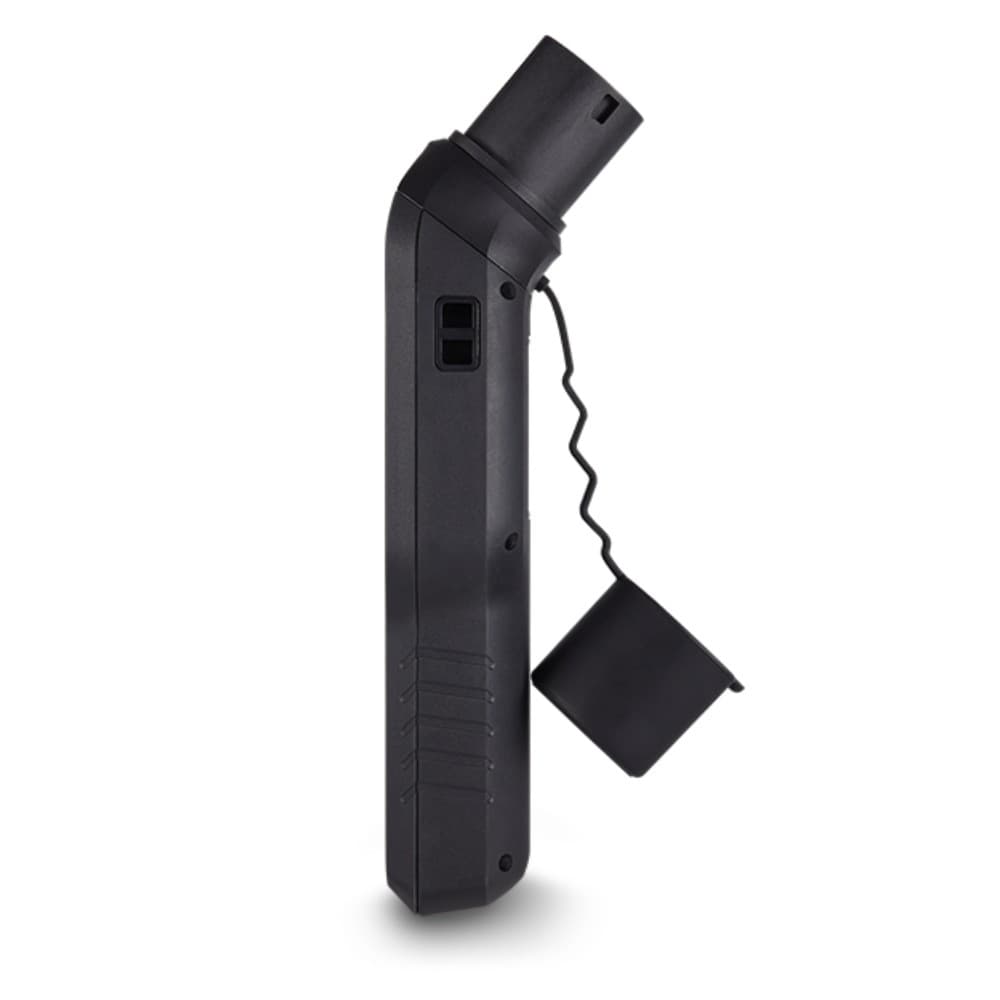

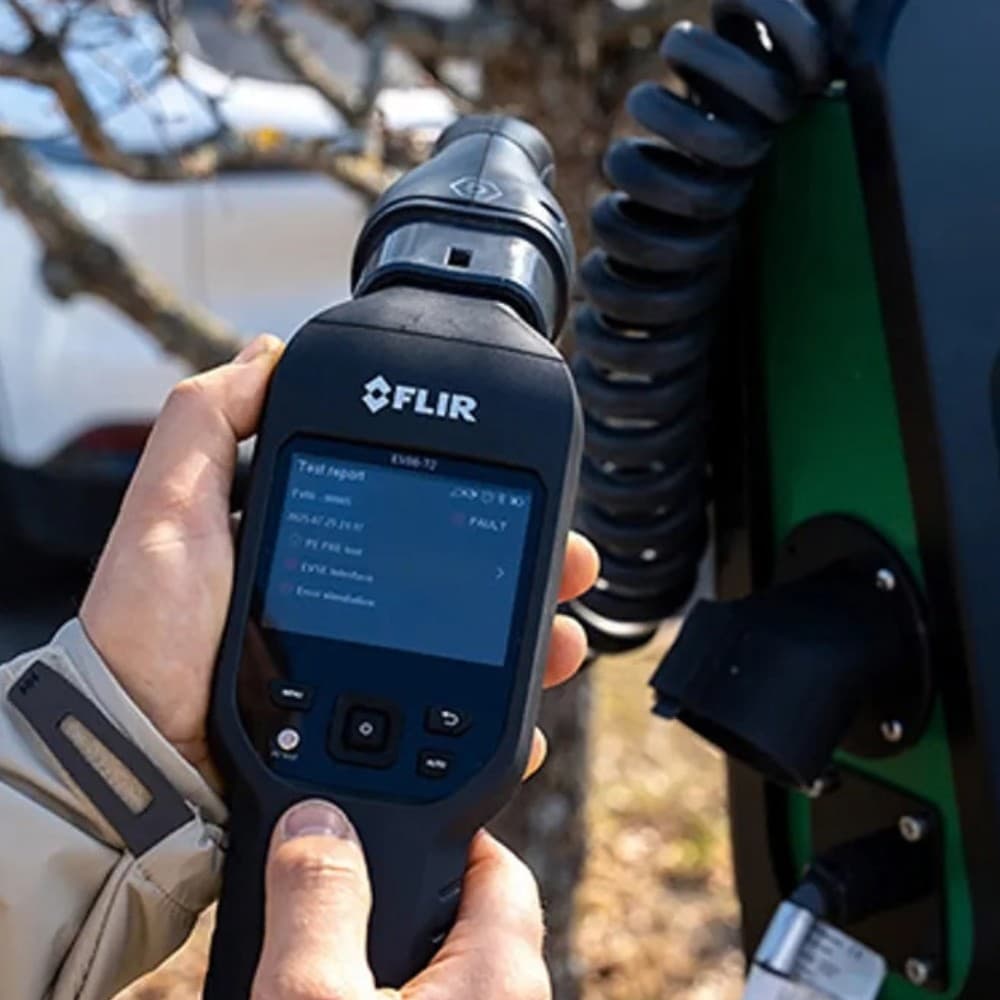

FLIR EV86-T2 EV Charger Analyzer

PE Pre-Test

Range 50 V AC/DC / Accuracy ±2.0%, Pass / Fault (>50 V AC/DC) between PE conductor and touch sensor

Input Electrical Ratings

1Φ: 250 V max, 3 Φ: 230 / 440 V max, 50 / 60 Hz, max 10 A

Main Voltage

Range: 440 V / Accuracy ±2.0%

Frequency

Range: 2 kHz / Accuracy ±1 Hz

Duty Cycle

Range: 100% / Accuracy ±5 Digits

PP State Indication

Not connected, Connected, Connected + Latch

Maximum Charging Current Indication

13 A, 20 A, 32 A, 63 A

CP State Simulation and Waveform

A (Disconnected), B (Connected), C (Charging), D (Charging w/ Ventilation), E (Error Occurred), F (Error occurred)

Voltage Phase Indication

L1, L2, L3, PE, N

RCD Trip Current and Time

Range: 31.5 mA AC, 300 ms / Accuracy ±2.0%Range: 6 mA DC, 12.5s for < 2.5s / Accuracy ±1.0%

RCD Ramping Current (0°, 180°)

Range: 6 mA DC in 2 mA Smooth Ramp Every 2 mA DC, 30 mA AC in 2 mA Steps Every 30 ms in .5s / Accuracy ±2.0%

Loop Impedance

Range: 2.000 kΩ / Accuracy ±1.0%

Auto Testing Items

PE Contact Test, EVSE Interface, RCD Test, and Loop Impedance Test in Setting Menu

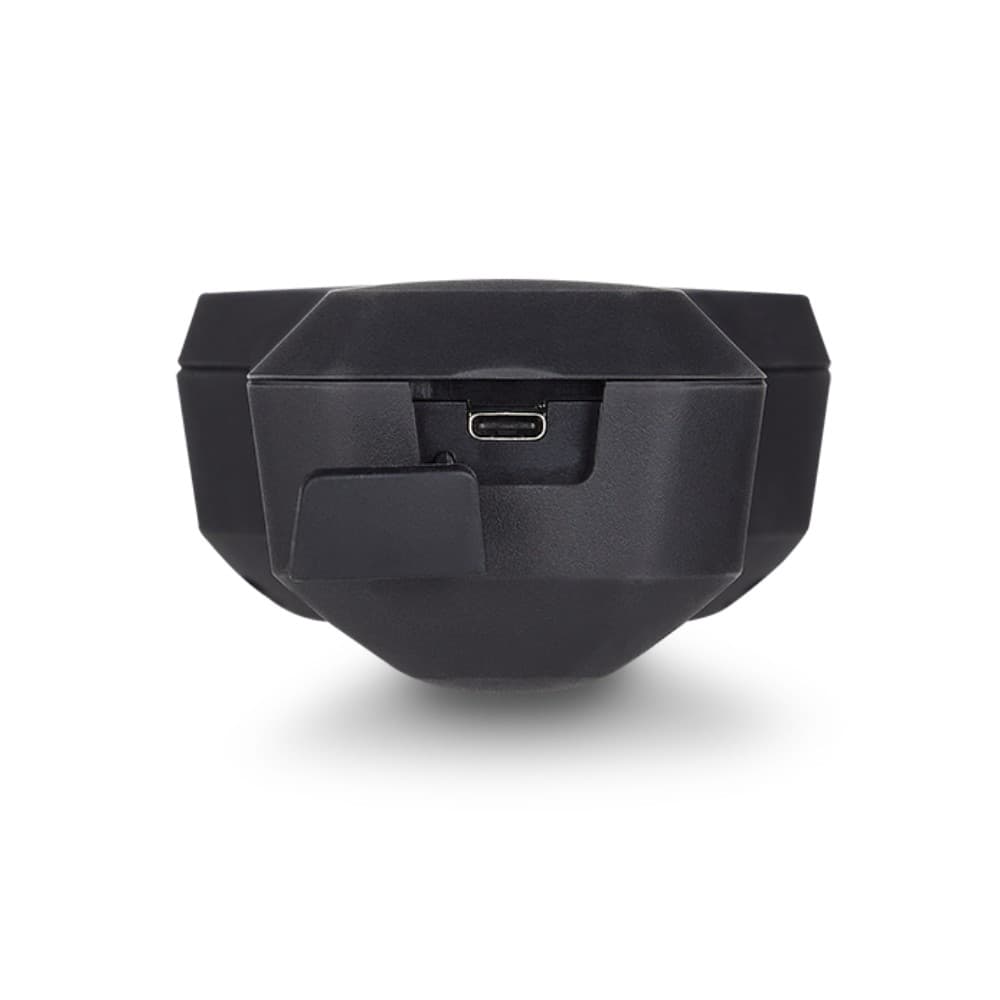

System Power

Battery

Rechargeable Li-Battery

Battery Life

12 Hours Continuously

Auto Power Off

After Approximately 15 Minutes of Inactivity

General Information

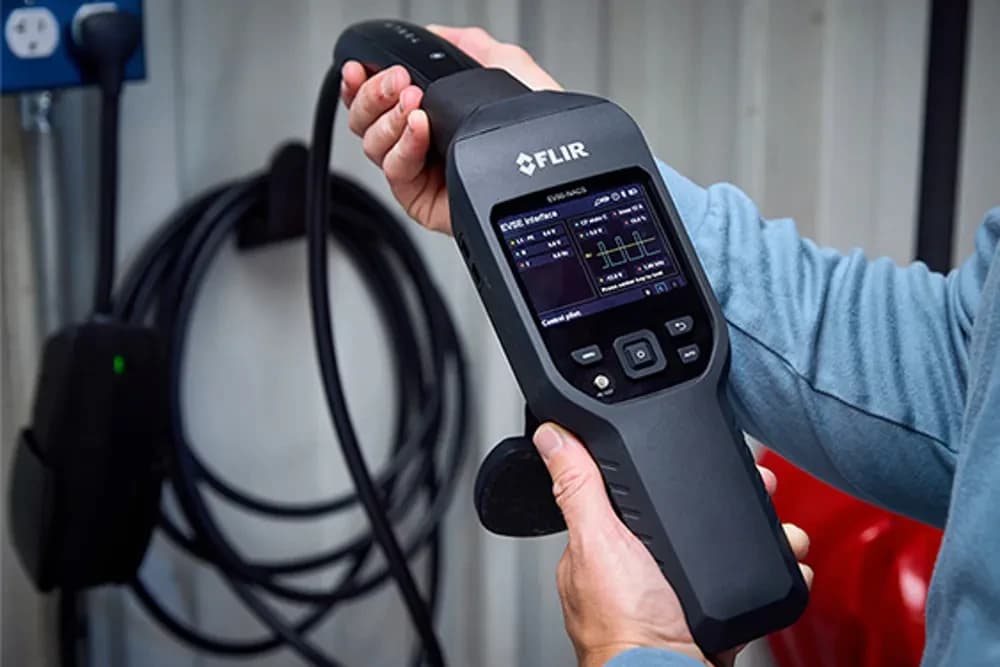

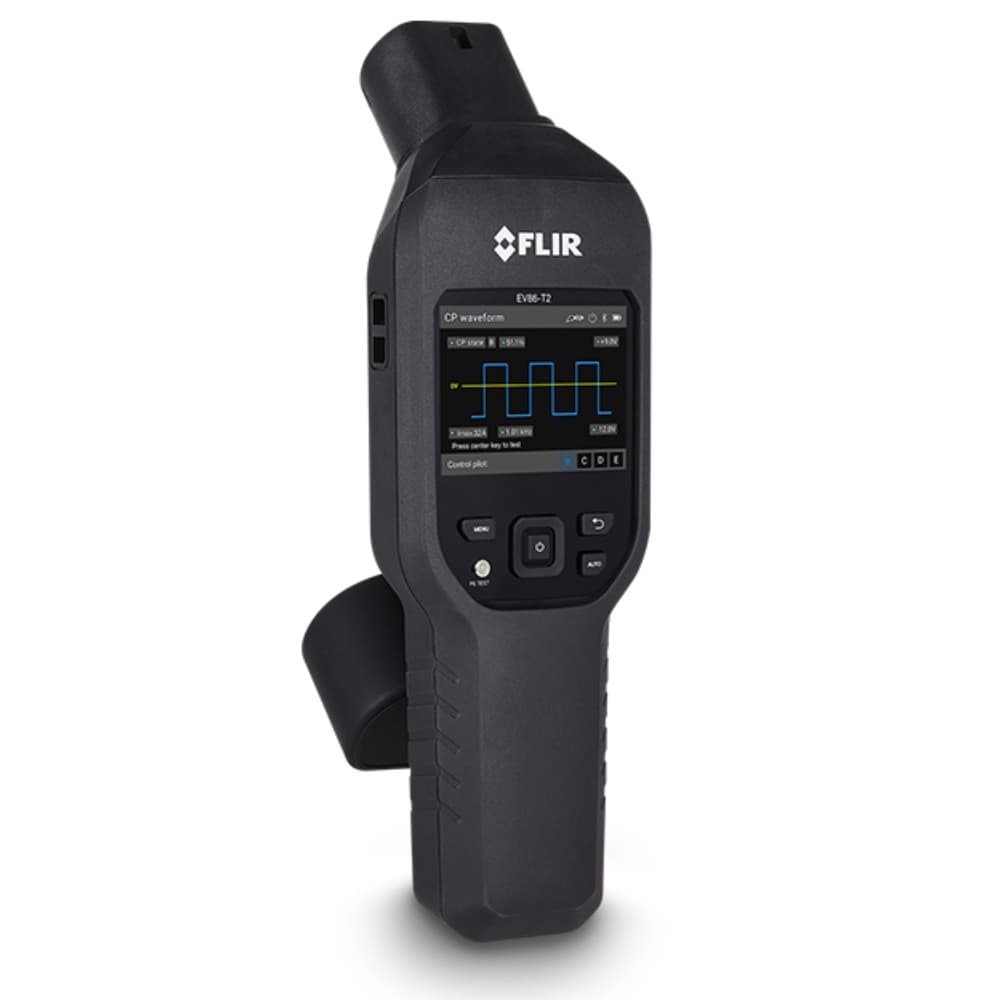

Display

3.5 in. TFT-LCD

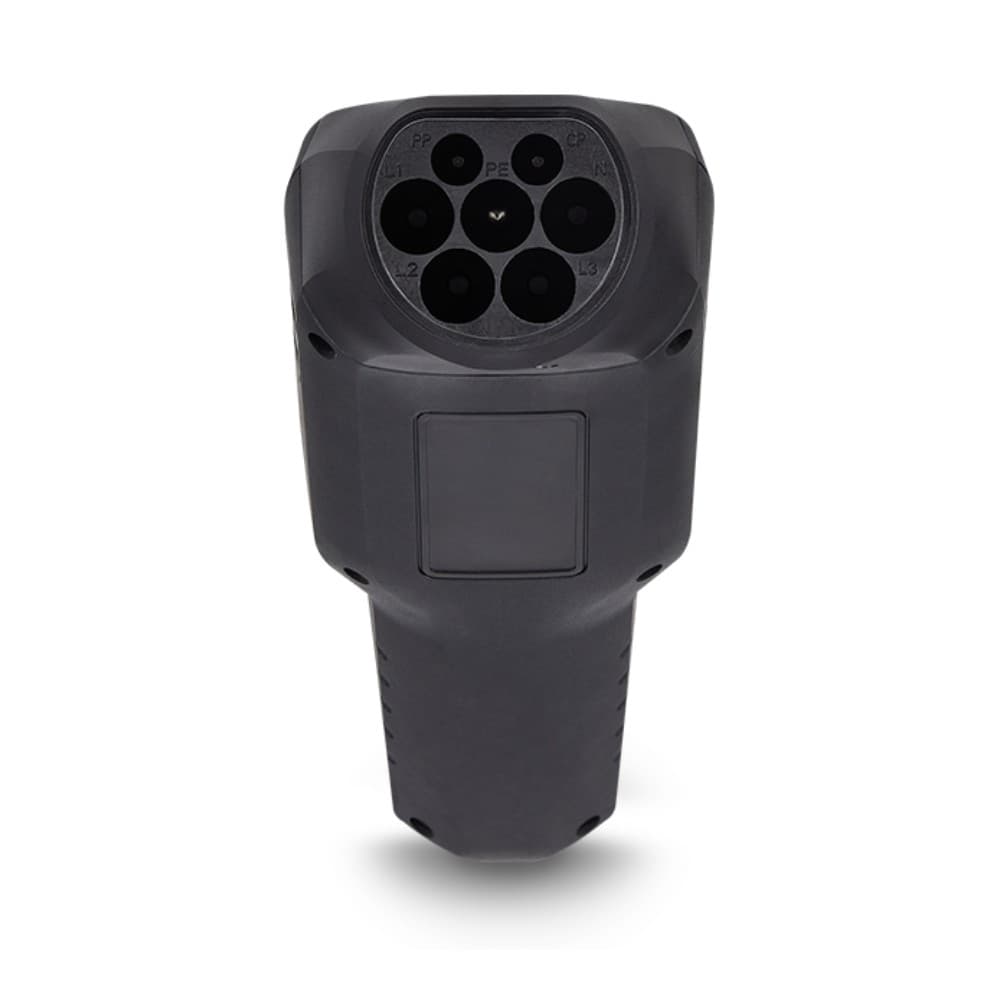

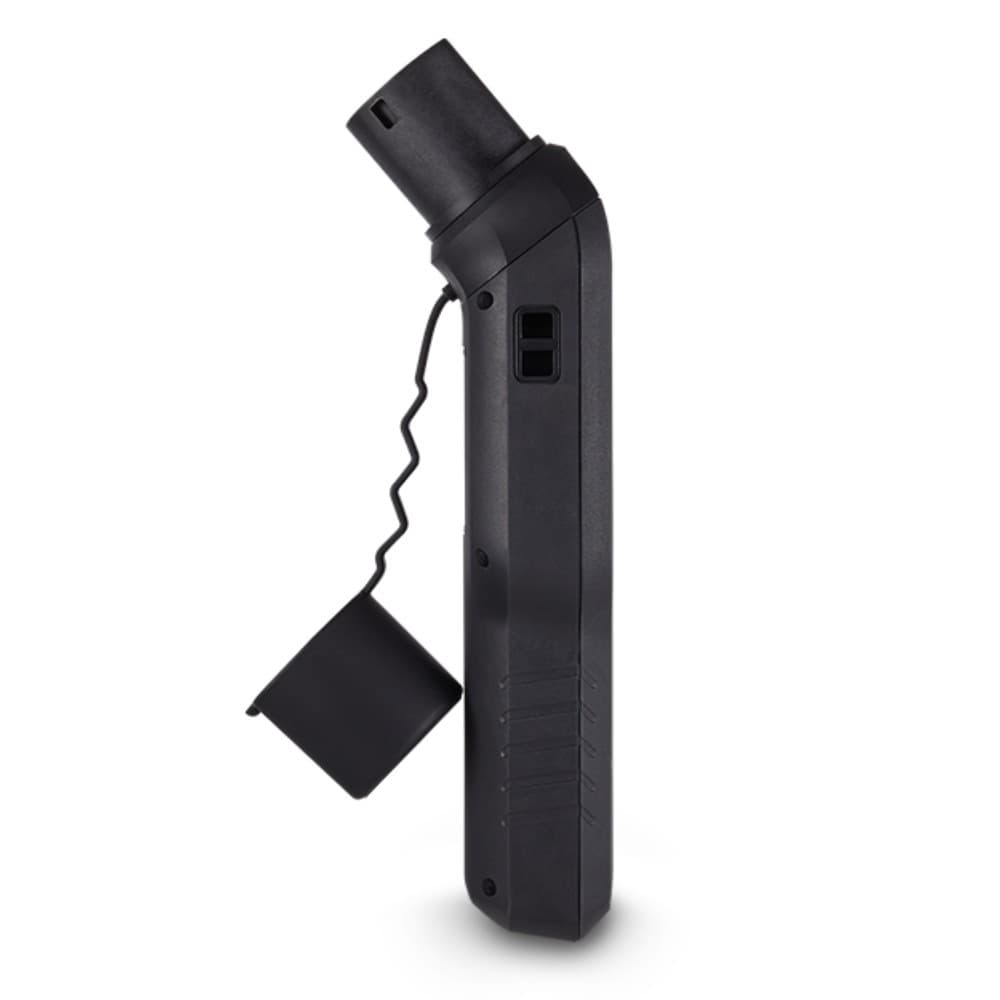

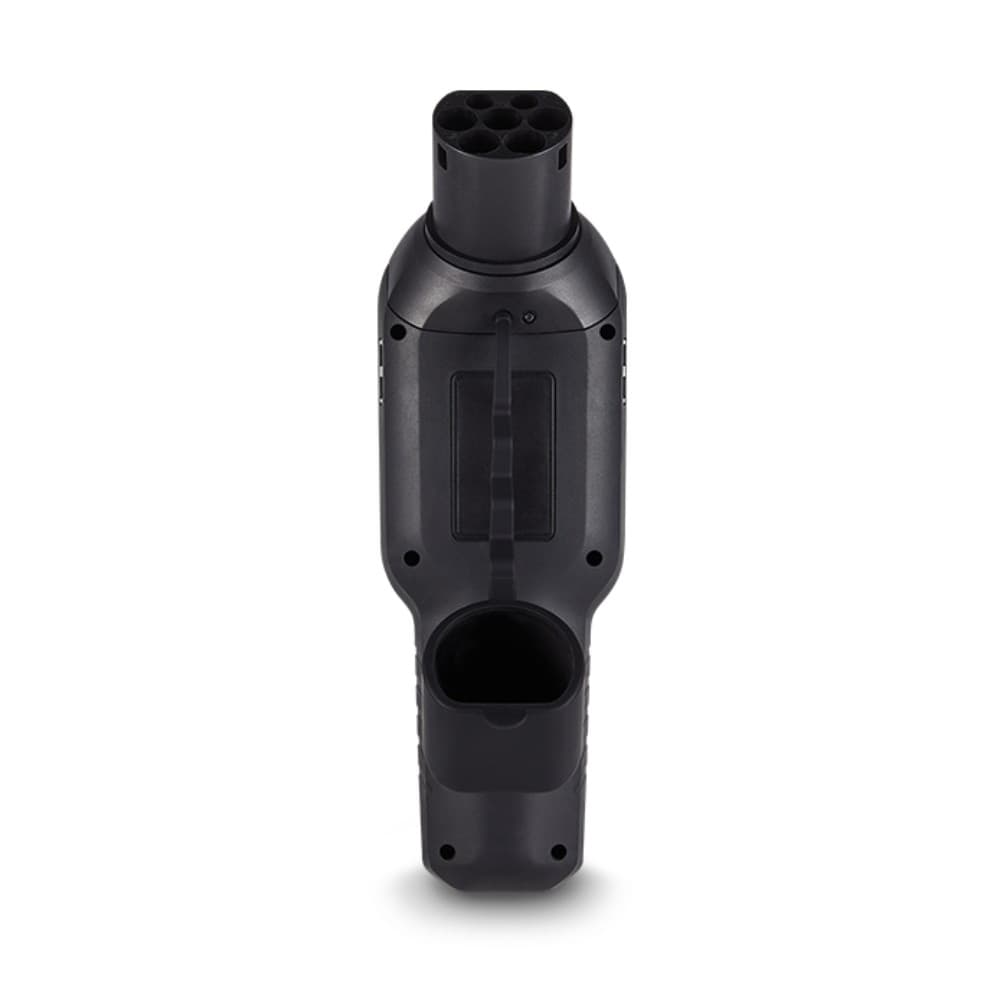

Type 2 Connector (Built-In)

IEC 62196-2 Type 2 Socket

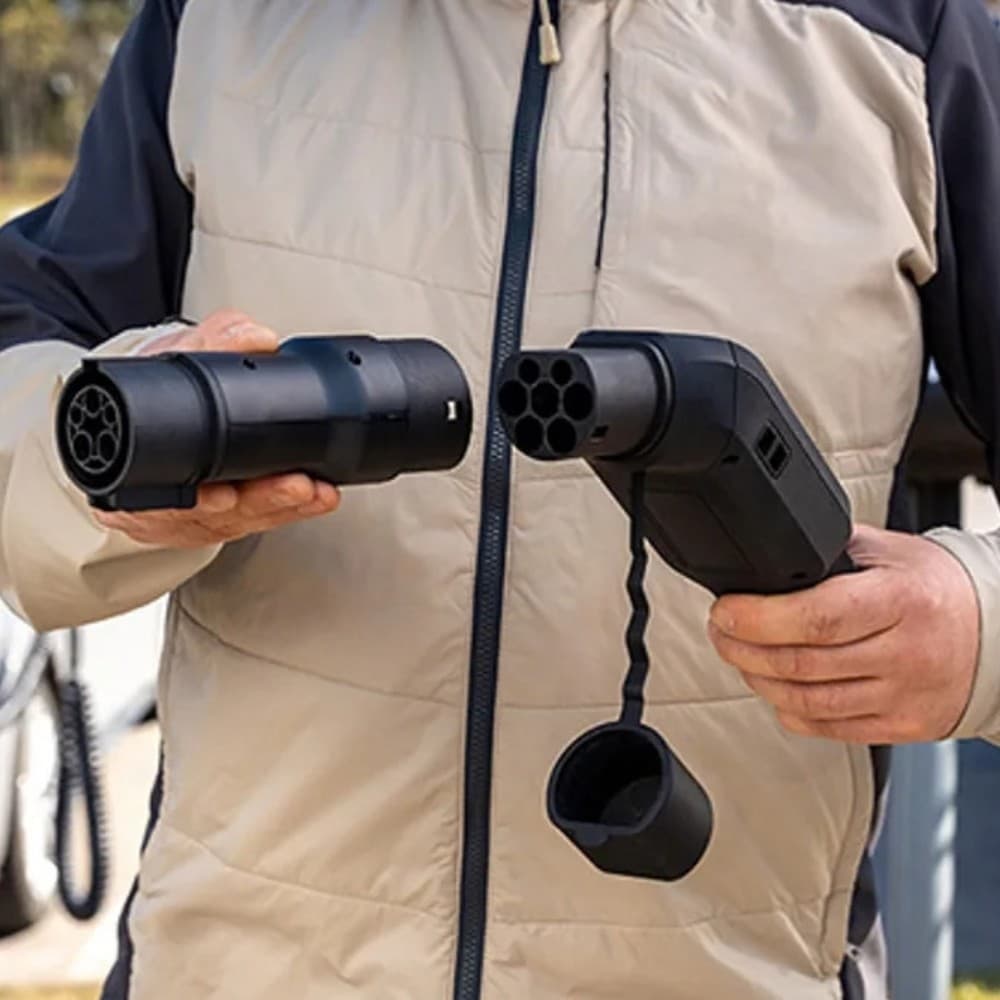

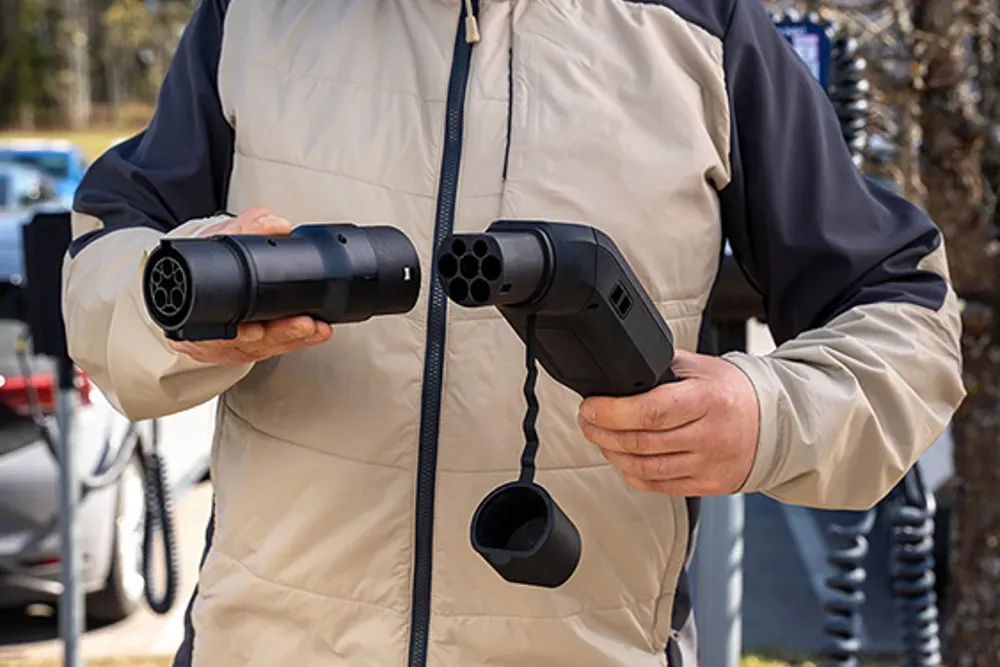

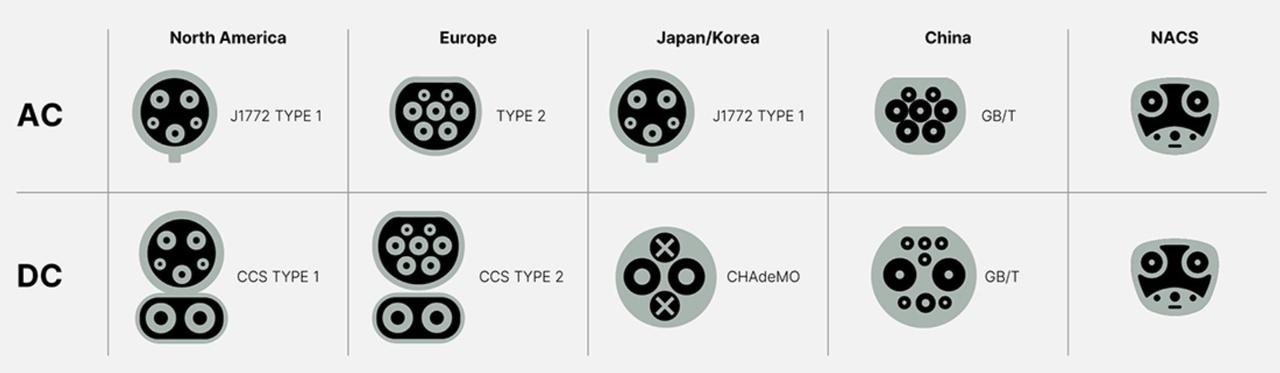

Accessory Converter

IEC 62196-2 Type 2 to SAE J1772 Type 1

Category Rating

CAT II-300 V

Warranty

Limited 3-Year Warranty

Certifications

Certifications

ETL, CE, FCC

Safety Standards

IEC 61010-1, CAT II-300 V

EMC Standards

EN61326-1

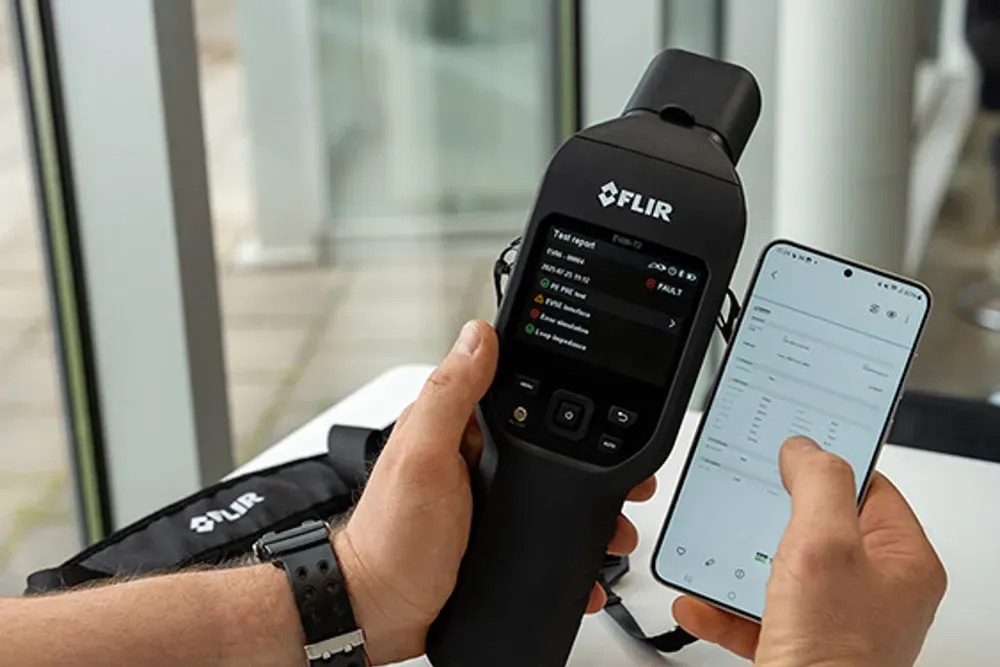

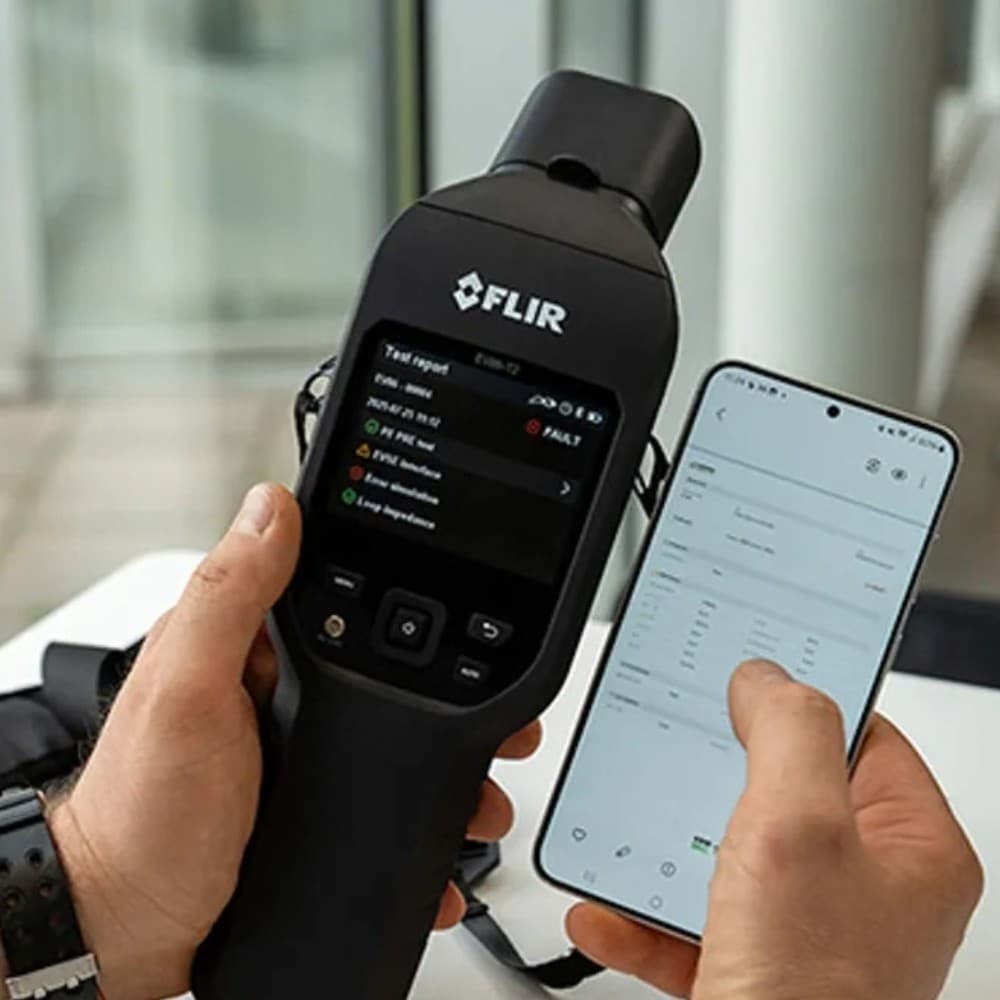

Connectivity

Wireless Technology

Bluetooth BLE

Communications Protocol

MeterLink

Bluetooth Range

10 m (32 ft)

Environmental Data

Operating Ambient Temperature

and Relative Humidity (RH)

-10°C to 30°C (14°F to 86°F), <85% RH30°C to 40°C (86°F to 104°F), <75% RH40°C to 50°C (104°F to 122°F), <45% RH

Storage Temperature and RH

-20°C to 60°C (-4°F to 140°F), 0 to 80% RH

Operating Altitude

2000 m (6560 ft)

Pollution Degree

2

Physical Data

Weight

760 g (1.7 lbs)

Dimensions (L × W × H)

296 × 93.5 × 50 mm (11.6 × 3.68 × 2 in.)

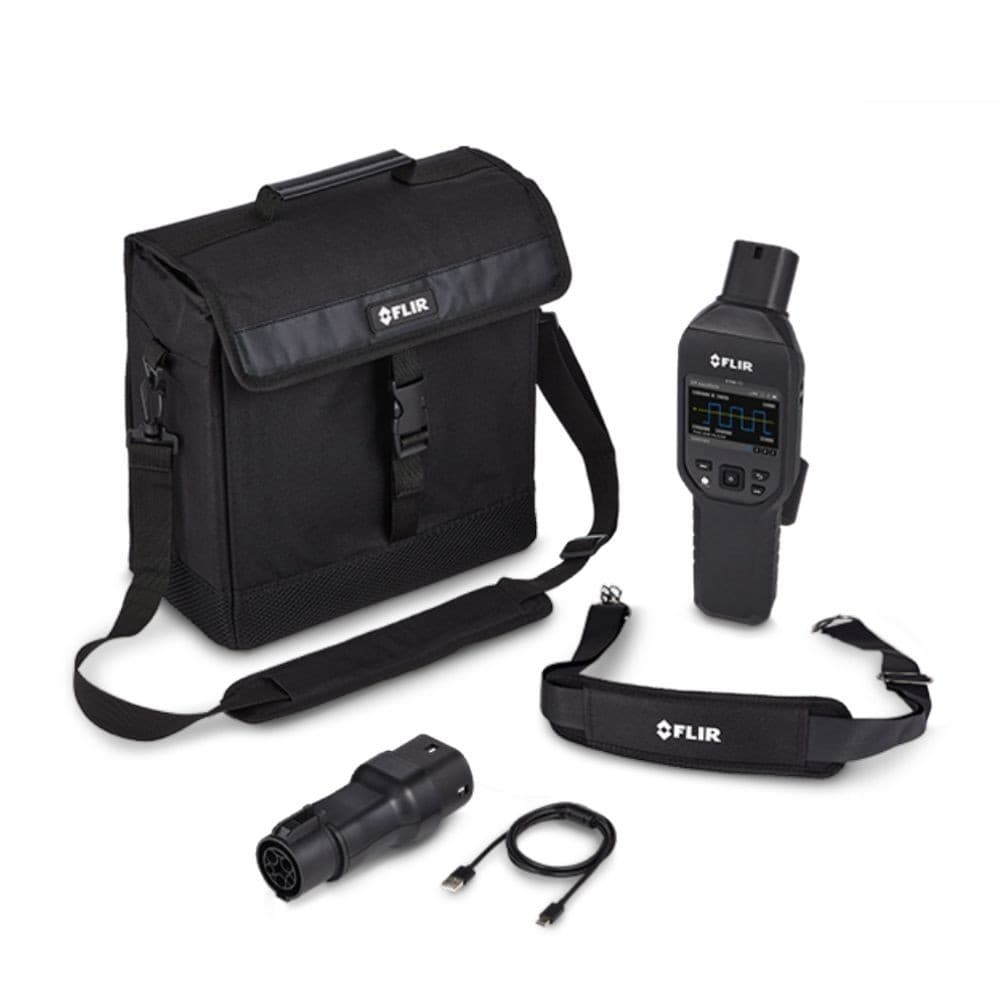

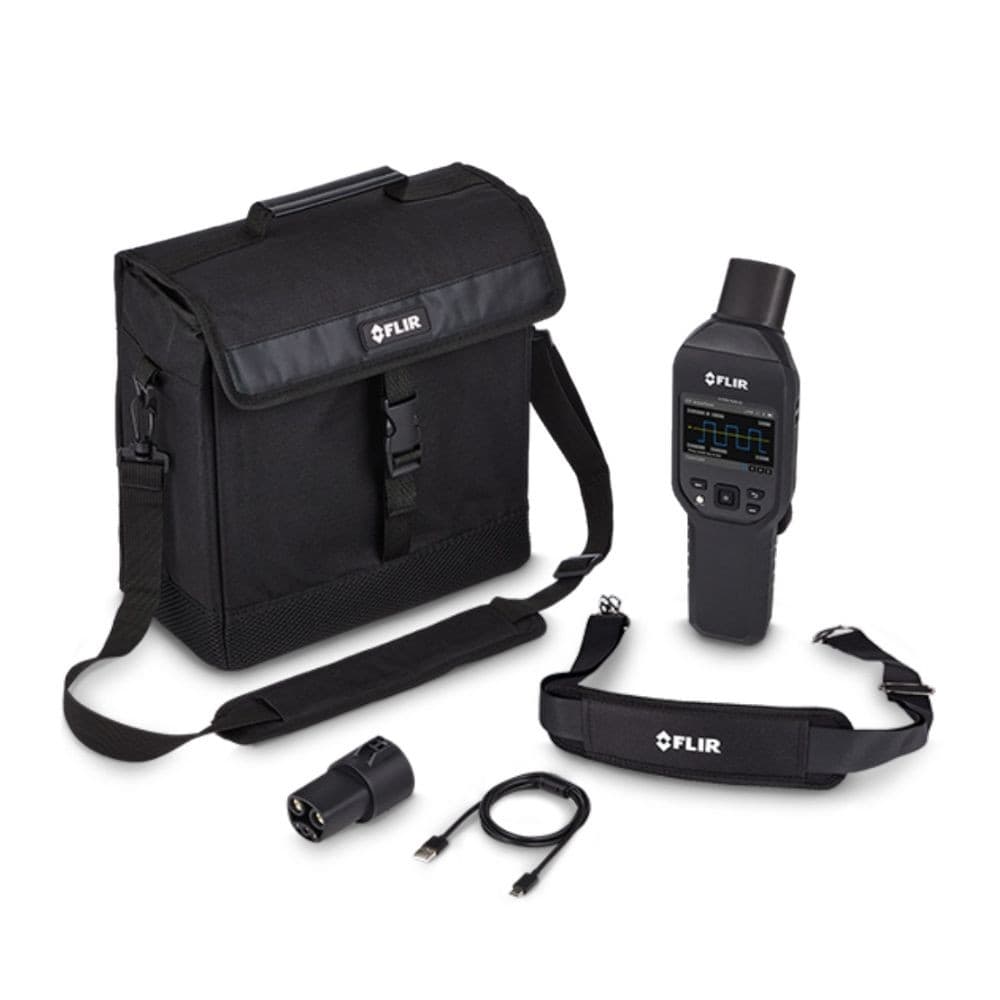

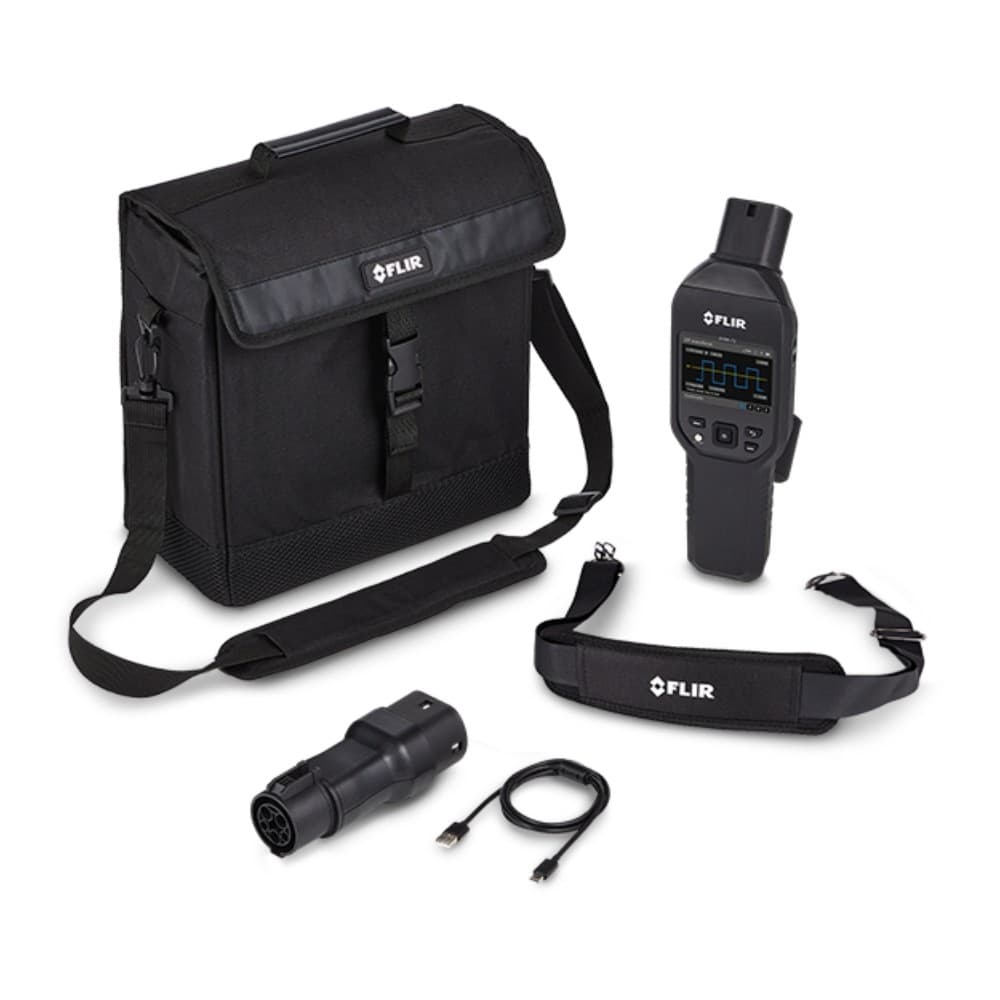

Included in the box

• EV86-T2 EV Charger Analyzer x 1

• Converter (Type 2 to Type 1) x 1

• USB Cable Type A to C x 1

• Neck Strap x 1

• Quick Start Guide x 1

• arrying Pouch with Shoulder Strap x 1
