FLIR EV86-NACS EV Charger Analyzer

Electrical Measurement

PE Contact Test

Range: 50 V AC / DC / Accuracy ±2.0%, Pass / Fault (>50 V AC / DC Between PE Conductor and Touch Sensor)

Input Electrical Ratings

1 Φ: 250 V max, 2 Φ: 300 V max, 50 / 60 Hz, max 10 A

Main Voltage

Range: 300 V / Accuracy ±2.0%

Frequency

Range: 2 kHz / Accuracy ±1 Hz

Duty Cycle

Range: 100% / Accuracy ± 5 Digits

PP State Indication

Not connected, Connected, Connected + latch

Maximum Charging Current Indication

13 A, 20 A, 32 A, 63 A

CP State Simulation and Waveform

A (Disconnected), B (Connected), C (Charging), D (Charging w/ ventilation), E (Error occurred), F (Error occurred)

Voltage Phase Indication

L1, L2, PE, N

CCID Trip Current and Time

Range: 21 mA AC, 5.59 s / Accuracy ±2.0%Range: 6 mA AC, 5.59 s for <1.2 s / Accuracy ±1.0%

CCID Ramping Current (0°, 180°)

Range: 6 mA AC in 0.5 mA steps every 100 ms in 1.2 s,20 mA AC in 1 mA steps every 100 ms in 2 s. / Accuracy ±2.0%

Loop Impedance

Range: 2.000 kΩ / Accuracy ±1.0%

Auto Testing Items

PE Contact Test, EVSE Interface, CCID Test, and Loop Impedance Test in Settings Menu

Electrical Measurement

PE Contact Test

Range: 50 V AC / DC / Accuracy ±2.0%, Pass / Fault (>50 V AC / DC Between PE Conductor and Touch Sensor)

Input Electrical Ratings

1 Φ: 250 V max, 2 Φ: 300 V max, 50 / 60 Hz, max 10 A

Main Voltage

Range: 300 V / Accuracy ±2.0%

Frequency

Range: 2 kHz / Accuracy ±1 Hz

Duty Cycle

Range: 100% / Accuracy ± 5 Digits

PP State Indication

Not connected, Connected, Connected + latch

Maximum Charging Current Indication

13 A, 20 A, 32 A, 63 A

CP State Simulation and Waveform

A (Disconnected), B (Connected), C (Charging), D (Charging w/ ventilation), E (Error occurred), F (Error occurred)

Voltage Phase Indication

L1, L2, PE, N

CCID Trip Current and Time

Range: 21 mA AC, 5.59 s / Accuracy ±2.0%Range: 6 mA AC, 5.59 s for <1.2 s / Accuracy ±1.0%

CCID Ramping Current (0°, 180°)

Range: 6 mA AC in 0.5 mA steps every 100 ms in 1.2 s,20 mA AC in 1 mA steps every 100 ms in 2 s. / Accuracy ±2.0%

Loop Impedance

Range: 2.000 kΩ / Accuracy ±1.0%

Auto Testing Items

PE Contact Test, EVSE Interface, CCID Test, and Loop Impedance Test in Settings Menu

System Power

Battery

Rechargeable Li-Battery

Battery Life

12 Hours Continuously

Auto Power Off

After Approximately 15 Minutes of Inactivity

General Information

Display

3.5 in. TFT-LCD

NACS Connector (Built-in)

Connector for NACS Station

Accessory Converter

NACS to SAE J1772 Type 1

Category Rating

CAT II-300 V

Warranty

Limited 3-Year Warranty

Certifications

Certifications

ETL, CE, FCC

Safety Standards

IEC 61010-1, CAT II-300 V

EMC Standards

EN61326-1

Connectivity

Wireless Technology

Bluetooth BLE

Communications Protocol

Meterlink

Bluetooth Range

10 m (32 ft)

Environmental Data

Operating Ambient

Temperature and Relative

Humidity (RH)

-10°C to 30°C (14°F to 86°F), <85% RH

30°C to 40°C (86°F to 104°F), <75% RH

40°C to 50°C (104°F to 122°F), <45% RH

Storage Temperature and RH

-20°C to 60°C (-4°F to 140°F), 0 to 80% RH

Operating Altitude

2000 m (6560 ft)

Pollution Degree

2

Physical Data

Weight

760 g (1.7 lbs)

Dimensions (L × W × H)

296 × 93.5 × 50 mm (11.6 × 3.68 × 2 in.)

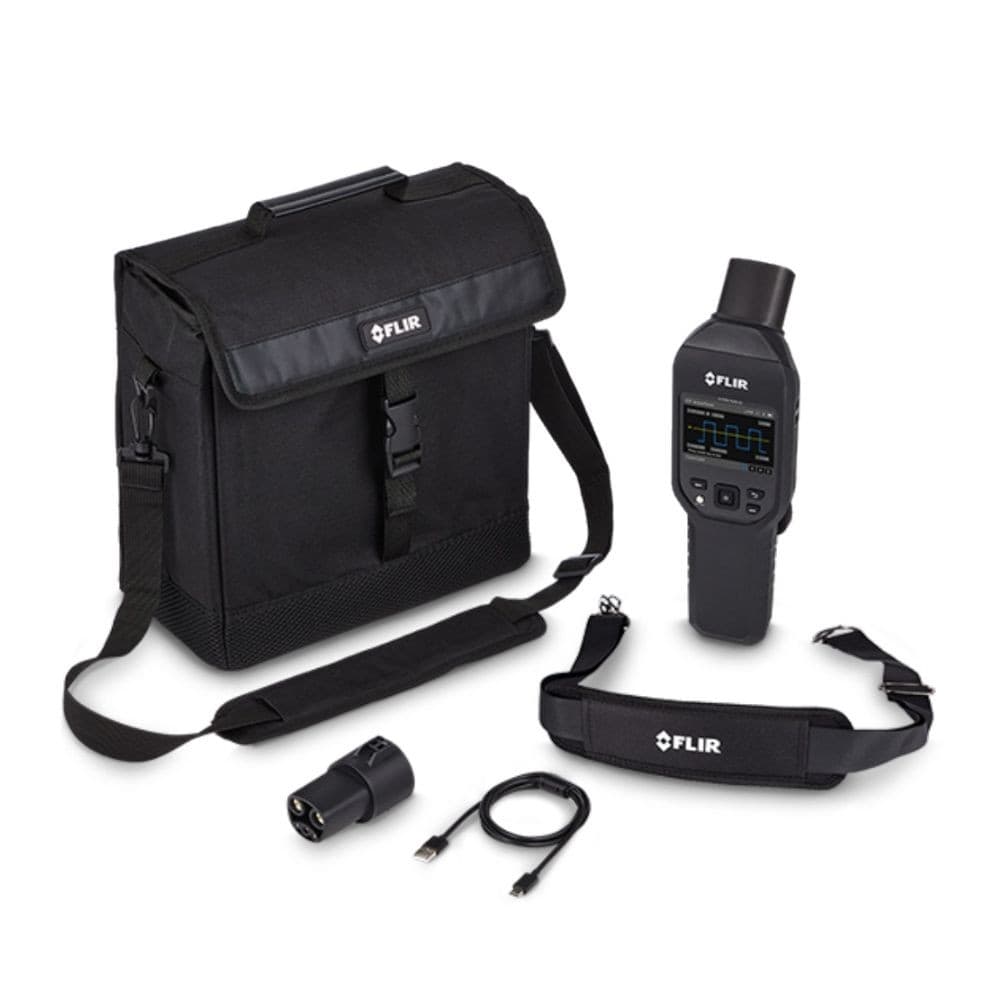

Included in the Box

1 × EV86-NACS EV Charger Analyzer

1 × Converter (NACS to Type 1)

1 × USB Cable Type A to C

1 × Neck Strap

1 × Quick Start Guide

1 × Carrying Pouch with Shoulder Strap
