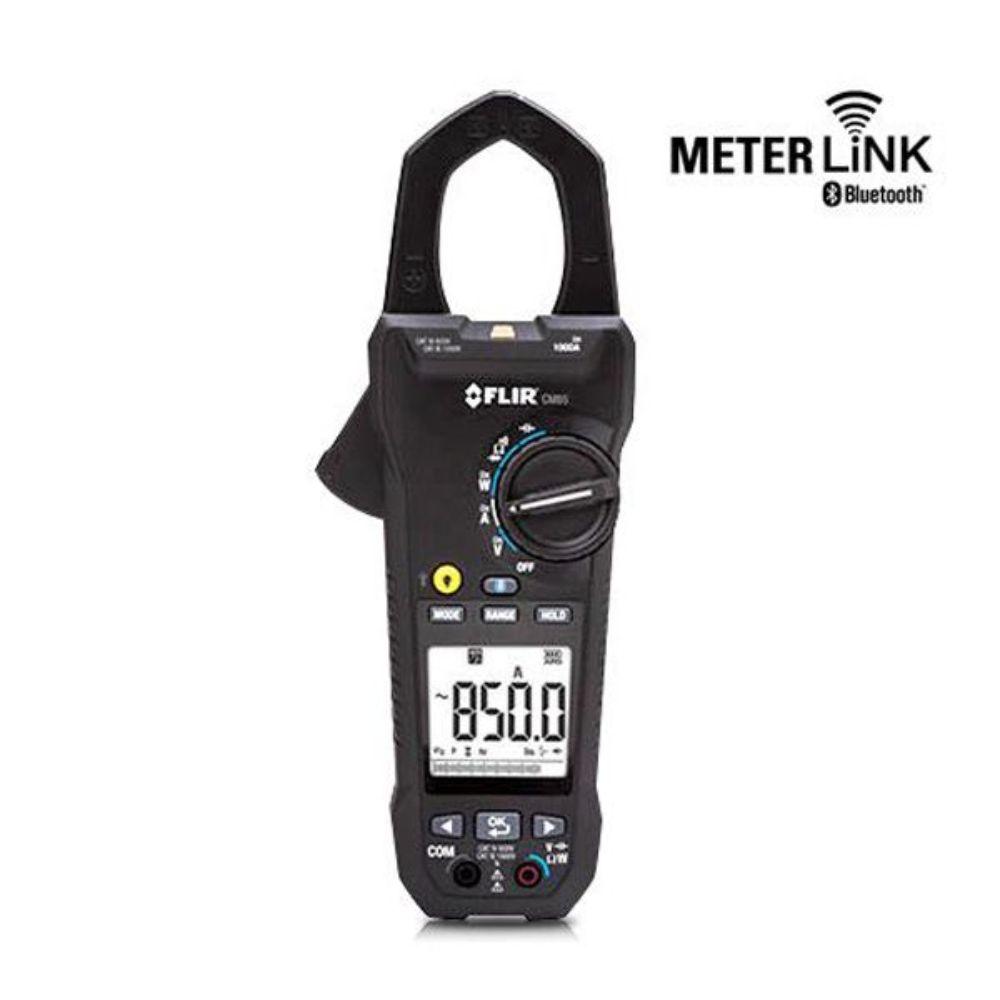

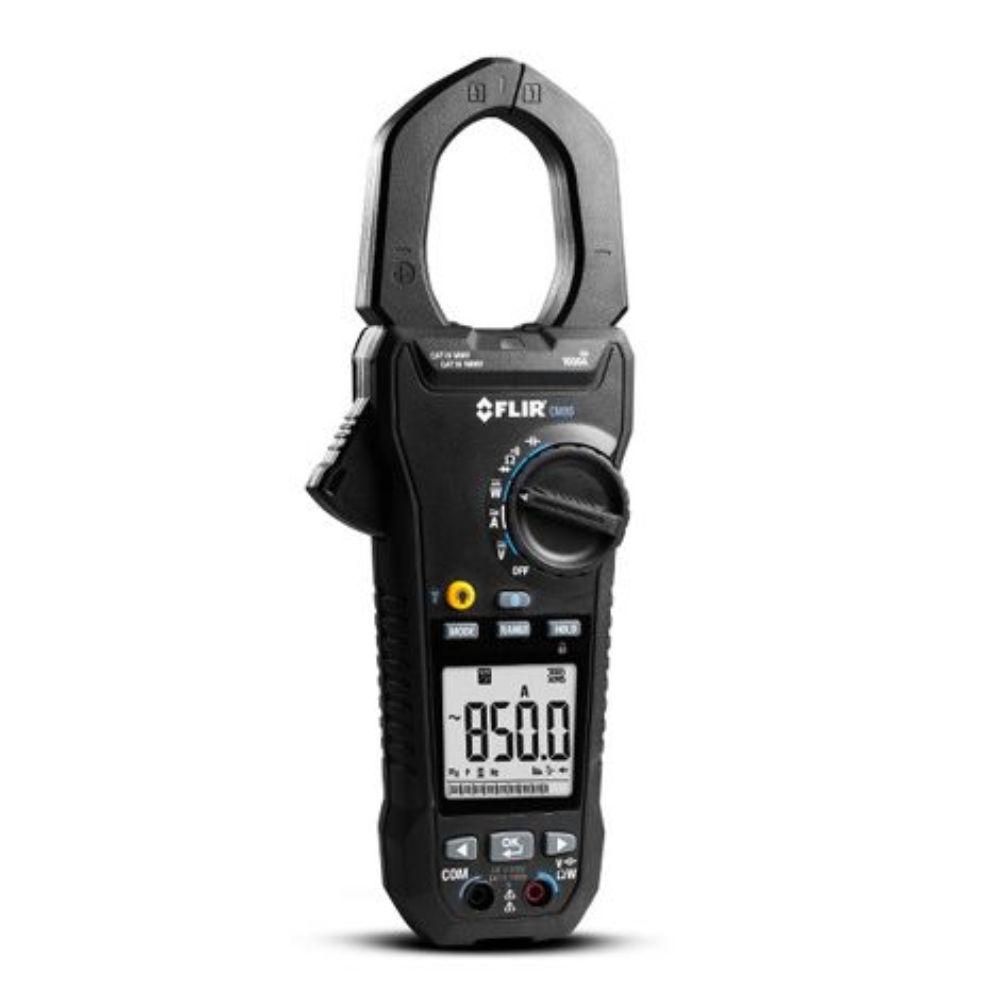

FLIR-Electrician-SET4 แคลมป์มิเตอร์ / กล้องถ่ายภาพความร้อนสำหรับสมาร์ตโฟน

Range

Accuracy

AC VFD Voltage

Range: 1000 V

Basic Accuracy: ±1

AC/DC Current

Range: 1000 A

Basic Accuracy: ±2%

AC/DC Voltage

Range: 1000 V

Basic Accuracy: ±1% | ±0.7%

Active Power

Range 10 kW to 1000 kW, (10 V, 5 A min)

Basic Accuracy ±3%

Capacitance

Range: 3.999 mF Max

Basic Accuracy: ±1.9%

Continuity Threshold

Range: 30 Ω

Basic Accuracy: ±1%

Diode Test

Range: 0.4 to 0.8 V

Basic Accuracy: ±0.1V

Frequency

Range: 20.00 Hz to 9.999 kHz

Basic Accuracy: ±0.5%

Harmonics

Range: 1st-25th Order

Basic Accuracy: ±5%

Inrush Current

Range: 1000 ACA Max (Integration Time 100 ms)

Basic Accuracy: ±3%

Resistance

Range: 99.99 kΩ Max

Basic Accuracy: ±1%

Total Harmonic Distortion

Range: 0.0 to 99.9%

Basic Accuracy: ±3%

Over‐voltage category

IEC 61010‐1 CAT IV‐600 V | CAT III‐1000 V, IEC 61010‐2‐033

Bluetooth range

32 ft. (10 m) maximum.

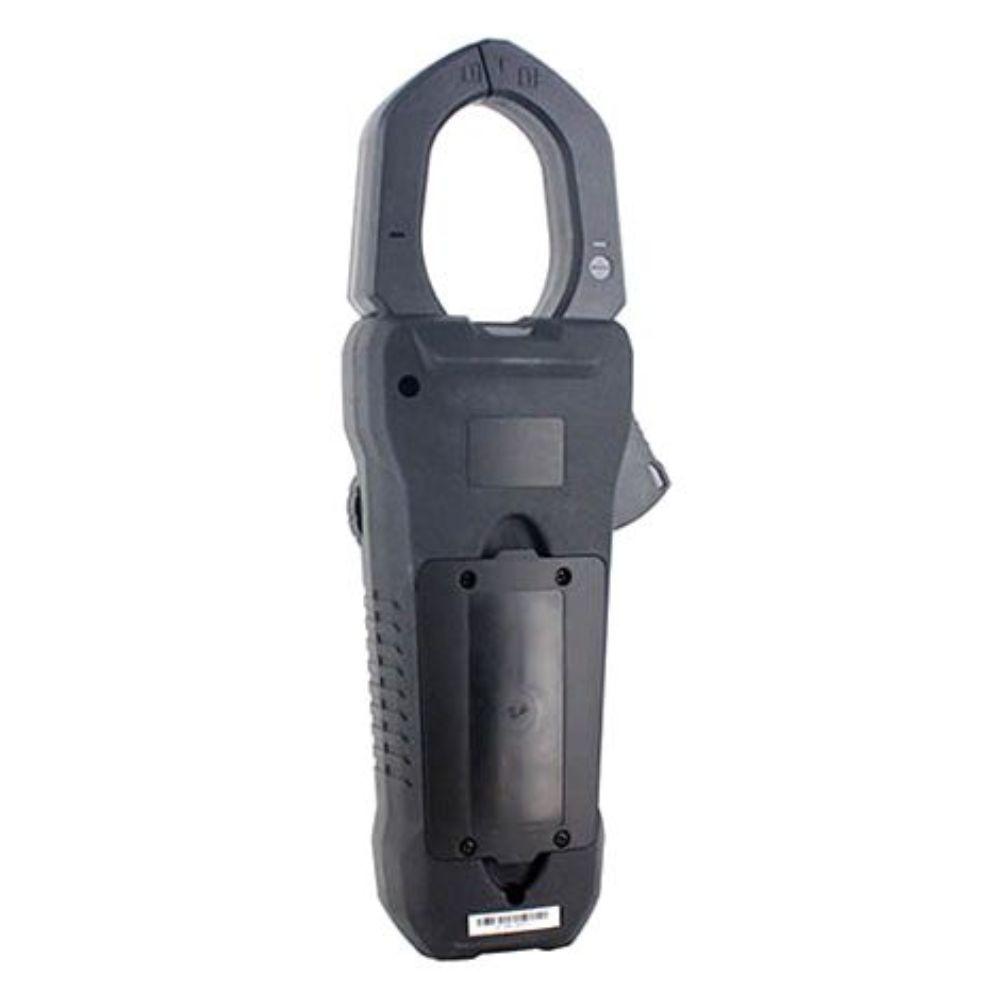

Jaw Opening

45 mm (1.77")

Display count

10,000 or 4,000

Power requirement

Alkaline batteries AAA x 6
(Approx. 50 hours with alkaline batteries (backlight, work light, and Bluetooth are off)

Dimensions/ Weight

49 x 100 x 262 mm / 590 g

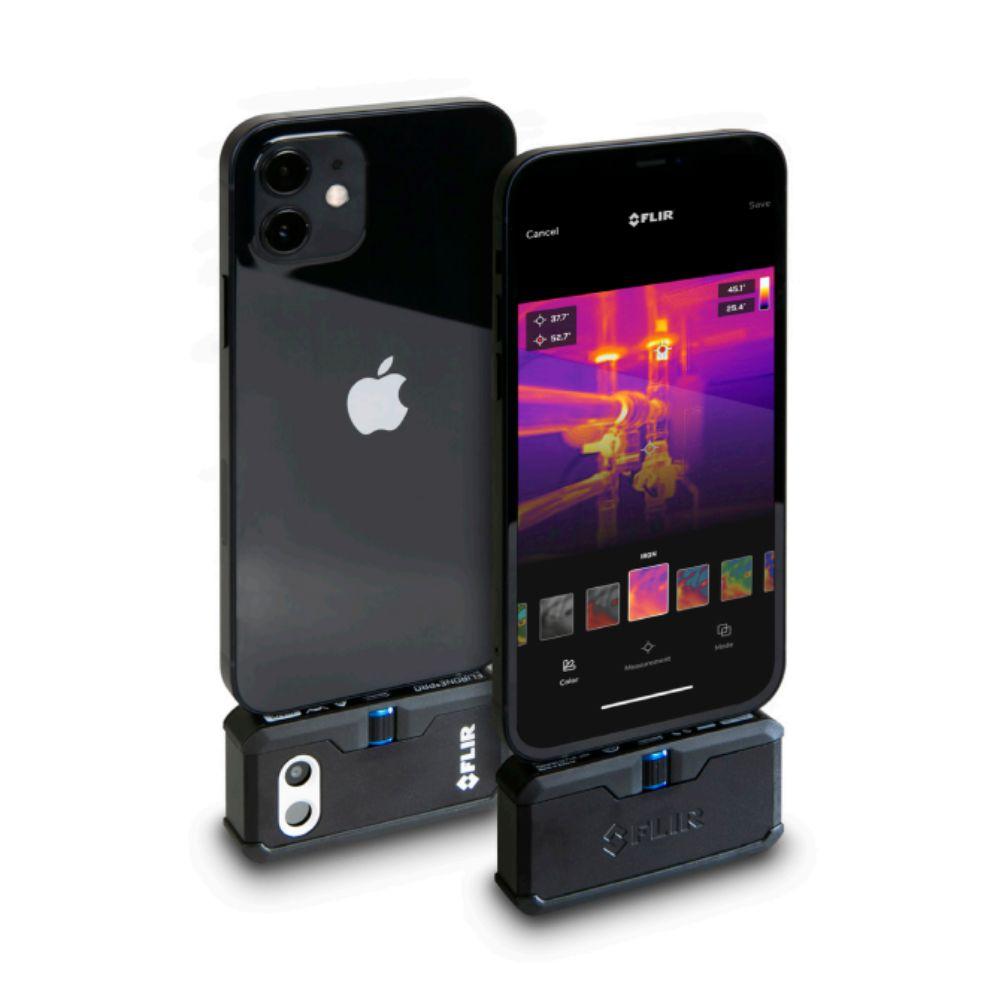

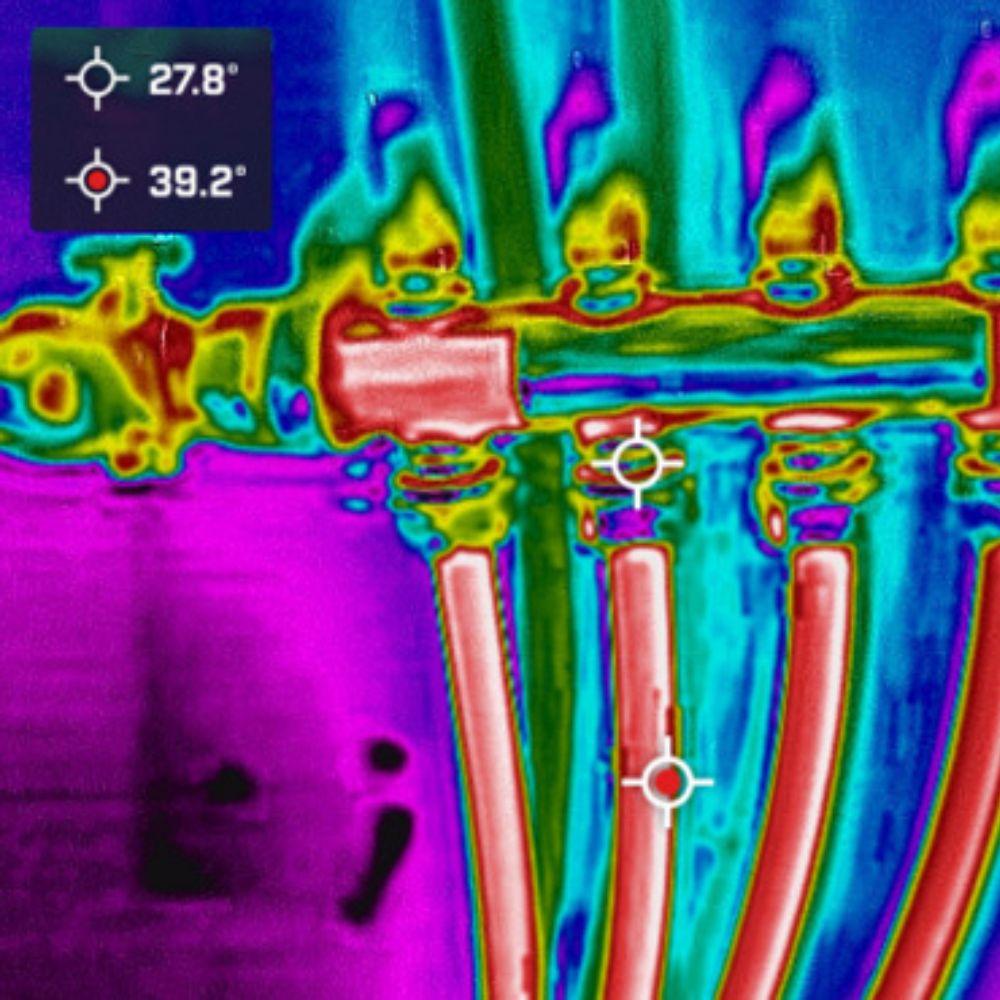

Thermal pixel size

12 µm

Thermal resolution

19,200 pixels (160 × 120)

Thermal sensitivity

70 mK

Drop tested

Drop from 1.8 m (5.9 ft)

Spectral range

8 – 14 µm

Visual resolution

1440 × 1080

HFOV / VFOV

50° ±1° / 43° ±1°

Frame rate

8.7 Hz

Focus

Fixed 15 cm – infinity

Accuracy

±3°C (5.4°F) or ±5%, typical percent of the difference between ambient and scene temperature.

Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)

Emissivity correction

Matte, Semi-Matte, Semi-Glossy, Glossy
