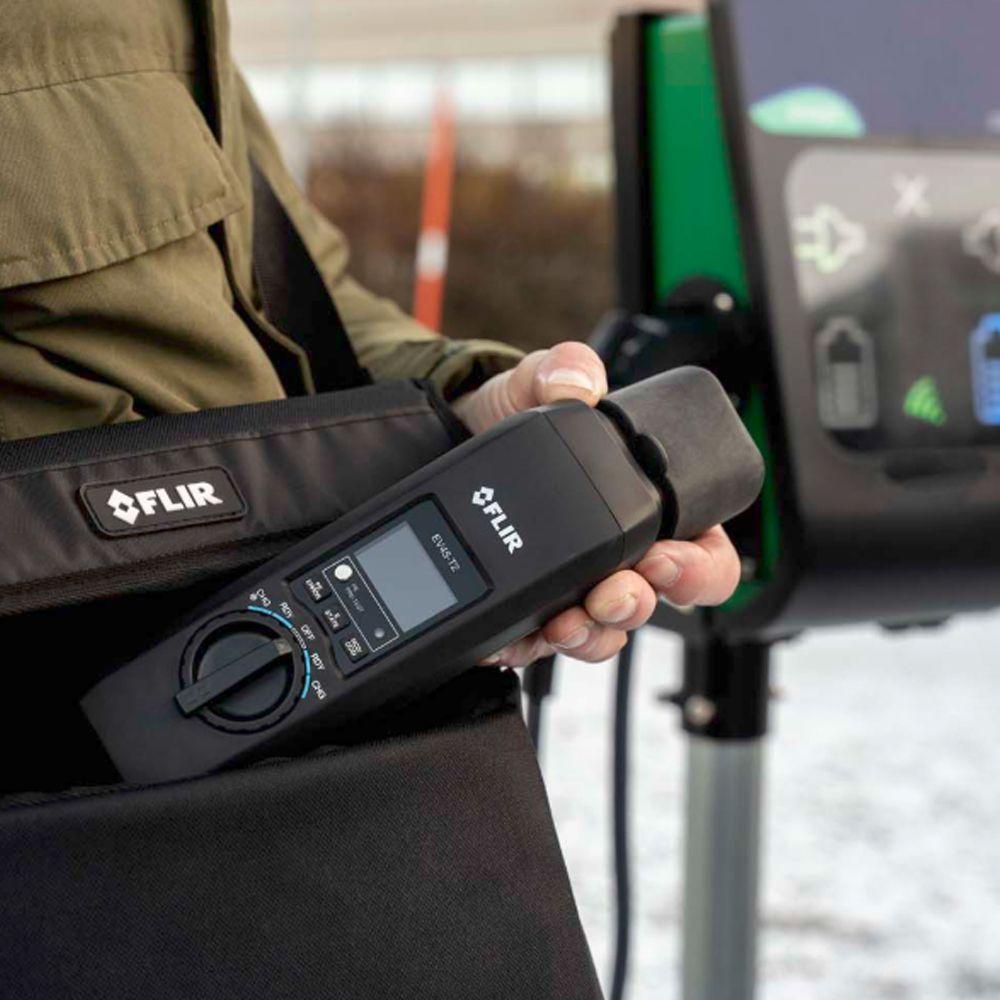

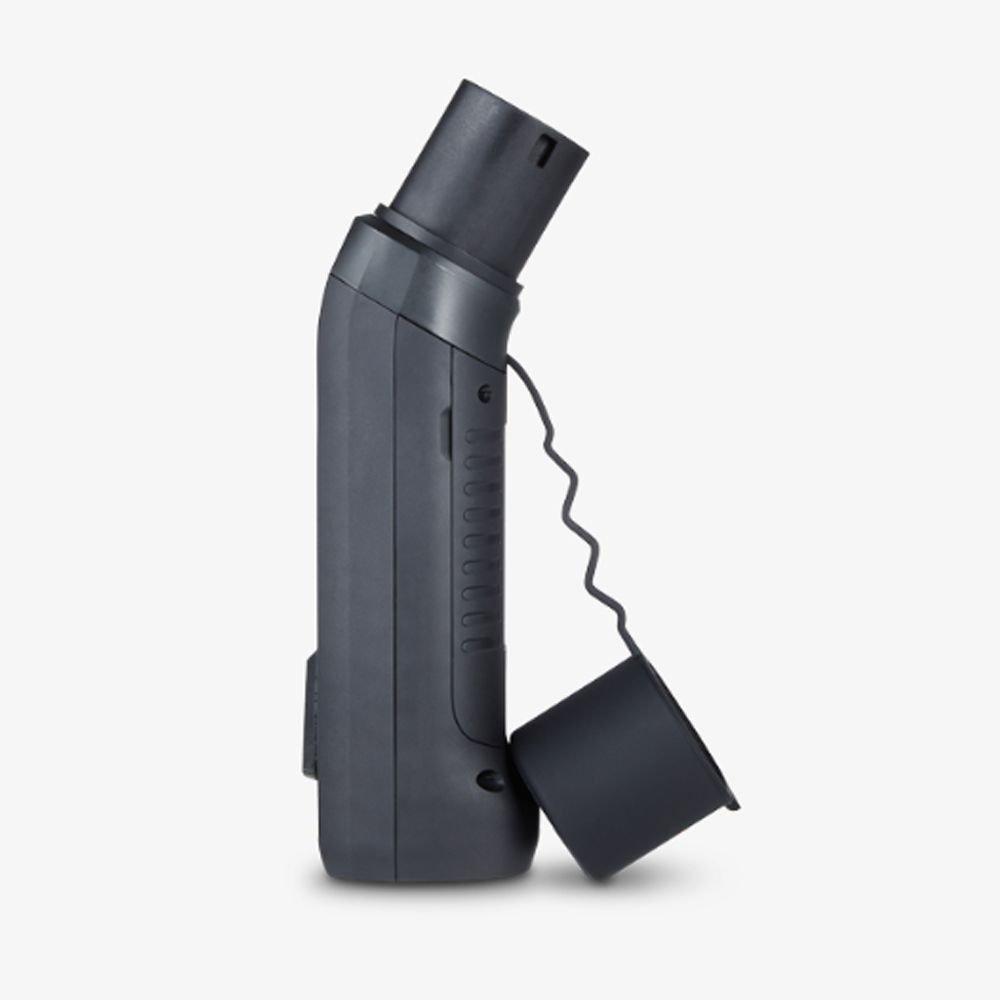

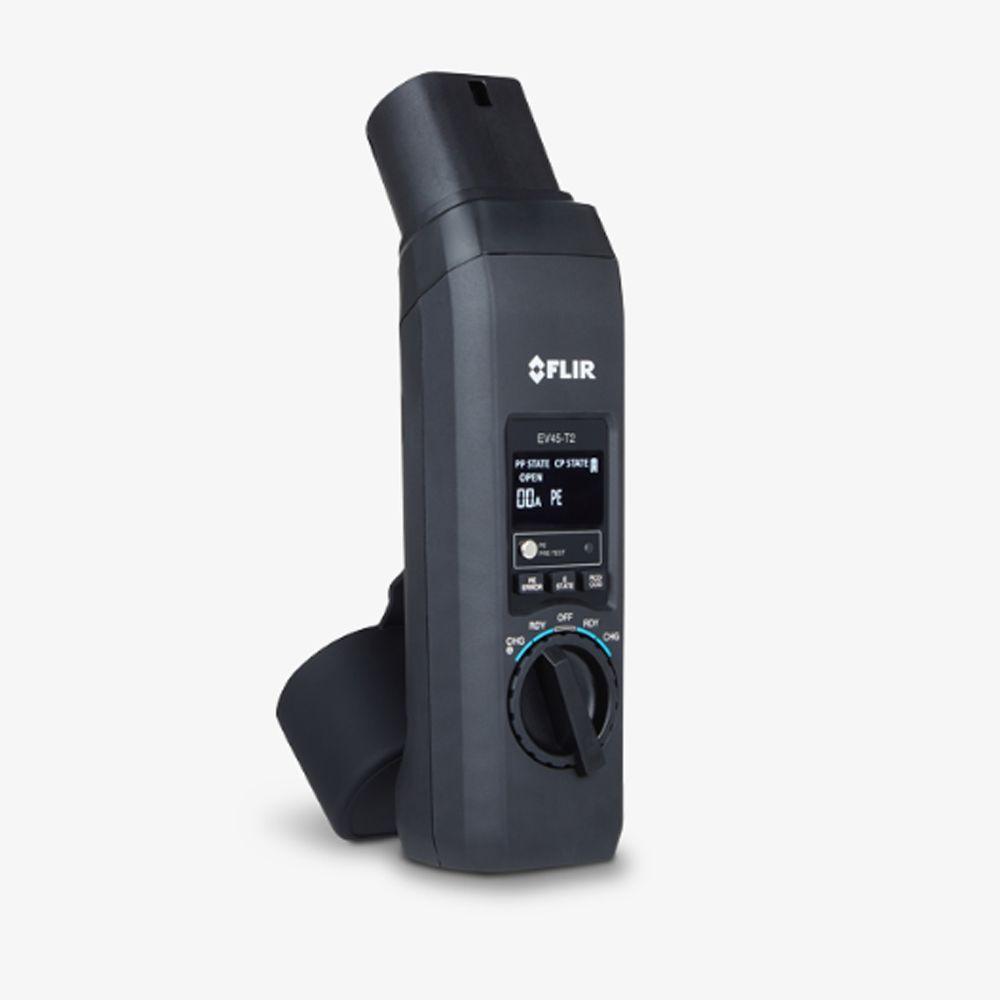

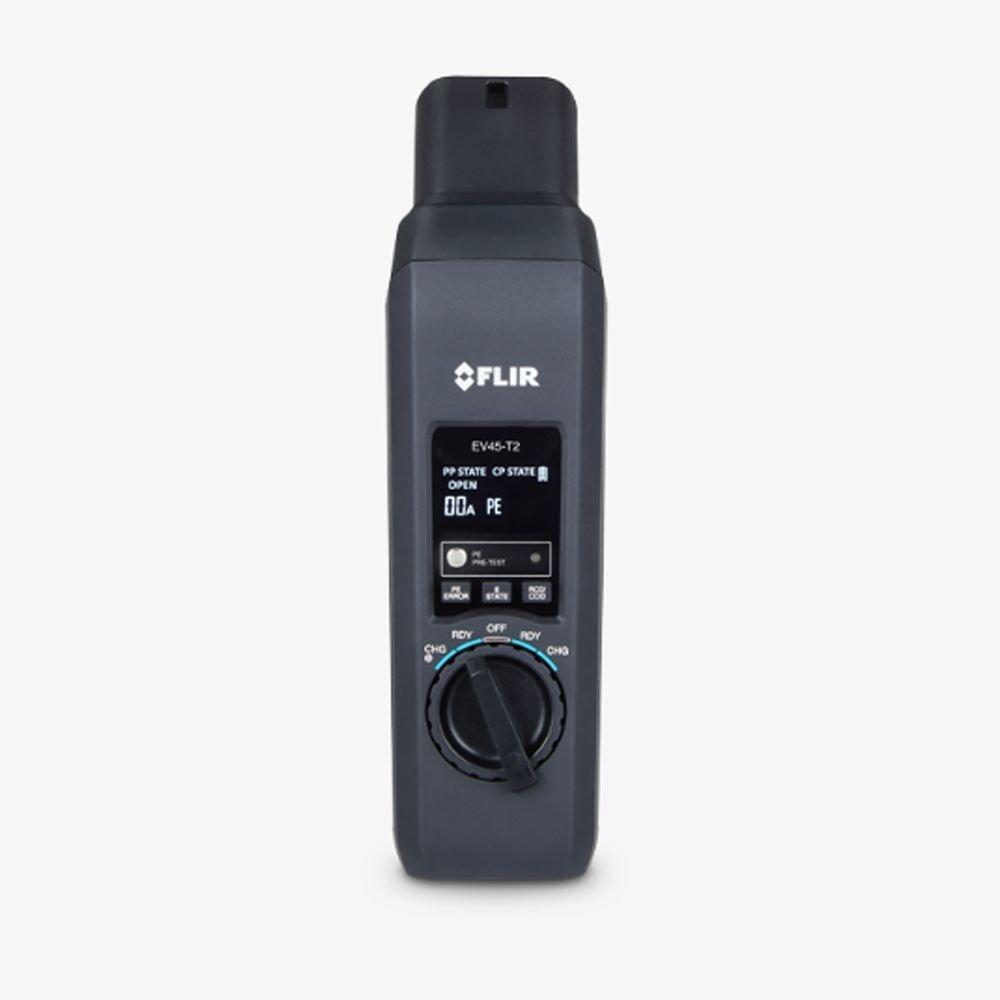

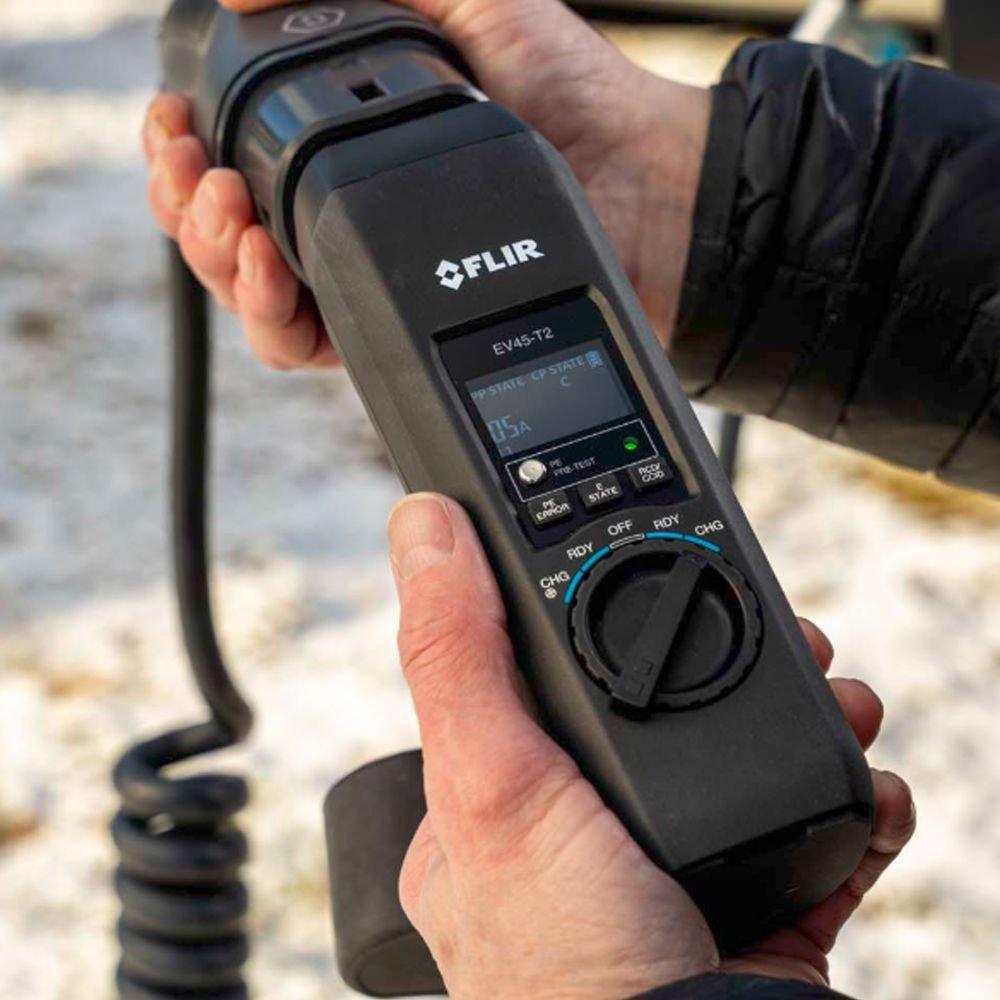

FLIR EV45-T2 อะแดปเตอร์ทดสอบ EV Charger พร้อมหัวเสียบ Type 2 และตัวแปลงเป็น Type 1

Safety Category

CAT II-300 V, IEC 61010-1

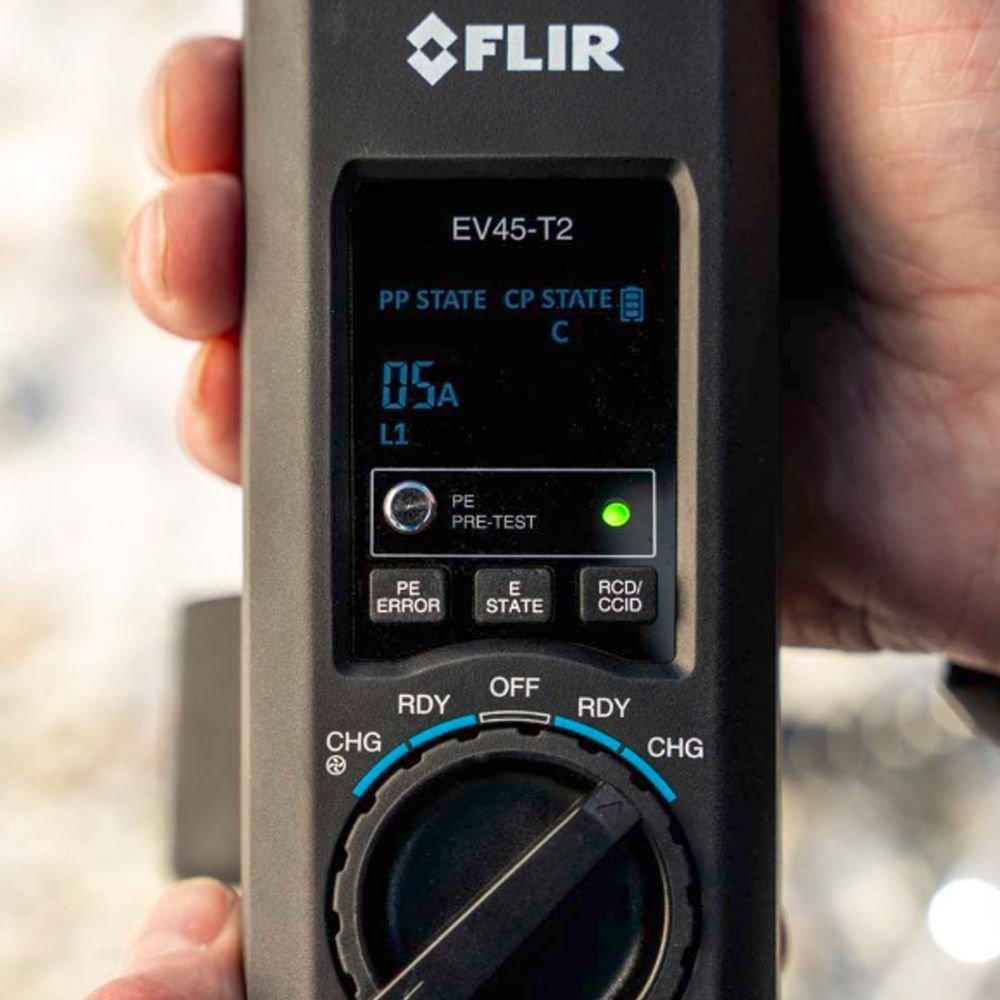

Measurement & Analysis

• CP Error (E state) Simulation: Pass/Fault (CP signal short-circuited to PE)

• CP State Simulation: A (Disconnected), B (Connected), C (Charging), D (Charging with ventilation), E (Error)

Input Type

• Measuring Terminals: L1, L2, L3, N, PE

• Output for test purposes only: Max. 250 V (Single Phase) / 430 V (3 Phase), 50 / 60 Hz, CAT II 300 V, Max. 10 A

PE Error Simulation

Pass/Fault (Interruption of PE conductor)

PE Pre-Test

Pass/Fault (>50 V AC/DC between PE conductor and touch sensor)

PP State Simulation

Open, 13 A, 20 A, 32 A, 63 A

RCD/CCID Trip Test

Pass/Fault (Test RCD/CCID activation once tripped)

Voltage Phase Indication

L1, L2, L3

Communication & Data Storage

• Connector Types: T2 (Built-in), Type 1 (converter included)

• Output: (Optional) IM75-2: CP State B for EV cable Insulation Test

Power

• Battery life: Approx. 100 hours, with alkaline batteries

• Battery type: 4 × AA Alkaline batteries

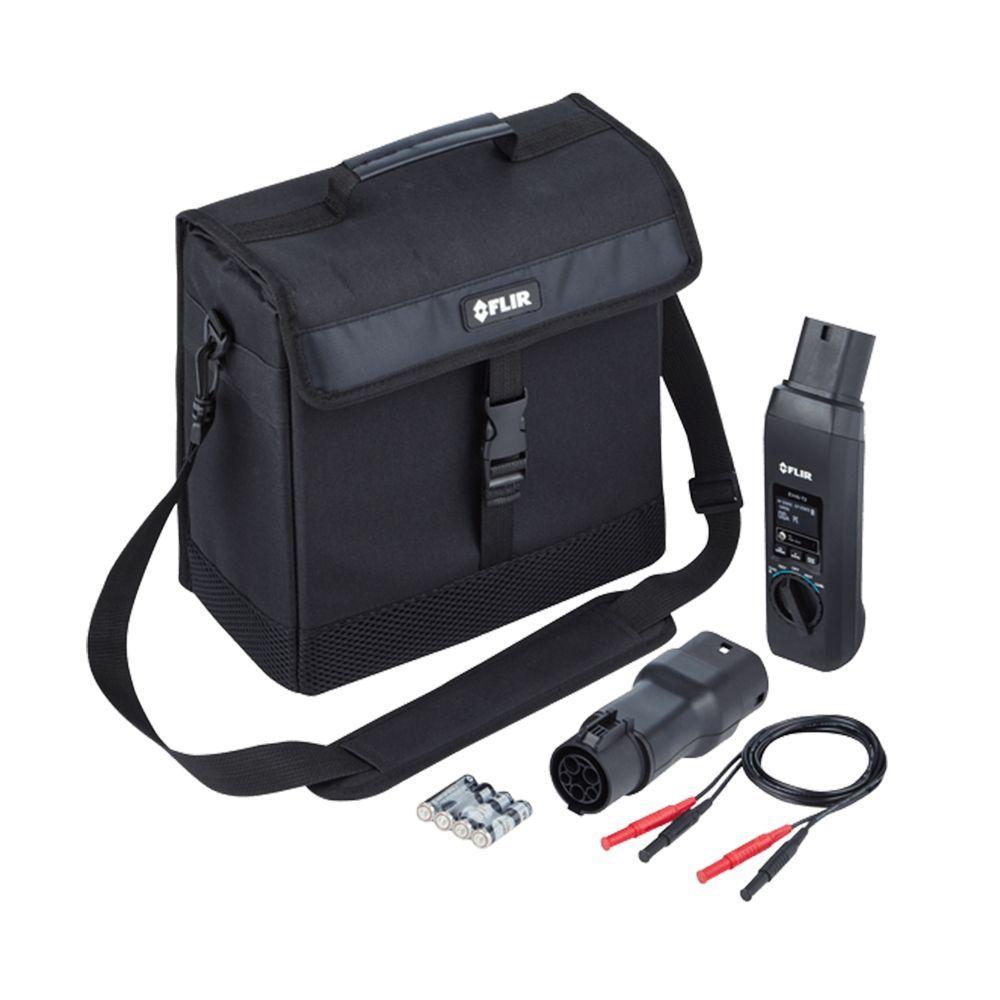

General Box Contents

• EV45-T2 Converter for Type 1

• Carrying Pouch

• Test Leads

• 4 × AA Batteries

• User Manual

Size (L x W x H)

237 mm × 65 mm × 56 mm (9.33 in × 2.56 in × 2.20 in)

Environmental & Certifications

• Certifications: ETL, CE, RCM

• EMC: EN61326-1

Operating Altitude

2000 m (6560 ft)

Operating Ambient Temperature and Relative Humidity (RH)

• −10 to 30°C, <85% RH

• 30 to 40°C, <75% RH

• 40 to 50°C, <45% RH

Storage temperature and relative humidity [RH]

−20 to 60°C, 0 to 80% RH (without batteries)
