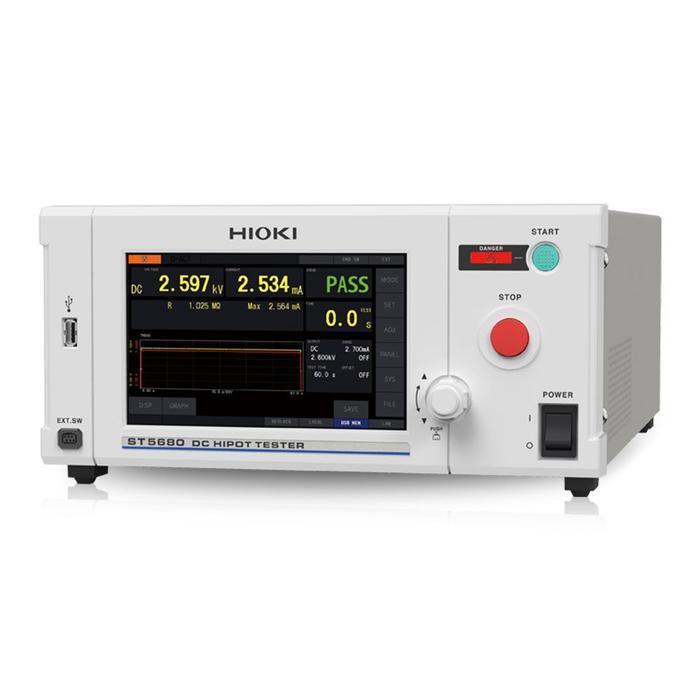

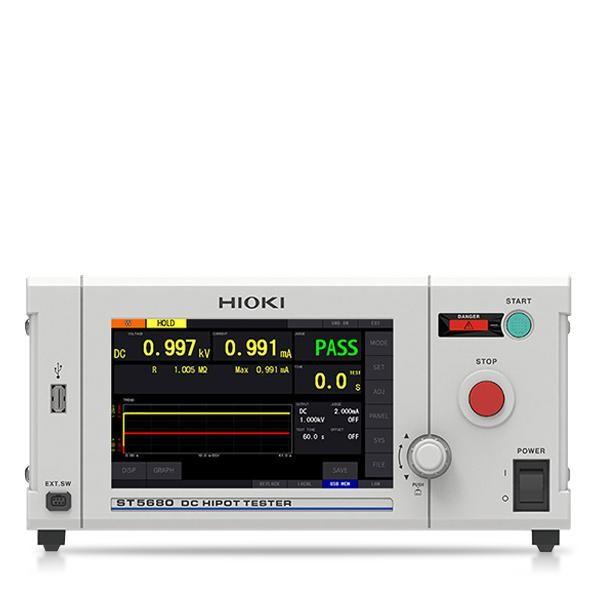

HIOKI ST5680 DC HIPOT TESTER เครื่องทดสอบคุณภาพแบตเตอรี่

ฟังก์ชั่นการวัด

DC Hipot test

Insulation resistance test

Breakdown voltage test

จุดเด่น

Waveform display functionality

Arc discharge detection

Contact check functionality

ช่วงการวัด

DC Hipot test
Output voltage DC 0.010 kV to 8.000 kV (1 V resolution)
Load regulation ±1% or less
Voltage accuracy ±(1.2% of setting + 20 V)
Output current/ cutoff current Max. 100 mA

Insulation resistance test
Output voltage DC 10 V to 2000 V (1 V resolution)
Voltage accuracy ±(1.2% of setting + 20 V)
Resistance value display range 10.00 kΩ to 200.0 GΩ (0.01 kΩ resolution)
Accuracy guarantee range 10.00 kΩ to 99.99 GΩ

Waveform display functionality
Waveform display content Voltage, current, insulation resistance
Sampling rate 500 kS/s
Resolution 256 K words

Arc discharge detection
Detection method Monitoring of fluctuations in the test voltage
Setting description Test voltage variability: 1% to 50%

Contact check functionality
Detection method Capacitance measurement method
Setting description Threshold (capacitance) setting: 1.0 nF to 100.0 nF

Memory functionality
Saving of waveforms/ graphs Save to USB memory
Save formats: BMP, PNG, CSV
Panel memory function Saves test condition settings internally in the instrument.
DC withstand voltage testing/insulation resistance testing: Up to 64 sets of settings each
Program testing: Up to 30 programs (max. 50 steps)
Insulation breakdown voltage testing: Up to 10 sets of settings
Data memory function Saves measured values in the instrument’s internal memory (up to 32,000 values).

Judgment functionality
Judgment output PASS judgment, FAIL judgment (UPPER FAIL, LOWER FAIL)
UPPER_FAIL: Measured value > upper limit value
PASS : Upper limit value ≥ measured value ≥ lower limit value
LOWER_FAIL : Measured value < lower limit value

Power Supply

Supply voltage 100 to 240 V AC

ขนาดสินค้า

External dimensions 305 mm (12.01 in) W × 142 mm (5.59 in) H × 430 mm (16.93 in) D

อุปกรณ์ที่มาในชุด

• Power cord

• CD-ROM (PDF: User Manual, Communications Manual)

• EXT I/O male connector

• EXT I/O connector cover

• EXT I/O interlock cancellation jig

• Startup Guide

อุปกรณ์เสริม

• L2260 HIGH VOLTAGE TEST LEAD

• L2261 UNPROCESSED LEAD CABLE

• Z3000 GP-IB INTERFACE

• Z3001 RS-232C INTERFACE

• 9151-02 GP-IB CONNECTOR CABLE

• L9637 RS-232C CABLE

• 9613 REMOTE CONTROL BOX (SINGLE)

• 9614 REMOTE CONTROL BOX (DUAL)

ข้อมูลจำเพาะ

Operating temperature and humidity range: 0°C to 40°C, 80% RH or less (non-condensing)
Standard compliance Safety: IEC 61010
EMC: IEC 61326
Supply voltage: 100 to 240 V AC
Maximum rated power: 800 VA

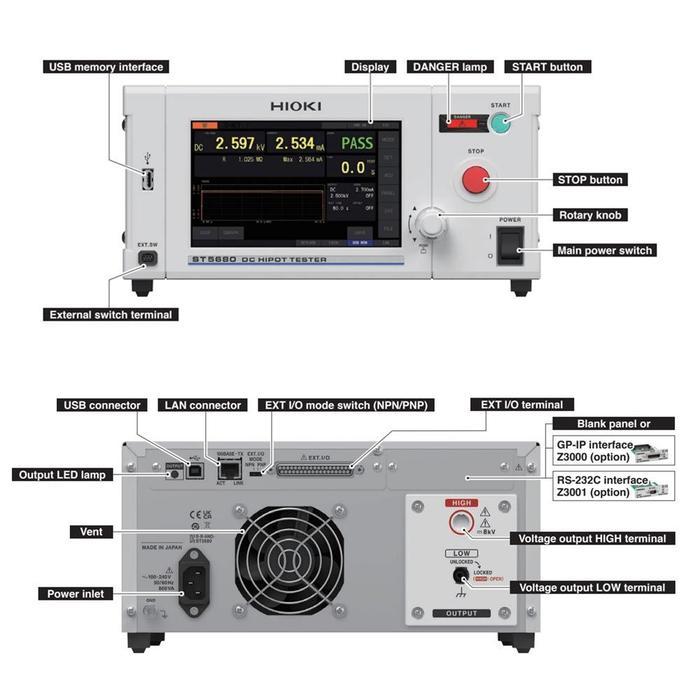

Interface Communications: USB, LAN, EXT I/O
Options: RS-232C (Z3001), GP-IB (Z3000)
Memory: USB drive
External dimensions: 305 mm (12.01 in) W × 142 mm (5.59 in) H × 430 mm (16.93 in) D
Weight: 10.0 kg (352.74 oz) ±0.2 kg (7.05 oz)
