CEDAR CD-10M เครื่องทดสอบแรงบิดCEDAR CD-10M เครื่องทดสอบแรงบิดCEDAR CD-10M เครื่องทดสอบแรงบิด
CEDAR

CEDAR CD-10M เครื่องทดสอบแรงบิด

รหัสสินค้า

CD-10M

฿39,400.00(ไม่รวมภาษี)

ภาพรวม

เครื่องทดสอบแรงบิดสำหรับ Electric screw driver ช่วงการวัด 0.010 ถึง 1 N•m Data Memory 800, ฟังก์ชั่น Hi/ Low Alarm พร้อมไฟเตือน ยี่ห้อ CEDAR, JAPAN

เพิ่มคำถาม

CD-10M | ฟังก์ชั่นการวัด

เครื่องทดสอบประแจทอร์ค (Torque testers) เครื่องวัดแรงบิดดิจิตอล สำหรับงาน Management ใช้ในการตววจสอบค่าแรงบิดว่าถูกต้องตามมาตรฐาน และมีความเที่ยงตรงอยู่หรือไม่

CD-10M | จุดเด่น

Everyday check of an electric driver can be performed.

The change of a measurement unit can be performed.

Memory data is 800 affairs.

Real-time output Every about 1 / 180 seconds

The taking-in software of data can download from a homepage.

Auto power save 10 minutes no use, automatically switch off.

CD-10M | ช่วงการวัด

Measuring range 0.010~1.000 N・m/0.10~10.00 kgf・cm/0.10~9.000 lbf・in/ Accuracy ±0.5 or ±2digit

CD-10M | Power Supply

Ni-Cd chargeable battery 1.2V × 5cells 700mAh

CD-10M | ขนาดสินค้า

W:160 × D:125 × H:55 / 1kg

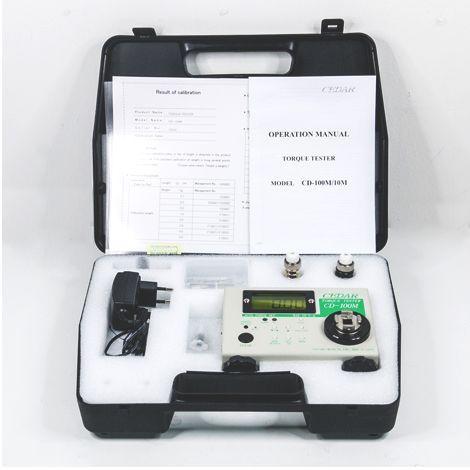

CD-10M | อุปกรณ์ที่มาในชุด

ตัวประแจ CEDAR CD-10

CEDAR SJ-10

Exclusive case

AC/DC adaptor

CD-10M | อุปกรณ์เสริม

SJ-10

SJ-50


CEDAR CD-10M เครื่องทดสอบแรงบิด

**SJ joint ≪SJ-50/SJ-10K/SJ-10≫

The bolt omission prevention function was newly carried in joint.

Due to the special bolt shape, it will not disassemble even if it is unwound too much, and no trouble will occur.

(However, when it continues racing, a ridge may be worn out and torque value may change.)**

CD-10M | ข้อมูลจำเพาะ

Measuring range 0.010~1.000 N・m/0.10~10.00 kgf・cm/0.10~9.000 lbf・in

Accuracy ±0.5 or ±2digit

Display The 3.5 figures digital display of LCD

The measurement direction CW-CCW (right and left)

Zero return by one touch Return to zero by pressing clear button.

Measurement Mode Track , P-P(peak to peak) , P-D(Peak-Down) , C(Real-time Output)

High and low limits judging function High and low value are measurement within the limits, and can be set up

Real-time Output Load torque value is outputted every about1/ 180 second.

The Maximum, the minimum, and the average value display The maximum, the minimum, average value,

Data Output ASCII format (baud rate 19200)

Auto power save 10 minutes no use, automatically switch off.

Power supply Ni-Cd chargeable battery 1.2V × 5cells 700mAh

Charging time About 3hours

Continuous working time About 12hours

clearance It is a display clearance in set-up time. (0.1 - 3.0 sec)

Socket size □9.5mm

indicator size/ weight 160(W)×125(D)×55(H) / 1kg


CEDAR CD-10M เครื่องทดสอบแรงบิด
