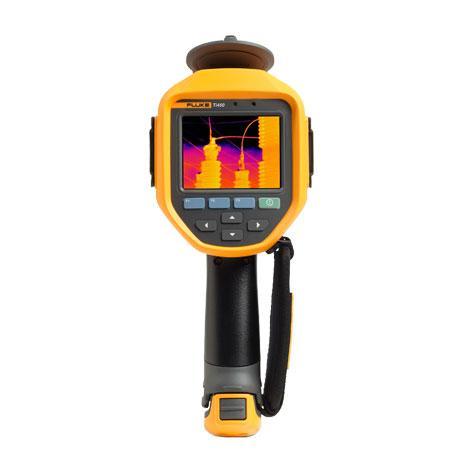

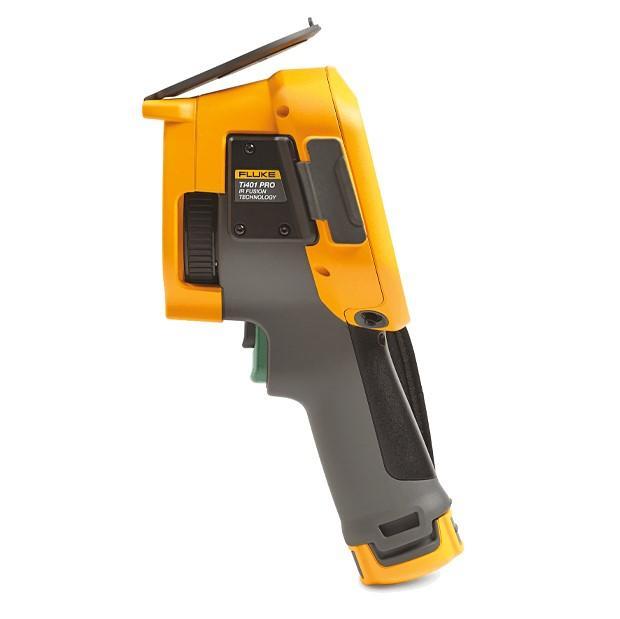

Fluke-Ti401-PRO-9Hz กล้องถ่ายภาพความร้อนแบบอินฟราเรด Thermal Camera 640 x 480

กล้องถ่ายภาพความร้อนแบบอินฟราเรด Thermal Camera 640 x 480

• เลือกกล้องถ่ายภาพความร้อนที่สามารถให้ภาพคมชัดได้ภายในไม่กี่วินาที ด้วยระบบ LaserSharp™ Auto Focus ซึ่งใช้เครื่องวัดระยะด้วยเลเซอร์ในตัว เพื่อคำนวณและแสดงระยะห่างจากเป้าหมายที่กำหนด พร้อมปรับโฟกัสอัตโนมัติได้ทันที

• มองเห็นรายละเอียดขนาดเล็กในภาพและตรวจพบความผิดปกติได้รวดเร็วยิ่งขึ้น ด้วยภาพความร้อนความละเอียดสูงระดับ 640 × 480 พิกเซล

• ปรับระดับการแสดงผลของภาพอินฟราเรดและภาพแสงปกติได้โดยตรงบนกล้อง ด้วยเทคโนโลยี IR-Fusion™ ที่จดสิทธิบัตร

• จัดการข้อมูล บันทึกค่าการวัดหลายประเภท (เชิงกล ไฟฟ้า และความร้อน) และจัดระเบียบข้อมูลตามอุปกรณ์แต่ละชิ้นได้ด้วยซอฟต์แวร์ Fluke Connect™

• เลนส์คุณภาพสูงสำหรับการส่งผ่านพลังงานและสร้างภาพอินฟราเรดที่คมชัด กล้องถ่ายภาพความร้อนของ Fluke ใช้เลนส์เจอร์เมเนียมที่ผ่านกระบวนการ Diamond-Turned 100% พร้อมการเคลือบพิเศษ

Power Supply

Batteries (field-replaceable, rechargeable) Two lithium ion smart battery packs with five-segment LED display to show charge level Battery life 2-3 hours per battery (actual life varies depending on settings and usage) Battery charging time 2.5 hours to full charge Battery charging system Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter AC operation AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) Power saving User selectable sleep and power off modes

ขนาดสินค้า

27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) 1.04 kg (2.3 lb)

อุปกรณ์ที่มาในชุด

Included Infrared camera with standard infrared lens; AC power supply and battery pack charger (including universal AC adapters); two rugged lithium ion smart battery packs; USB cable; HDMI video cable; 4GB micro SD card; and adjustable hand strap. Available by free download: Fluke Connect™ desktop software and user manual Ti401 PRO only Rugged, hard carrying case, soft transport bag

อุปกรณ์เสริม

FLK-LENS/TELE2 Infrared Telephoto Lens (2X magnification) FLK-LENS/4XTELE2 Infrared Telephoto Lens (4X magnification) FLK-LENS/WIDE2 Infrared Wide Angle Lens FLK-LENS/25MAC2 25 Micron Macro Infrared Lens TI-CAR-CHARGER Car Charger FLK-TI-VISOR3 Sun Visor BOOK-ITP Introduction to Thermography Principles Book TI-TRIPOD3 Tripod Mounting Accessory FLK-TI-BLUETOOTH Bluetooth headset FLK-TI-SBP3 Additional Smart Battery FLK-TI-SBC3B Additional Smart Battery Charger FLK-TIX5XX-SBP4 Additional Smart Battery FLK-TI-SBC3B Additional Smart Battery Charger

ข้อมูลจำเพาะ

Key features

Infrared resolution 640 x 480 (307,200 pixels) SuperResolution No IFOV with standard lens (spatial resolution) 0.93 mRad, D:S 1065:1 Field of view 34 °H x 24 °V Minimum focus distance 15 cm (approx. 6 in) MultiSharp Focus No LaserSharp Auto Focus Yes, for consistently in-focus images. Every. Single. Time. Laser distance meter Yes, calculates distance to the target for precisely focused images and displays distance on screen Advanced manual focus Yes Wireless connectivity Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) Fluke Connect app compatible Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing Fluke Connect Assets Through the desktop, assign images to assets, easily compare measurement types in one location and create reports. Fluke Connect instant cloud upload Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC

Fluke Connect instant server upload Yes** IR-Fusion technology Yes, adds the context of the visible details to your infrared image Ruggedized touchscreen display 3.5 inch (landscape), 640 x 480 LCD Ergonomic design Pistol-grip design for one-handed use Thermal sensitivity (NETD)** ≤0.075 °C at 30 °C target temp (75 mK) Level and span Smooth auto and manual scaling Touchscreen adjustable level/span Yes. Span and level can be easily and quickly set by simply touching the screen Fast auto toggle between manual and auto modes Yes Fast auto-rescale in manual mode Yes Minimum span (in manual mode) 2.0 °C (3.6 °F) Minimum span (in auto mode) 3.0 °C (5.4 °F) Built-in digital camera (visible light) 5MP Frame rate 60 Hz or 9 Hz versions Laser pointer Yes LED light (torch) Yes Digital zoom No

Data storage and image capture

Extensive memory options

Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage Image capture, review, save mechanism

One-handed image capture, review, and save capability Image file formats bmp, jpeg, is2

Memory review Thumbnail and full screen review

Software

Full analysis and reporting software with access to the Fluke Connect system Analyze and store radiometric data on a PC Yes Export file formats with Fluke Connect software Bitmap (.bmp), GIF, JPEG, PNG, TIFF Voice annotation

60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required IR-PhotoNotes Yes - 2 images Text annotations Yes. Including standard shortcuts as well as user programmable options Video recording and formats No

Remote control operations Remote display through Fluke Connect Auto capture (temperature and interval) No

Temperature measurement

Temperature measurement range (not calibrated below -10 °C)

-20 °C to +650 °C (-4 °F to +1,202 °F)

Accuracy ±2 °C or 2 % (at 25 °C nominal, whichever is greater) On-screen emissivity correction Yes (both value and table) On-screen reflected background temperature compensation Yes

On-screen transmission correction Yes Line temperature graph No

Color palettes

Standard palettes

9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted Ultra Contrast palettes

9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

Smart lenses

Macro-25 micron lens: 25 MAC2 Yes 2 x telephoto lens: TELE 2 Yes 4 x telephoto lens: TELE4 Yes Wide angle lens: WIDE 2 Yes

General specifications

Color alarms (temperature alarms) High temperature, low temperature, and isotherms (within range) Infrared spectral band 7.5 μm to 14 μm (long wave) Operating temperature -10 °C to +50 °C (+14 °F to +122 °F) Storage temperature -20 °C to +50 °C (-4 °F to +122 °F) Relative humidity 10 % to 95 % non-condensing Center-point temperature measurement Yes Spot temperature Hot and cold spot markers User-definable spot markers No User defined measurement boxes 1 expandable-contractible measurement box with MIN-MAX-AVG temp display Hard Case Rugged, hard carrying case; soft transport bag Safety IEC 61010-1: Overvoltage category II, Pollution Degree 2 Electromagnetic compatibility IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A Australian RCM IEC 61326-1

US FCC CFR 47, Part 15 Subpart B Vibration 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 Shock 25 g, IEC 68-2-29 Drop Engineered to withstand 2 meter (6.5 feet) drop with standard lens Enclosure rating IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)

Supported languages

Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish RoHS compliant Yes
