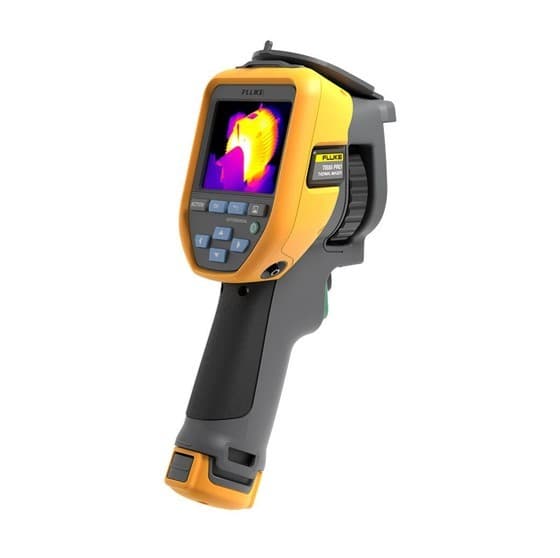

Fluke TiS55 PRO กล้องถ่ายภาพความร้อน Thermal Imager 30Hz/42

-20 °C to 550 °C

-20 °C to 150 °C
0 °C to 550 °C

±2 °C or 2%, whichever is greater

Supported (emissivity, background temperature, measurement distance, transmission correction)

10: Gray, Ironbow, High Contrast, Amber, Hot Metal, Blue-Red, Amber Inverted, Gray Inverted, Rainbow, Steps

Center spot (unmovable)

High and low temperature points marked and tracked automatically

Points: 5
Lines: 5
Areas: 5

Up to 3

Yes

Infrared, visible light, PIP, visible light and infrared fusion

Alarm objects: highest temperature point, lowest temperature point, center point, custom point, line, or area, 3-phase max temperature difference, custom temperature difference
Alarm conditions: Above or below the temperature

Yes (above/below temperature, within/outside temperature span)

Up to 50 profiles can be saved

Field-replaceable, rechargeable lithium-ion battery

>5 hours
(Actual life depends on settings and usage)

< 4 hours to full charge

Ti SBC3B Two-Bay Battery Charger
or charged via the Type-C interface

AC operation through included power adapter
Output: 15 VDC, 2 A

288 x 216 (62,208 pixels)

576 x 432

Uncooled focal plane infrared detector

8 - 14 µm

42° x 32°

2.50 mRad

0.1 m

Manual focus + focus free

Yes

1-4x

Yes, direct transfer thermal images wirelessly to mobile phones or PCs

Yes, functions such as thermal image analysis, historical trend generation, custom reports, and inspection management supported

Yes, name thermal images automatically by scanning QR codes or barcodes and save them as asset tags for thermal images

Blend continuous 0% to 100%. 1% step for adding visible details to infrared images

Yes

3.5" (8.9 cm landscape)
Touchscreen 640 x 480 LCD

Designed specifically for one-handed use

<= 40 mk (0.04 ℃)

Smooth auto and manual scaling

Yes

3 °C

3 °C

13 mp

9 Hz or 30 Hz

No

Standard with a 64 GB SD card

Expandable up to 1 TB memory size

One-handed image capture, review, and save capability

JPEG (with temperature data)

Yes

Yes, 60 seconds maximum audio recording via a Bluetooth Audio Headset

Yes. Up to 3 extra visible light images captured can be included in JPEG files

Yes, multiple languages supported

Yes, annotations for the 4 severity levels: normal, moderate, severe, and extreme

Standard video format: mp4

No

Yes, user-selectable time interval for capturing images.

Yes, use the Fluke Connect Express software

Yes, use the thermal imager

Yes

Yes

6

Yes

Yes

Yes, charging and data transfer supported

-10 °C to 50 °C

-20 °C to 60 °C, without batteries

10% to 95% non-condensing

IEC 61010-1: pollution degree 2

IEC 61326-1: Industrial Electromagnetic Environment;
CISPR 11: Group 1, Class A

RCM IEC 61326-1

2.4 GHz

<100 mW

IEC 60825-1, Class 2; 650 nm; <1 mW

Engineered to withstand 2 m drop

IEC 60529: IP52

Yes
