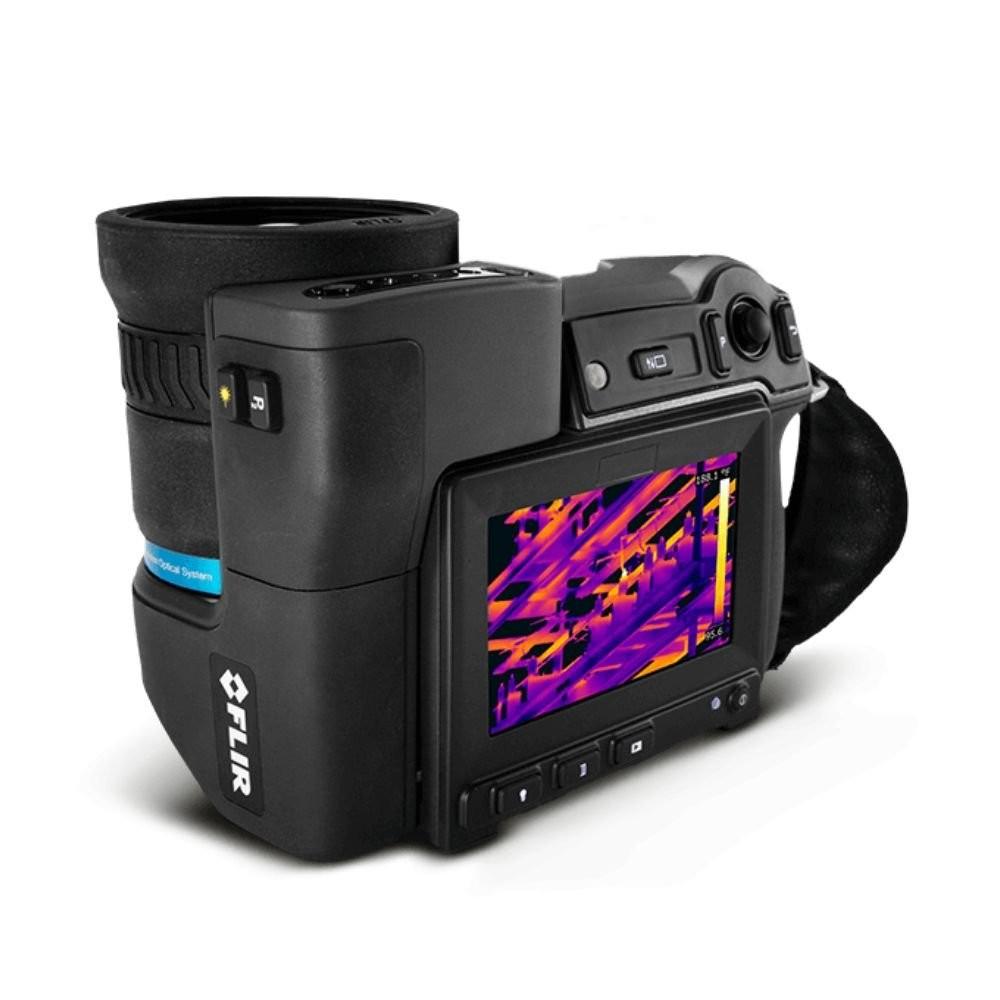

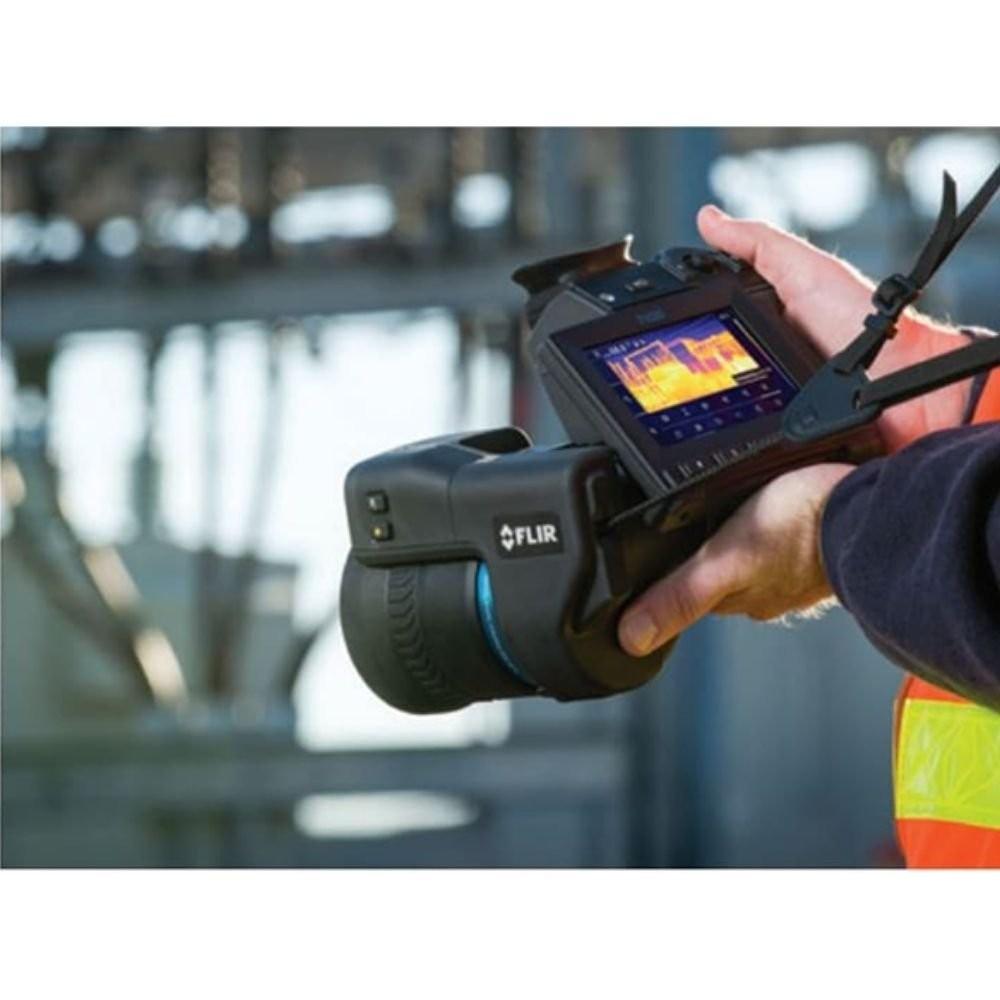

FLIR T1010 กล้องถ่ายภาพความร้อน HD Thermal Imaging Camera

IR Resolution

1024 × 768; up to 3.1 MP with UltraMax

Thermal Sensitivity/NETD

<25 mK @ 30°C (86°F)

Field of View (FOV)

12° × 9°

Digital Camera

Field of view adapts to the infrared lens

Image Modes

Thermal, thermal MSX, digital camera

Display

Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels

Storage Media

Removable media SD or SDHC card. Class 10 or better recommended

Battery operating time

>2.5 hours at 25°C (68°F) under typical use

Battery Type

Rechargeable Li-ion battery

Charging System

In-camera (via AC adapter or 12 V from a vehicle) or two-bay charger

Charging Temperature

0°C to 45°C (32°F to 113°F), except for Korea: 10°C to 45°C (50°F to 113°F)

Charging Time

2.5 hours to reach 90% capacity, with LED status indicators

External Power Operation

AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (optional cable with standard plug)

Power Management

Automatic power-off, configurable between 5 minutes, 20 minutes, and no shutdown

Environmental & Certifications

EMC

• ETSI EN 301 489-1 (Radio)

• ETSI EN 301 489-17

• EN 61000-6-2 (Immunity)

• EN 61000-6-3 (Emission)

• FCC 47 CFR Part 15 Class B (Emission)

• ICES-003

Encapsulation

IP 54 (IEC 60529)

Humidity (Operating and Storage)

IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles

Laser Classification

Class 2

Radio Spectrum

• ETSI EN 300 328

• FCC Part 15.247

• RSS-247 Issue 2

Safety

EN/UL/CSA/PSE 60950-1

Shock

25 g (IEC 60068-2-29)

Storage Temperature Range

–40 to 70°C (–40 to 158°F)

Tripod Mounting

UNC ¼"-20

Vibration

2 g (IEC 60068-2-6)
