FLUKE

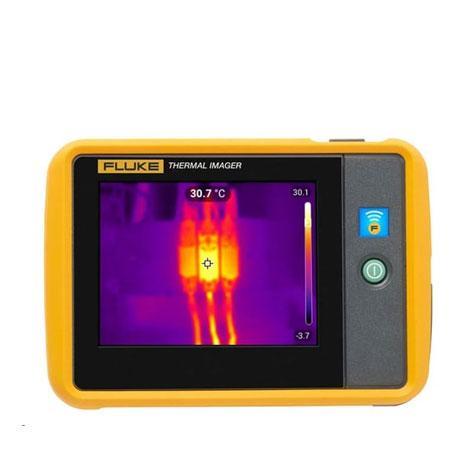

Fluke-PTI120-9Hz กล้องถ่ายภาพความร้อนแบบพกพา

รหัสสินค้า

Fluke-PTI120-9Hz

ภาพรวม

จัดการและจัดเก็บภาพความร้อนเข้าในโฟลเดอร์ได้โดยอัตโนมัติด้วยการแท็กแอสเซท Fluke Connect ภาพความร้อนชนิดเรดิโอเมตริกเต็มรูปแบบจะให้ข้อมูลการตรวจวัดในรูปแบบพิกเซลที่ความละเอียดอินฟราเรด 120 x 90 (10,800 พิกเซล) จอภาพแบบสัมผัส LCD ขนาด 3.5 นิ้ว เพื่อการแก้ปัญหาที่ง่ายยิ่งขึ้น ช่วงการวัดอุณหภูมิ -20°C ถึง 400°C ชุดแบบสี 6 แบบ ทนการตกจากที่สูงได้ 1 เมตร ระดับมาตรฐานการป้องกัน IP54

เพิ่มคำถาม

Fluke-PTI120-9Hz ฟังก์ชั่นการวัด

ถ่ายภาพความร้อน

Fluke-PTI120-9Hz จุดเด่น

กล้องถ่ายภาพความร้อนแบบพกพาสำหรับการตรวจสอบทางอุตสาหกรรม

Fluke-PTI120-9Hz ช่วงการวัด

Temperature Measurement Range -20 → +400 °C

Fluke-PTI120-9Hz Power Supply

Batteries (rechargable) : Internal rechargeable lithium ion battery
Battery life : ≥ 2 hours continuous (without WiFi)
Battery charging time : ≤ 1.5 hours
Battery charging system : Mini USB cord from product to PC
AC operation : With separate AC to USB adapter. Not included in box.
Power saving : Automatic Shutdown: 5, 10, 15 and 20 minutes or never

Fluke-PTI120-9Hz ขนาดสินค้า

Size : (H x W x L) 8.9 cm x 12.7 cm x 2.5 cm
(3.5 in x 5.0 in x 1.0 in)
Weight : (battery included) 0.233 kg (0.514 lb)

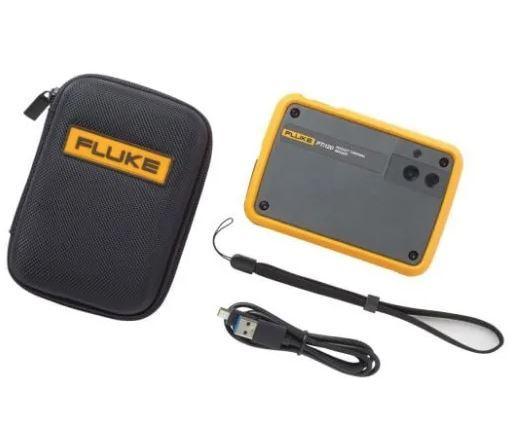

Fluke-PTI120-9Hz อุปกรณ์ที่มาในชุด

กล้องถ่ายภาพความร้อน
กระเป๋าพกพาแบบนุ่ม
สายคล้อง
สายเคเบิล USB

Fluke-PTI120-9Hz ข้อมูลจำเพาะ

Key Features

IFOV (spatial resolution) : 7.6 mRad
Infrared resolution
 : 120 x 90 (10,800 pixels)
Field of view
 : 50° H x 38° V
Distance to spot
 : 130:1
Temperature measurement range (not calibrated
below -10°C)  : -20 °C to +400 °C and -20 °C to +150 °C models
Focus system
 : Fixed focus, minimum focus distance 22.8 cm
USB
 : Mini USB used to transfer image to PC
Wifi
 : Yes

Image quality

IR-Fusion technology : Yes, adds the context of the visible details to your infrared image
AutoBlend mode
: Continuous 0% to 100%
Touchscreen display
: 3.5’’ (landscape), 320 x 240 LCD
Rugged, ergonomic design
: Yes
Thermal sensitivity (NETD)
: 60 mK
Frame rate
:   9 Hz

Data storage and image capture

Memory : ≥ 2GB internal flash memory
Image capture, review, save mechanism
 : One-handed image capture, review, and save capability
Image file formats
 : Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files
Software
 : Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system
Export file formats with software
 : JPG, IS2
Measurement range
 : -20 °C to +400 °C and -20 °C to +150 °C models


Temperature measurement

Temperature measurement range (not calibrated below -10°C) : -20 °C to +400 °C and -20 °C to +150 °C models
Accuracy
: Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2%
On-screen emissivity correction
: Yes
On-screen reflected background temperaturecompensation
: Yes


General specifications

Infrared spectral band : 8 μm to 14 μm (long wave)
Operating temperature
: -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature
: -40 °C to +70 °C (-40 °F to 158 °F)
Relative humidity
: 95% non-condensing
Center-point temperature
: Yes
Spot temperature
: Hot and cold spot markers
Safety
: EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibility
: EN301 489-1 V2.1.1 EN301489-17 V3.1.1
US FCC
: CFR, Part 15C
Vibration and shock
: 2G, IEC 68-2-6 and 25G, IEC 68-2-29
Drop
: 1 meter
