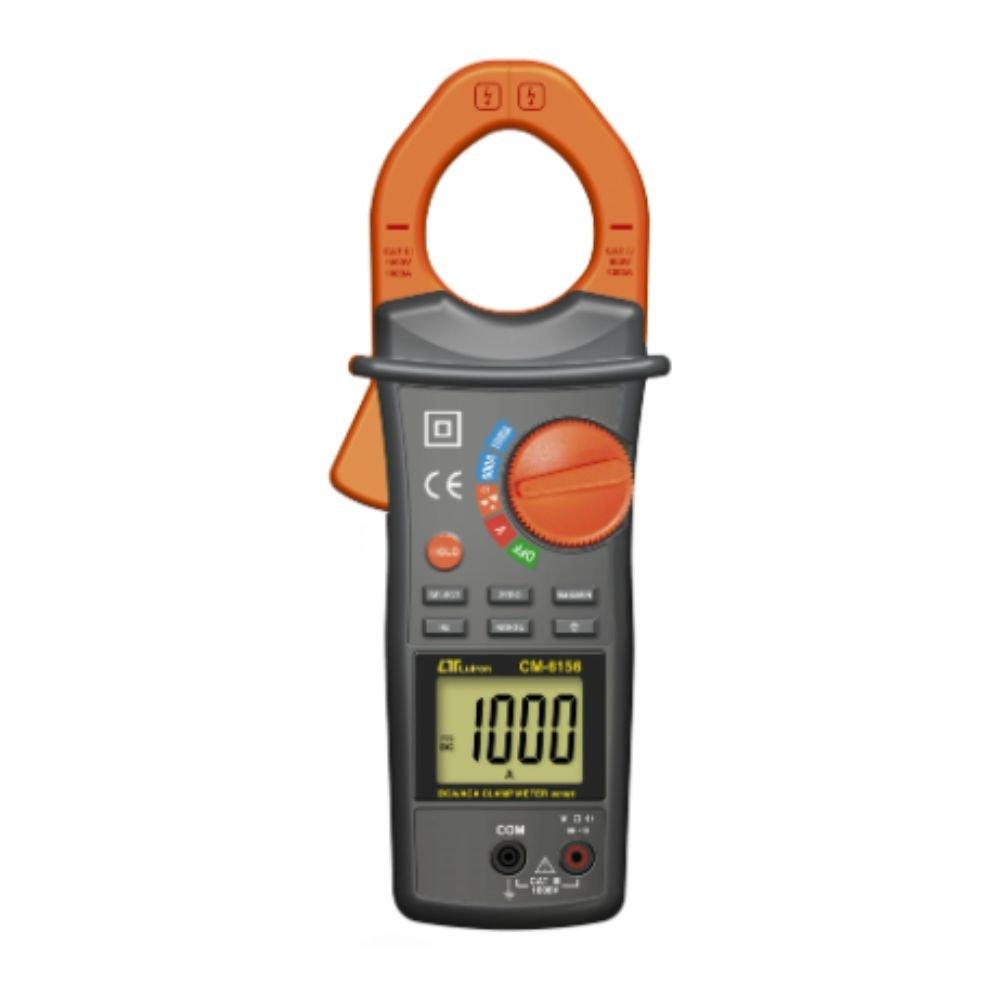

Lutron CM-6158 แคลมป์มิเตอร์ Clamp Meter

DC Voltage

Range

600 mV /6 V/60 V/600 V /1000 V

Resolution

0.1 mV/0.001 V/0.01 V/0.1 V/1 V

Accuracy

± ( 0.8% + 2d )

600 mV

± ( 0.8% + 1d )

6 V, 60 V, 600 V, 1000 V

Input impedance

10 M ohm

Over load protection

600 mV range

± 500 DCV, 350 ACV

other ranges

± 1000 DCV, 1000 ACV

AC Voltage

Range

6 V/60 V/600 V/1000 V

Resolution

0.001V /0.01V /0.1V/1 V

Accuracy

± ( 1% + 2d )

* Spec. are tested under 50/60 Hz

Input impedance

10 M ohm

Over load protection

600 mV range ± 500 DCV, 350 ACV

other range ± 1000 DCV, 1000 ACV

DC Current, AC Current

Range

600A/2000A

Resolution

0.1A /1A

Accuracy

600 A Range

± ( 2% +5d )

2000 A Range

± ( 2% +8d )

Over load protection

AC/DC 2000A

Remark

ACA specification be tested on sine wave 50/60 Hz

Measurement range︰0.1A to 2000A

Diode

Short/non conductance, good/defect test

Capacitance

Range

6 nF/60 nF/600 nF/6 uF/60 uF/600 uF

Resolution

0.001nF/0.01nF/0.1 nF/0.001uF/0.01uF/0.1uF

Accuracy

± ( 3 % + 5d )

Over load protection

± 30 DCV, 30 ACV

Remark

Discharge capacitor before testing

OHMS (auto range)

Range

600/6 K/60 K/600 K/6 M/60M

Resolution

0.1Ω /0.001K/0.01K/0.1K/0.001M/0.01M

Accuracy

600 ohm : ± ( 1 % + 2d )

6K/60K/600K/6M/60M : ± ( 1.5 % + 2d )

Over load protection

± 350 DCV, 350 ACV

Continuity Beeper

Beeper will sound if measured resistance less than 20 ohm

Circuit

LSI circuit provides high reliability and durability.

Display

39.5 x 29.8 mm large LCD display

Measurements

DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Diode, Continuity beeper.

A/D counts no.

6000 counts.

Voltage ranges

AC Voltage : 6 V/60 V/600 V/1000 V
DC Voltage : 600 mV /6 V/60 V/600 V /1000 V

Current ranges

DC Current, AC Current : 600A/2000A

Safety standard

IEC 1010 CAT III 1000 V safety requirement.

ACV input impedance

10 M ohm impedance for voltage circuit.

Clamp frequency response

ACA specification be tested on sine wave 50/60 Hz.

Over-load protection

Built-in overload protection for most ranges.

Over-range

Indication of " OL " or " -OL ".

Data Hold

To freeze the display reading on the LCD display

Data Recording

Records Maximum & Minimum readings with recall.

DCA zero adj.

DCA : Push bottom adjustment.

Range selection

Smart function or auto function . manual range selecting.

Display sampling time

Approx. 0.5 to 1 second.

Operating Temperature

0 to 50 °C

Operating Humidity

Max. 80% RH.

Power Supply

DC 9 V battery 006P,MN1604

Power Consumption

Approx. DC 9.1 mA.

Max. Conductor size

48 mm Dia.

Dimensions

253 x99 x 46 mm

Current Sensor

Hall effect sensor.

Zero adjustment

DCA : Push bottom adjustment.
Other ranges : Automatic adjustment

Over-input

Indication of " OL " or " -OL ".

Sampling Time

Approx. 0.5 to 1 second.

Battery

DC 9 V battery 006P,MN1604

Weight

460 g (w/o battery).

Max. Jaw Open Size

48 mm Dia.

Accessories Included

Red and Black Test Leads x 1 Set
Instruction Manual x 1
Soft carrying case x 1

Optional Accessories

Full line adapters

• ACA/DCA current adapter

• Pressure adapter

• Light adapter, EMF adapter

• Sound level adapter

• High voltage probe
