BT6065 Precision OCV/IR testing for Next-gen High-capacity Battery of high-capacity EV battery cells with low internal resistance. ยี่ห้อ Hioki, Japan **สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย**
Index
BT6065 ฟังก์ชั่นการวัด

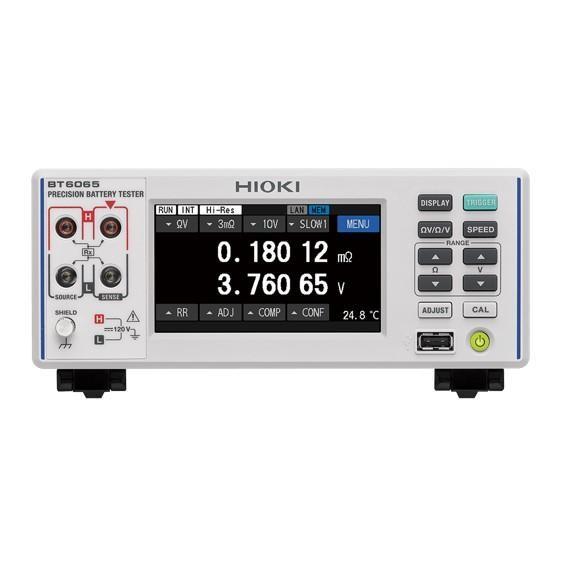

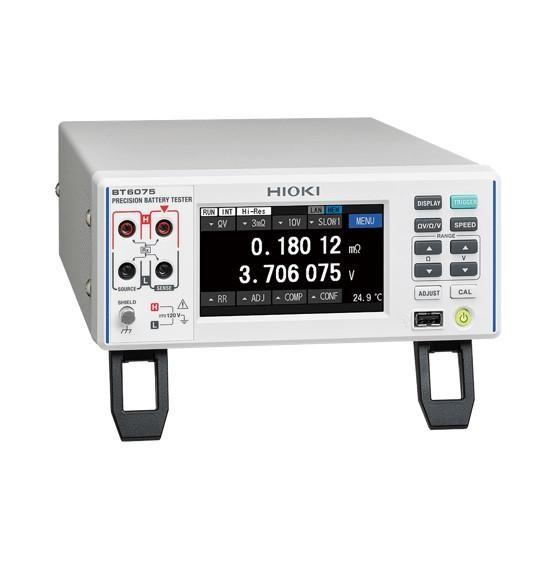

PRECISION BATTERY TESTER
BT6065 จุดเด่น
Excellent resistance measurement resolution and accuracy
Voltage measurement accuracy comparable to a high-precision voltmeter
Stable measurement with the MIR mode (mutual interference reduction)
Compensation of individual channels with referential adjustment
Significantly improving route resistance tolerance
Continuously monitoring for errors with the route resistance monitor
Command compatibility mode
BT6065 ช่วงการวัด
Resistance measurement ranges (HIGH RESOLUTION ON)
[Range (Measurement current), Accuracy (SLOW2), Maximum display value, Resolution]
3 mΩ (300 mA), ±0.08% rdg. ±0.08 μΩ, 5.10000 mΩ, 0.01 μΩ
3 mΩ (100 mA), ±0.08% rdg. ±0.50 μΩ, 5.10000 mΩ, 0.01 μΩ
30 mΩ (100 mA), ±0.08% rdg. ±0.5 μΩ, 51.0000 mΩ, 0.1 μΩ
300 mΩ (10 mA), ±0.08% rdg. ±5 μΩ, 510.000 mΩ, 1 μΩ
3 Ω (1 mA), ±0.10% rdg. ±50 μΩ, 5.10000 Ω, 10 μΩ
30 Ω (100 μA), ±0.15% rdg. ±0.5 mΩ, 51.0000 Ω, 100 μΩ
Measurement-current frequency: 1 kHz ±0.2 Hz
Additional accuracy deterioration
Temperature coefficient: add the following value to the measurement accuracy if the temperature is 0°C to 18°C or 28°C to 40°C: (measurement accuracy × 0.1) / °C
Addition when resistance measurement MIR mode is enabled: add ±0.01% rdg. to the resistance measurement accuracy.
DC-voltage measurement range
[Product model: Range, SLOW2, Maximum display value, Resolution]
BT6065: 10 V, ±0.002% rdg. ±20 μV, ±12.00000 V, 10 μV
BT6065: 100 V, ±0.004% rdg. ±0.6 mV, ±120.0000 V, 100 μV
BT6075: 10 V, ±0.0012% rdg. ±11 μV, ±12.000000 V, 1 μV
BT6075: 100 V, ±0.003% rdg. ±0.60 mV, ±120.00000 V, 10 μV
Additional accuracy deterioration
Temperature coefficient: add the following value to the measurement accuracy if the temperature is 0°C to 18°C or 28°C to 40°C: (measurement accuracy × 0.1) / °C
Temperature measurement range
Range: -10.0°C to 60.0°C (14°F to 140°F)
Accuracy (instrument + Z2005): ±0.5°C (measurement temperature of 10.0°C to 40.0°C)
±1.0°C (measurement temperature of -10.0°C to 9.9°C, 40.1°C to 60.0°C)
Route resistance measurement range
[Resistance range, Measurement current, Maximum display value]
3 mΩ, 300 mA, 10.0 Ω
3 mΩ, 100 mA, 50.0 Ω
30 mΩ, 100 mA, 50.0 Ω
300 mΩ, 10 mA, 50.0 Ω
3 Ω, 1 mA, 50.0 Ω
30 Ω, 100 μA, 500 Ω
BT6065 Power Supply
Rated supply voltage: 100 V to 240 V AC
Rated power-supply frequency: 50 Hz, 60 Hz
Maximum rated power: 40 VA
BT6065 ขนาดสินค้า
Approx. 215W × 88H × 313D mm (8.5W × 3.5H × 12.3D in.)
Approx. 3.1 kg (6.8 lb.) (excluding protrusions)
BT6065 อุปกรณ์ที่มาในชุด
Power cord × 1, Startup Guide × 1, Operating Precautions × 1
BT6065 อุปกรณ์เสริม
PIN TYPE LEAD L2100
CLIP TYPE LEAD L2121
PIN TYPE LEAD L2120
TIP PIN 9772-90
0 ADJ BOARD Z5038
TEMPERATURE SENSOR Z2005
USB CABLE L9510
RS-232C CABLE L9637
USB DRIVE Z4006
LAN CABLE 9642
SWITCH MAINFRAME SW1001
SWITCH MAINFRAME SW1002
BT6065 ข้อมูลจำเพาะ
Sampling time (*1)
[Power frequency, FAST1, FAST2, MEDIUM1(MED1), MEDIUM2(MED2), SLOW1, SLOW2]
50 Hz, 4 ms, 10 ms, 20 ms, 40 ms, 100 ms, 200 ms
60 Hz, 4 ms, 10 ms, 17 ms, 33 ms, 100 ms, 200 ms
*1: All common to measurement functions ΩV, Ω, and V.
Response time
Approx. 8 ms
(when measuring only resistance and voltage of a 4 V battery)
Functions
Averaging (up to 256 times)
contact check
resistance self calibration
DC voltage self-calibration
zero adjustment (528 channels)
referential adjustment (528 channels)
route resistance monitor
resistance measurement MIR mode
comparator
command compatibility (BT3562A Battery HiTester compatible)
panel save (number of savable sets: 6)
command monitor
EXT. I/O test

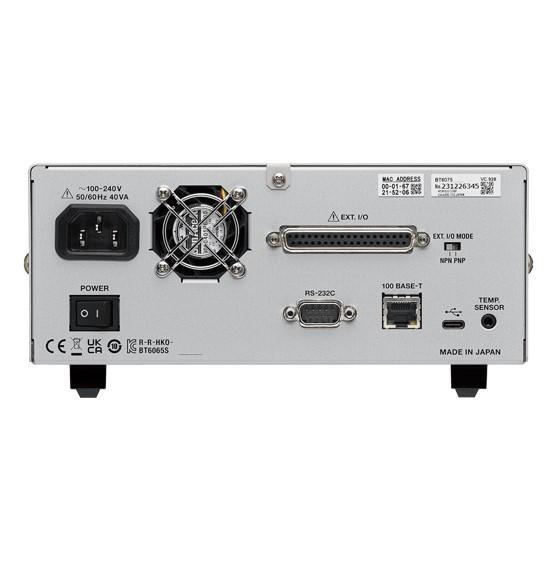

Interface
LAN (10BASE T/100BASE-T, TCP/IP), USB (COM mode, Connector Type-C), USB (MEM mode, Connector Type-A, the Z4006 USB Drive is used), RS-232C (9600 bps, 19200 bps, 38400 bps), EXT. I/O
