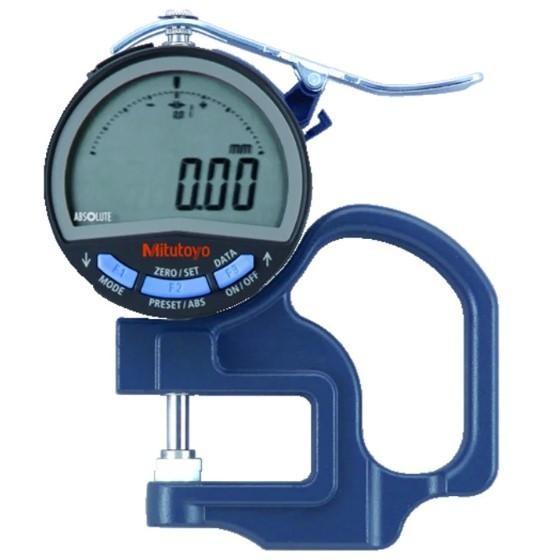

Mitutoyo M-574-300A Thickness Gages เกจวัดความหนาแบบดิจิตอล

M-574-300A ฟังก์ชั่นการวัด

Thickness Gages เกจวัดความหนาแบบดิจิตอล

M-574-300A จุดเด่น

Measures the thickness of a wide range of materials and objects including paper, film, wire, sheet metal, and other similar materials with high accuracy
Measurements are shown on an easy-to-read LCD display
Utilizes the ID-C Digimatic indicator to provide error-free LCD readings
The grip handle, easy-to-reach lifting lever, and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy
The spindles and anvils are constructed with ceramic for better corrosion resistance
The signal can be output to an external device; waterproof data output connector protects against dust, water, and oil ingress
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
SPC output function allows for quick and easy data management in real-time
Unlimited response speed eliminates over-speed errors
Measuring force is 1.5 N or less

Applications

Aerospace
Automotive
Defense
Electronics
Energy
General manufacturing
Plastics and rubber

M-574-300A ช่วงการวัด

Range 0 to 0.4"/0 to 10 mm
Accuracy ±0.001"
Resolution 0.0005"/0.01 mm

M-574-300A Power Supply

1 x SR44

M-574-300A ขนาดสินค้า

Dimension Mitutoyo M-547 Thickness Gages Series

Application Examples

Dimension Mitutoyo M-547 Thickness Gages Series

Lens thickness measurement

Tube thickness measurement

 Groove depth measurement

M-574-300A อุปกรณ์ที่มาในชุด

Thickness Gauge
Fitted Plastic Carrying Case

M-574-300A ข้อมูลจำเพาะ

Measuring Force 1.5 N or less
Indicator Type Digimatic ID-C
SPC Output Yes
Units Inch/metric
Display LCD
Spindle/Anvil Material Ceramic
Battery Life: Approximately 20,000 hours under normal use
