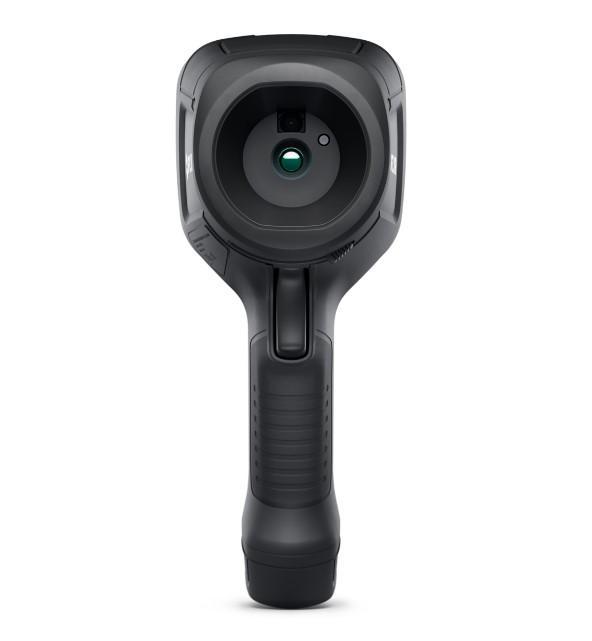

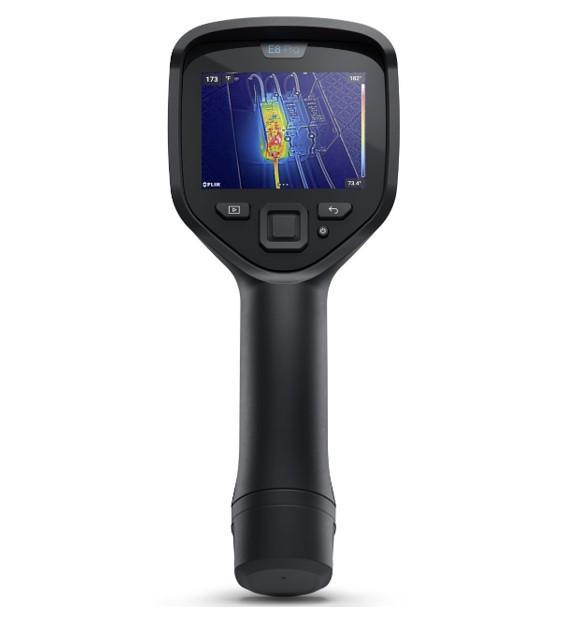

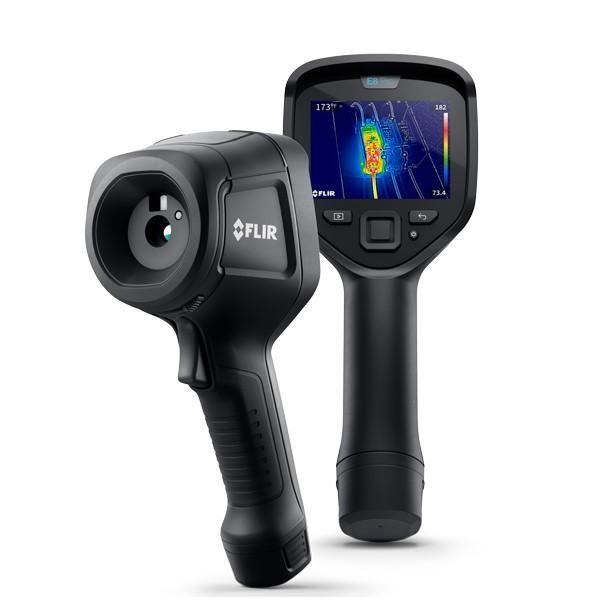

FLIR E8 Pro Thermal Camera -20°C to 550°C IR Resolution 320x240 with Ignite

FLIR E8 Pro  กล้องถ่ายภาพความร้อน

กล้องถ่ายภาพความร้อน Thermal Camera -20°C to 550°C

IR Resolution 320 × 240 (76,800 pixels)

Thermal Sensitivity/NETD <0.04°C ) / <40 mK at 30°C

Accuracy ±2°C or ±2% of reading, for ambient temperature 10°C to 35°C  and object temperature above 0°C

Field of view (FOV) 33°

Digital Camera 5 MP

FLIR E8 Pro จุดเด่น

ค้นพบปัญหาได้อย่างรวดเร็ว Quickly identify problems
ด้วยเทคโนโลยี FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.

หน้าจอสัมผัส Touchscreen
Organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device.

Streamline sharing and reporting
Share images easily and create advanced client reports in FLIR Ignite or FLIR Thermal Studio

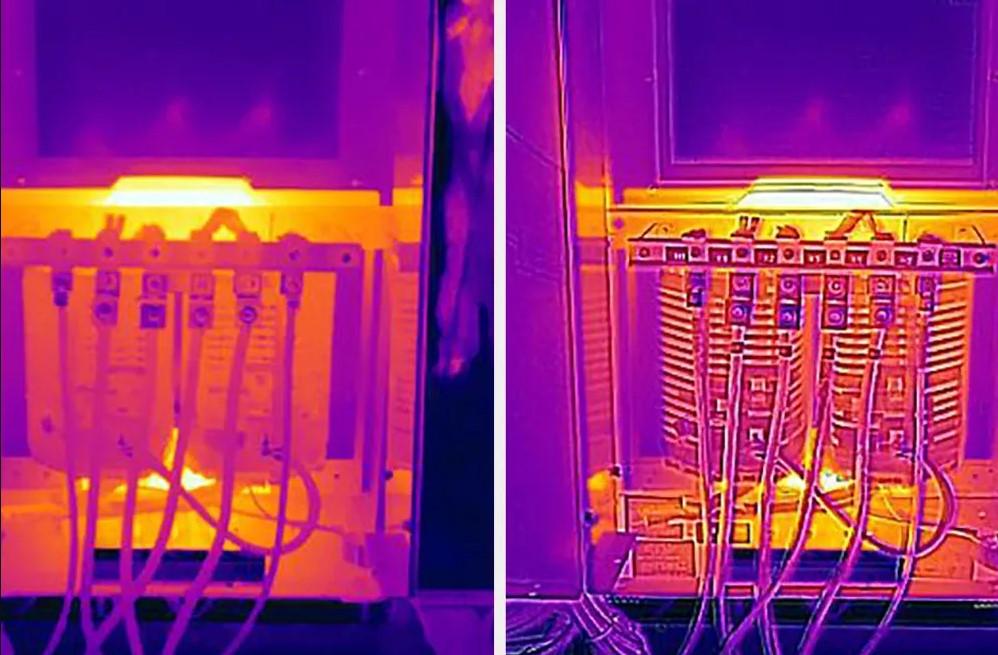

MSX® Image Enhancement
Save Time With 1-Touch Level/Span
NFPA 70B Compliant - Delta T Measurement Tools
Efficient Inspections at Your Fingertips
Hassle-Free Data Transfer and Sharing with FLIR Ignite
Professional Reports that Help Your Customer and Your Business
Over-the-Air Updates Keeps Your Camera Current

FLIR E8 Pro Power Supply

Battery operating time 4 hours
Battery Type Rechargeable Lithium-ion battery
Charging system Battery is charged inside the camera or in specific charger
Charging Time 2 hours
Power Management Automatic shut-down

FLIR E8 Pro ขนาดสินค้า

385 mm × 165 mm × 315 mm

FLIR E8 Pro อุปกรณ์มาตรฐาน

Infrared camera

Hard transport case

Battery (inside camera) + extra battery

Tabletop charger

Power supply (with EU, UK, US and AU plugs)

Micro USB adapter

FLIR Thermal Studio Starter, and printed documentation

FLIR E8 Pro Application

Electric Utilities

Mid-Voltage Electrical Inspection

Manufacturing Inspection

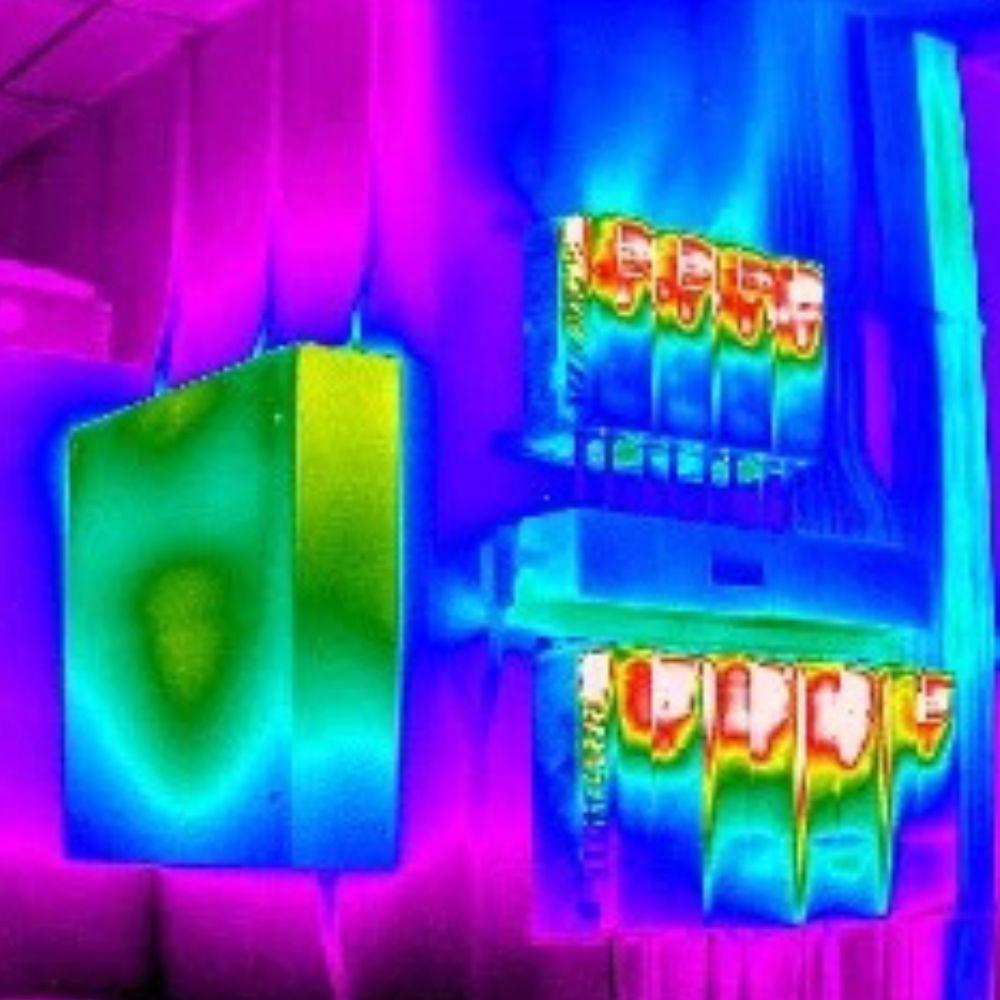

Maintenance Electrical Equipment

Predictive Maintenance

Check motor and belts

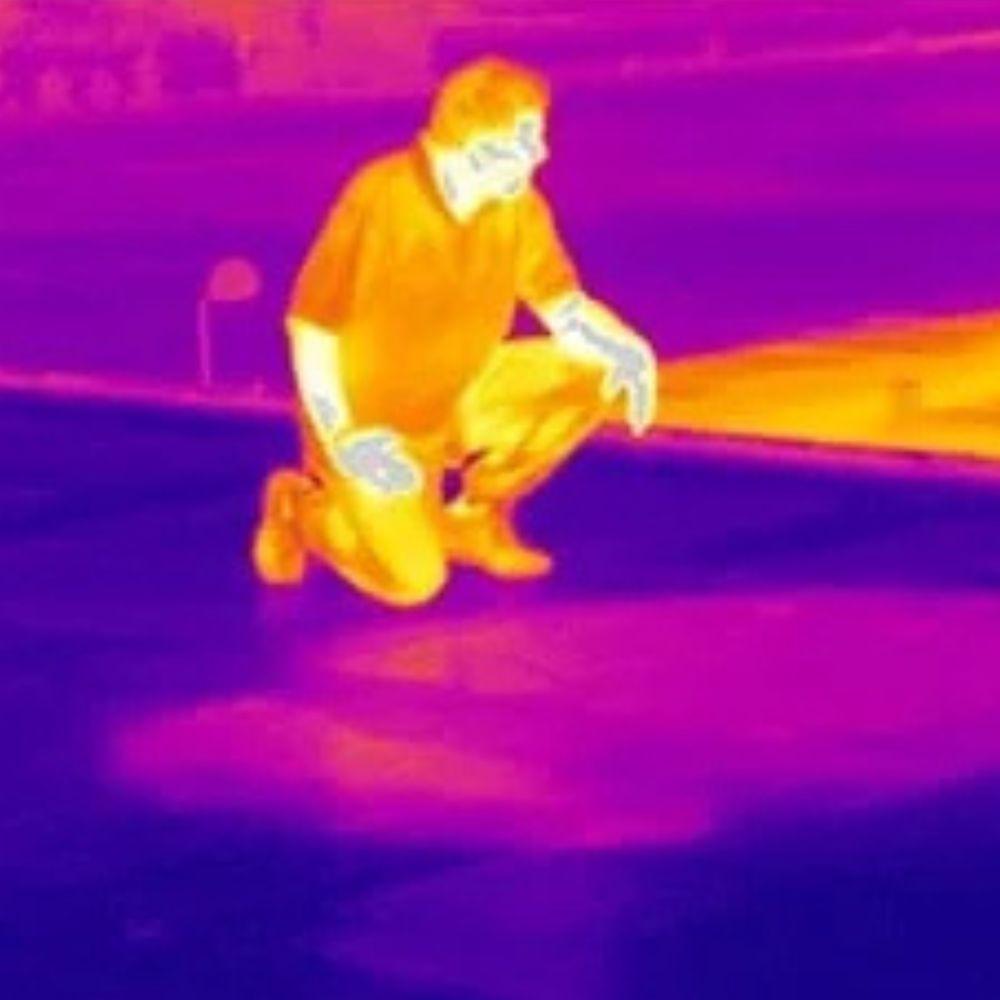

Discover water damage and insulation voids

Find hiden hot spot

E8Pro ข้อมูลจำเพาะ

Imaging & Optical

Color Palettes Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
Detector Type Uncooled microbolometer
Digital Camera 5 MP
Field of view (FOV) 33°
Focus  Focus free
Gallery Thumbnails and custom folder structure
Image Frequency 9 Hz
Image Modes Thermal MSX, Thermal, Picture-in-Picture, Digital camera
IR Resolution 320 × 240 (76,800 pixels)
Minimum Focus Distance 0.36 m (1.18 ft)
Spectral Range 7.5 µm to 13 µm
Thermal Sensitivity/NETD <0.04°C (0.07°F) / <40 mK at 30°C (86°F)

Measurement & Analysis

Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Delta T Yes, NFPA 70B compliant
Isotherm Above alarm, below alarm
Measurements correction Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
Object Temperature Range -20°C to 550°C (-4°F to 1022°F) in two ranges
Spot Meter Center spot; box with min/max

User Interface

Text Text annotation on image using onscreen keyboard
Touchscreen Capacitive touch

Environmental & Certifications

Certifications UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
EMC

EN 301 489-1
EN 301 489-17
EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B
Encapsulation IP54 (IEC 60529)
Operating Temperature Range -15°C to 50°C (5°F to 122°F)
Shock  25 g (IEC 60068-2-27)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Vibration 2 g (IEC 60068-2-6)

Display 3.5 in, 640 × 480 color LCD
Storage Media  Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
Flashlight Bright LED
List of Contents Infrared camera, hard transport case, battery (inside camera) + extra battery, tabletop charger, power supply (with EU, UK, US and AU plugs), micro USB adapter, FLIR Thermal Studio Starter, and printed documentat
