FLIR E76 กล้องถ่ายภาพความร้อนความละเอียดสูง 320×240 พิกเซล พร้อมเลนส์มุมกว้าง 24° และระบบ MSX-photo0
FLIR E76 กล้องถ่ายภาพความร้อนความละเอียดสูง 320×240 พิกเซล พร้อมเลนส์มุมกว้าง 24° และระบบ MSX-small-photo0
Teledyne FLIR

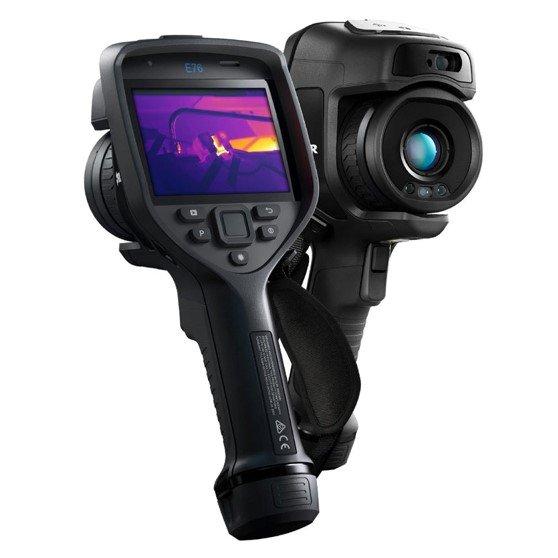

FLIR E76 กล้องถ่ายภาพความร้อนความละเอียดสูง 320×240 พิกเซล พร้อมเลนส์มุมกว้าง 24° และระบบ MSX

รหัสสินค้า

FLIR-E76

ภาพรวม

FLIR E76 กล้องถ่ายภาพความร้อนความละเอียดสูง สามารถตรวจสอบวัตถุทั้งระยะใกล้และไกลอย่างครบถ้วน ความละเอียด 320 × 240 พิกเซล ให้ภาพคมชัดและสีสันสดใส รองรับช่วงการวัด -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F) FLIR Ignite® ยี่ห้อ FLIR, USA

เพิ่มคำถาม

ฟังก์ชั่นการวัด

กล้องถ่ายภาพความร้อนความละเอียดสูง Thermal Camera

จุดเด่น

เลนส์เดียว รองรับสองมุมมอง (Two Fields of View)
จับคู่กล้อง FLIR ซีรีส์ Exx ของคุณกับเลนส์ FLIR FlexView แบบสองระยะมุมมอง เพื่อสลับการสแกนจากมุมกว้างเป็นระยะไกลได้อย่างสะดวกด้วยการกดปุ่มเพียงครั้งเดียว


คอนทราสต์ที่ดีขึ้น เพื่อการวินิจฉัยที่รวดเร็วขึ้น
ใช้ฟังก์ชัน FLIR 1-Touch Level/Span เพื่อปรับปรุงคอนทราสต์ของภาพในทันที และเน้นแสดงปัญหาที่อาจเกิดขึ้นในระบบไฟฟ้าหรือเครื่องจักรกล


การจัดทำรายงานที่สะดวกและเป็นระบบยิ่งขึ้น
การทำงานร่วมกับซอฟต์แวร์วางเส้นทางตรวจสอบของ FLIR ที่ติดตั้งในตัวเครื่อง (*เป็นอุปกรณ์เสริมเพิ่มเติม), การอัปโหลดภาพโดยอัตโนมัติไปยังคลังข้อมูล FLIR Ignite บนคลาวด์, ไมโครโฟนในตัวสำหรับบันทึกเสียงประกอบภาพ, และ ฟีเจอร์สร้างรายงาน—ทั้งหมดนี้ช่วยให้กล้อง FLIR E76 ช่วยให้การทำงานของคุณมีประสิทธิภาพมากยิ่งขึ้นในแต่ละวัน

ช่วงการวัด

IR resolution  320 × 240 pixels

Resolution with UltraMax®  307,200 pixels

Temperature range

-20°C to 120°C
(-4°F to 248°F);
0°C to 650°C
(32°F to 1202°F)

Optional temperature range  300°C to 1000°C (572°F to 1832°F)

Accuracy  ±2°C (±3.6°F) or ±2% of the reading

Power Supply

Rechargeable Li-ion battery

อุปกรณ์ที่มาในชุด

Infrared camera with lens

2 batteries, battery charger

hard transport case

lanyards

front lens cap

power supplies

printed documentation

SD card (8 GB)

cables (USB 2.0 A to USB Type-C

USB Type-C to HDMI

USB Type-C to USB Type-C)

License card: FLIR Thermal Studio Starter

ข้อมูลจำเพาะ

MSX® image enhancement  Yes: details from visual camera add depth and perspective

Built-in visual camera  5 MP, fixed focus, with built in LED light

Thermal sensitivity  <30 mK @ 30°C (86°F), 42° lens

Focus modes  Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual

Digital zoom  1–4x continuous

Measurement tools  3 spotmeters in live mode, 3 area meters in live mode

Measurement presets
None, center spot, hot spot, cold spot
User Presets 1&2

Available lenses  14°, 24°, 42°, 80°, FlexView® 24°/14°, and FlexView® 42°/24°

1-Touch Level/Span  Yes: automatic contrast enhancement

Laser pointer  Yes

On-camera routing software  FLIR Inspection Route™ with baseline image comparison and image overlay guidance

On-camera report building  Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images
from touchscreen

FLIR software integration  FLIR Thermal Studio Suite, FLIR Research Studio

Radiometric JPEG  Yes

IR, radiometric, visual video recording  Yes

IR, radiometric, visual video streaming  Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual)

Communication modes  USB 2.0, Bluetooth®, Wi-Fi, DisplayPort

Cloud services
FLIR Ignite™ for automatic uploading of images directly from the camera to the cloud for easy, secure storage, editing, sharing, and reporting

METERLiNK®  Yes via Bluetooth

Display  640 × 480 pixels (VGA) Dragontrail® touchscreen

Drop-testing  2 m (6.6 ft)

Battery operation time  >2.5 hours, typical use

*Hot spot to center spot Delta measurement
Specifications are subject to change. For the most up-to-date specifications, please visit support.FLIR.com/Exx.
