ISR-C300 ฟังก์ชั่นการวัด

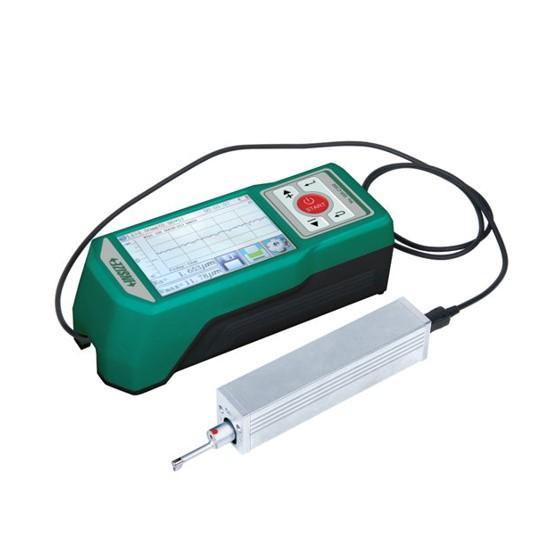

เครื่องทดสอบความเรียบ Roughness Tester
ISR-C300 จุดเด่น
Roughness tester can be operated by mobile phones or computers
Data can be sent to Excel by connecting to computers via bluetooth or SPC cable
Support bluetooth printer
22 roughness parameters
Meet ISO, DIN, ANSI, JIS standards
Display roughness values, profile and curve
Memory of maximum 100 data and waveform
Built-in lithium battery, working time more than 50 hours Touch screen
Automatic power off
ISR-C300 ช่วงการวัด
Measuring force 4mN
Stylus radius/angle 5pm/90°
Range
X axis 17.5mm
Z axis 400pm (-200pm~200um)
Accuracy ±10%
Resolution (Ra) 0.001pm
ISR-C300 Power Supply
built-in rechargeable battery
ISR-C300 ขนาดสินค้า
158x64x52mm
400g
ISR-C300 อุปกรณ์ที่มาในชุด
Main unit
Standard probe
Calibration block and support
Connecting cable (long and short)
Magnetic stand adapter
Adjustable stand
Touch pen
Software and USB cable
AC/DC adapter
ISR-C300 อุปกรณ์เสริม
Extension rod ISR-C002-ER
Small hole probe ISR-C002-PROBE
Tiny hole probe ISR-C002-SBP
Deep groove probe ISR-C002-DGP
Deep groove probe ISR-C002-DGP1*
2pm/600 probe ISR-C300-P2UM
Bluetooth printer ISR-C002-PRINTER
Height gage adapter ISR-C300-LB1
Receiver ISR-C300-RECEIVER
SPC cable ISR-C300-SPC
Support for flat surface ISR-C300-COVER1
Support for cylindrical surface ISR-C300-COVER2
Light duty test stand ISR-C002-STAND1
Heavy duty test stand ISR-C002-STAND
Need to be delivered with roughness tester ISR-C300
ISR-C300 ข้อมูลจำเพาะ
Parameters
Ra, Rz, Ro, Ry, Rp, Rs, R3z, R3y, Rc, Rz(JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry,
Rmax, R5p, R5v, R10z, Rpt, Rvt, Ry5, tp1, tp2, Rmrc1, Rmrc2, Rpkx, Rvkx, Ramax, Rzmax
Probe type inductive
Stylus material diamond
Measuring unit um/pin
Cut off 0.25/0.8/2.5mm
Number of cut-offs 1~5
Moving speed 0.135mm/s, 0.5mm/s, 1mm/s
Memory 100 measurement results
Output USB and bluetooth
