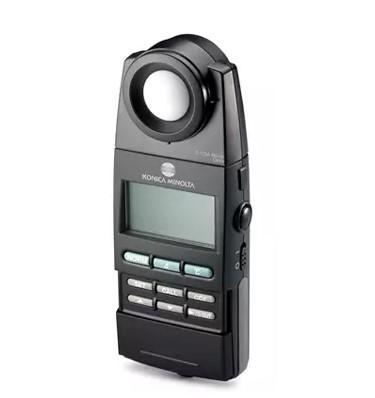

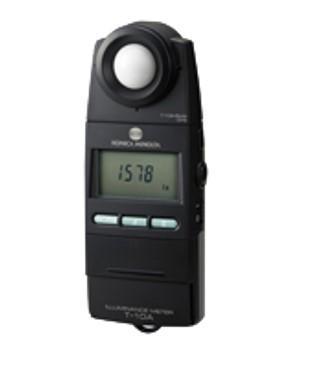

Konica Minolta T-10MA-C llluminance Meter with Certificater

ฟังก์ชั่นการวัด

Illuminance Meter เครื่องวัดแสง

จุดเด่น

• Small receptor head to measure illuminance in special situations

• Accurate measurement of Pulse modulated Light sources (PWM)

• Automatic zero adjustment for immediate measurement

• Auto-range function for a wide measurement range

• LCD backlight for low illuminance levels

• Key cover to prevent accidental operation.

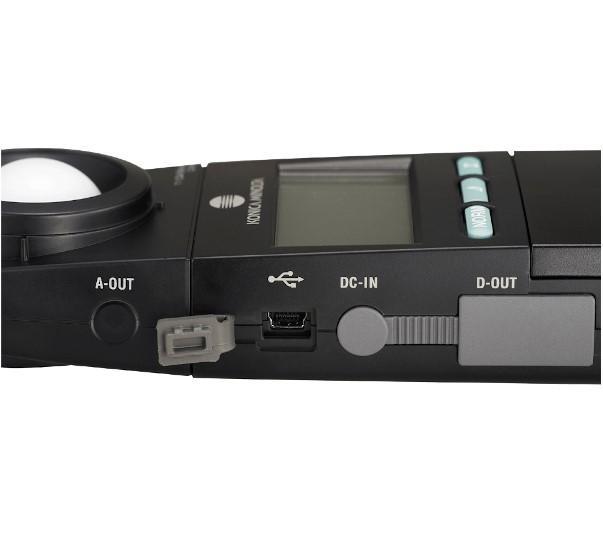

• USB interface supports direct connection to a PC

• Powered by standard AA-size batteries or AC Adaptor

• Conforms to JIS AA Class and DIN class B

• Enables illuminance measurements of small areas.

ช่วงการวัด

Illuminance 0.01 to 299,900 lx; 0.001 to 29,990 fcd

Integrated illuminance 0.01 to 999,900 x 103 lx·h 0.001 to 99,990 x 103 fcd·h / 0.001 to 9999 h

Power Supply

2 AA-size batteries

AC adapter AC-A308 or AC adapter AC-A311

ขนาดสินค้า

Main body: 69 x 161.5 x 30 mm

Receptor: Ø16.5 x 13.8 mm

Weight (without battery) 205 g

อุปกรณ์ที่มาในชุด

• T-10MA

• AA-size batteries 2 pcs.

• Strap

• Case T-A10

• Mini Cap T-A14 (for T-10MA)

• Certificater

อุปกรณ์เสริม

• Data Management software T-S10w (Including T-A15)

• USB cable T-A15

• Printer cable T-A12

• AC Adapter

• Hard Case CL-A10

• Mini plug

• Adapter Unit for Main Body T-A20

• Adapter Unit for Receptor Head T-A21 With LAN category 5 cable; 1m

ข้อมูลจำเพาะ

Model Illuminance Meter T-10MA (Mini receptor head)

Type Multi-function digital illuminance meter with detachable receptor head (Multi-point measurements of 2 to 30 points is possible)

Illuminance meter class

Conforms to requirements for Class AA of JIS C 1609-1: 2006 "Illuminance meters Part 1: General measuring instruments" Conforms to DIN 5032 Part 7 Class B

Receptor Silicon photocell

Relative spectral response Within 6% (f1´) of the CIE spectral luminous efficiency V (λ)

Cosine response (f2) Within 3%

Measuring range Auto range (5 manual ranges at the time of analog output)

Measuring function Illuminance (lx). illuminance difference (lx). illuminance ratio (%).

integrated illuminance (lx·h). integration time (h). average illuminance (lx).

Measuring range

Illuminance 0.01 to 299,900 lx; 0.001 to 29,990 fcd

Integrated illuminance 0.01 to 999,900 x 103 lx·h 0.001 to 99,990 x 103 fcd·h / 0.001 to 9999 h

User calibration function CCF (Color Correction Factor) setting function: Measurement value x 0.500 to 2.000

Linearity ±2% ±1 digit of displayed value

Temperature/ humidity drift Within ±3%

Digital output USB

Analog output 1 mV/digit, 3 V at maximum reading; Output impedance: 10 KΩ; 90% response time: 28 ms

Display 3 or 4 Significant-digit LCD with backlight illumination (Automatic illumination)

Power source 2 AA-size batteries / AC adapter AC-A308 or AC adapter AC-A311

Battery life 72 hours or longer (when alkaline batteries are used) in continuous measurement

Operating temperature /humidity range

-10 to 40°C, relative humidity 85% or less (at 35°C) with no condensation

Storage temperature / humidity range

-20 to 55°C, relative humidity 85% or less (at 35°C) with no condensation

Cord length 1 m
