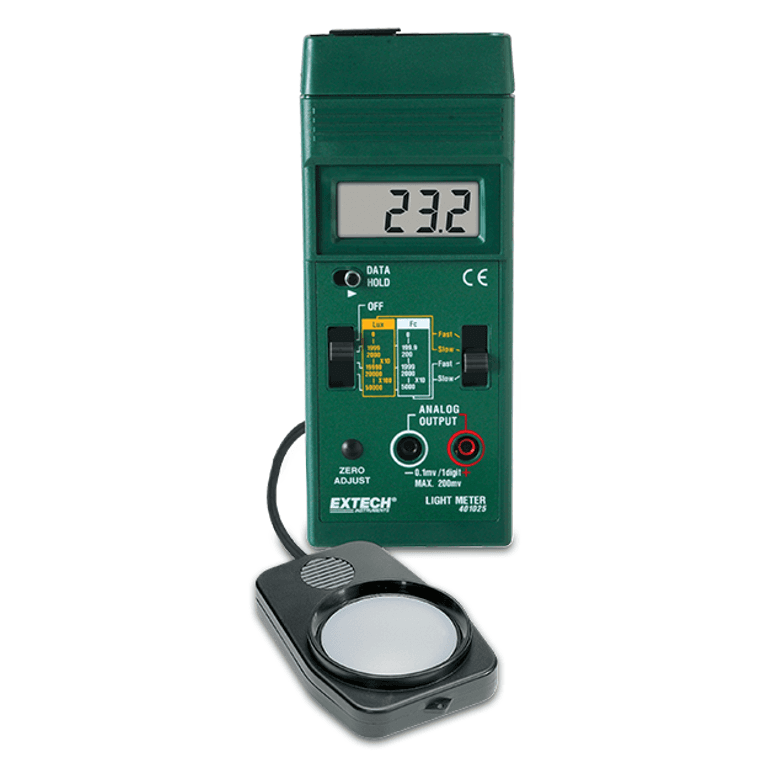

Extech EX-401025 เครื่องวัดแสงลักซ์ หน่วยที่สามารถวัดได้ คือ LUX & Foot Candle ช่วงการวัด 3 ranges 2,000/ 20,000/ 50,000 LUX มี analog output สำหรับบันทึกค่าที่อ่านได้ไปยังเครื่องบันทึก ยี่ห้อ Extech,USA
EX-401025 ฟังก์ชั่นการวัด
เครื่องวัดแสงลักซ์
EX-401025 จุดเด่น
✔เลือกการตอบสนองแบบเร็ว (0.2 วินาที) หรือช้า (0.4 วินาที)
✔ความแม่นยำ ±5% FS
✔มี analog output สำหรับบันทึกค่าที่อ่านได้ไปยังเครื่องบันทึก
✔มาพร้อมแบตเตอรี่ 9V และเซ็นเซอร์แสงพร้อมสายเคเบิลยาว 45 นิ้ว (1.1 ม.) และฝาครอบป้องกัน
EX-401025 ช่วงการวัด
Lux : 0 to 50,000 Lux in 3 ranges
2,000 Lux | Display range 0 to 1,999 Lux | Resolution 1 Lux | Accuracy (Full Scale) ± (5% + 2digits)
20,000 Lux | Display range 2,000 to 19,990 Lux | Resolution 10 Lux | Accuracy (Full Scale) ± (5% + 2digits)
50,000 Lux | Display range 20,000 to 50,000 Lux | Resolution 100 Lux | Accuracy (Full Scale) ± (5% + 2digits)
Foot-candle: 0 to 5,000 Fc in 3 ranges
200 Fc | Display range 0 to 199.9 Fc | Resolution 0.1 Fc | Accuracy (Full Scale) ± (5% + 2digits)
2,000 Fc | Display range 200 to 1,999 Fc | Resolution 1 Fc | Accuracy (Full Scale) ± (5% + 2digits)
5,000 Fc | Display range 2,000 to 5,000 Fc | Resolution 10 Fc | Accuracy (Full Scale) ± (5% + 2digits)
EX-401025 Power Supply
9V DC battery
EX-401025 ขนาดสินค้า
Main instrument: 6.4 x 2.8 x 1.2 in. (163 x 70 x 30 mm)
Sensor: 3.2 x 2.2 x 0.5 in. (85 x 55 x 12 mm)
EX-401025 อุปกรณ์ที่มาในชุด
Main unit × 1
9V DC battery × 1
เซ็นเซอร์วัดแสง พร้อมสายไฟยาว 45 นิ้ว (1.1 ม.) × 1
ฝาครอบป้องกัน × 1
EX-401025 อุปกรณ์เสริม
401025....................Foot Candle/Lux Meter
401025-NIST ..........401025 with NIST Certificate
409996....................Vinyl Pouch Carrying Case
EX-401025 ข้อมูลจำเพาะ
Display 0.5 in. (13 mm) LCD
Measurement units Lux, Ft-candle (Fc)
Sensor Photo diode with cosine and color correction, designed to meet CIE
Zero adjust Manual front panel adjustment
Sampling time Approx. 0.4 seconds
Response Time Fast: 0.4 seconds; Slow: 2 seconds
Over input indication Indication of "1__"
Analog Output 0.1 mV per digit (maximum: 200 mV DC)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Operating Humidity 80% RH maximum
