Konica Minolta T-10MA llluminance Meter

ฟังก์ชั่นการวัด

Illuminance Meter เครื่องวัดแสง

จุดเด่น

Small receptor head to measure illuminance in special situations

Accurate measurement of Pulse modulated Light sources (PWM)

Automatic zero adjustment for immediate measurement

Auto-range function for a wide measurement range

LCD backlight for low illuminance levels

Key cover to prevent accidental operation.

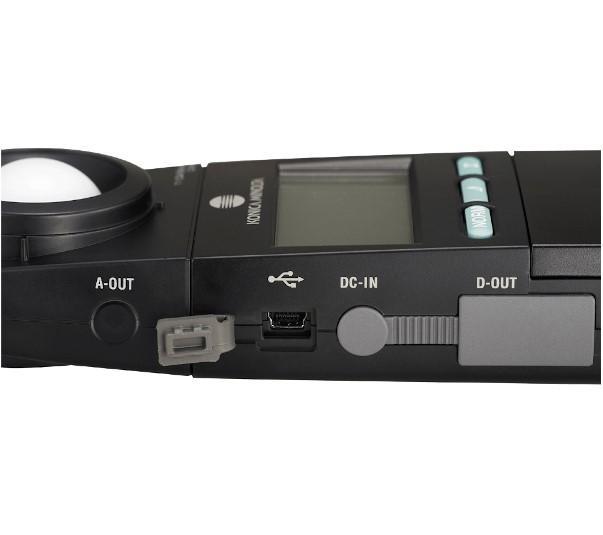

USB interface supports direct connection to a PC

Powered by standard AA-size batteries or AC Adaptor

Conforms to JIS AA Class and DIN class B

Enables illuminance measurements of small areas.

ช่วงการวัด

Illuminance 0.01 to 299,900 lx; 0.001 to 29,990 fcd

Integrated illuminance 0.01 to 999,900 x 103 lx·h 0.001 to 99,990 x 103 fcd·h / 0.001 to 9999 h

Power Supply

2 AA-size batteries

AC adapter AC-A308 or AC adapter AC-A311

ขนาดสินค้า

Main body: 69 x 161.5 x 30 mm

Receptor: Ø16.5 x 13.8 mm

Weight (without battery) 205 g

อุปกรณ์ที่มาในชุด

• T-10MA

• AA-size batteries 2 pcs.

• Strap

• Case T-A10

• Mini Cap T-A14 (for T-10MA)

อุปกรณ์เสริม

• Data Management software T-S10w (Including T-A15)

• USB cable T-A15

• Printer cable T-A12

• AC Adapter

• Hard Case CL-A10

• Mini plug

• Adapter Unit for Main Body T-A20

• Adapter Unit for Receptor Head T-A21 With LAN category 5 cable; 1m

ข้อมูลจำเพาะ

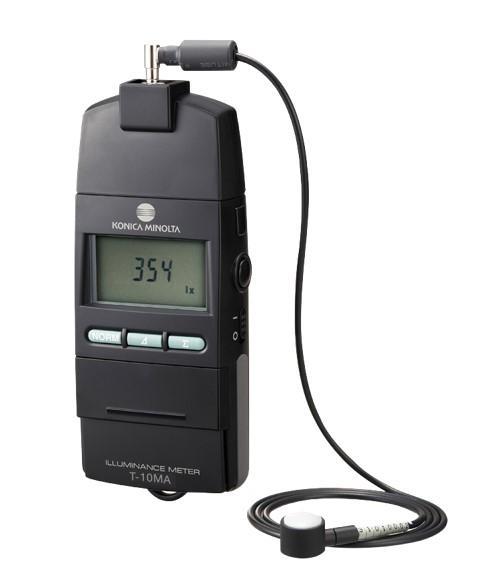

Model Illuminance Meter T-10MA (Mini receptor head)

Type Multi-function digital illuminance meter with detachable receptor head (Multi-point measurements of 2 to 30 points is possible)

Illuminance meter class

Conforms to requirements for Class AA of JIS C 1609-1: 2006 "Illuminance meters Part 1: General measuring instruments" Conforms to DIN 5032 Part 7 Class B

Receptor Silicon photocell

Relative spectral response Within 6% (f1´) of the CIE spectral luminous efficiency V (λ)

Cosine response (f2) Within 3%

Measuring range Auto range (5 manual ranges at the time of analog output)

Measuring function Illuminance (lx). illuminance difference (lx). illuminance ratio (%).

integrated illuminance (lx·h). integration time (h). average illuminance (lx).

Measuring range

Illuminance 0.01 to 299,900 lx; 0.001 to 29,990 fcd

Integrated illuminance 0.01 to 999,900 x 103 lx·h 0.001 to 99,990 x 103 fcd·h / 0.001 to 9999 h

User calibration function CCF (Color Correction Factor) setting function: Measurement value x 0.500 to 2.000

Linearity ±2% ±1 digit of displayed value

Temperature/ humidity drift Within ±3%

Digital output USB

Analog output 1 mV/digit, 3 V at maximum reading; Output impedance: 10 KΩ; 90% response time: 28 ms

Display 3 or 4 Significant-digit LCD with backlight illumination (Automatic illumination)

Power source 2 AA-size batteries / AC adapter AC-A308 or AC adapter AC-A311

Battery life 72 hours or longer (when alkaline batteries are used) in continuous measurement

Operating temperature /humidity range

-10 to 40°C, relative humidity 85% or less (at 35°C) with no condensation

Storage temperature / humidity range

-20 to 55°C, relative humidity 85% or less (at 35°C) with no condensation

Cord length 1 m
