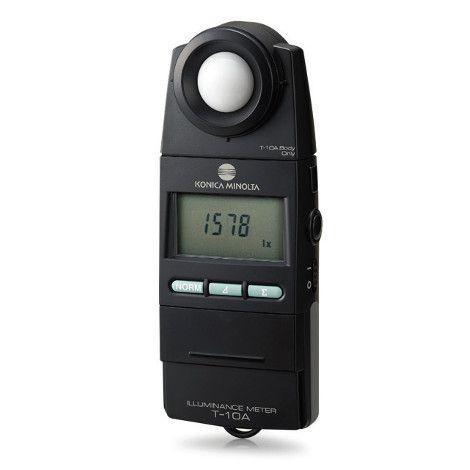

Konica Minolta T-10A Illuminance Meter เครื่องวัดแสง
Konica-Minolta

Konica Minolta T-10A Illuminance Meter เครื่องวัดแสง

รหัสสินค้า

T-10A

฿68,800.00(ไม่รวมภาษี)

ภาพรวม

เครื่องวัดแสง lux ช่วงการวัด 0.01 ถึง 999,000 Lux Auto Range (Manual 5 ranges of Analog output) High Accuracy เชื่อมต่อตัวรับแสงได้ 2-30 ตัว ต่อ 1 เครื่องวัด ยี่ห้อ Konica Minolta, Japan

เพิ่มคำถาม

T-10A | ฟังก์ชั่นการวัด

วัดแสงลักซ์

T-10A | จุดเด่น

เชื่อถือได้ ไม่ต้องกังวลด้วยมาตรฐาน JIS AA Class and DIN Class B

เครื่องวัดแสง T-10A มาพร้อมกับมาตรฐาน Class AA of JIS C 1609: 2006 "Illuminance meters Part 1: General Measuring Instruments" และ DIN 5032 Part 7 Class-B "Photometry; classification of illuminance meters and luminance meters" ที่ให้ความแม่นยำสูง เชื่อถือได้ และไม่ต้องกังวลการวัดค่า

สำหรับการวัดแสงโดยทั่วไปนั้น เครื่องวัดแสงจำเป็นต้องมีมาตรฐานพวกนี้เพื่อเป็นพื้นฐานในการวัด เช่น แสง LED สีขาว, และอื่น ๆ ในพื้นที่อุตสาหกรรม เป็นต้น

มาพร้อมกับ PWM-controlled lighting ที่จะยกระดับการวัดแสงไปอีกขั้น

โดยทั่วไปแล้วเครื่องวัดแสงตามท้องตลาดนั้นไม่สามารถวัดแหล่งกำเนิดแสงที่มีการควบคุมด้วย PWM ได้อย่างแม่นยำ แต่สำหรับเครื่องวัดแสง T-10A นั้นสามารถที่จะวัดหล่งกำเนิดแสงที่มีการควบคุมด้วย PWM ได้อย่างแม่นยำ

ตัวรับแสงที่สามารถถอดออกได้

ตัวรับแสง และ ตัวเครื่องนั้น สามารถที่จะถอดออกจากกันได้ และยังสามารถเชื่อมต่อกันโดยใช้สาย LAN ทำให้ง่ายในการติดตั้งชิ้นส่วนของตัวรับแสงในการวางระบบ

ใช้งานง่าย วัดค่าได้หลายจุด (2 - 30 จุด) ด้วยราคาประหยัด

การวัดค่าแสงที่ถูกแบ่งออกเป็นหลายจุด หรือ มีขอบเขตที่กว้าง เช่น โปรเจ็คเตอร์ และอื่น ๆ ก็สามารถทำได้ง่ายดายด้วยเครื่องวัดตัวเดียวกับตัวรับแสงหลาย ๆ ตัว



Konica Minolta T-10A Illuminance Meter เครื่องวัดแสง

5 จุด เช่น การวัดแสงภายในห้องต่าง ๆ


Konica Minolta T-10A Illuminance Meter เครื่องวัดแสง

9 จุด เช่น แสงจากโปรเจ็คเตอร์


Konica Minolta T-10A Illuminance Meter เครื่องวัดแสง

25 จุด เช่น แสงสว่างของไฟถนน

T-10A | ช่วงการวัด

Measuring range

Illuminance: 0.01 to 299,900 lx; 0.001 to 29,990 fcd
Integrated illuminance: 0.01 to 999,900 x 103 lx·h 0.001 to 99,990 x 103 fcd·h / 0.001 to 9999 h

Linearity ±2% ±1 digit of displayed value

T-10A | Power Supply

2 AA-size batteries
AC adapter AC-A308 (optional; for 1 to 10 receptors)
AC adapter AC-A311 (optional; for 1 to 30 receptors)

Battery life72 hours or longer (when alkaline batteries are used) in continuous measurement

T-10A | ขนาดสินค้า

Dimensions 69 x 174 x 35 mm

Weight 200 g

T-10A | อุปกรณ์ที่มาในชุด

AA-size batteries 2 pcs.

Strap

Case

T-A13 : Cap (with Strap)

T-A14 : Mini Cap

T-10A | อุปกรณ์เสริม

T-S10w :Data Management software

T-A12 : Printer cable

AC Adapter

Mini plug

CL-A10 : Hard Case

T-10MA : receptor head

T-10WSA: receptor head

T-10WLA : receptor head

T-A20 : Adapter Unit for Main Body

T-A21 : Adapter Unit for Receptor Head

T-10A | ข้อมูลจำเพาะ

Model Illuminance Meter T-10A

Type Multi-function digital illuminance meter with detachable receptor head (Multi-point measurements of 2 to 30 points is possible)

Illuminance meter class Conforms to requirements for Class AA of JIS C 1609-1: 2006 "Illuminance meters Part 1: General measuring instruments"
Conforms to DIN 5032 Part 7 Class B

Receptor Silicon photocell

Relative spectral response Within 6% (f1´) of the CIE spectral luminous efficiency V (λ)

Cosine response (f2) Within 3%

Measuring range Auto range (5 manual ranges at the time of analog output)

Measuring function Illuminance (lx). illuminance difference (lx). illuminance ratio (%).
integrated illuminance (lx·h). integration time (h). average illuminance (lx).

User calibration functionCCF (Color Correction Factor) setting function: Measurement value x 0.500 to 2.000

Linearity ±2% ±1 digit of displayed value

Temperature / Humidity drift Within ±3%

Digital outputUSBAnalog output 1 mV/digit, 3 V at maximum reading; Output impedance: 10 KΩ; 90% response time: 28 ms

Display 3 or 4 Significant-digit LCD with backlight illumination (Automatic illumination)

Operating Temperature / Humidity range -10 to 40°C, relative humidity 85% or less (at 35°C) with no condensation

Storage Temperature / Humidity range -20 to 55°C, relative humidity 85% or less (at 35°C) with no condensation
