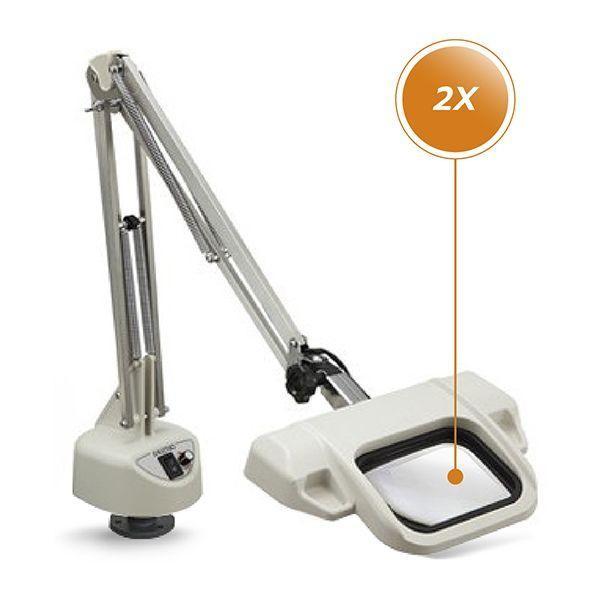

Otsuka O-LIGHT-III-L-FD-2X โคมไฟแว่นขยาย Free Arm Type LED Illuminated Magnifier / Fixed Type Desk Hold

O-LIGHT-III-L-FD-2X | Model

OLIGHT３L-FD (Free-arm-type illuminated magnifier / Fixed-type desk holder)

O-LIGHT-III-L-FD-2X | Light source

LED light panel

O-LIGHT-III-L-FD-2X | Magnification

Lens spec: 2x

O-LIGHT-III-L-FD-2X | Anti-Reflection Lens

No

O-LIGHT-III-L-FD-2X | ขนาดสินค้า

Lens dimension (mm): 44×108

Effective lens dimension (mm): 139×103Lens

MaterialOptical glassWorking distance (mm): 2x/160, 3.5x/120

Lens weight (g): 2x/560, 3.5x/730

Product weight: OLIGHT3L 2x  (approx. 3.0Kg) O-LIGHT III-L 3.5x (approx. 3.3Kg)

Arm length (mm):1000

Head Dimensions (mm): 293×205

clampable width (mm): 15～60

O-LIGHT-III-L-FD-2X | Power Supply Voltage

100～240V, 50/60Hz, plug type A

* It is usable  125 ～ 240V by changing the cord with attached AC plug. For more information, please contact your distributor

O-LIGHT-III-L-FD-2X | ข้อมูลจำเพาะ

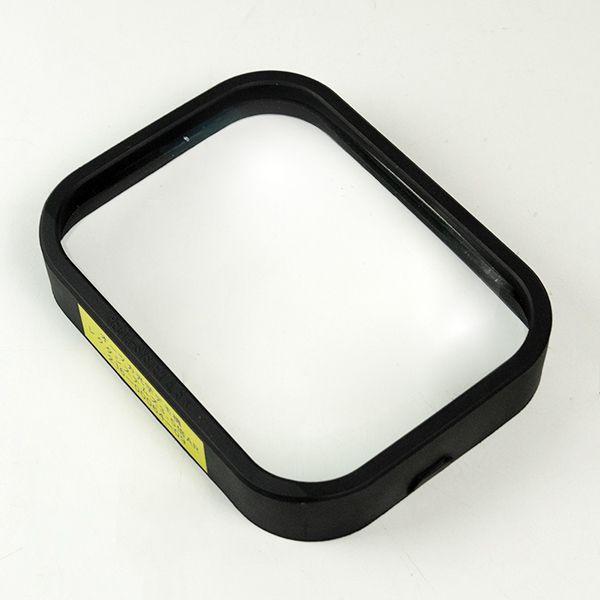

Lens spec

Lens dimension (mm): 144×108

Effective lens dimension (mm): 139×103

Lens MaterialOptical glassWorking distance (mm): 2x/160, 3.5x/120

Lens weight (g): 2x/560, 3.5x/730

Lens systemRecta-lens system: AR Coating optionsAvailable / 2x  3.5x

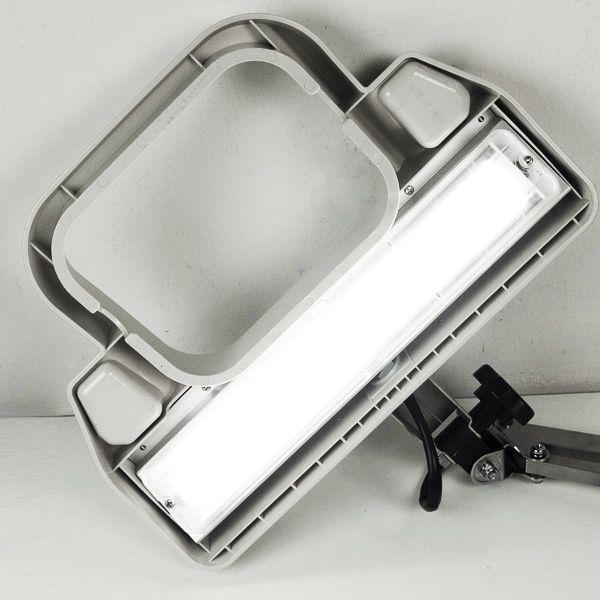

Lighting

Light source: LED light panel

Power Supply Voltage: 100～240V, 50/60Hz, plug type A

* It is usable  125 ～ 240V by changing the cord with attached AC plug. For more information, please contact your distributor.

Power consumption: 9W

Standby power: 0W

Dimming Function: Available / adjustment range 100～50%

Body

Product weight: OLIGHT3L 2x (approx. 3.0Kg)  O-LIGHT III-L 3.5x (approx. 3.3Kg)

Arm length (mm): 1000

Head Dimensions (mm): 293×205

clampable width (mm): 15～60

Operating temperature range: 5℃ ～40℃

Dust-proof and waterproof protection grade: IP20 (indoor use only)
