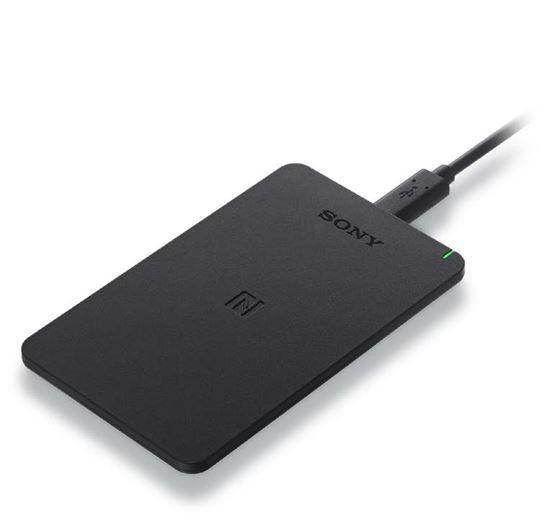

เครื่องอ่านข้อมูลแบบไร้สาย NFC เชื่อมต่อระหว่างคอมพิวเตอร์กับเครื่องวัด Supports Virtualize Environment Conforms to PC/SC2.0 Supports macOS*1 Equipped with LED
RC-S300-S1 ฟังก์ชั่นการวัด
เครื่องอ่านข้อมูล
RC-S300-S1 จุดเด่น
The communication status between the IC card and the Reader/Writer is indicated by the LED, as follows:
Off
inactive
glowing
Ready to communicate the IC card
flashing
Trying communicating with the card
RC-S300-S1 ขนาดสินค้า
External dimensions (W x H x D) Approx.59.5 mm x 10.5 mm x 95 mm
RC-S300-S1 อุปกรณ์ที่มาในชุด
Instruction manual, WEEE mark instructions, Holder, USB cable
(approx. 70 cm long, USB Type-B micro <-> USB Type-A [to the PC])
RC-S300-S1 ข้อมูลจำเพาะ
Regulation requirements :
[Japan] Radio law format specification number: AC-21066
[ USA] FCC ID: AK8RCS300
[ EU ]CE RE (2014/53/EU)
[UK ] S.I. 2017 No.1206 (RE)
For details of other regulation requirements, please contact your Sony representative.
Communication method :
Conforms to ISO/IEC 18092 (212 kbps / 424 kbps Passive communication mode)
Conforms to ISO/IEC 14443 Type A / Type B
Conforms to ISO/IEC 15693
Communication distance *1 : Approx.20 mm (distance from the external surface of the device) *2
Carrier frequency : 13.56 MHz
Communication speed (per card and device) :
FeliCa: 212 kbps, 424 kbps
ISO/IEC 14443: 106 kbps, 212 kbps, 424 kbps, 848 kbps
ISO/IEC 15693: 26 kbps
Compatible cards / devices*3 :
FeliCa Standard
FeliCa Lite-S
FeliCa Link
FeliCa Plug /NFC Dynamic Tag
Mobile smartphones with Mobile FeliCa OS ("Osaifu-Keitai")
ISO/IEC 14443 Type A / Type B
ISO/IEC 15693
NFC Forum Type 2 / 3 / 4A / 4B / 5 Tag
MIFARE Classic
MIFARE Ultralight, Ultralight C
MIFARE DESFire, MIFARE Plus
API : PC/SC Ver.2.0, FeliCa library
External interface : USB Type-B micro (Full Speed)
Operating temperature and humidity (no condensation)*4 : Approx.33 g (excluding USB cable and Holder)
Storage temperature and humidity (no condensation) : Approx.59.5 mm x 10.5 mm x 95 mm
Mass : DC5 V / Max.200 mA during operation
