PosiTest LPD Complete Kit เครื่องตรวจสอบรูบนผิวเคลือบสำหรับโลหะและคอนกรีต
lpdkitc
฿46,500.00(ราคายังไม่รวมภาษี 7%)
Low voltage Pinhole Detector for Metal and Concrete Substrates ตรวจจับจุดบกพร่อง รูเข็ม (pinhole) และความไม่ต่อเนื่องอื่น ๆ ของชั้นเคลือบบนพื้นผิวโลหะและคอนกรีต
Features
Simple
Easy-to-use interface with bright, multi-function LEDs
Ready to measure—both kits come with everything needed for testing
Audibly and visibly alerts when flaws are detected
Light, ergonomic design
Durable
Rugged, environmentally sealed enclosure
Weatherproof, dustproof and shockproof—meets or exceeds IP65
Accurate
Automatic self-test verifies voltage calibration
Regulated voltage outputs will not drop under load
Long Form Certificate of Calibration included
GroundSense™ visibly reassures the user that the instrument is properly grounded
Conforms to international standards including ISO, ASTM and NACE
Versatile
A wide range of adaptable sponge hardware for a variety of test configurations
Common threads and connectors allow for maximum flexibility
Headphone jack with included earbud for noisy environments
Uses 3 AAA alkaline or rechargeable batteries
4 voltage output options conform to a variety of standards
Specifications
Voltage Setting | 9V ± 5% | 67.5V ± 5% | 67.5V ± 5% | 90V ± 5% |
Sensitivity | 90k ± 3% | 80k ± 3% | 90k ± 3% | 400k ± 3% |
Thickness Range | 0 to 500 µm (0 to 20 mils) | |||
Temperature Range | -10 to 50°C | |||
IP Rating | IP65 | |||
Power Requirement | Battery AAA x 3 | |||
Dimensions | 270 x 60 x 55 mm (without wand) | |||
Weight | 180 g (without batteries) | |||

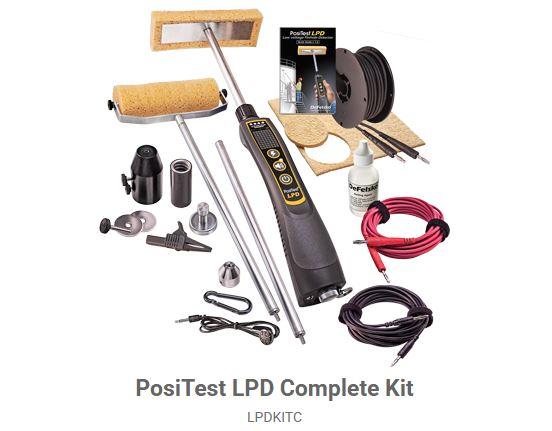

อุปกรณ์ภายในชุด Includes contents of the Basic Kit, PLUS:
Adaptable Sponge Hardware
Rectangle (Flat)
Roller
Internal Diameter
Additional 20 cm x 20 cm (8" x 8") sheet sponge for custom usages
Wetting agent
Extension Accessories
Extension rods provide an additional 0.6 m (2') of reach
Universal adapters to extend existing paint rollers and poles
12 m (40') ground wire
4.5 m (15') hot wire
Magnetic grounding post
