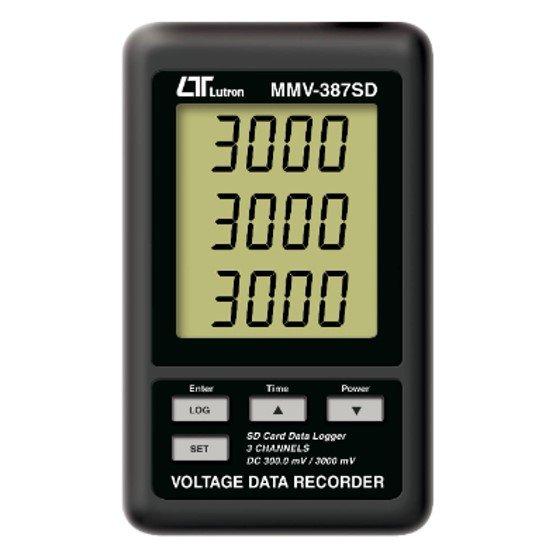

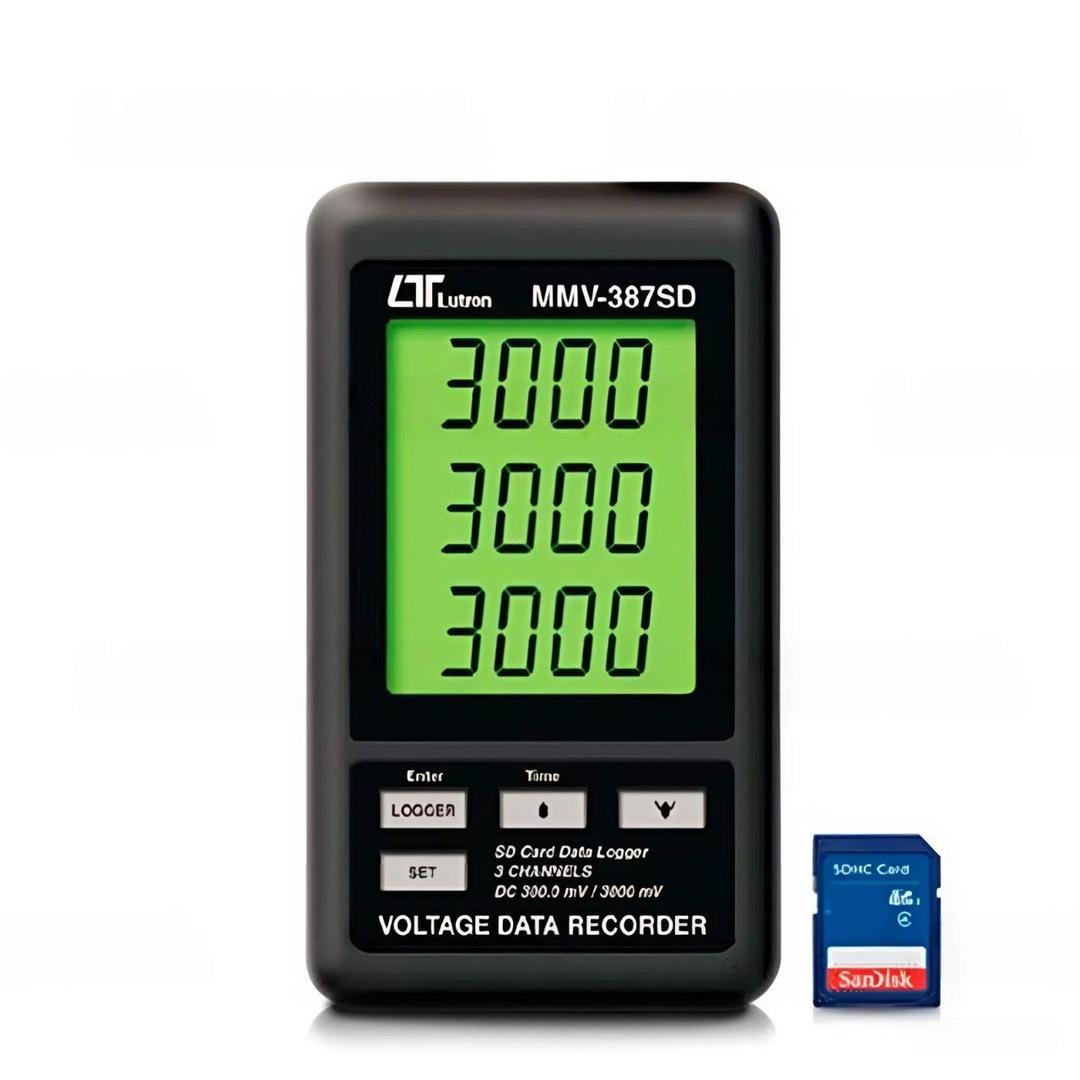

Lutron MMV-387SD เครื่องบันทึกแรงดันไฟฟ้า 3 channels VOLTAGE RECORDER
MMV-387SD
฿10,300.00(ไม่รวมภาษี)

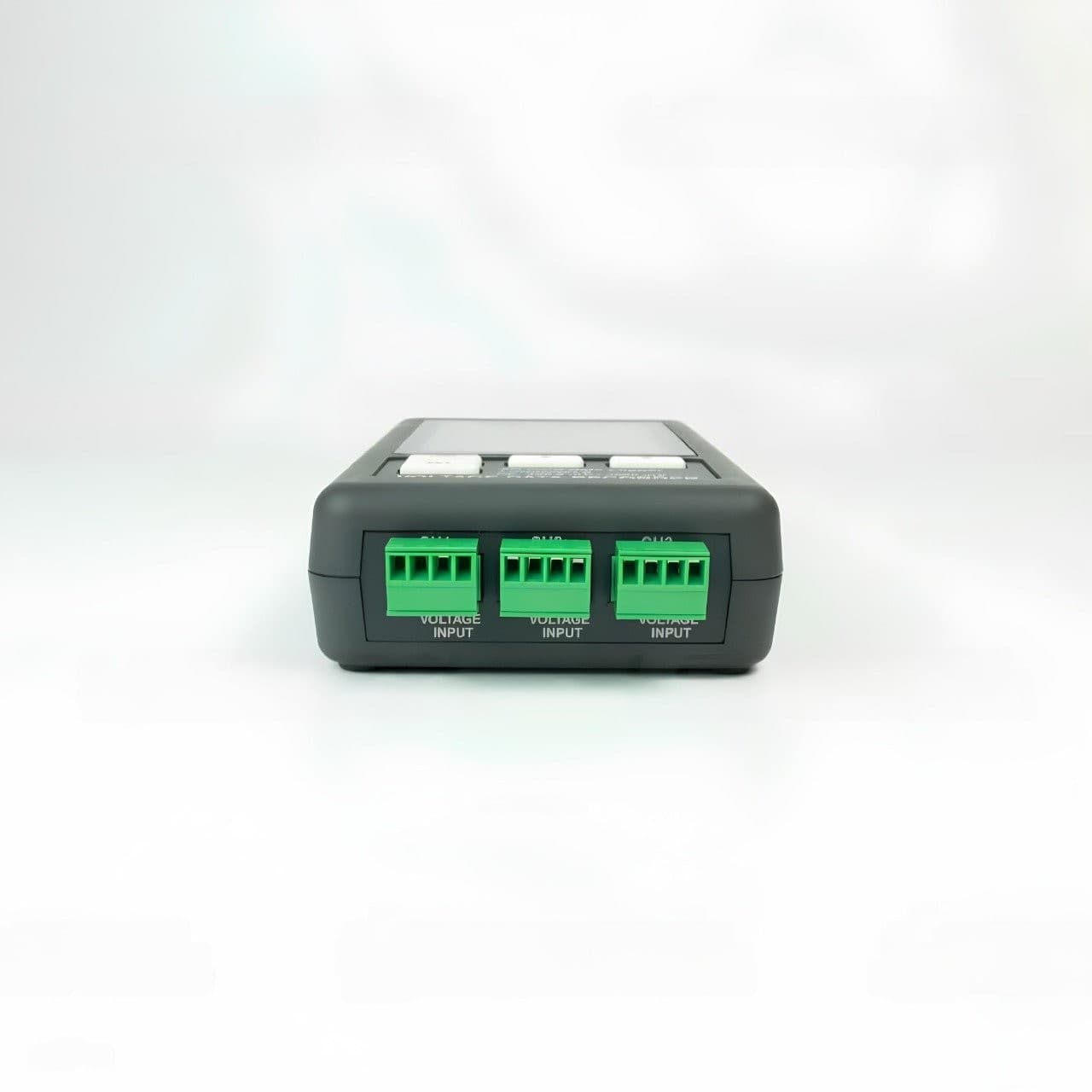

Lutron MMV-387SD เครื่องบันทึกแรงดันไฟฟ้า Input แบบ 3 channels (CH1, CH2, CH3) Input signal 300.0mV/ 3000mV บันทึกข้อมูลด้วย SD Card (สูงสุด 16GB) รองรับการเชื่อมต่อ RS232/ USB Interface ยี่ห้อ Lutron, Taiwan
ฟังก์ชั่นการวัด
เครื่องบันทึกแรงดันไฟฟ้า 3 channels VOLTAGE RECORDER
จุดเด่น
บันทึกข้อมูลแบบเรียลไทม์
รองรับการวัดหลายช่องสัญญาณ
ความแม่นยำและความละเอียดสูง
ออกแบบเพื่อความสะดวกในการใช้งาน
การเชื่อมต่อขั้นสูง
ทนทานและพกพาสะดวก
นาฬิกาและปฏิทินแบบเรียลไทม์
บันทึกข้อมูลได้ทั้งแบบอัตโนมัติและแบบแมนนวล
รองรับการวัดหลายช่องสัญญาณ
RS232/USB Interface
ฟังก์ชันเรียกดูข้อมูลจากหน่วยความจำ
ระบบปิดเครื่องอัตโนมัติ
วงจรควบคุมแบบไมโครคอมพิวเตอร์ Microcomputer Circuit
ช่วงการวัด
DC Voltage
Range: 300.0 mV (Resolution: 0.1 mV) / 3000 mV (Resolution: 1 mV)
Accuracy: 300.0 mV: ±(0.5% + 0.2 mV) /3000 mV: ±(0.5% + 2 mV)
Power Supply
DC 1.5V battery (UM4, AAA) x 6 PCs, or equivalent
DC 9V adapter input
ขนาดสินค้า
Large LCD Display: 60 mm x 50 mm
132 x 80 x 32 mm (5.2 x 3.1 x 1.3 inch)
199 g (0.44 lb)

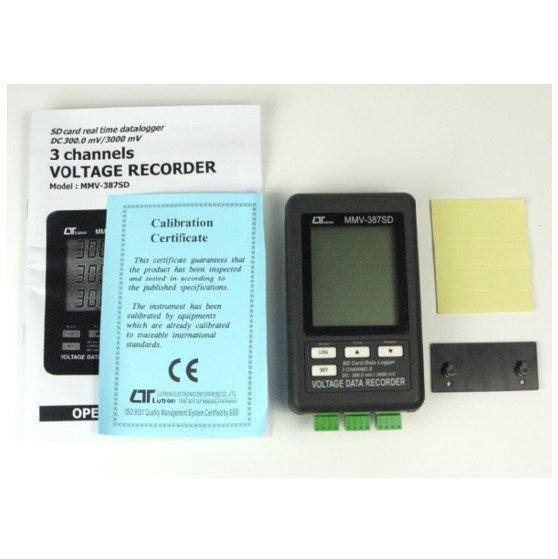

อุปกรณ์ที่มาในชุด
ตัวเครื่อง
Harding case
อแดปเตอร์ (AP-9VA)
SD Card 32GB x 1
อุปกรณ์เสริม
USB Cable (USB-01)
RS232 Cable (UPCB-02)
AC to DC 9V Adapter
Data Acquisition Software (SW-U801-WIN)
Excel Data Acquisition Software (SW-E802)
ข้อมูลจำเพาะ
Circuit Custom one-chip of microprocessor LSI circuit.
Data Logger Sampling Time 1/2/5/10/30/60/120/300/600 seconds /Auto
Data error no. ≦0.1 % no. of total saved data typically.
Advanced setting
SD memory card Format
Set clock time ( Year/Month/Date, Hour/Minute/Second )
Set sampling time
Set beeper sound ON/OFF
Set SD card Decimal character
Set RS232 data output ON/OFF
Set input range ( 300.0 mV/3000 mV )
Update Time of Display Approx. 1 second if measuring data is changed.

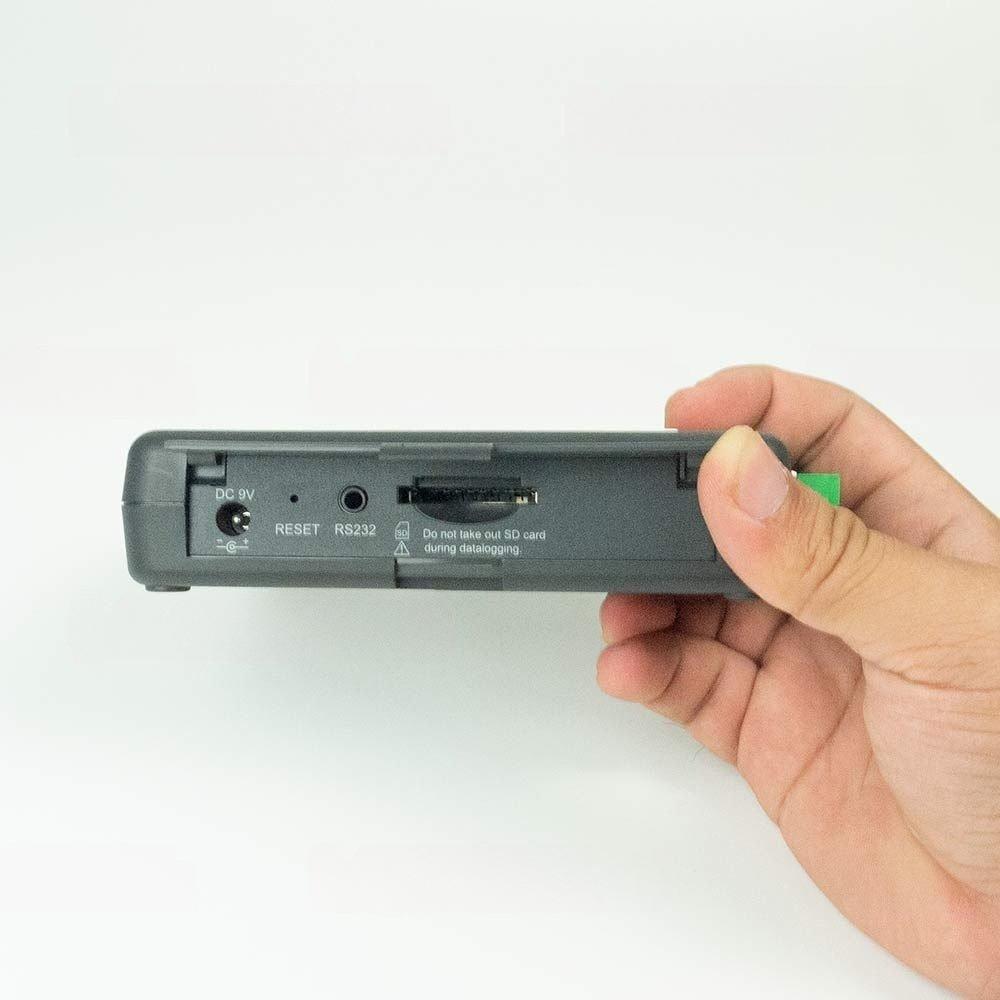

Data Output
RS 232/USB PC computer interface.
* Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.
* Connect the optional USB cable
USB-01 will get the USB plug.
Operating Temperature 0 to 50℃ .
Operating humidity Less than 85% R.H.
