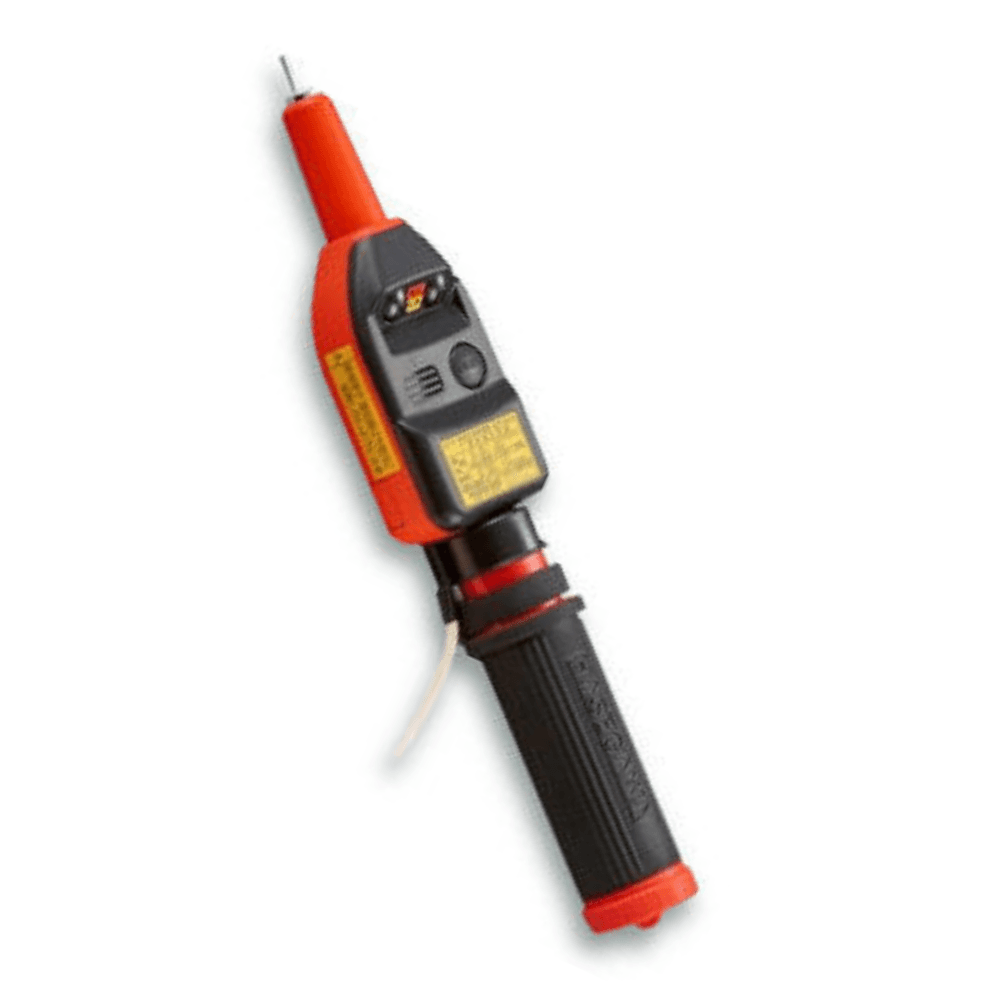

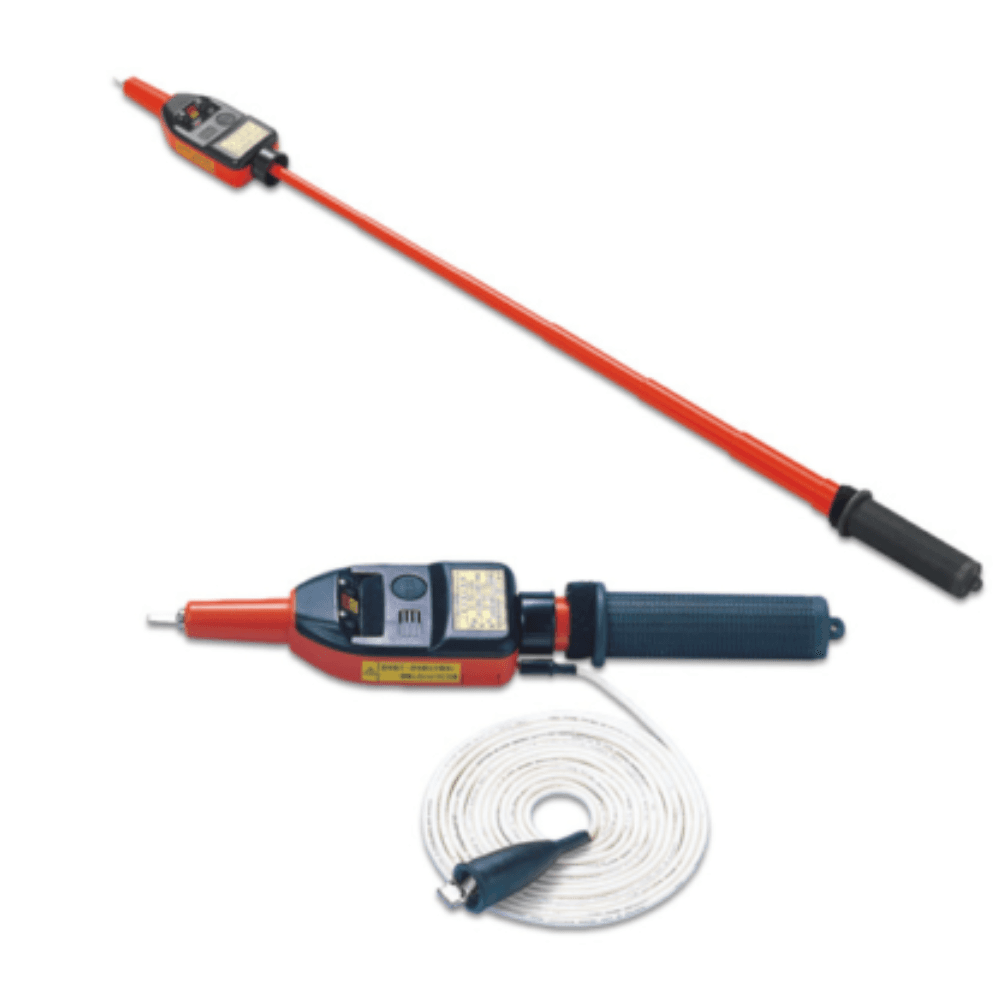

HASEGAWA HSN-6A1 เครื่องตรวจจับแรงดันไฟฟ้า (High/Low Voltage)

Without grounding wire

AC

100 V to 600 V (Voltage detection by touching the name plate with a hand)

3 kV to 7 kV (With extended insulating stick)

With grounding wire

AC

100 V to 7000 V (Usable up to 10.5 kV for withstand voltage test)

DC

50 V to 7000 V (Usable up to 21 kV for withstand voltage test)

Working voltage range

Without grounding wire

AC

100 V to 600 V (Voltage detection by touching the name plate with a hand)

3 kV to 7 kV (With extended insulating stick)

With grounding wire

AC

100 V to 7000 V (Usable up to 10.5 kV for withstand voltage test)

DC

50 V to 7000 V (Usable up to 21 kV for withstand voltage test)

Frequency (AC)

50/60Hz

Leakage current

Between contact tip and name plate

4 kVAC, 1 min, 1 mA or less

Between contact tip and grip

(Insulating stick: Shortened) 20 kVAC, 1 min, 100μ A or less

(Insulating stick: Extended) 50 kVAC, 1 min, 100μ A or less

Between contact tip and grounding clip

26 kVAC, 1 min, 1 mA or less

Between core of the grounding plug and outside the covering

22 kVDC, 1 min

Battery

LR44(1.5V) × 2 pcs

Operating temperature range

-10°C ~ +50°C

Weight

About 290 g
