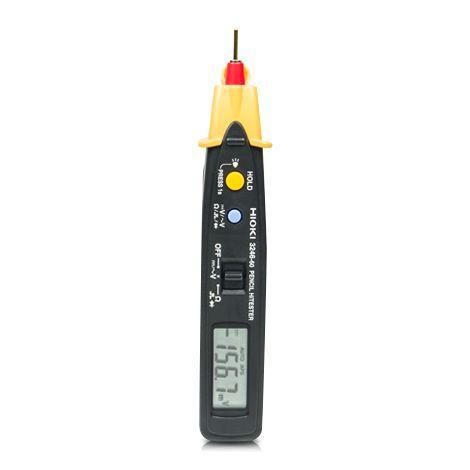

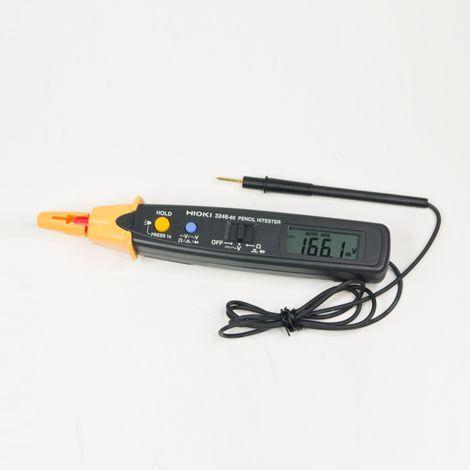

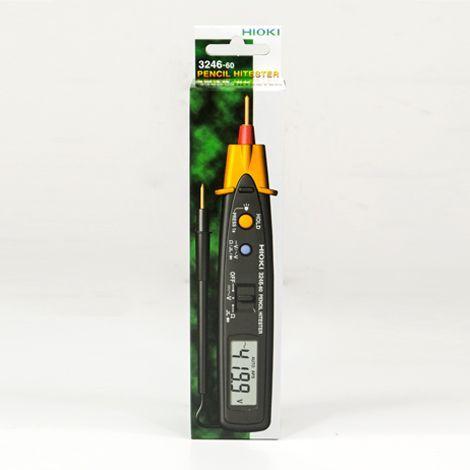

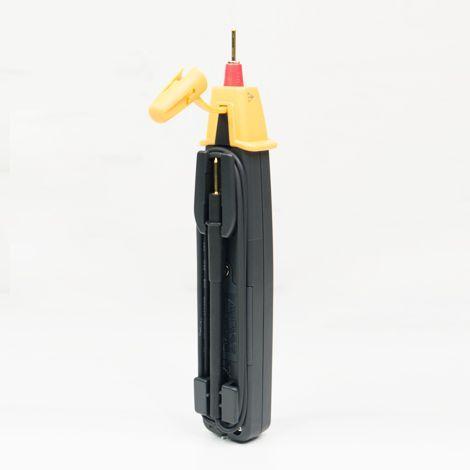

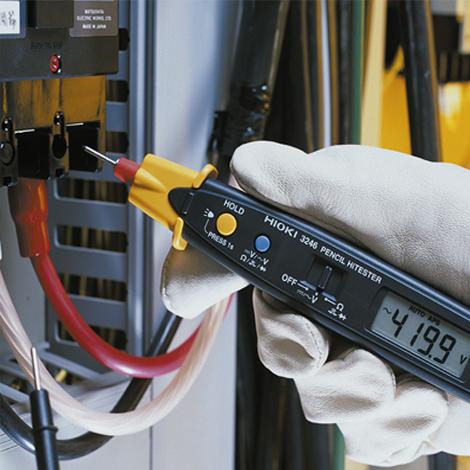

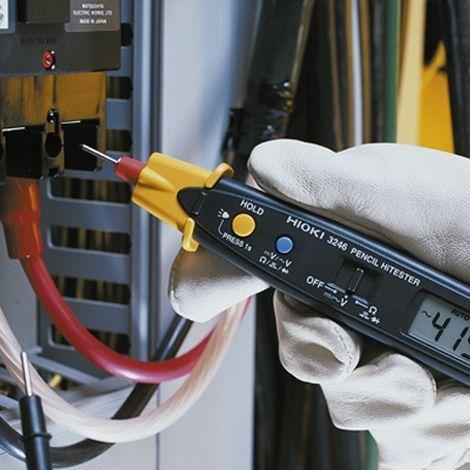

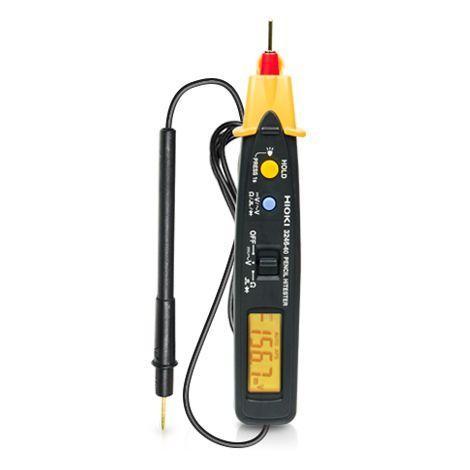

Hioki-3246-60 มัลติมิเตอร์แบบปากกา | Max.ACV/DCV 600V

Function

Range

Accuracy

DC Voltage

420.0 mV/ 4.200 V/ 42.00 V/ 420.0 V/ 600 V

±1.3% rdg. ±4 dgt.

AC Voltage

4.200V/ 42.00 V/ 420.0 V/ 600 V

±2.3% rdg. ±8 dgt.

Resistance

420.0 Ω/ 4.200 kΩ/ 42.00 kΩ/ 420.0 kΩ/ 4.200 MΩ/ 42.00 MΩ

±2.0% rdg. ±4 dgt.

Continuity

420.0 Ω *Buzzer sound at approx 50 Ω ±40 Ω or less

±2.0% rdg. ±4 dgt.

Diode Check

Judgement only (0.3V to 2.0V)

DC Voltage range

419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.

AC Voltage range

4.199 V to 600 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified)

Resistance range

419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt.

Continuity buzzer

Detection level 50 Ω ±40 Ω

Diode check

Judges the right direction only, Open terminal voltage: 3.4 V or less, Testing current: 800 µA or less

Auto power save

Available (cancel selectable)

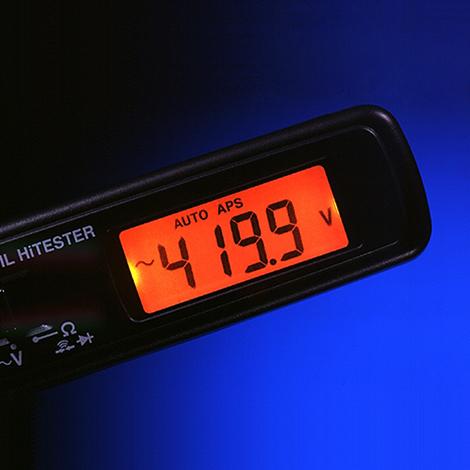

Display

Digital LCD, max. 4199 digits

Sampling rate

2.5 times/sec

Power supply

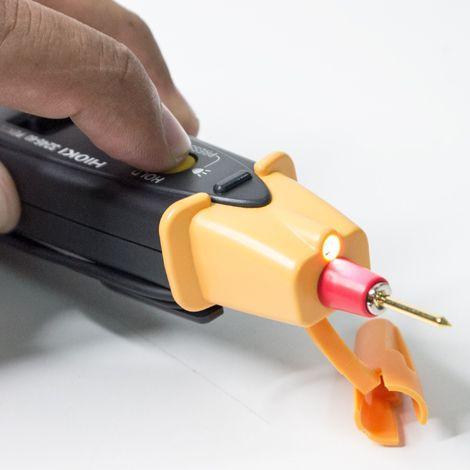

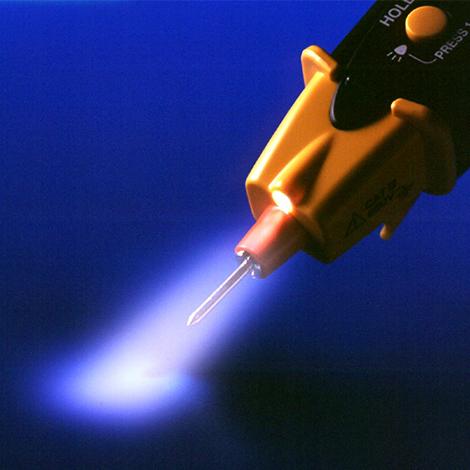

Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours (at DC V function), 30 hours (with light turned on for 10 seconds and off for 20 seconds per cycle and in DC V function)

Dimensions and Weight

30 x 182 x 26.5 mm / 80 g

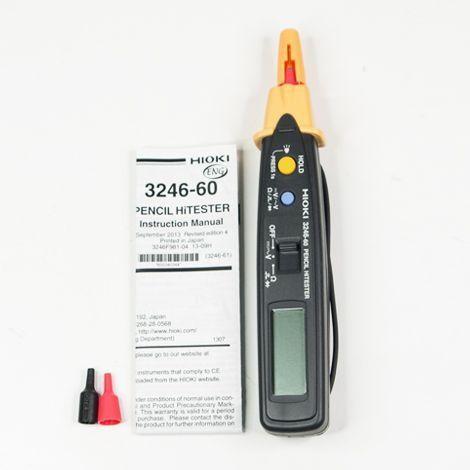

Included accessories

Instruction manual ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1)
