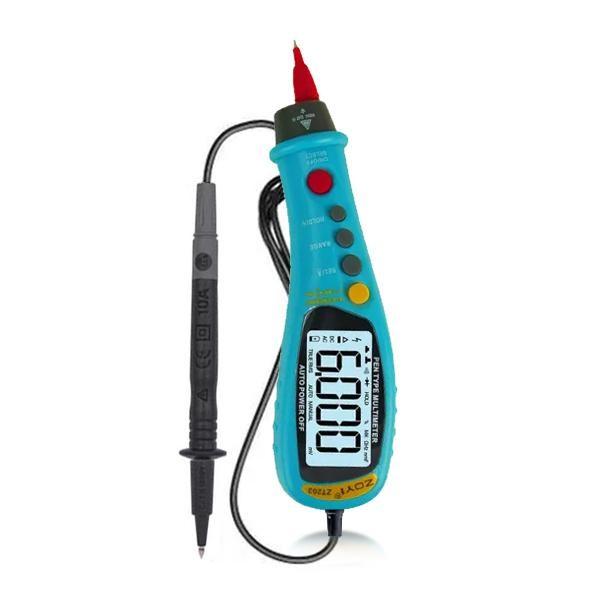

ZOYI ZT-203 มัลติมิเตอร์แบบปากกา | Max. ACV/DCV 600V

ZT-203 | ฟังก์ชั่นการวัด

✔ Auto ranging

✔ True RMS

✔ Data hold

✔ Backlight

✔ Low battery alert

✔ Auto power off

✔ Flashlight

✔ Relative measurement

ZT-203 | ช่วงการวัด

DC Voltage

Range 60.00mV / 600.0mV / 6.000V / 60.00V / 600.0V

Accuracy ±(0.5%+3)

AC Voltage

Range 60.00mV / 600.0mV / 6.000V / 60.00V / 600.0V

Accuracy ±(1.0%+3)

Resistance

Range

* 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ Accuracy ±(0.5%+3)

* 60.00MΩ Accuracy  ±(1.5%+3)

Capacitance

Range

* 9.999nF Accuracy ±(5.0%+20)

* 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF Accuracy ±(2.0%+5)

* 9.999mF Accuracy ±(5.0%+5)

Frequency

Range 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz Accuracy ±(0.1%+2)

ZT-203 | Power Supply

2 x 1.5V AAA Battery

ZT-203 | ขนาดสินค้า

Dimension / Weight 202 x 51 x 34mm / 200g

ZT-203 | อุปกรณ์ที่มาในชุด

Battery

1.5m(5.9in) Test lead

Standard user manual

Black soft case

Alligator clip
