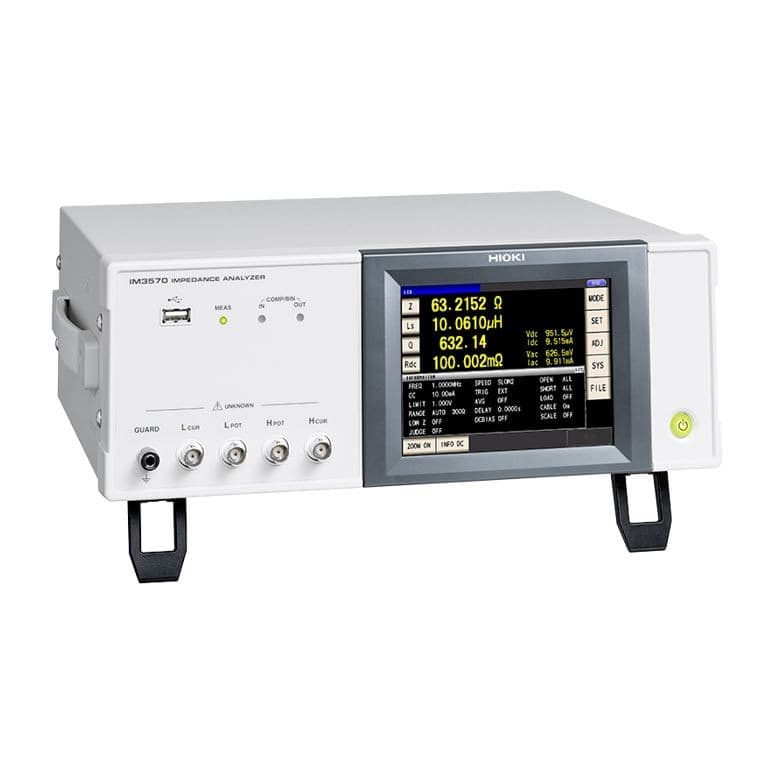

HIOKI IM3570 Impedance Analyzer เครื่องวัดแอลซีอาร์

LCR/Impedance

4 Hz - 5 MHz

Z ±0.08% rdg. θ: ±0.05°

Measurement parameters

Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp,
D (tanδ), Q

Measurement range

100 mΩ to 100 MΩ, 12 ranges (All parameters are determined according to Z)

Display range

Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only
θ : ±(0.000° to 180.000°), D : ±(0.000000 to 9.999999)
Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%)

Basic accuracy

Z ±0.08% rdg. θ: ±0.05°

Measurement frequency

4 Hz to 5 MHz (5 digits setting resolution, minimum resolution 10 mHz)

Measurement signal level

Normal mode:
V mode/CV mode: 5 mV to 5 Vrms (up to 1 MHz)
10 mV to 1 Vrms (1.0001 MHz to 5 MHz), 1 mVrms steps
CC mode: 10 μA to 50 mArms (up to 1 MHz)
10 μA to 10 mArms (1.0001 MHz to 5 MHz), 10 μArms steps
Low impedance high repeatability mode:
V mode/CV mode: 5 mV to 1 Vrms (up to 100 kHz), 1 mVrms steps
CC mode:10 μA to 100 mArms (100 mΩ and 1Ω ranges of up to 100 kHz), 10 μArms steps

Output impedance

Normal mode: 100 Ω, Low impedance high repeatability mode: 10 Ω

Display

5.7-inch color TFT, display can be set to ON/OFF

Measurement time

0.5 ms (100 kHz, FAST, display OFF, representative value)

Functions

DC bias measurement, Comparator, BIN measurement (classification), Panel loading/saving, Memory function

Interfaces

EXT I/O (handler), RS-232C, GP-IB, USB communication, USB memory, LAN

Power supply

90 to 264 V AC, 50/60 Hz, 150 VA max.
