Hioki RM3544-01 เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะHioki RM3544-01 เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะHioki RM3544-01 เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะHioki RM3544-01 เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะHioki RM3544-01 เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะ
HIOKI

Hioki RM3544-01 เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะ

รหัสสินค้า

RM3544-01

ภาพรวม

เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะ ช่วงการวัดกว้างตั้งแต่ 30 mΩ ถึง 3 MΩ ความแม่นยำสูงถึง ±0.02% | Resolution 1 μΩ Built-in EXT I/O, RS-232 และ USB interface ยี่ห้อ Hioki, Japan

เพิ่มคำถาม

RM3544-01 | ฟังก์ชั่นการวัด

Resistance
Temperature

RM3544-01 | จุดเด่น

0.02% basic accuracy, 1 μΩ max. resolution, 300 mA max. measurable current

Measure from 0.000 mΩ (testing current 300 mA) to 3.5 MΩ

Probe for guard jack use and increased measurement current yield an instrument that’s more resistant to noise

Optional LED COMPARATOR ATTACHMENT and high-volume judgment tones combine to ensure PASS/FAIL judgments are communicated reliably in the noisy environment of the production floor

EXT I/O interface with NPN/PNP support can accommodate a variety of automated production lines (-01 model)

RM3544-01 | ช่วงการวัด

Resistance range: 30 mΩ (35.000 mΩ display max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 9 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.

Temperature measurement: -10.0 °Cto 99.9°C, accuracy: ±0.5 °C (Temperature Sensor Z2001 and RM3544 combined accuracy)

RM3544-01 | Power Supply

100 to 240 V AC, 50/60 Hz, Rated power consumption: 15 VA

RM3544-01 | ขนาดสินค้า

215 mm (8.46 in) W × 80 mm (3.15 in) H × 166 mm (6.54 in) D
1.0 kg (35.3 oz)

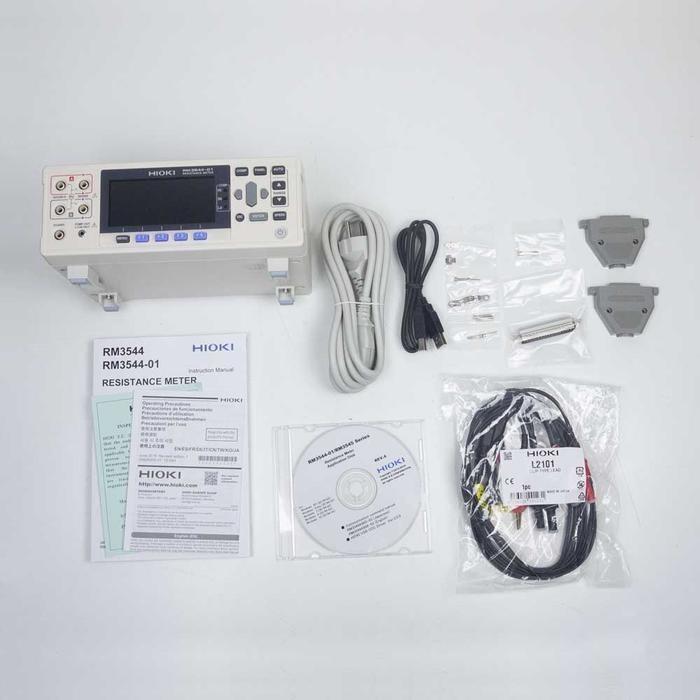

RM3544-01 | อุปกรณ์ที่มาในชุด

Power cord ×1

Clip type lead L2101 ×1

Male EXT. I/O connector ×1

Instruction manual ×1

Application disc ×1

USB cable (A-to-B type) ×1

Spare fuse ×1

RM3544-01 | อุปกรณ์เสริม

4-TERMINAL LEAD L2104

PIN TYPE LEAD L2103

TEMPERATURE SENSOR Z2001

LED COMPARATOR ATTACHMENT L2105

CLIP TYPE LEAD L2101

PIN TYPE LEAD L2102

RS-232C CABLE 9637

RM3544-01 | ข้อมูลจำเพาะ

Resistance range: 30 mΩ (35.000 mΩ display max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 9 steps
Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.

Testing current: [at 30 mΩ range] 300 mA DC to [at 3 MΩ range] 500 nA DC

Open-terminal voltage: 5.5 V DC max.

Temperature measurement: -10.0 °Cto 99.9°C, accuracy: ±0.5 °C (Temperature Sensor Z2001 and RM3544 combined accuracy)

Measurement speed: FAST (50Hz: 21ms, 60Hz: 18ms) / MED (101ms) / SLOW (401ms)

Display refresh rateN/AFunctions: Temperature correction, comparator (ABS/REF%), key-lock (OFF, menu lock, all lock), display digit count selection function (5 digits/ 4 digits), automatic power supply frequency settings (AUTO/50Hz/60Hz), scaling, judgment sound setting, auto hold, averaging, panel store/panel load

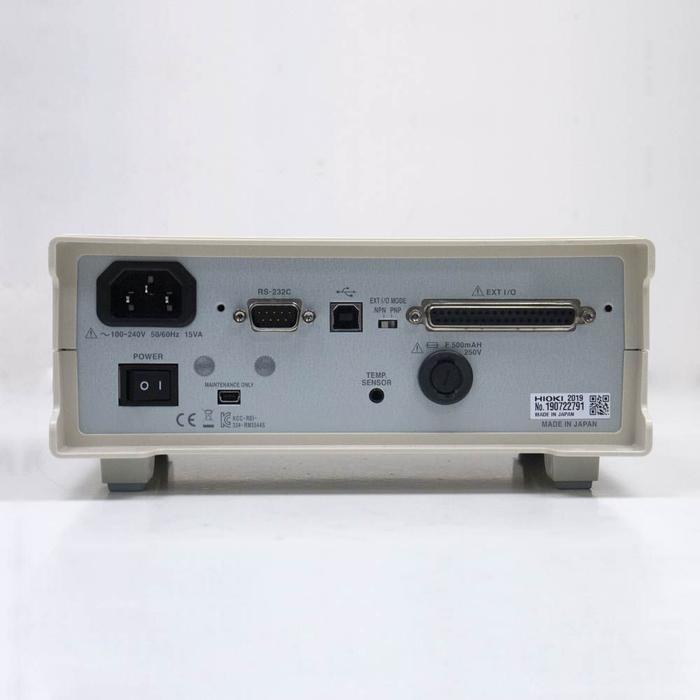

Communication interfaces: [Only RM3544-01] Select from RS-232C, Printer (RS-232C), or USB
Remote function, communications monitor function, data output function

Power supply: 100 to 240 V AC, 50/60 Hz, Rated power consumption: 15 VA

Dimensions and mass: 215 mm (8.46 in) W × 80 mm (3.15 in) H × 166 mm (6.54 in) D
[RM3544] 0.9 kg (31.7 oz), [RM3544-01] 1.0 kg (35.3 oz)

Included accessories: [RM3544-01] Power cord ×1, Clip type lead L2101 ×1, Male EXT. I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Spare fuse ×1
